Chief Directional Control Valve G Series 2 500 PSI 21 GPM 1 Spool SAE Inlet 10/12 Outlets Hydraulic Valves & Manifolds Tractor Repair & Parts

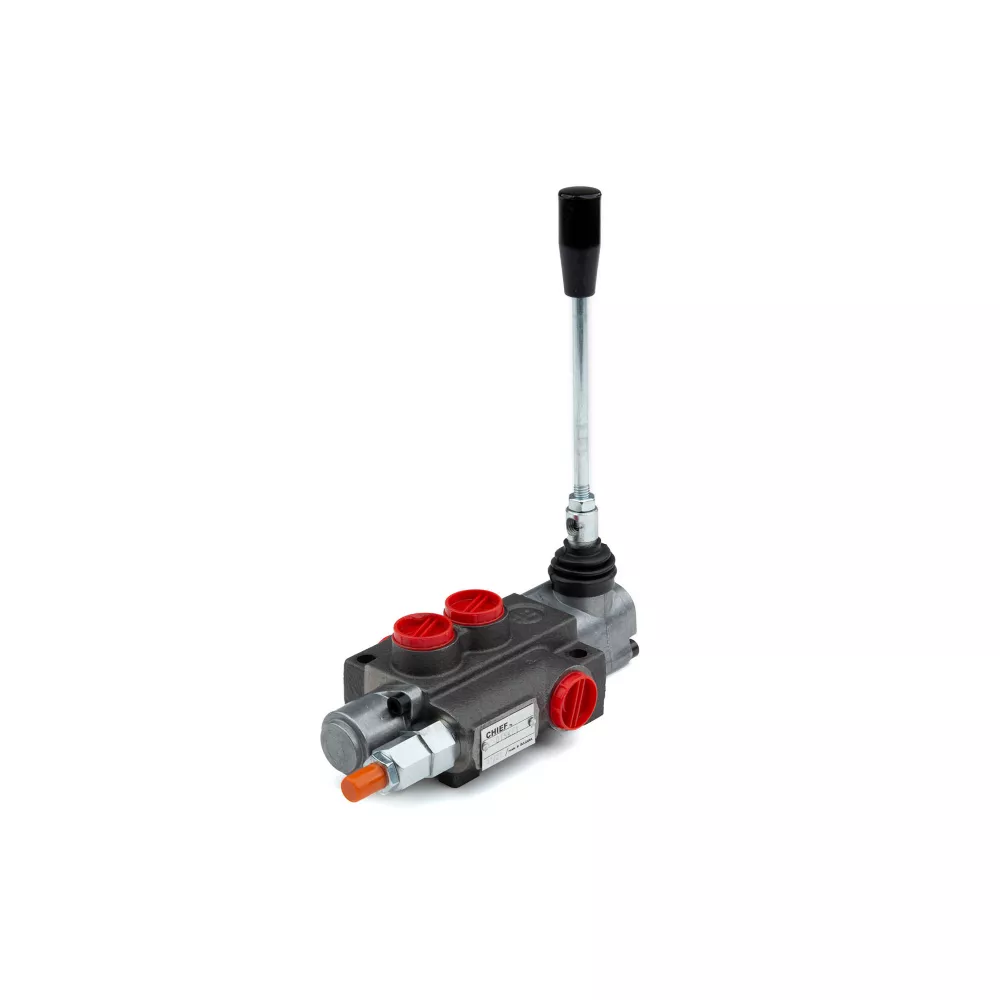

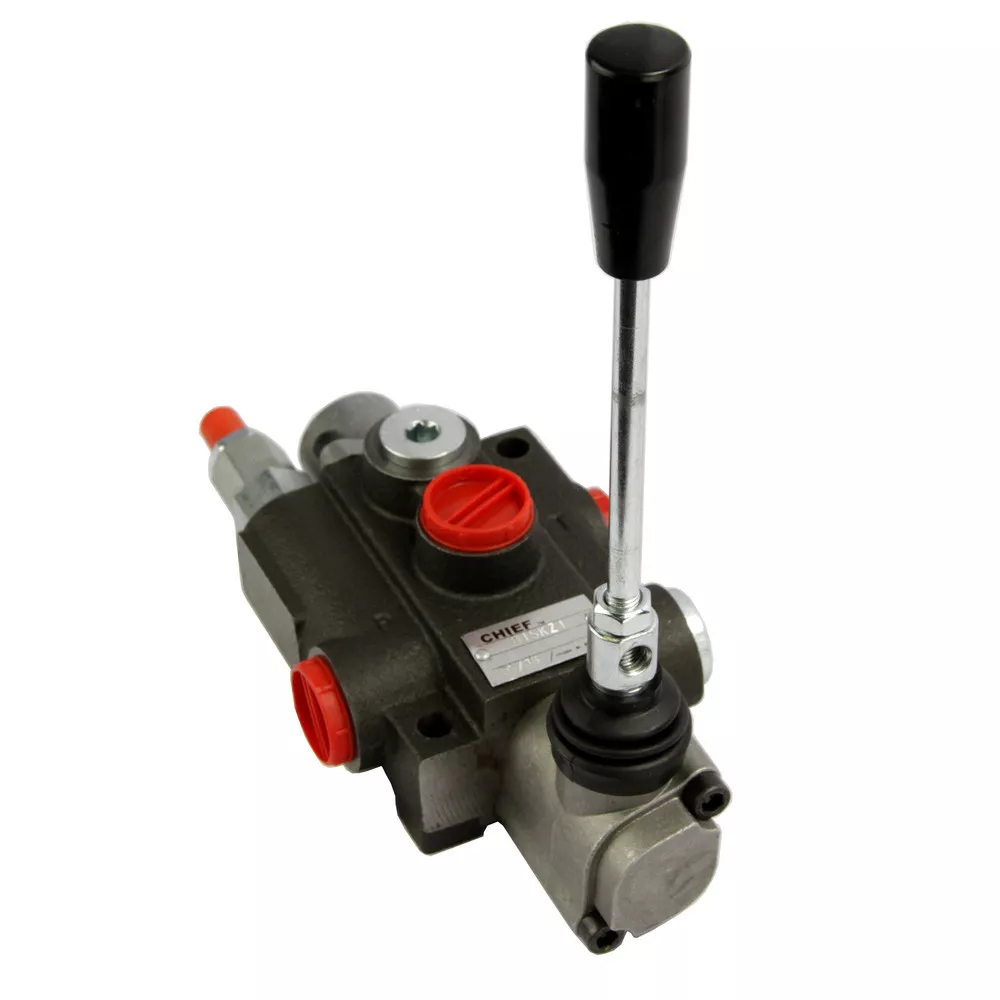

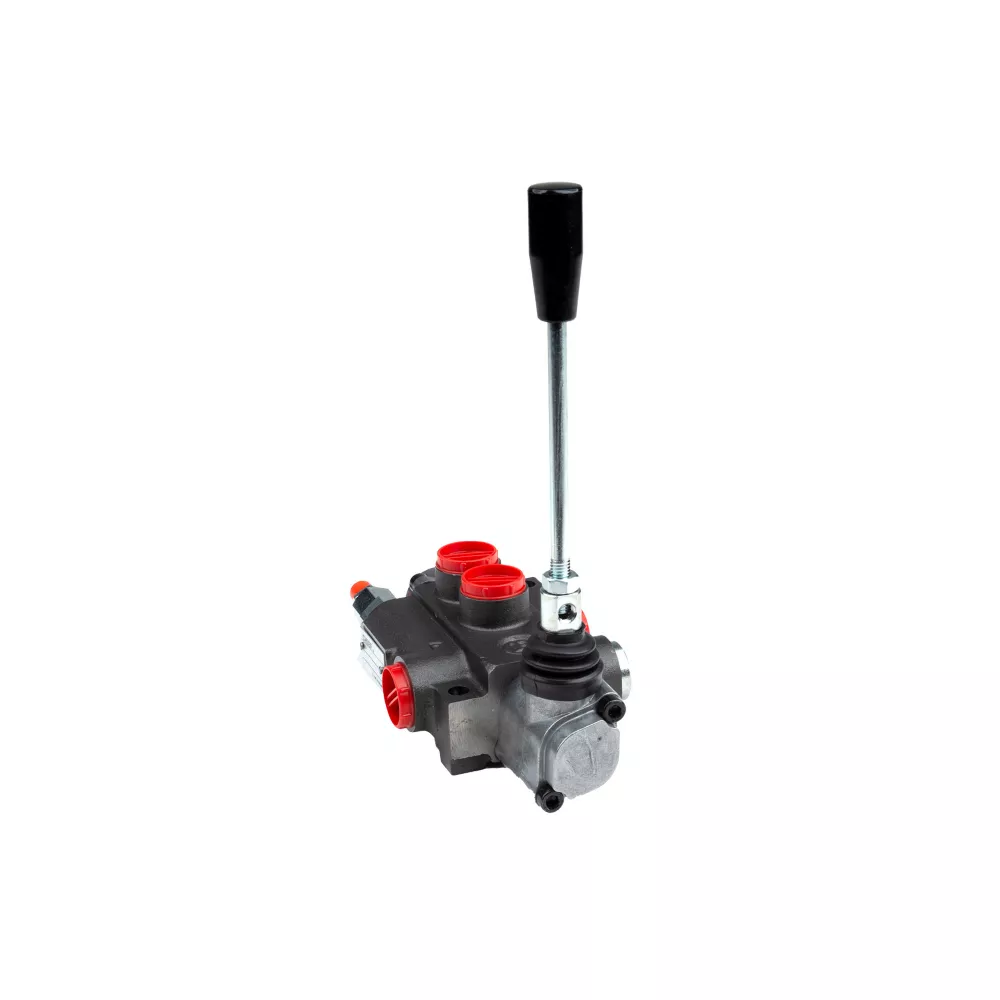

The Chief 2,500 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect equipment setup with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
This hydraulic control valve features 3,625 PSI with a 2,500 relief setting
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
This Chief hydraulic directional control valve is equipped with a single spool
European design with SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
Flow rate: 21 GPM
Valving: 4-way, 3-position tandem center
Action: 3-position spring center
Max. operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Directional Control Valve G Series 2 500 PSI 21 GPM 1 Spool SAE Inlet 10/12 Outlets Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	10 SAE
Inlet Type	Female
Maximum Flow Rate	21 GPM
Maximum PSI	2,500 PSI
Model Compatibility	Universal
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	12 SAE
Outlet Type	Female
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	8.58 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 10
Manufacturer PartNumber	220994

Chief 2,500 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/12 Outlet Specifications Expand/Collapse Specification Description Primary Brand Country of Origin Made in USA Brand Compatibility Universal Compatibility Most Applications Inlet Size 10 SAE Inlet Type Female Maximum Flow 21 GPM Maximum PSI 2,500 PSI Model Compatibility Universal Number of Directional Control Positions 3 OEM Replacement Control Valve Outlet Size 12 Outlet Type SAE Female Main Material Cast Iron Product Height N/A Product Length N/A Product Weight 8.58 lbs Product Width N/ A 1 Year Warranty Working Port Size SAE 10 Manufacturer Part Number 220994
