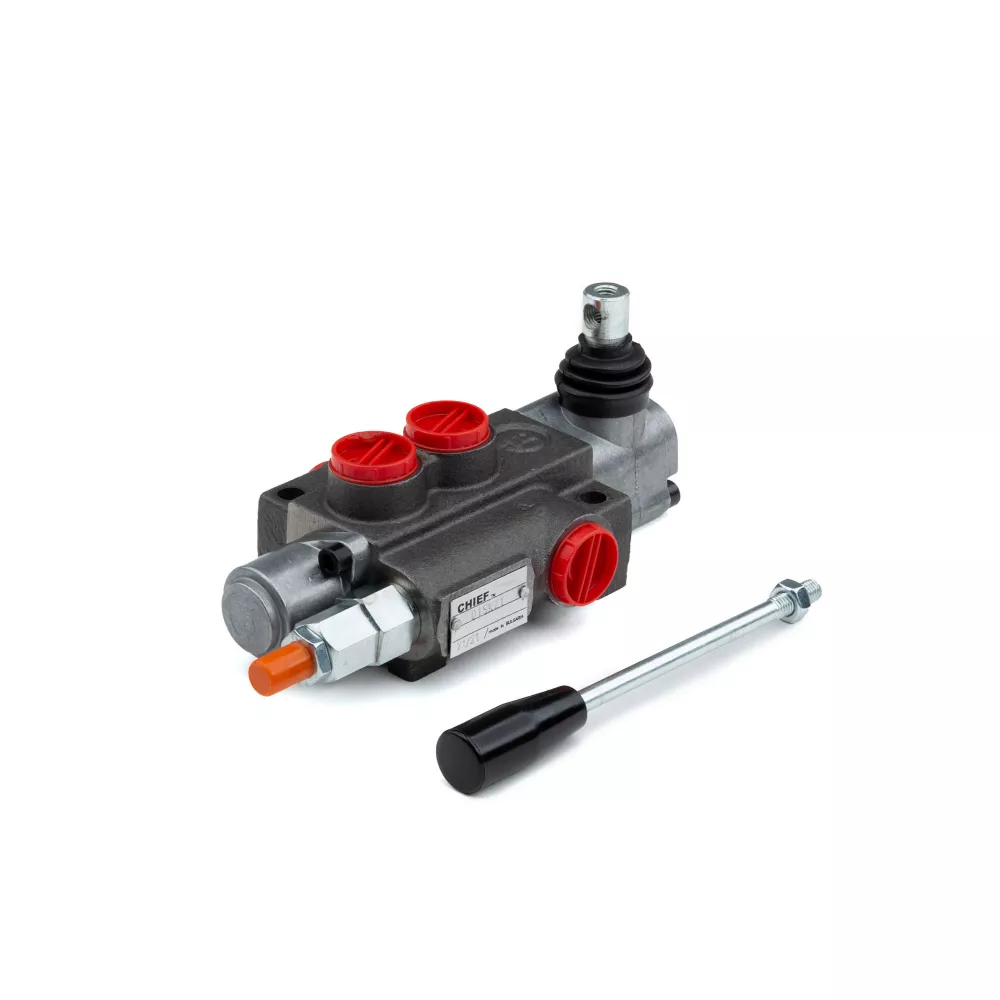

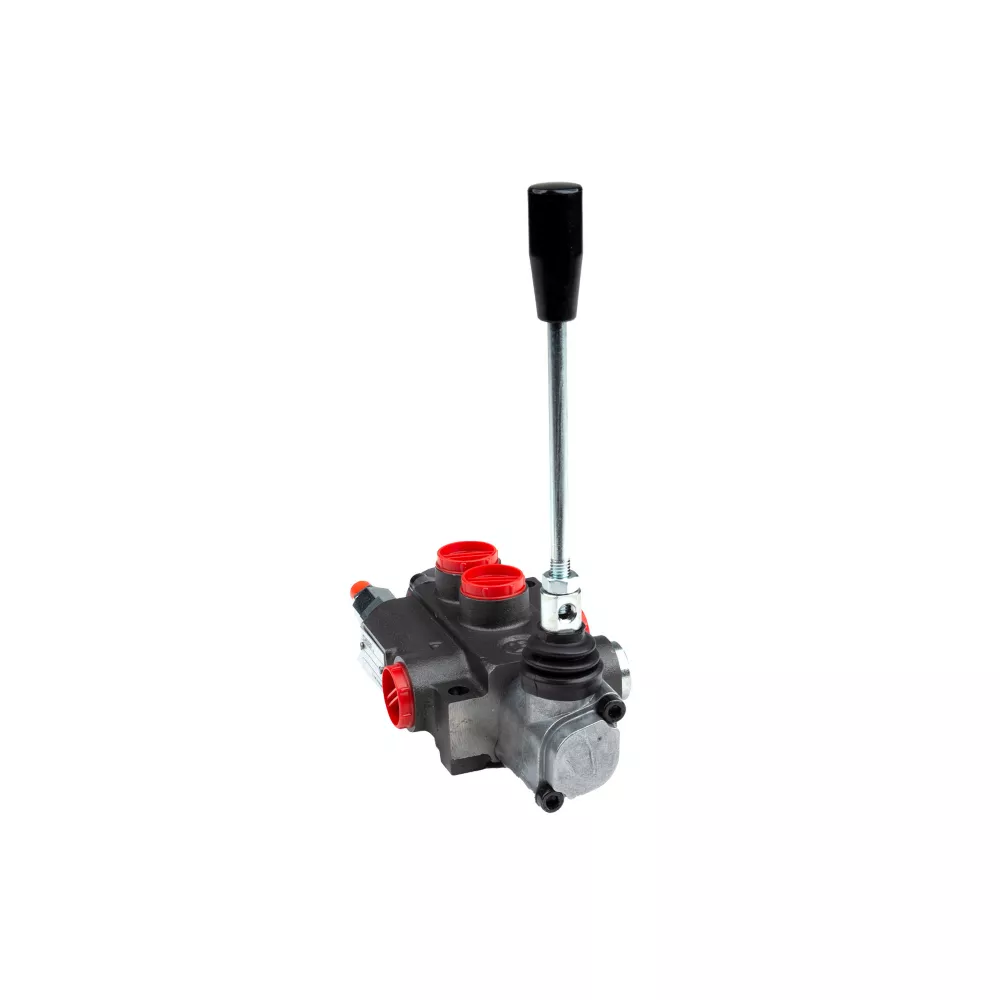

Chief Directional Control Valve G Series 3625 PSI 21 GPM 1 Spool SAE 10 Inlet/SAE 12 Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect setup with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
Hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
This Chief hydraulic directional control valve is equipped with a single spool
European design with 21 GPM, SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
Valving: 4-way, 3-position motor center
Action: 3-position spring center
Max operating temperature: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Directional Control Valve G Series 3625 PSI 21 GPM 1 Spool SAE 10 Inlet/SAE 12 Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	SAE 10
Inlet Type	Female
Maximum Flow Rate	21 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 12
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	8.58 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 10
Manufacturer PartNumber	220954
