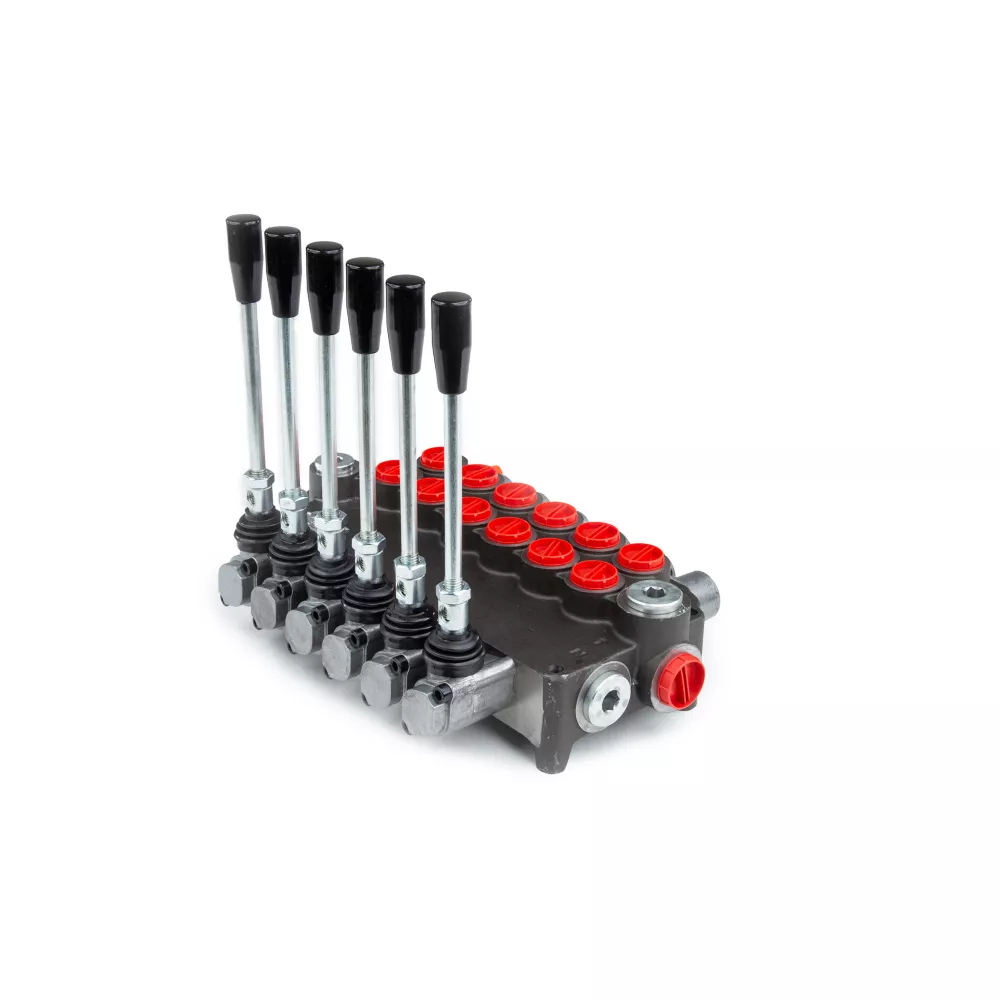

Chief Directional Control Valve G Series 3625 PSI 21 GPM 6 Spool SAE 10 Inlet/SAE 12 Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts
The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with six spools. Create the perfect equipment setup with help from a Chief hydraulic valve today.- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- This hydraulic control valve features adjustable relief up to 3,625 PSI

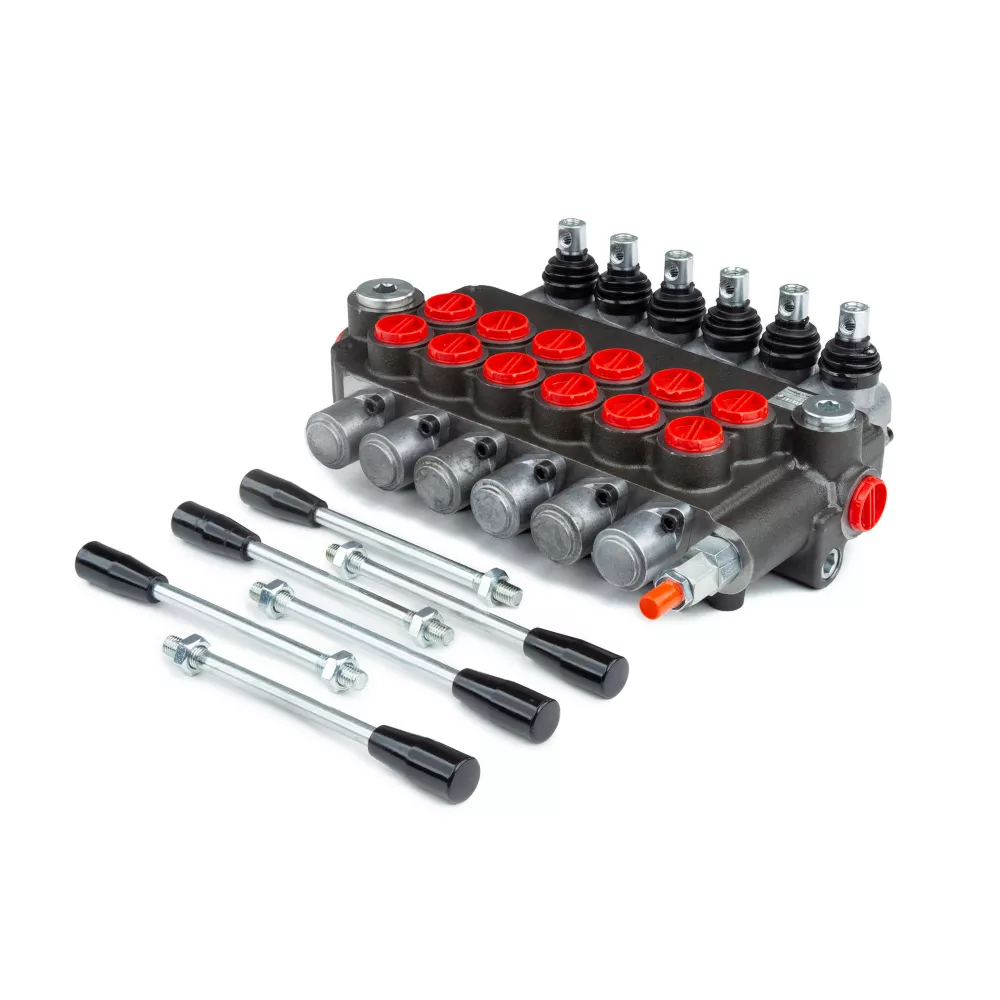

- Complete handle assembly included with the valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with six spools
- European design with 21 GPM, SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
- Flow rate: 21 GPM
- Max operating temperature: 176 degrees F
- Valving: 4-way 3 position, tandem center
- Action: 3-position spring center
Chief Directional Control Valve G Series 3625 PSI 21 GPM 6 Spool SAE 10 Inlet/SAE 12 Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | SAE 10 |
| Inlet Type | Female |
| Maximum Flow Rate | 21 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | 0 N/A |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 36.3 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 10 |
| Manufacturer PartNumber | 220904 |
