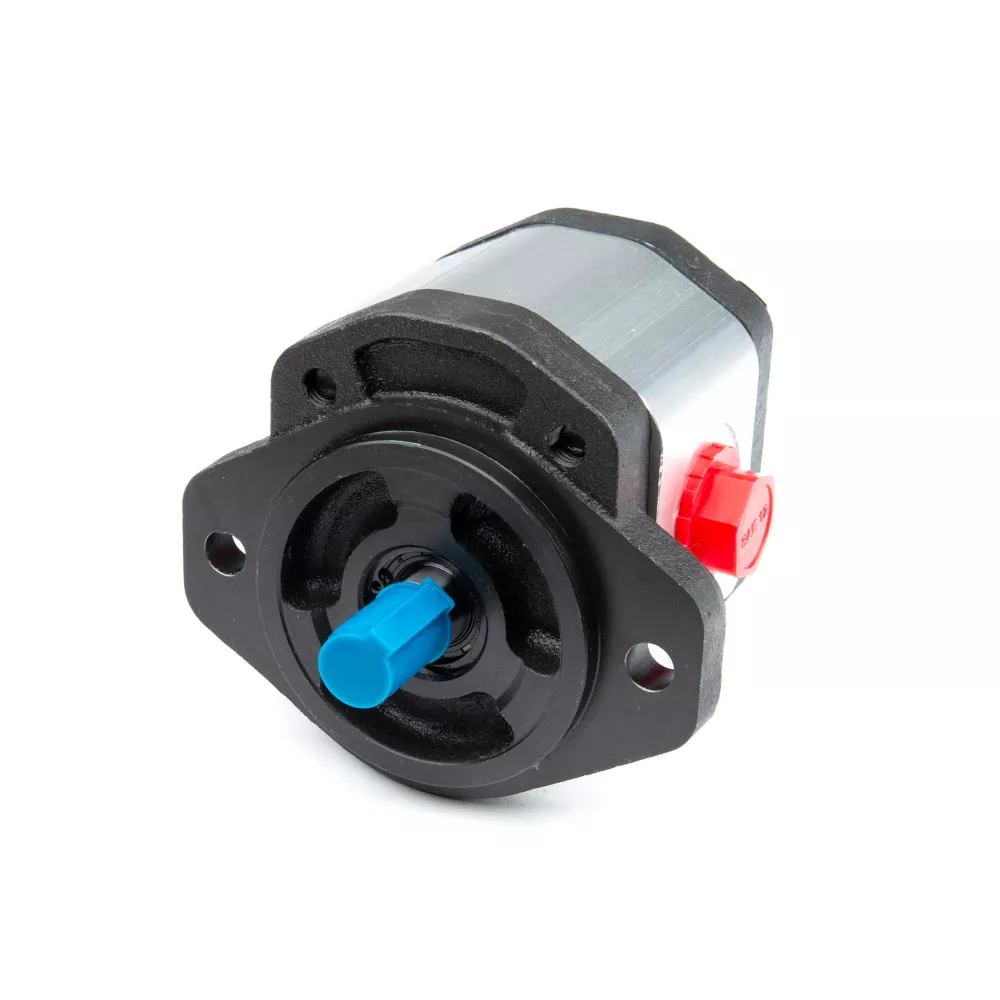

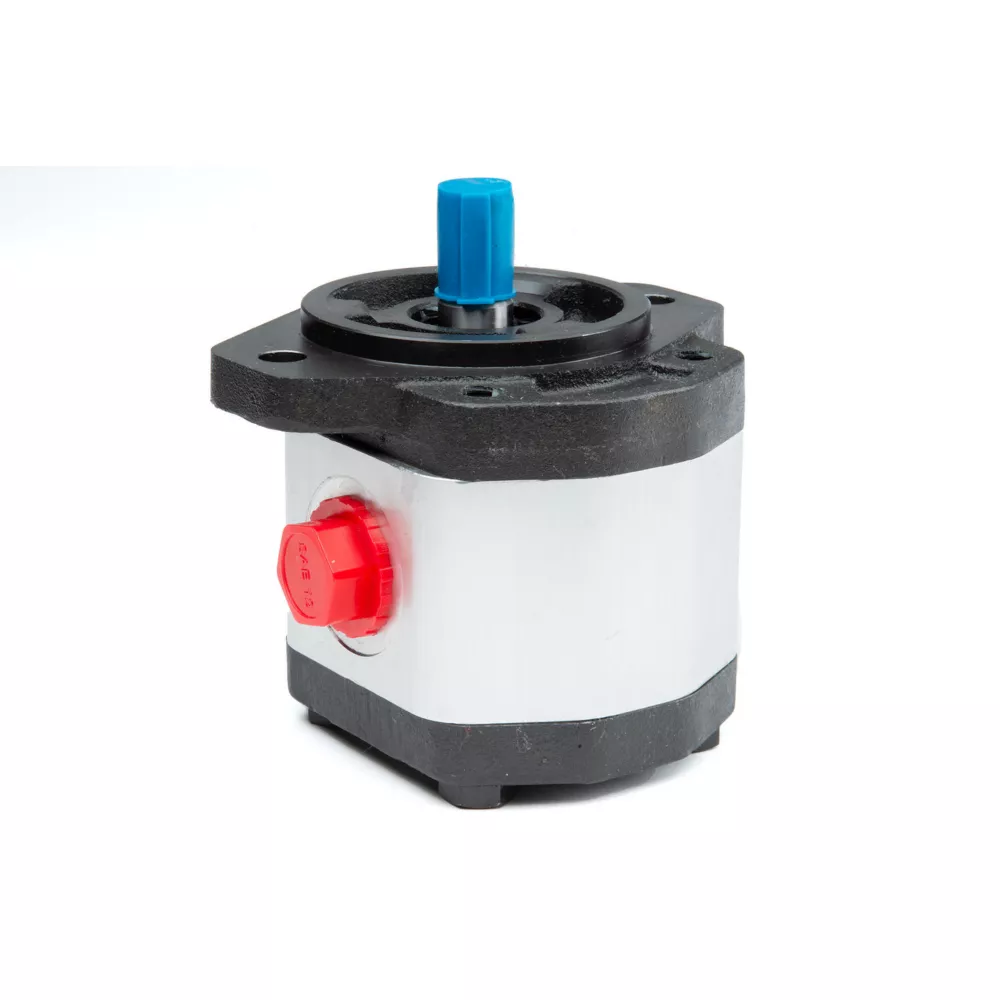

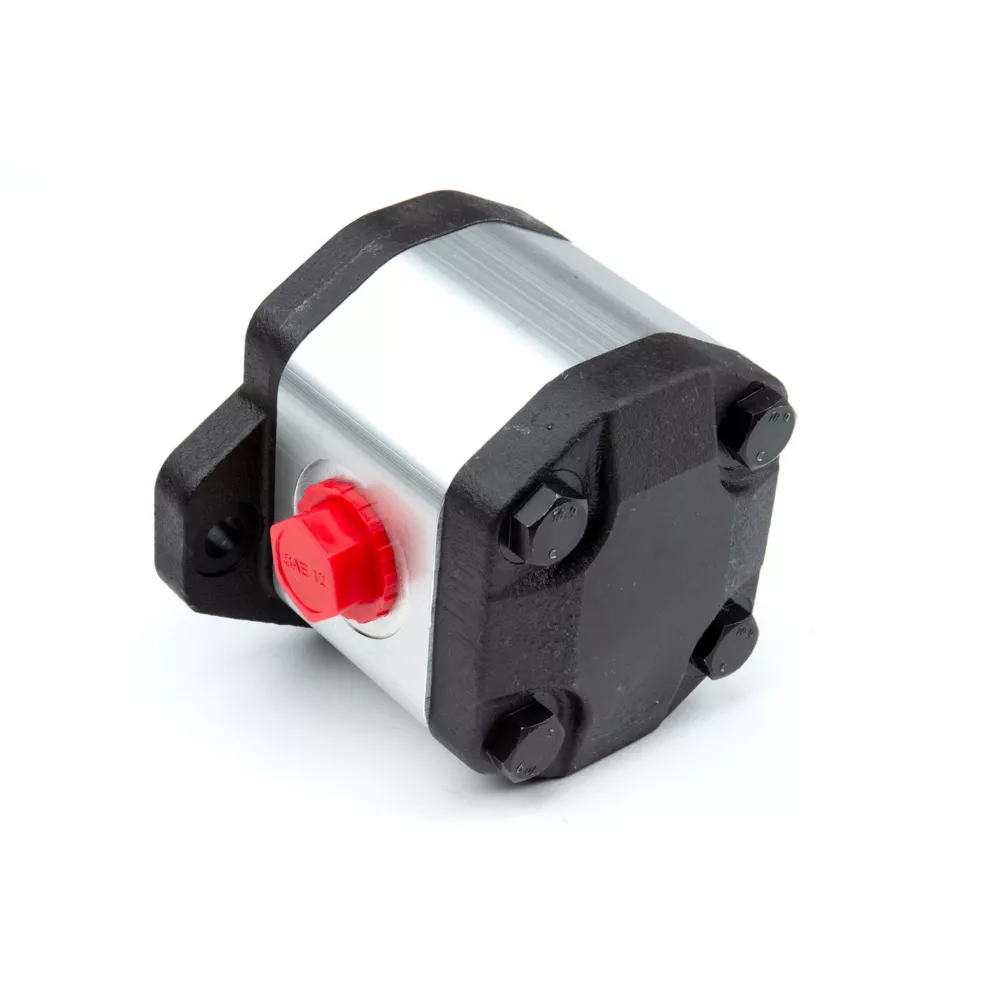

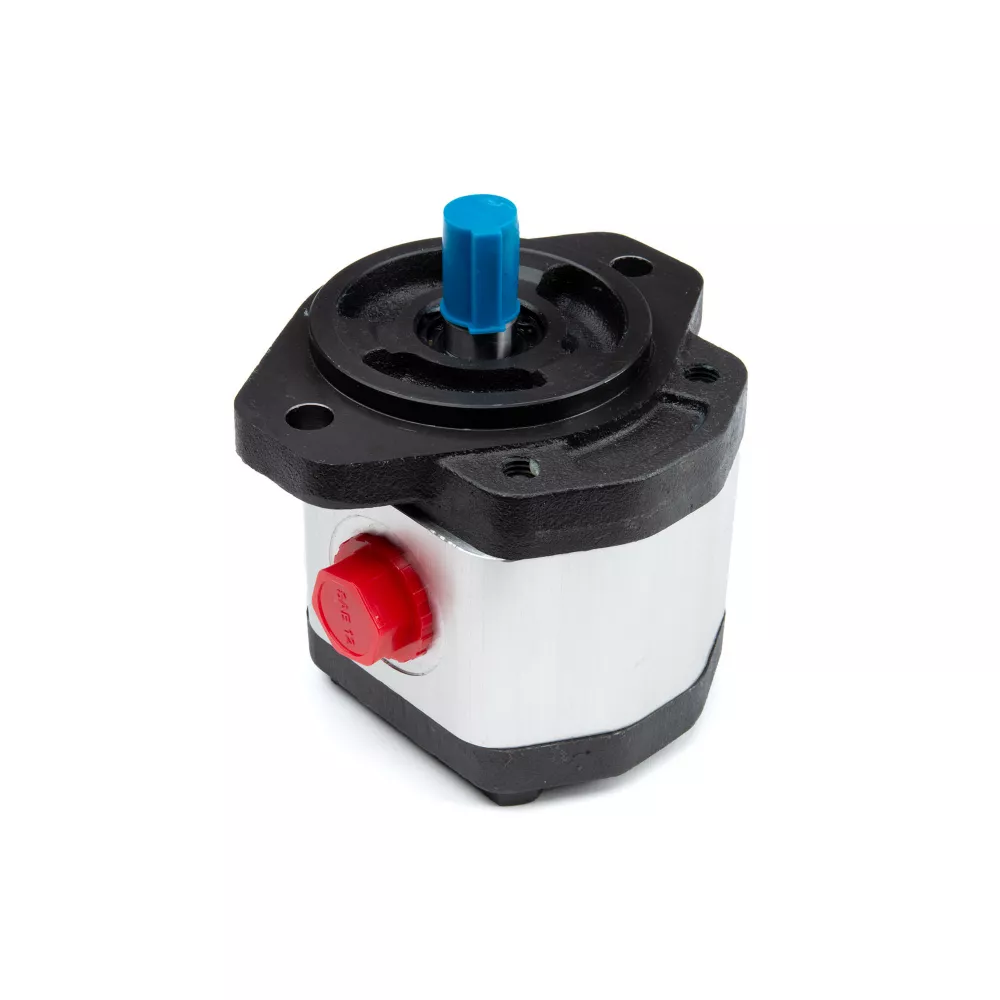

Chief Hydraulic Gear Pump 1.5 CID SAE 16 Pressure Port 1800 RPM 2465 PSI Hydraulic Pumps & Reservoirs Tractor Repair & Parts

The Chief Hydraulic Gear Pump offers aluminum body with cast-iron end plate construction. This high pressure hydraulic gear pump comes with 11 displacement sizes from 0.24 to 1.95 in3/rev. (4 to 32 cm3/rev). The gear pump's standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key.

Aluminum body with cast iron end plate construction for a durable gear pump
Filtration: 25 micron or better
Oil viscosity: 6 to 200 CST
Inlet pressure: 12 to 32 PSI ABS
Oil temperature: -25 to 80 degrees C (-12 to 175 degrees F)
Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
1.52 CID
Counter clockwise rotation
2,465 PSI
13.16 at 2,000 RPM
Hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
Standard mounting flange on the pump is SAE A-2 bolt
Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Hydraulic Gear Pump 1.5 CID SAE 16 Pressure Port 1800 RPM 2465 PSI Hydraulic Pumps & Reservoirs Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Pumps & Reservoirs

Specification	Description
Brand	Chief
Country of Origin	Imported
Compatible Pipe Material	N/A
Discharge Port	N/A
Engine Displacement	N/A
Features	N/A
Hose Diameter	N/A
Housing Material	N/A
Inlet Diameter	N/A
Maximum Flow Rate	1,800 rpm
Maximum Operating Pressure	2,465 PSI
Minimum Operating Pressure	2,465 PSI
Motor Type	None
Outlet Diameter	N/A
Power Type	Other
Product Height	N/A
Product Length	N/A
Product Weight	9.8 lb.
Product Width	N/A
Suction Port	N/A
Valve Inlet Diameter	N/A
Valve Inlet Type	N/A
Valve Outlet Diameter	N/A
Valve Outlet Type	N/A
Voltage	N/A
Warranty	1 Year
Manufacturer PartNumber	252436

Chief Hydraulic Gear Pump, 1.5 CID, SAE 16 Pressure Port, 1,800 RPM, 2,465 PSI Specifications expand/collapse Specification Description Brand Main Country of Origin Imported Compatible Hose Material N/A Discharge Port N/A Engine Displacement N/A Features N/A Hose Diameter N/A Housing Material N/A Diameter d Inlet N/A Maximum Flow 1800 RPM Maximum Operating Pressure 2465 PSI Minimum Operating Pressure 2465 PSI Motor Type None Outlet Diameter N/A Power Type Other Product Height N/A Product Length N /A Product weight 9.8 lbs. Product Width N/A Suction Port N/A Valve Inlet Diameter N/A Valve Inlet Type N/A Valve Outlet Diameter N/A Valve Outlet Type N/A Voltage N/A Warranty 1 year Manufacturer part number 252436
