Chief Hydraulic Gear Pump 5/8 Shaft 2 Bolt A 0.97 CID 8.4 @ 2000 RPM 3626 PSI CCW Rotation Hydraulic Pumps & Reservoirs Tractor Repair & Parts

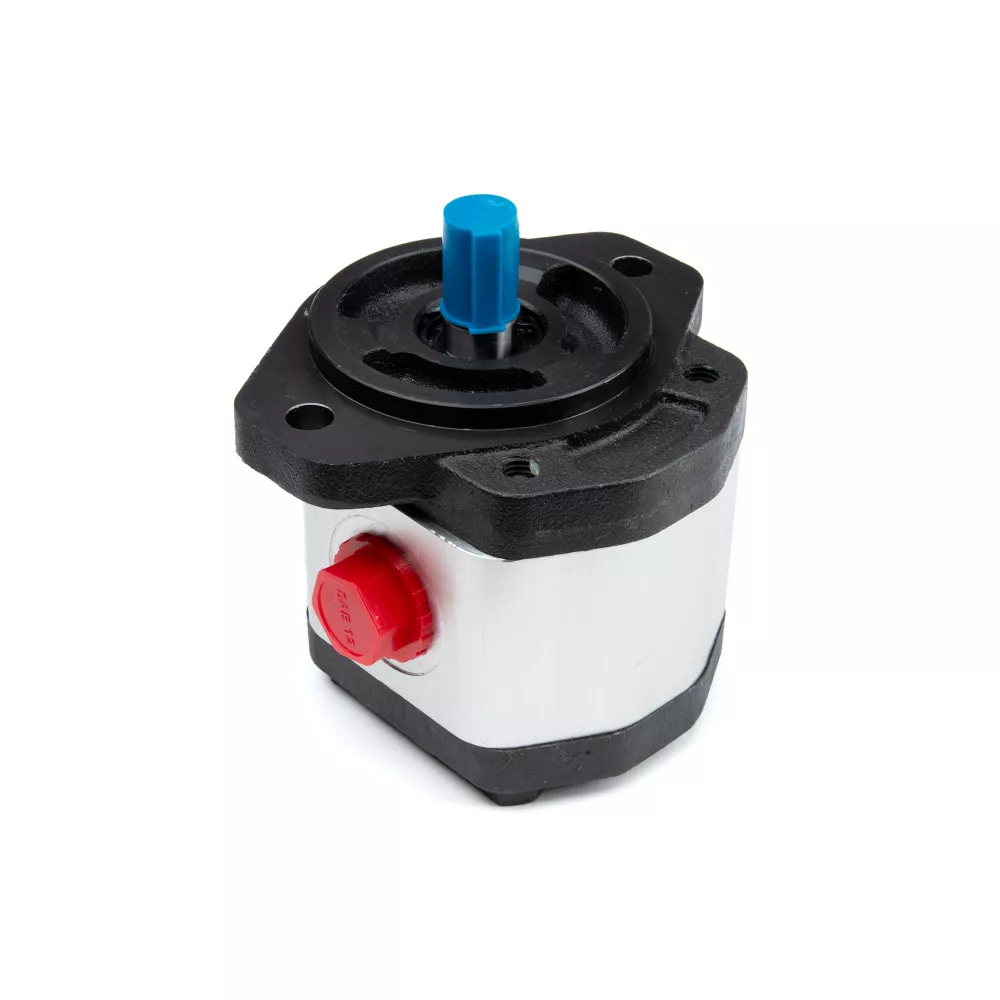

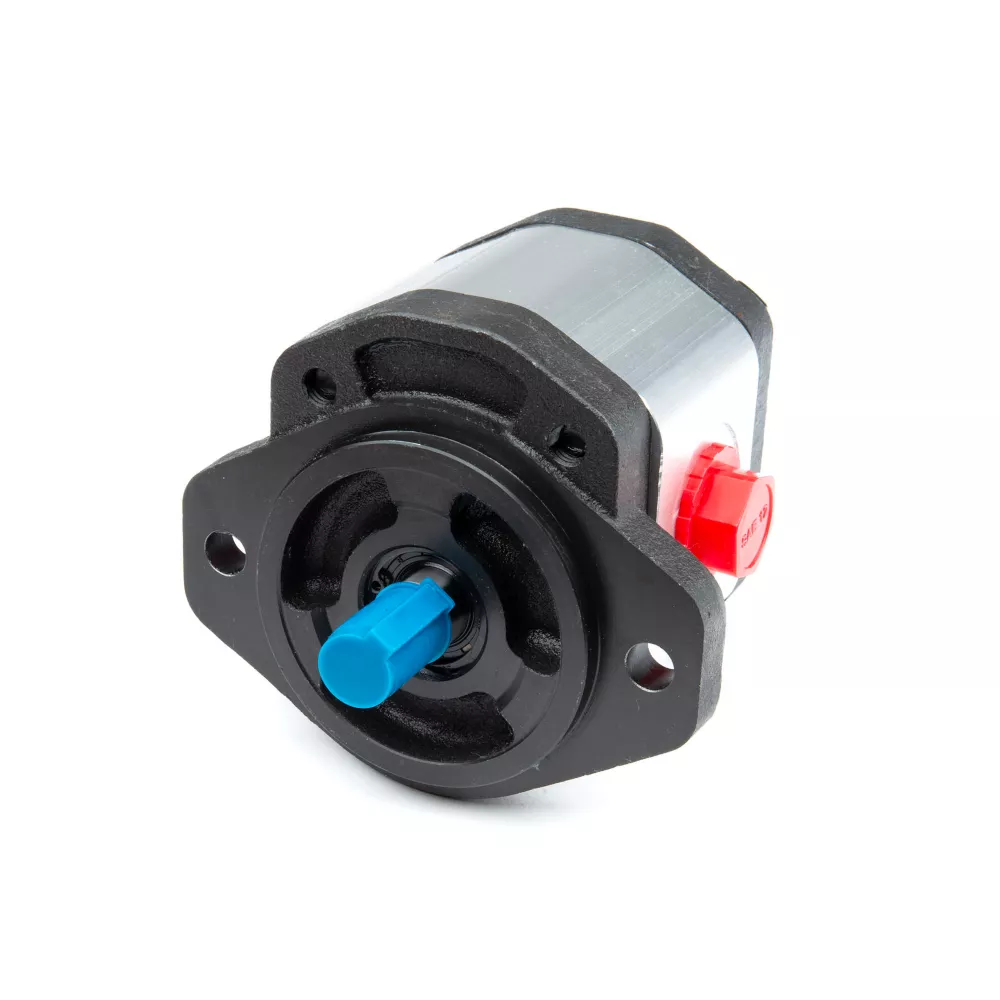

The Chief Hydraulic Gear Pump offers aluminum body with cast-iron end plate construction. This high pressure hydraulic gear pump comes with 11 displacement sizes from 0.24 to 1.95 in3/rev. (4 to 32 cm3/rev). The gear pump's standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key.

175 degrees F max temperature
Filtration: 25 micron or better
Oil viscosity: 6 to 200 CST
Inlet pressure: 12 to 32 PSI ABS
Oil temperature: -25 to 80 degrees C (-12 to 175 degrees F)
Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
0.97 CID
Aluminum body with cast iron end plate construction for a durable gear pump
Hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
Standard mounting flange on the pump is SAE A-2 bolt
Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key
CCW rotation
2,900 PSI
8.4 @ 2,000 RPM
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Hydraulic Gear Pump 5/8 Shaft 2 Bolt A 0.97 CID 8.4 @ 2000 RPM 3626 PSI CCW Rotation Hydraulic Pumps & Reservoirs Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Pumps & Reservoirs

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Compatible Pipe Material	Cast iron end plates
Discharge Port	N/A
Engine Displacement	N/A
Features	N/A
Hose Diameter	N/A
Housing Material	Other
Inlet Diameter	N/A
Maximum Flow Rate	3,600 rpm
Maximum Operating Pressure	2,900 PSI
Minimum Operating Pressure	2,900 PSI
Motor Type	None
Outlet Diameter	N/A
Power Type	None
Product Height	N/A
Product Length	N/A
Product Weight	8.85 lb.
Product Width	N/A
Suction Port	SAE 10
Valve Inlet Diameter	N/A
Valve Inlet Type	N/A
Valve Outlet Diameter	N/A
Valve Outlet Type	N/A
Voltage	N/A
Warranty	1 Year
Manufacturer PartNumber	252155

Chief Hydraulic Gear Pump, 5/8 Shaft, 2-Bolt A 0.97 CID, 8.4 at 2,000 RPM, 3,626 PSI, CCW Rotation Specifications expand/collapse Specification Description Brand Main Country of Origin Made in USA Compatible Hose Material Cast Iron End Plates Discharge Port N/A Engine Displacement N/A Features N/A Hose Diameter N/A Material Housing Other Inlet Diameter N/A Maximum Flow Rate 3600 RPM Maximum Operating Pressure 2900 PSI Minimum Operating Pressure 2900 PSI Motor Type None Outlet Diameter N/A Power Type None Product Height N /A Product Length N/A Product Weight 8.85 lbs. Product Width N/A Suction Port SAE 10 Valve Inlet Diameter N/A Valve Inlet Type N/A Valve Outlet Diameter N/A Valve Outlet Type N/A Voltage N/A Warranty 1 an Manufacturer Part Number 252155
