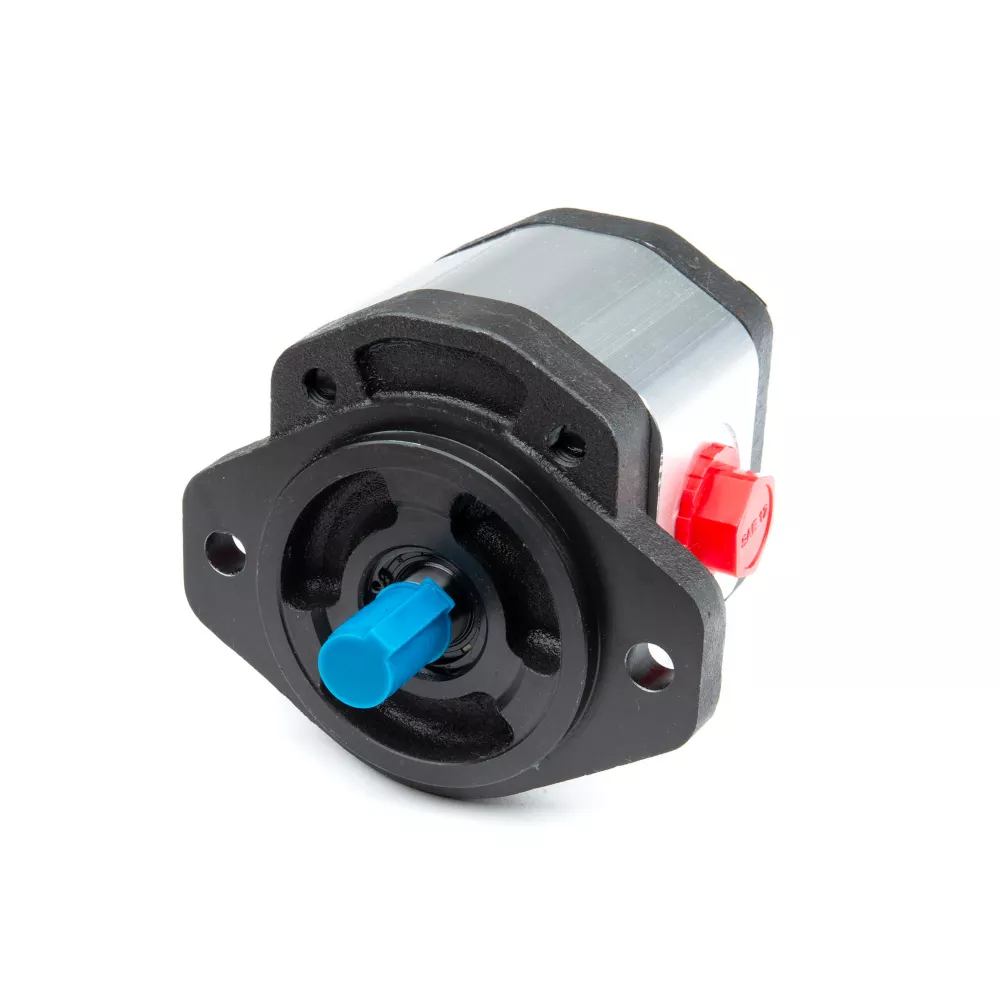

Chief Hydraulic Gear Pump 5/8 Shaft 2 Bolt A 0.97 CID 8.4 @ 2000 RPM 3626 PSI CW Rotation Attachment Parts & Accessories Farm & Ranch

The Chief Hydraulic Gear Pump offers aluminum body with cast-iron end plate construction. This high pressure hydraulic gear pump comes with 11 displacement sizes from 0.24 to 1.95 in3/rev. (4 to 32 cm3/rev). The gear pump's standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key.

175 degree F max temperature
Filtration: 25 micron or better
Oil viscosity: 6 to 200 CST
Inlet pressure: 12 to 32 PSI ABS
Oil temperature: -25 to 80 degrees C (-12 to 175 degrees F)
Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
0.97 CID
CW rotation
2,900 PSI
8.4 at 2000 RPM
Aluminum body with cast iron end plate construction for a durable gear pump
Hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
Standard mounting flange on the pump is SAE A-2 bolt
Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Hydraulic Gear Pump 5/8 Shaft 2 Bolt A 0.97 CID 8.4 @ 2000 RPM 3626 PSI CW Rotation Attachment Parts & Accessories Farm & Ranch> Tractor & 3 Point Attachments> Attachment Parts & Accessories

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Compatibility	Most application
Package Quantity	1
Primary Color	No Color
Primary Material	Other
Product Height	N/A
Product Length	N/A
Product Weight	8.85 lb.
Product Width	N/A
Warranty	1 Year
Manufacturer PartNumber	252163

Chief Hydraulic Gear Pump, 5/8 Shaft, 2-Bolt A 0.97 CID, 8.4 at 2,000 RPM, 3,626 PSI, CW Rotation Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Compatibility Most Applications Package Quantity 1 Primary Color No Color Primary Material Other Product Height N/A Product Length N/A Product Weight 8. 85 lbs Product Width N/A 1 Year Warranty Manufacturer Part Number 252163
