Sale!
Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds
Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds
Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds
Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds
Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds

Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds

$74

SKU: Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds
Category:

Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds Tractor Repair & Parts

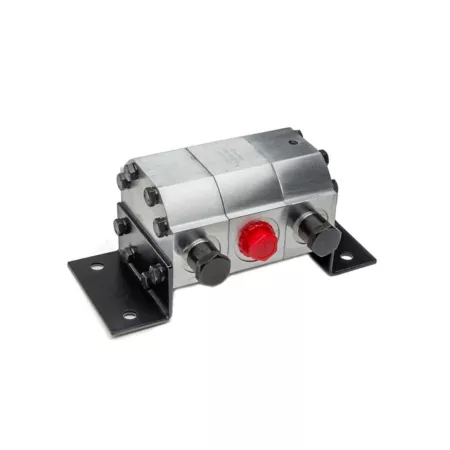

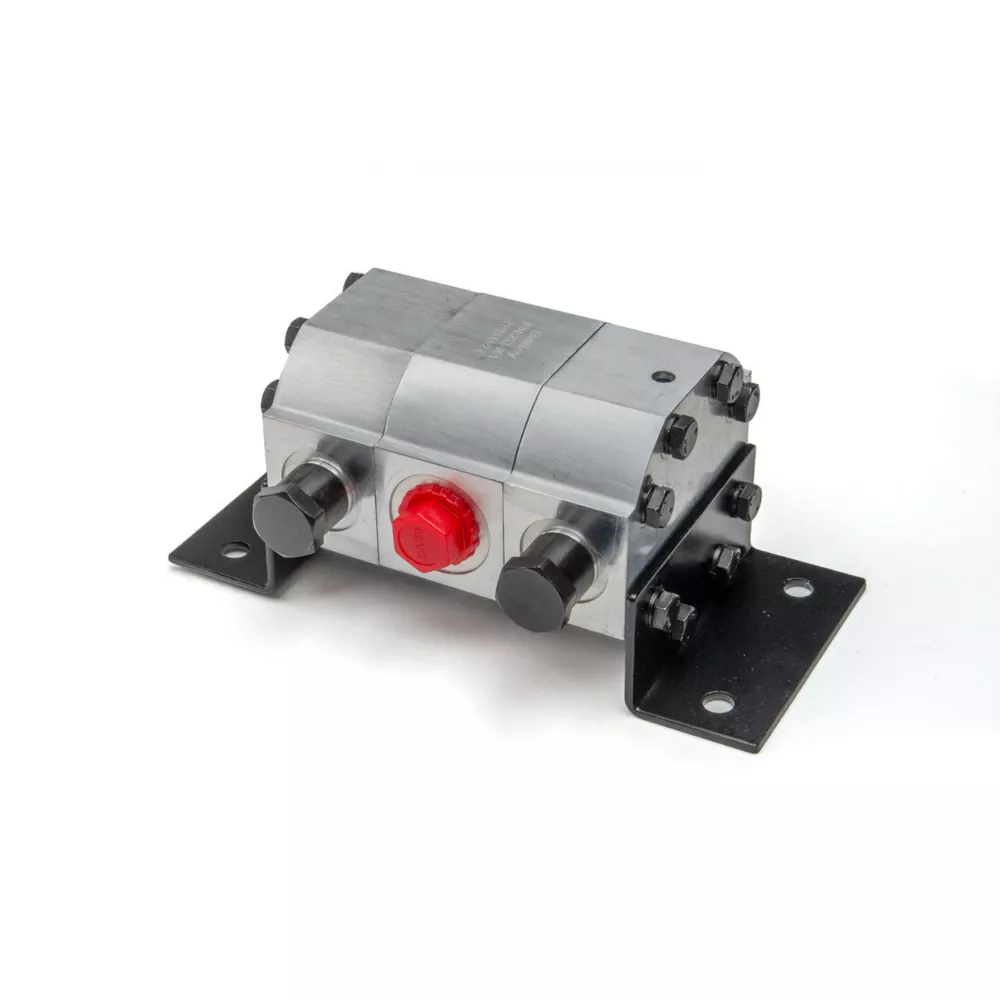

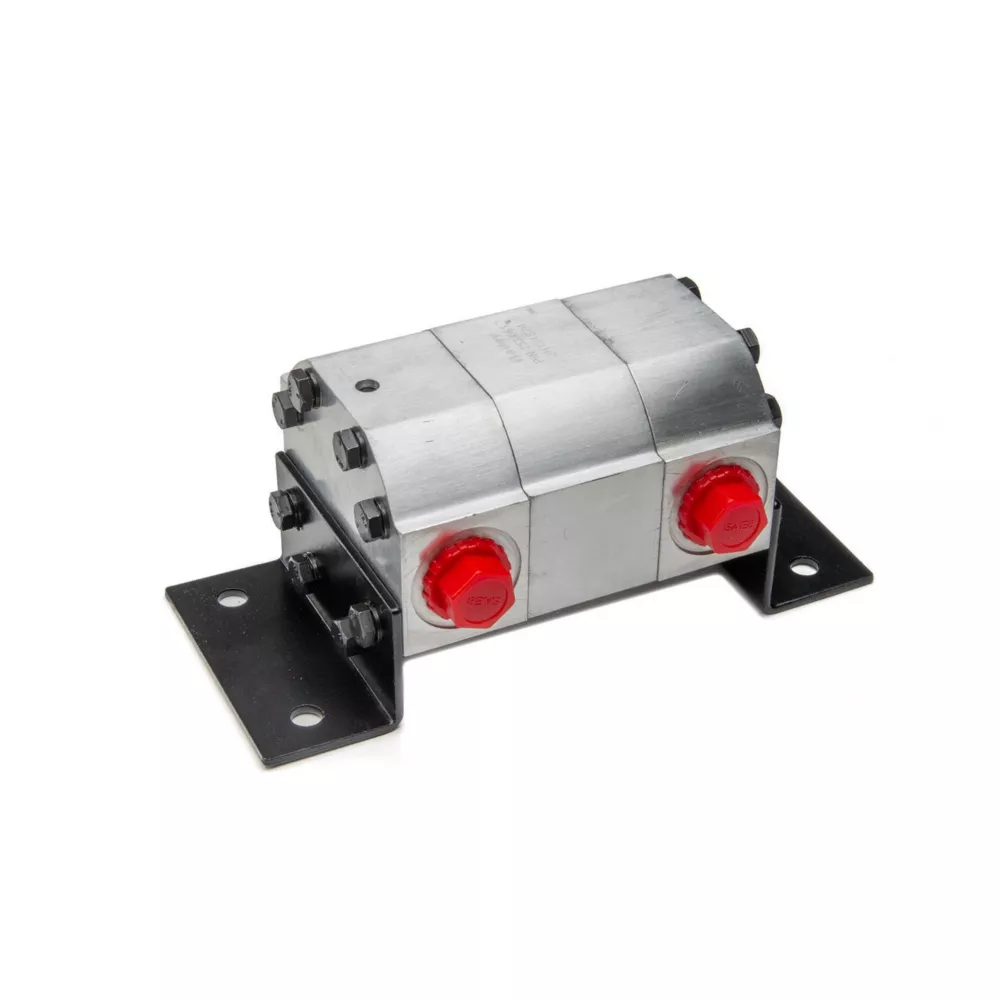

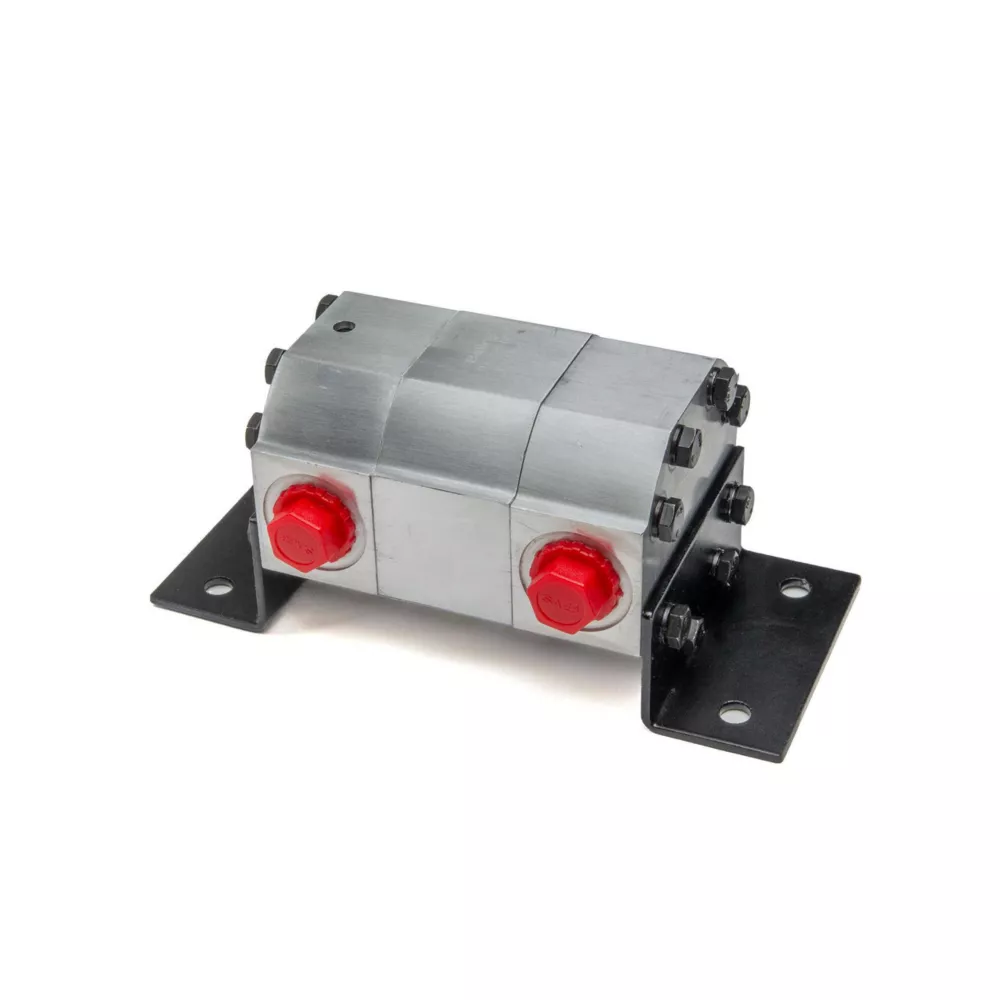

The Chief 3,625 PSI Rotary Flow Divider is made of durable cast iron. The 2-section hydraulic rotary flow divider is designed to synchronize the operation of multiple cylinders or hydraulic motors. It can also provide proportional division of a single pump output to several circuits to intensify flow pressure when higher pressure than pump capacity is required, or you can use the rotary flow divider to combine flows from 2 sources to provide a single greater flow to a hydraulic cylinder or motor.
  • Versatile rotary flow divider offers 0.265 CID and .86 - 3.44 GPM flow
  • Hydraulic rotary flow divider with differential pressure relief valves on each section and high-pressure seals
  • GPM: 1.72 min inlet flow (750 RPM) / 6.88 max inlet flow (3000 RPM)
  • Synchronize the operation of multiple cylinders or hydraulic motors
  • Provides proportional division of a single pump output to several circuits to intensify flow pressure
  • Can combine flows from 2 sources to provide a single greater flow to a hydraulic cylinder or motor
  • 1 year warranty
Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Rotary Flow Divider 0.265 CID per Section Flow Range 0.86 to 3.44 GPM per Section (2) Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification Description
Brand Chief
Country of Origin Imported
Brand Compatibility Universal
Compatibility Varying Models
Inlet Size SAE 10
Inlet Type Other
Maximum Flow Rate 2.5-5 GPM
Maximum PSI 3,625 PSI
Model Compatibility Universal
Number Of Directional Control Positions 2
Outlet Size SAE 10
Outlet Type SAE 10
Primary Material Cast Iron
Product Height 4 in.
Product Length 8 in.
Product Weight 6 lb.
Product Width 4 in.
Warranty 1 Year
Work Port Size SAE 10
Manufacturer PartNumber 253062
Chief Rotary Flow Divider, 0.265 CID Per Section, .86-3.44 GPM Flow Range Per Section (2) Specifications Expand/Collapse Specification Description Brand Primary Country of Origin Imported Brand Compatibility Universal Compatibility Various Models Inlet Size SAE 10 Inlet Type Other Maximum Flow 2.5-5 GPM Maximum PSI 3,625 PSI Model Compatibility Universal Number of Directional Control Positions 2 Output Size Output SAE 10 Type SAE 10 Primary Material Cast Iron Product Height 4 in. Product Length 8 in. Product Weight 6 lb. Product Width 4 in. Warranty 1 Year Working Port Size SAE 10 Part Number manufacturer part 253062
