Chief Welded Cylinder for LD Loader 1.5 in Bore x 18 in Stroke 1 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

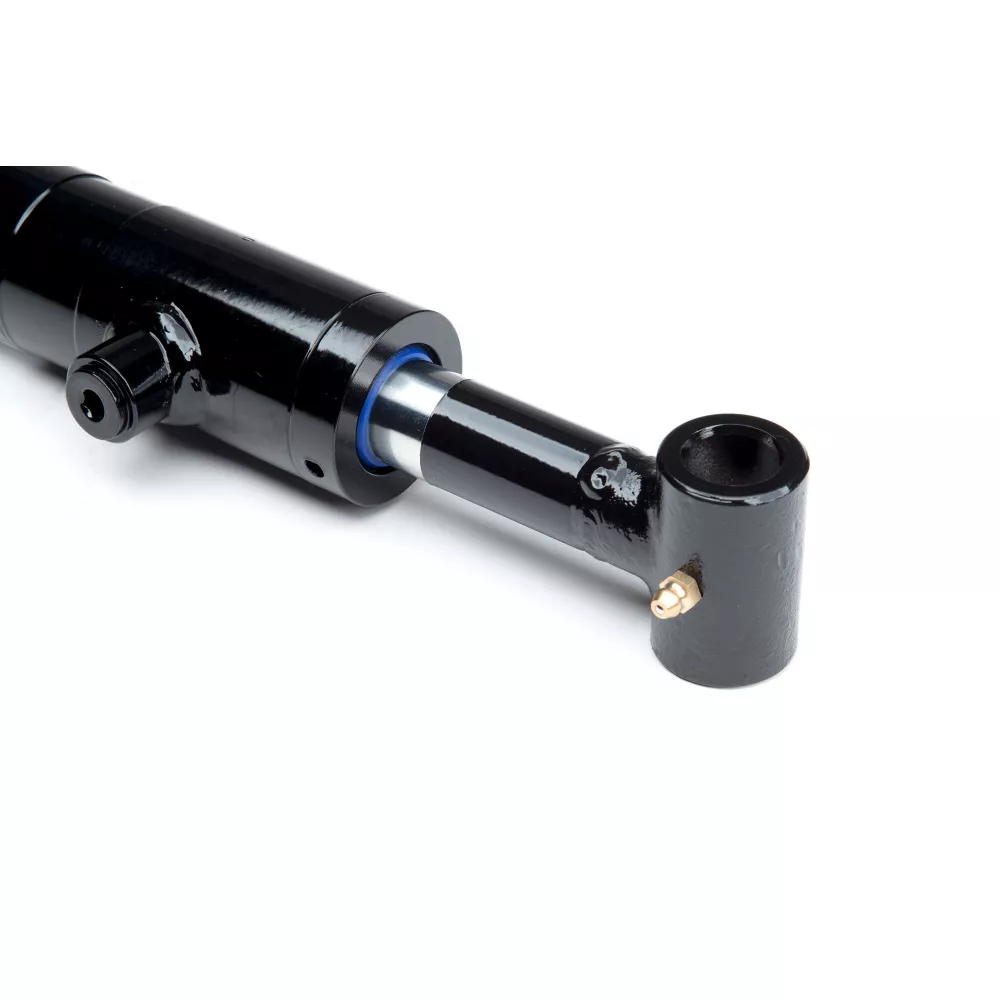

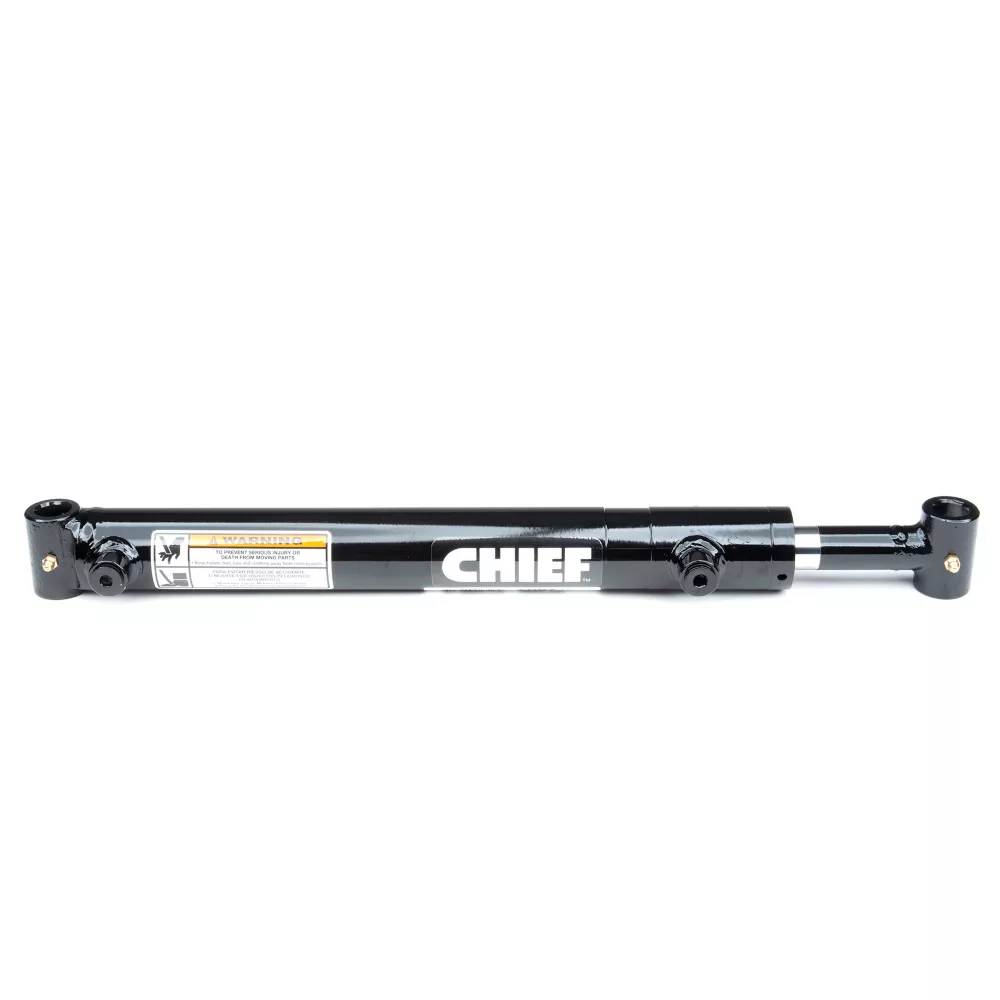

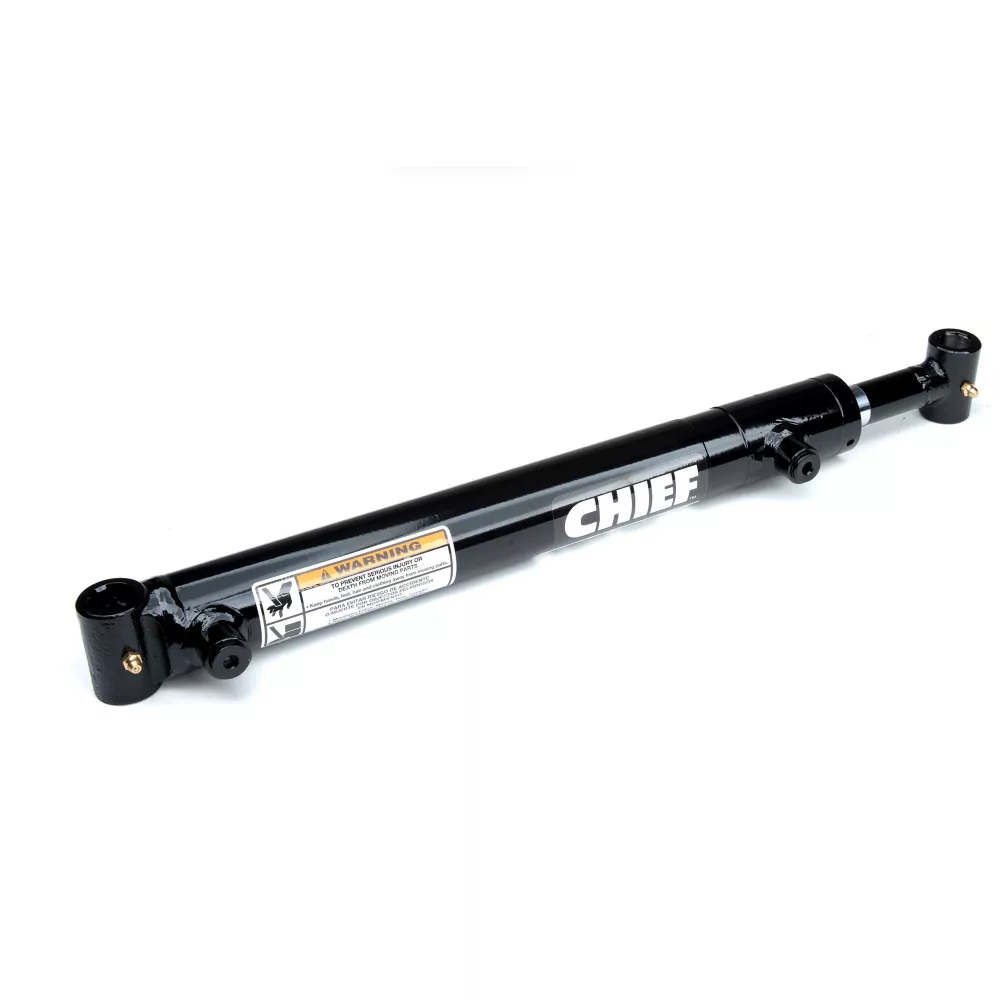

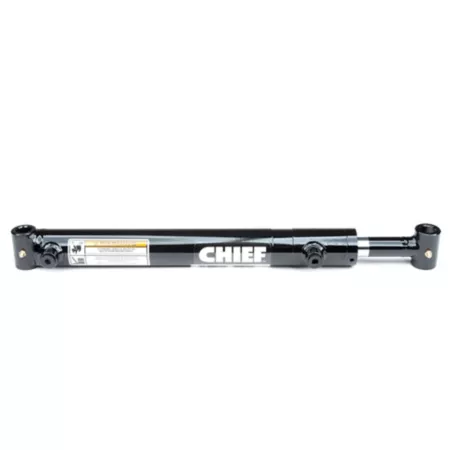

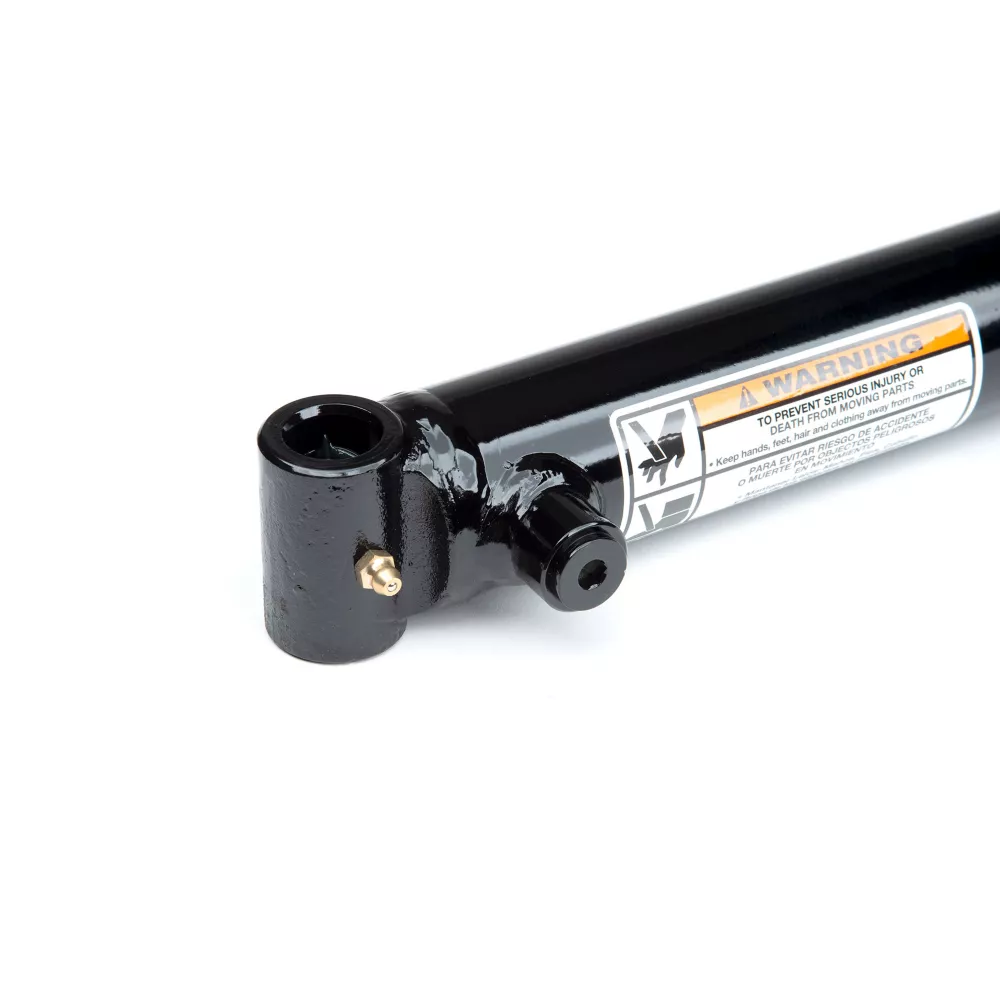

Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 18 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
Intended for use as a double acting hydraulic cylinder
Piston: ductile iron
Gland: ductile iron
Tube: honed steel
Rod: hard chrome-plated
End mounts: cross-tubes
Tube seal: Buna O-ring with polytemp hytrel back-up
Rod seal: polyurethane U-cup
Rod wiper: polyurethane, snap-in
Piston seal: 755 with wear rings, (2 each) wear bearings
All seals are manufactured to US specifications
Ports: SAE O-rings
Paint: black; custom colors are available
Individually poly bagged for easy transport
Small bore hydraulic cylinder measures 26 in. retracted and 44 in. extended
3,000 PSI operating range
Column load: 5,300 lb.
Pin diameter of 0.75 in. and rod diameter of 1 in.
3 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Cylinder for LD Loader 1.5 in Bore x 18 in Stroke 1 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	44 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	5,300 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	0.75 in.
Port Size	N/A
Primary Material	Steel
Product Height	1 in.
Product Length	8 in.
Product Weight	16 lb.
Product Width	2 in.
Retracted Length	26 in.
Rod Diameter	2 in.
Single/Double Acting	Double acting
Stroke Distance	18 in.
Warranty	3 Year
Manufacturer PartNumber	288603
