Chief Welded Cylinder for LD Loader 1.5 in Bore x 24 in Stroke 1 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

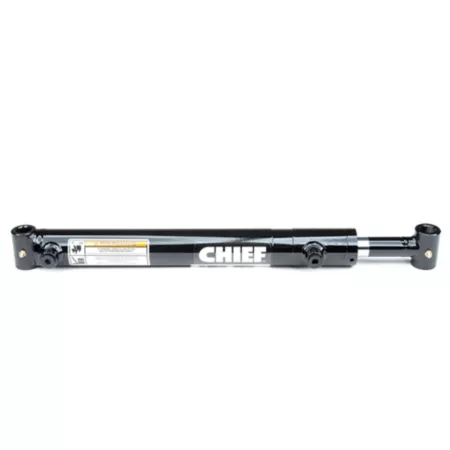

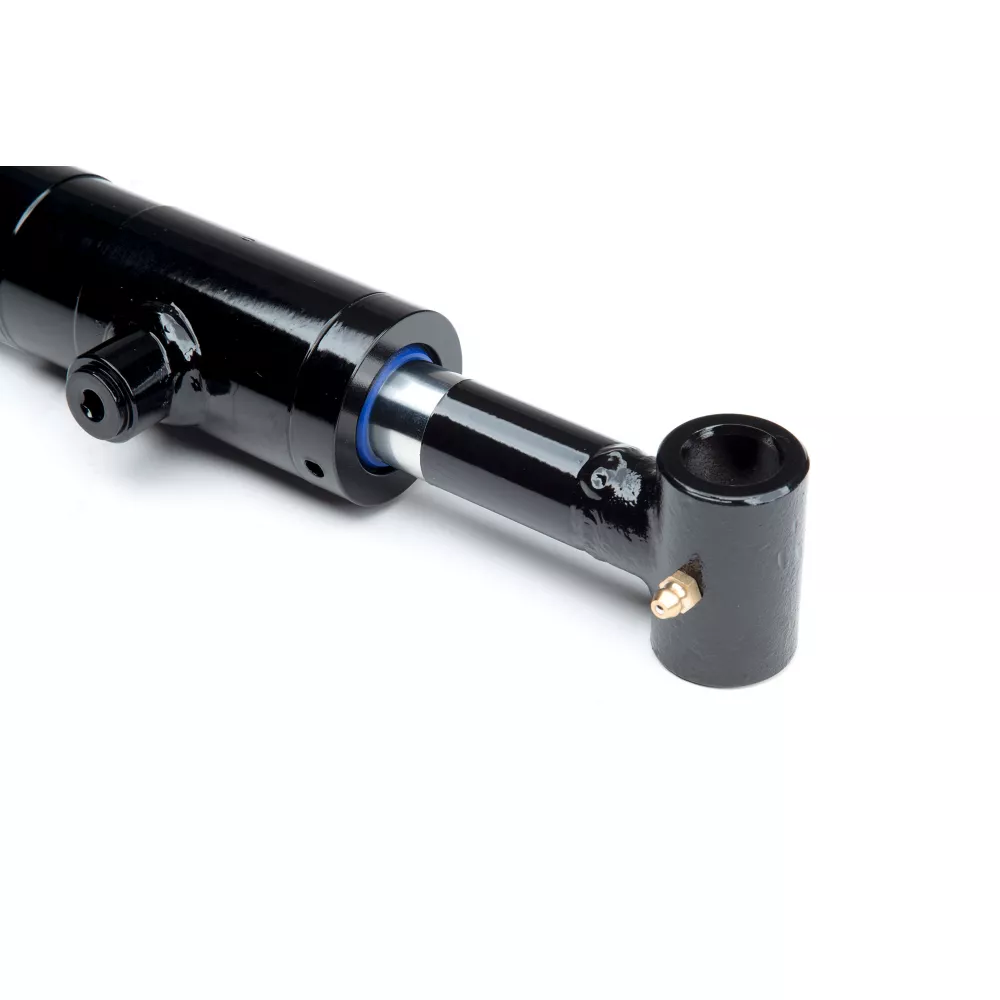

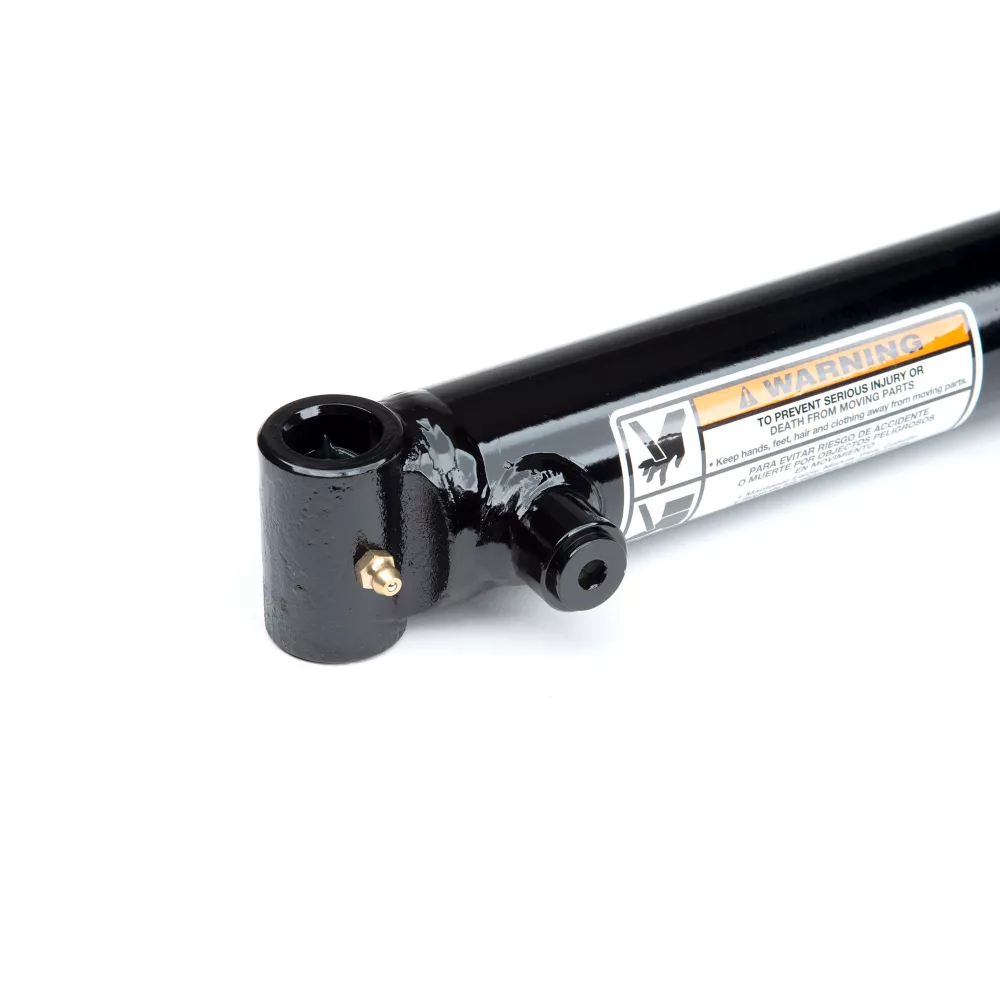

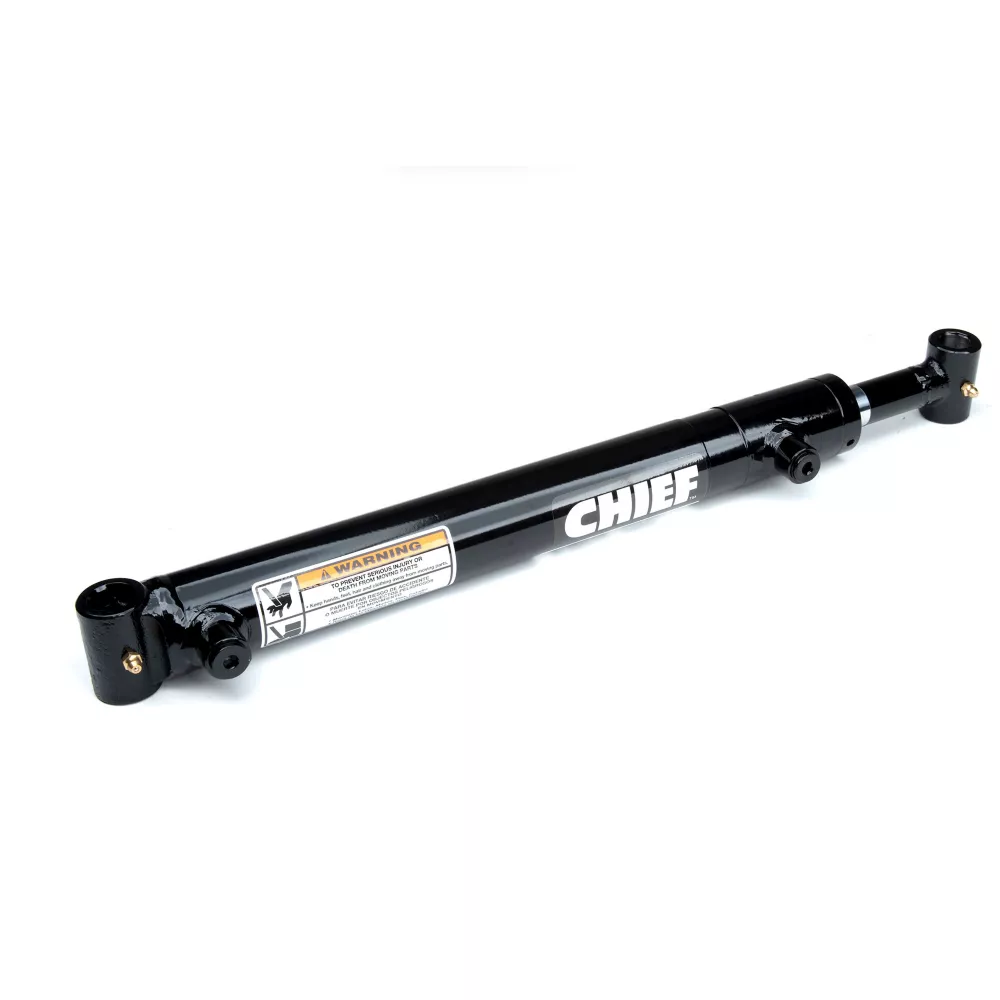

Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
Intended for use as a double acting hydraulic cylinder
Piston: ductile iron
Gland: ductile iron
Tube: honed steel
Rod: hard chrome-plated
End mounts: cross-tubes
Tube seal: Buna O-ring with polytemp hytrel back-up
Rod seal: polyurethane U-cup
Rod wiper: polyurethane, snap-in
Piston seal: 755 with wear rings, (2 each) wear bearings
All seals are manufactured to US specifications
Ports: SAE O-rings
Paint: black; custom colors are available
Individually poly bagged for easy transport
Small bore hydraulic cylinder measures 32 in. retracted and 56 in. extended
3,000 PSI operating range
Small bore hydraulic cylinder measures 32 in. retracted and 56 in. extended
Pin diameter of 0.75 in. and rod diameter of 1 in.
3 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Cylinder for LD Loader 1.5 in Bore x 24 in Stroke 1 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	Varies
Cylinder Size	N/A
Extended Length	56 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	3,340 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	0.75 in.
Port Size	SAE 6
Primary Material	Steel
Product Height	1 in.
Product Length	8 in.
Product Weight	22 lb.
Product Width	2 in.
Retracted Length	32 in.
Rod Diameter	2 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	3 Year
Manufacturer PartNumber	288605

Chief 1.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 1.5 in. Brand Compatibility Universal Compatibility Varies Cylinder Size N/A Extended Length 56 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 3,340 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 0.75 in. Port Size SAE 6 Main Material Steel Product Height 1 in. Product length 8 in. Product weight 22 lbs. Product width 2 in. Retracted length 32 in. Shank diameter 2 in. Single/Double Acting Double Acting Stroke Distance 24 in. 3 year warranty Manufacturer part number 288605
