Chief Welded/Pineye WP Cylinder 4 in Bore x 16 in Stroke 2 in Rod Diameter 3000 PSI Hydraulic Cylinders Tractor Repair & Parts

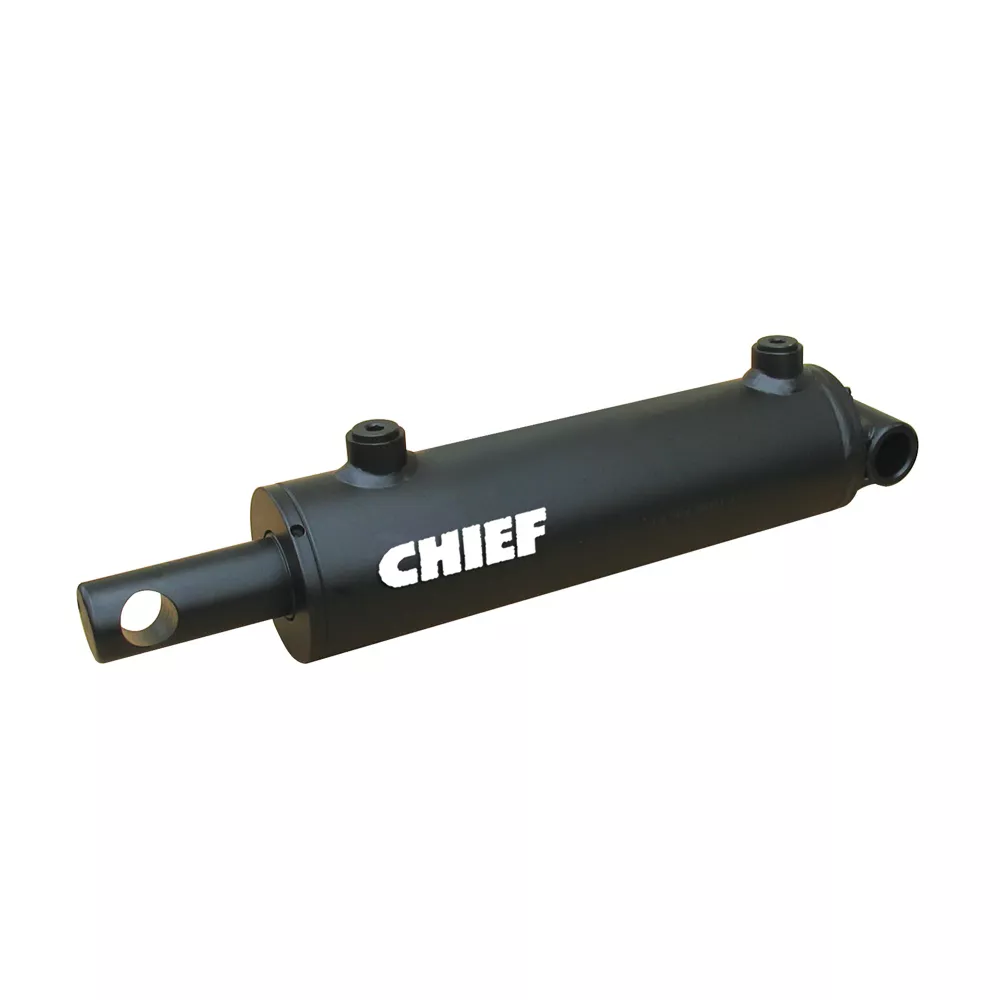

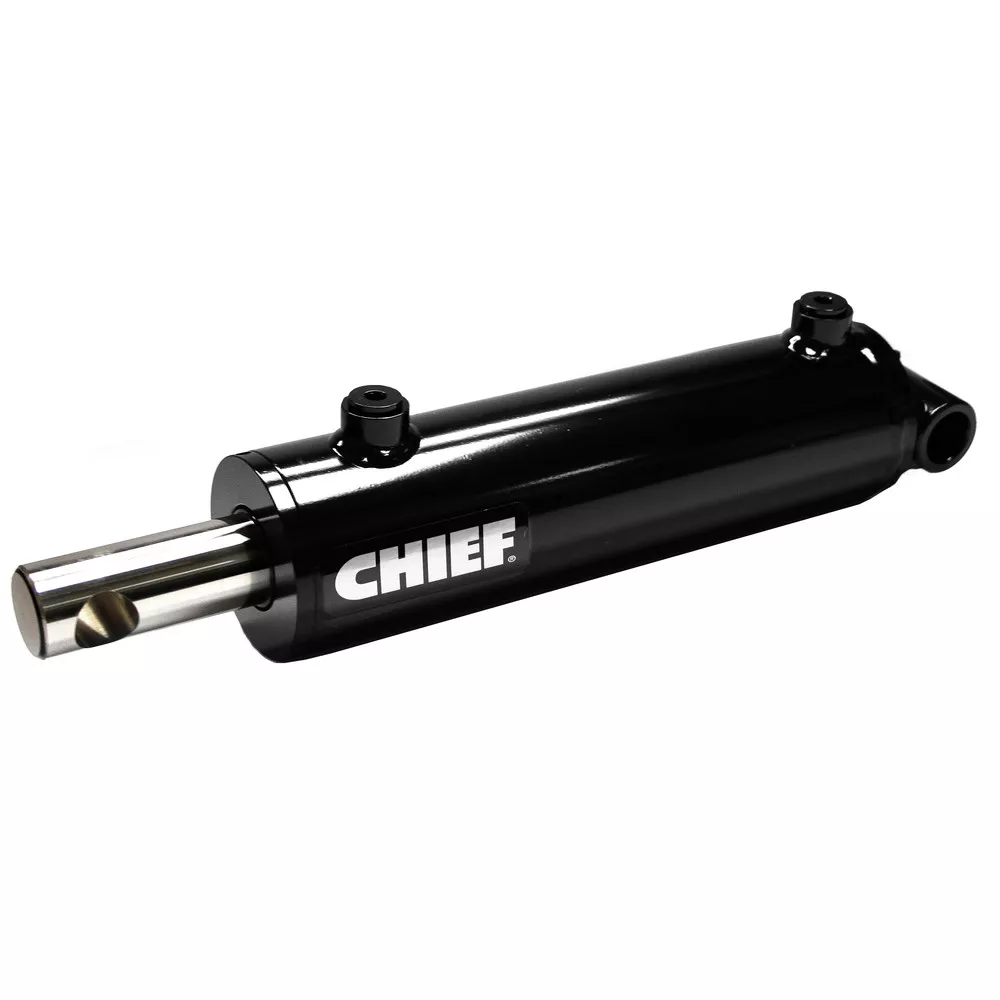

The Chief 4 in. Bore x 16 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.

Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
SAE 8 O-ring ports for easy hookup
For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
All seals are manufactured to US specifications
3-year limited warranty
Piston: ductile iron with wear ring
Gland: ductile iron, screw-in design with wear ring
Tube: precision honed steel
Rod is hard chrome plated and rod end mount is rod eye drilled for durability
Base end mount: steel cross-tube with grease zerk
Tube seal: Buna O-ring with Polytemp hytrel backup
Rod wiper: Urethane, snap-in
Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
3,000 PSI operating range
Rod seal: deep polypak with B lip design
Measures 25 in. retracted and 41 in. extended
Column load: 37,690 lb.
Pin diameter of 1.25 in. and rod diameter of 2 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded/Pineye WP Cylinder 4 in Bore x 16 in Stroke 2 in Rod Diameter 3000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	41 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/4 in.
Primary Material	Steel
Product Height	4.625 in.
Product Length	9 in.
Product Weight	56 lb.
Product Width	2 in.
Retracted Length	25 in.
Rod Diameter	2 in.
Stroke Distance	16 in.
Warranty	3 Year
Manufacturer PartNumber	287294

Chief 4 in. Bore x 16 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Compatibility Varies Extended Length 41 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 37,690 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1-1/4 in. Main material steel Product height 4.625 in. Product length 9 in. Product weight 56 lbs. Product width 2 in. Retracted length 25 in. Shank diameter 2 in. Travel distance 16 in. 3 year warranty Manufacturer part number 287294
