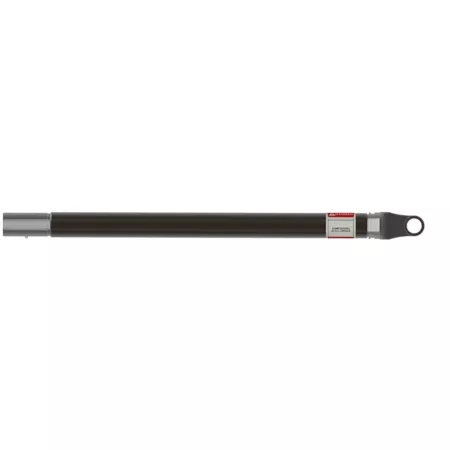

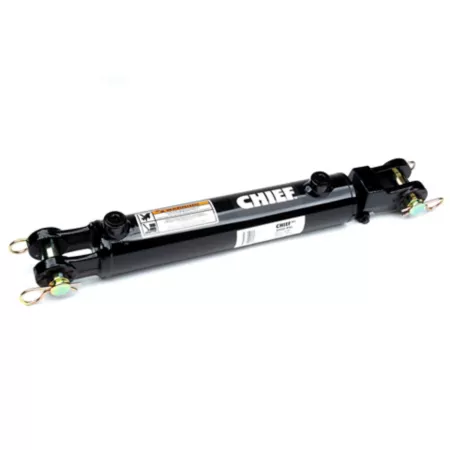

Chief Welded Toilet Cylinder 2 in Bore x 12 in Stroke 1.125 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 2 in. Bore x 12 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Measures 22.25 in. retracted and 34.25 in. extended
Welded hydraulic cylinder with a 3,000 PSI operating range
3-year limited warranty
Black paint finish
Column load: 9,420 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
Individually poly bagged hydraulic cylinder works well in agricultural applications

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Toilet Cylinder 2 in Bore x 12 in Stroke 1.125 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	34.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.5 in.
Product Length	10.25 in.
Product Weight	18.52 lb.
Product Width	1.2 in.
Retracted Length	22.25 in.
Rod Diameter	1-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	12 in.
Warranty	3 Year Limited
Manufacturer PartNumber	287006
