Chief Welded Toilet Cylinder 2 in Bore x 36 in Stroke 1.125 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

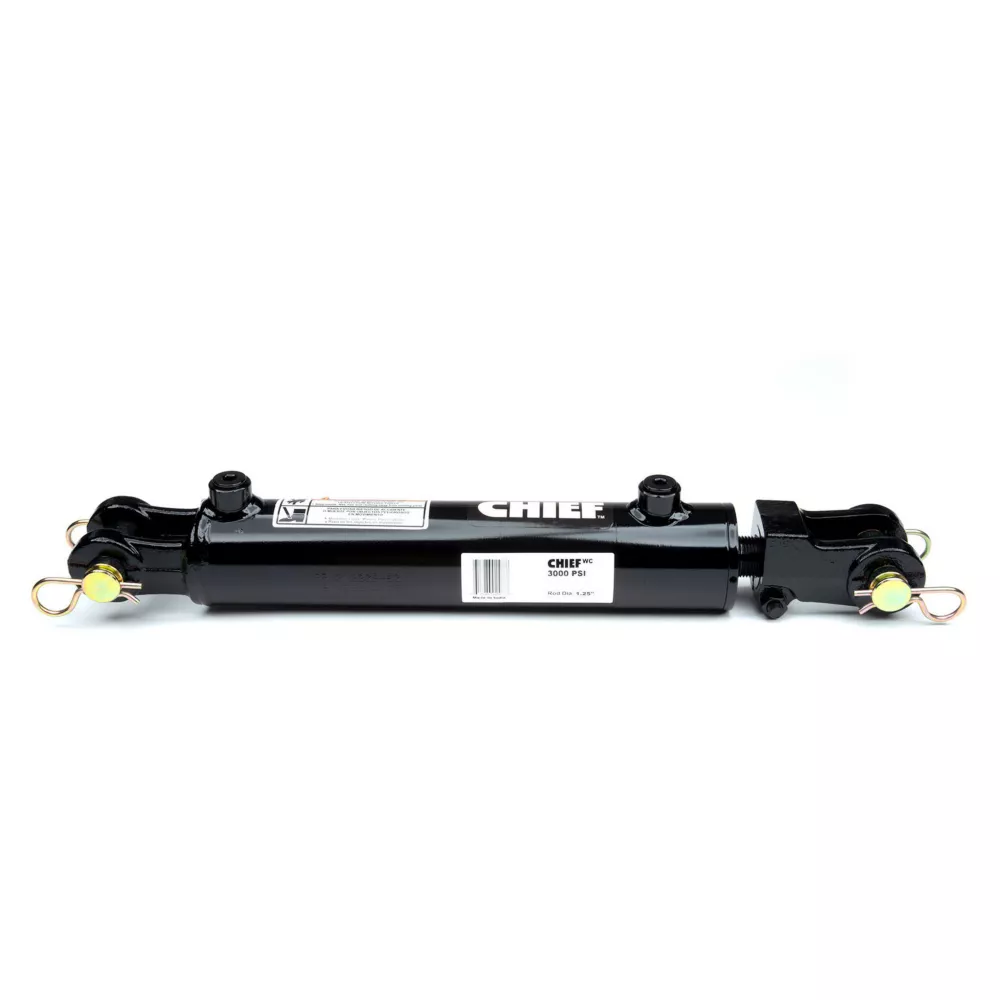

The Chief 2 in. Bore x 36 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Measures 46.25 in. retracted and 82.25 in. extended
Welded hydraulic cylinder with a 3,000 PSI operating range
3-year limited warranty
Black paint finish
Individually poly bagged hydraulic cylinder works well in agricultural applications
Column load: 2,600 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
SAE O-ring ports that allow for easy hookup

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Toilet Cylinder 2 in Bore x 36 in Stroke 1.125 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	82.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	2,600 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.5 in.
Product Length	10.25 in.
Product Weight	34.17 lb.
Product Width	1.2 in.
Retracted Length	46.25 in.
Rod Diameter	1-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	36 in.
Warranty	3 Year Limited
Manufacturer PartNumber	287015

Chief 2 in. Bore x 36 in. Stroke WC Welded Cylinder, 1.125 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility Tractors Extended Length 82.25 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 2,600 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in Port Size SAE 8 Primary Material Steel Product Height 2.5 in Product Length 10.25 in Product Weight 34.17 lbs Product Width 1.2 in. Retracted Length 46.25 in. Rod Diameter 1-1/8 in. Single/Double Acting Double Acting Stroke Distance 36 in. 3-year limited warranty Manufacturer part number 287015
