Chief Welded Toilet Cylinder 3.5 in Bore x 10 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

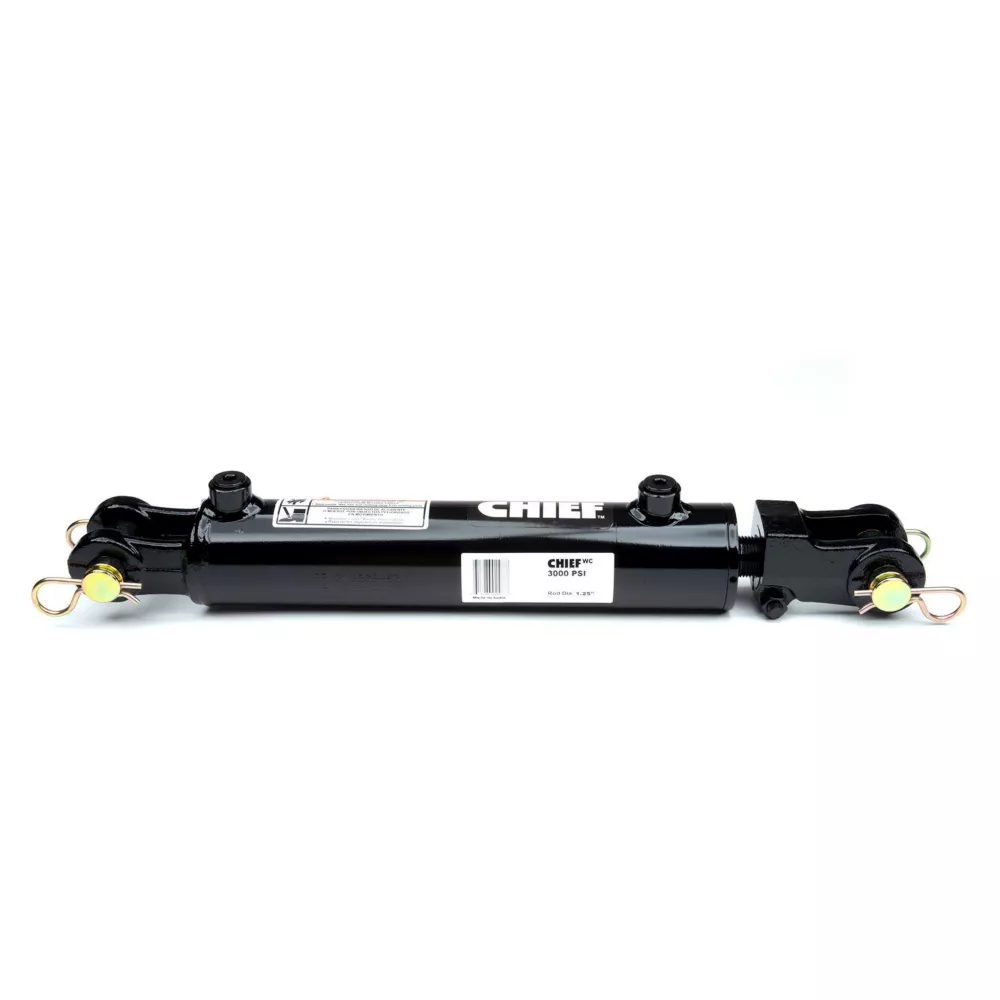

The Chief 3.5 in. Bore x 10 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: Hard chrome-plated

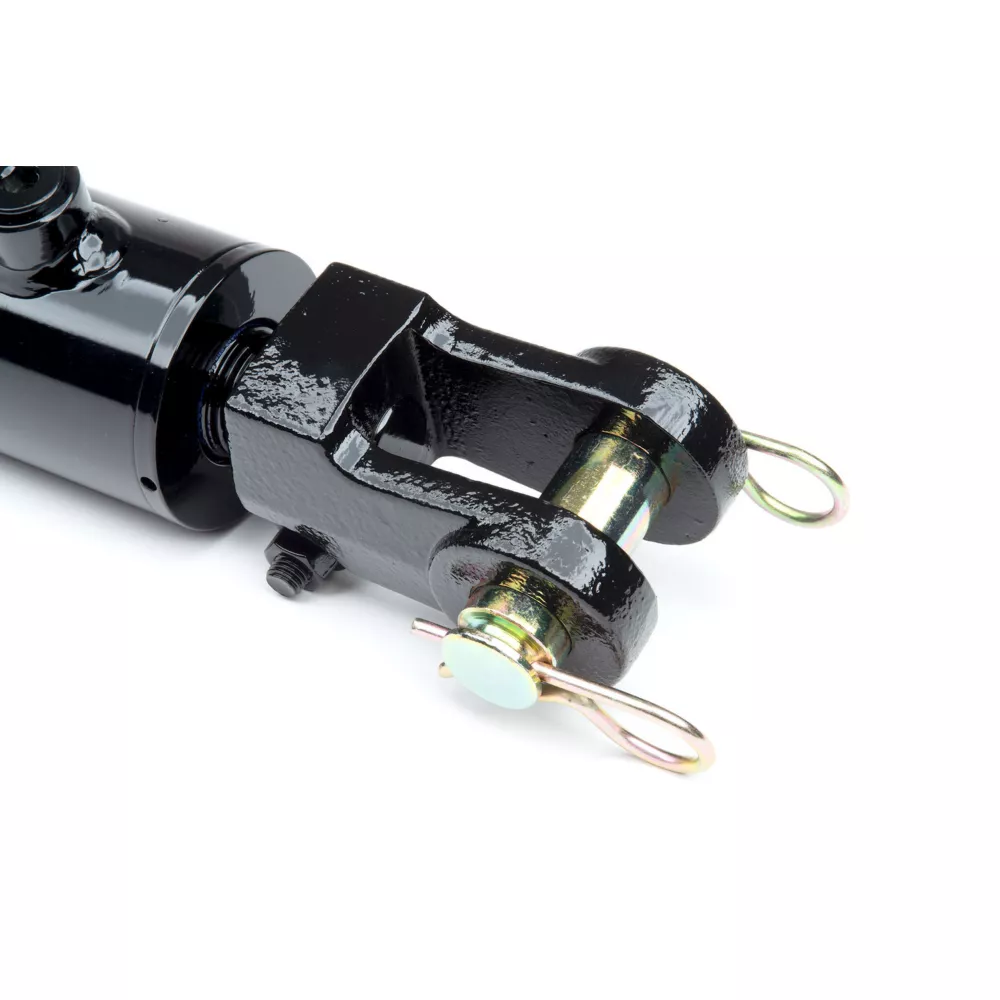

End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications for a reliable hydraulic cylinder
Measures 20.25 in. retracted and 30.25 in. extended
Column load: 28,860 lb.
Pin diameter of 1 in. and rod diameter of 1.75 in.

Chief Welded Toilet Cylinder 3.5 in Bore x 10 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	10 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,860 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	34 lb.
Product Width	N/A
Retracted Length	20.25 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	10 in.
Warranty	3 Year
Manufacturer PartNumber	287046

Chief 3.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 3.5 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 10 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 28,860 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height N/A Product Length N/A Product Weight 34 lbs. Product Width N/A Retracted Length 20.25 in. Shank diameter 1-3/4 in. Single/Double Acting Double Acting Stroke Distance 10 in. 3 year warranty Manufacturer part number 287046
