Chief Welded Toilet Cylinder 3.5 in Bore x 8 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

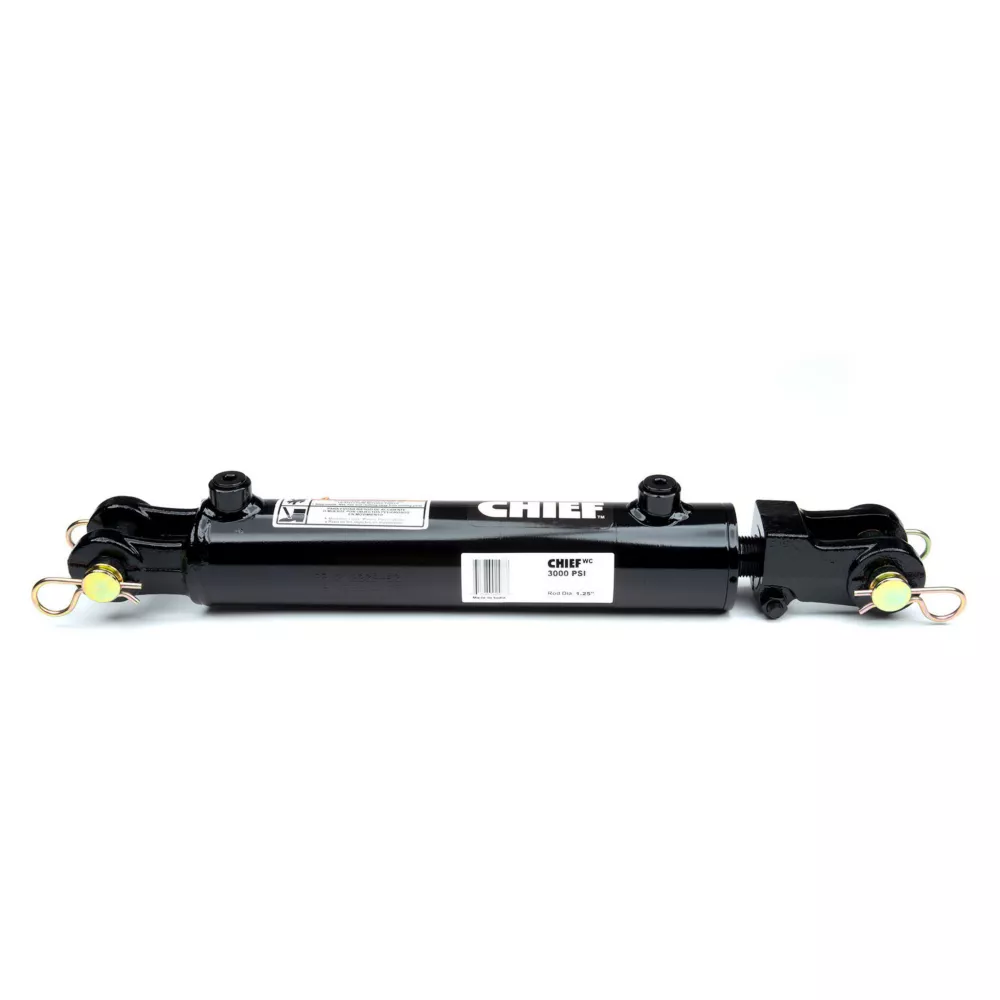

The Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All the hydraulic cylinder's seals are manufactured to US specifications for reliability
Maximum PSI: 3,000
Measures 18.25 in. retracted and 26.25 in. extended
Pin diameter of 1 in. and rod diameter of 1.75 in.
Column load: 28,860 lb.

Chief Welded Toilet Cylinder 3.5 in Bore x 8 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	8 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,860 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	30 lb.
Product Width	N/A
Retracted Length	18.25 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	8 in.
Warranty	3 Year
Manufacturer PartNumber	287045

Chief 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 3.5 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 8 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 28,860 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height N/A Product Length N/A Product Weight 30 lbs. Product Width N/A Retracted Length 18.25 in. Shank diameter 1-3/4 in. Single/Double Acting Double Acting Stroke Distance 8 in. 3 year warranty Manufacturer part number 287045
