Chief Welded Toilet Cylinder 3 in Bore x 14 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 3 in. Bore x 14 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated

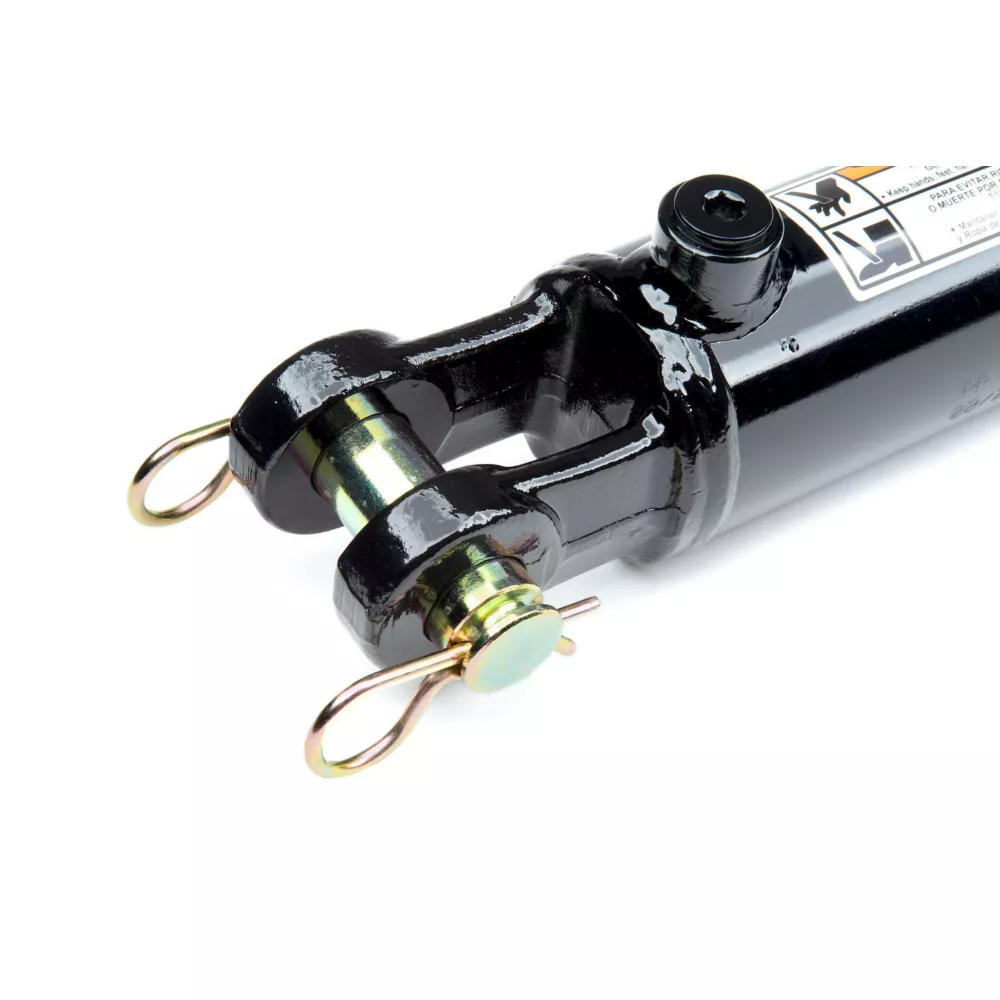

End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with SAE O-ring ports that allow for easy hookup
Has a 3,000 PSI operating range
3-year limited warranty
Measures 24.25 in. retracted and 38.25 in. extended
Individually poly bagged hydraulic cylinder is easy to transport
Column load: 21,200 lb.
Pin diameter of 1in. and rod diameter of 1.5 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Toilet Cylinder 3 in Bore x 14 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	38.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	21,200 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.6 in.
Product Length	10.25 in.
Product Weight	32 lb.
Product Width	1.5 in.
Retracted Length	24.25 in.
Rod Diameter	1-1/2 in.
Stroke Distance	14 in.
Warranty	3 Year Limited
Manufacturer PartNumber	287035

Chief 3 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 3 in. Brand Compatibility Universal Compatibility Tractors Extended Length 38.25 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 21,200 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height 2.6 in. Product Length 10.25 in. Product Weight 32 lb. Product Width 1.5 in. Length retracted 24.25 in. Shank diameter 1-1/2 in. Stroke distance 14 in. 3-year limited warranty, manufacturer part number 287035
