Chief WP Welded Cylinder 3.5 in Bore x 48 in Stroke with Eye Rod 1.75 in Rod Diameter 3 000 PSI Hydraulic Cylinders Tractor Repair & Parts

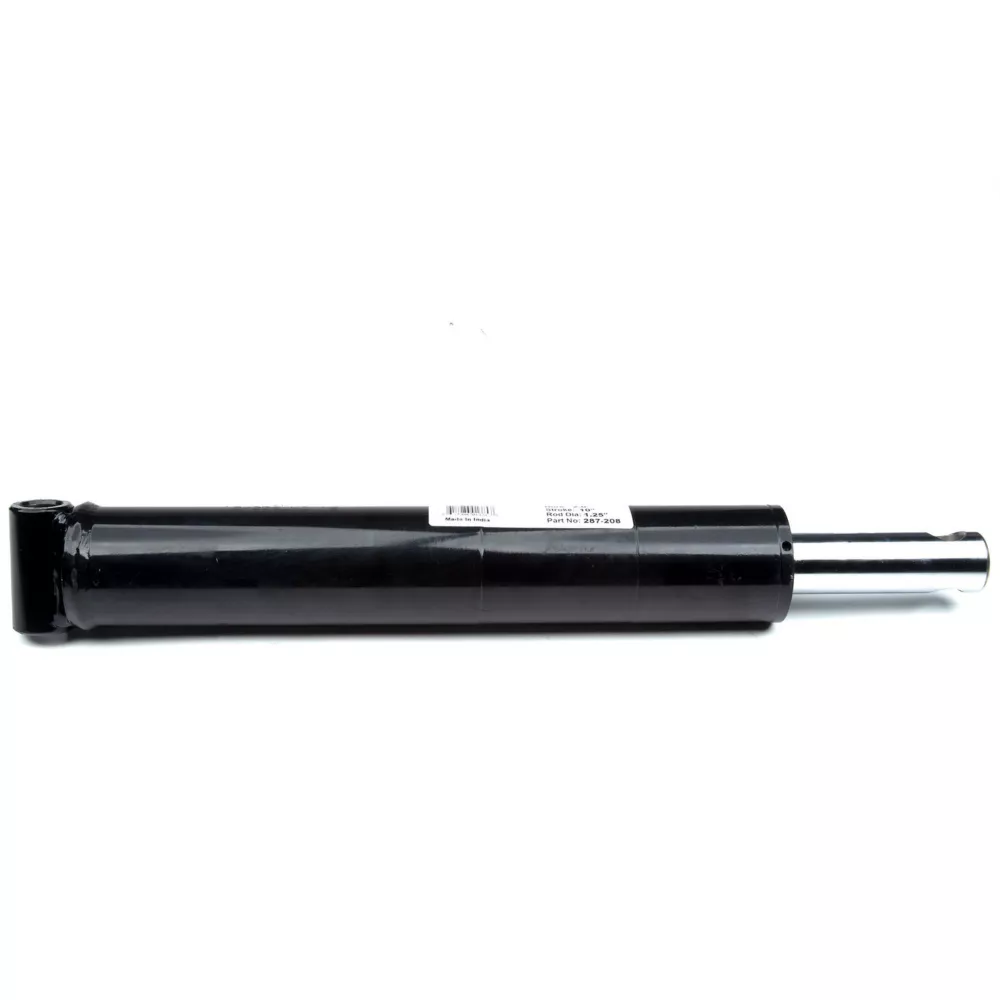

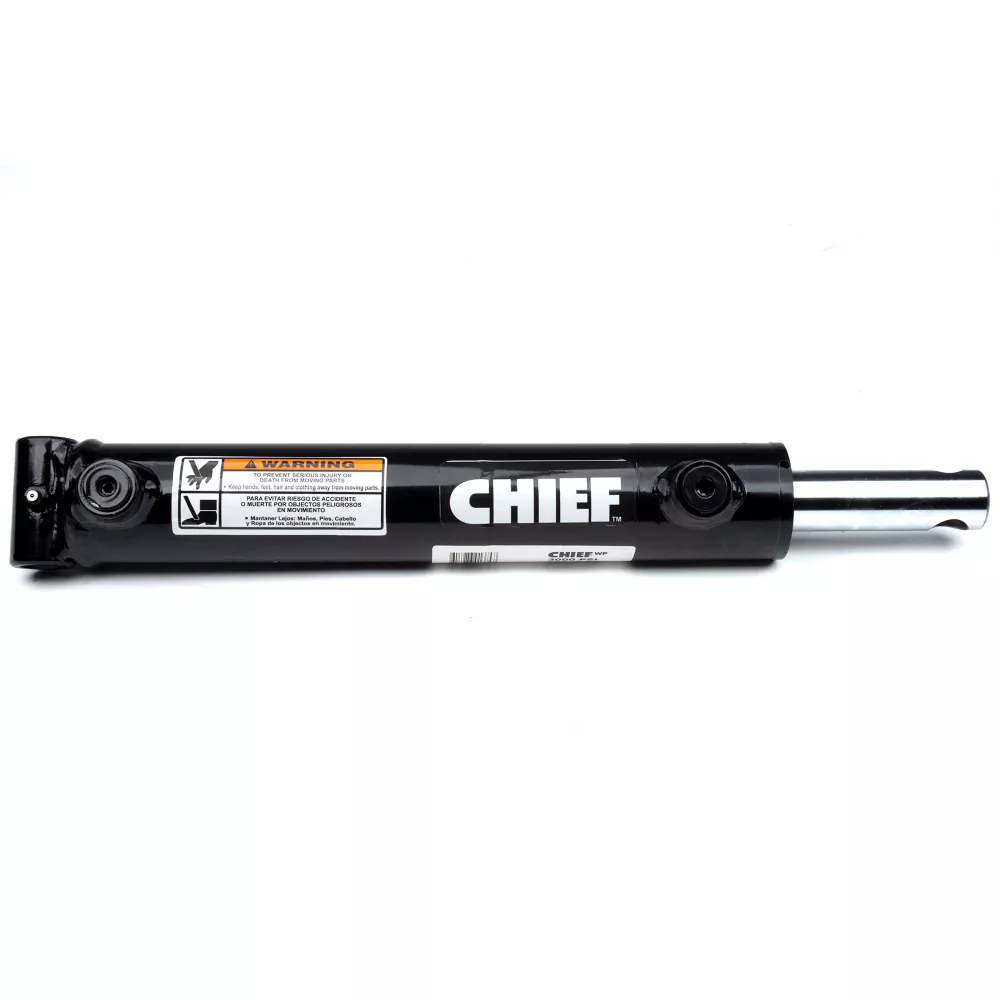

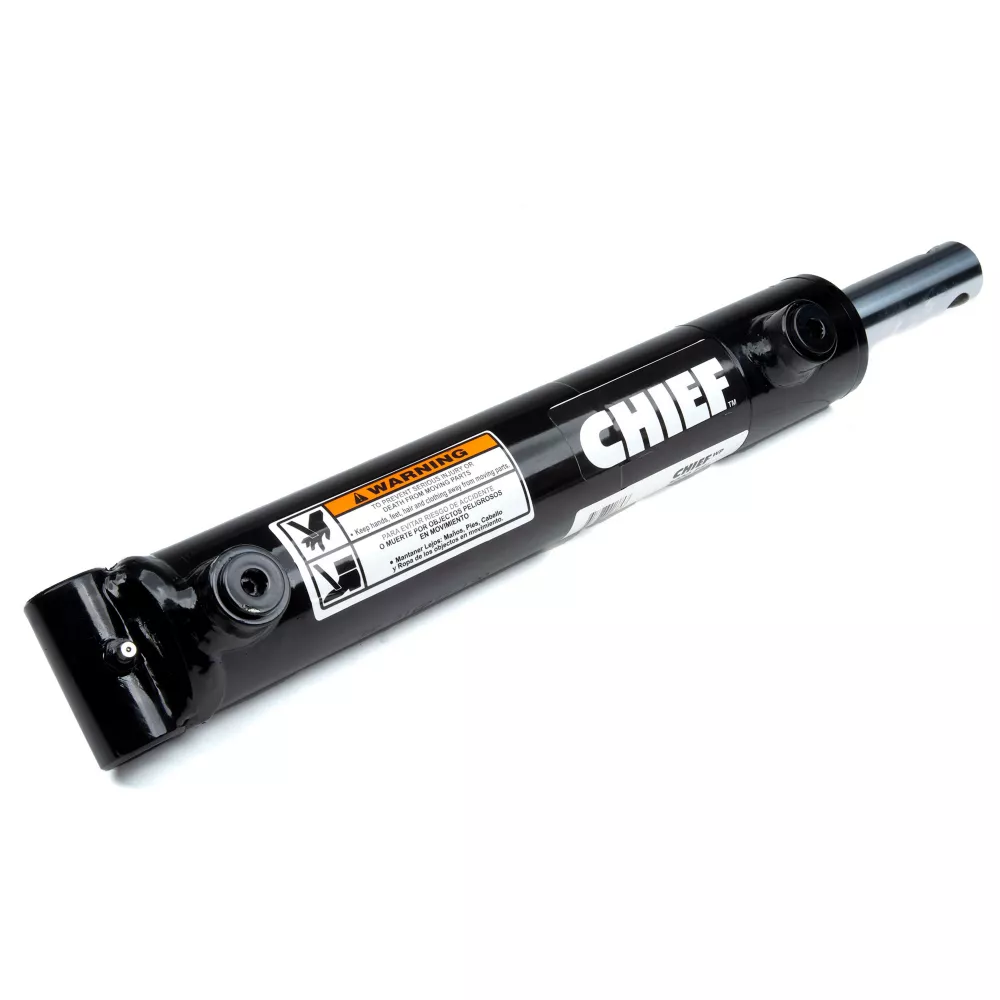

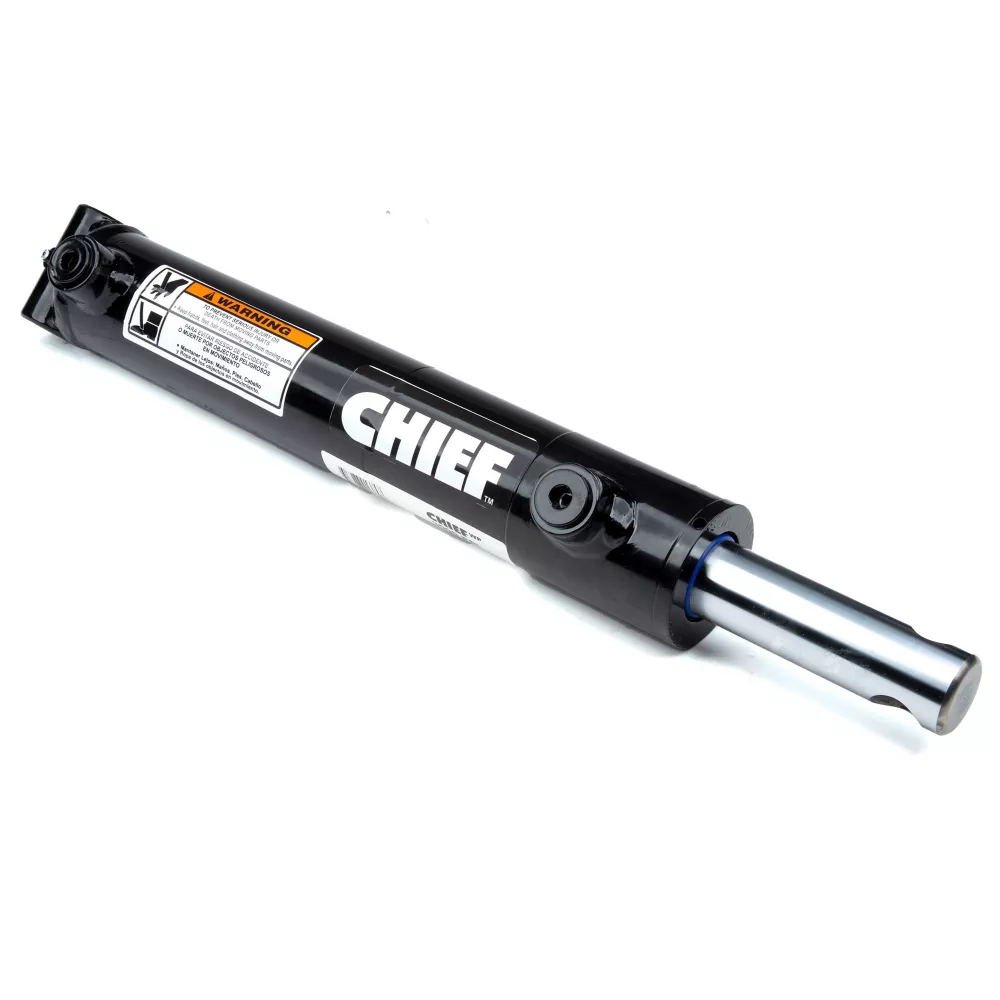

The Chief 3.5 in. Bore x 48 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment, you can trust this hydraulic cylinder. SAE 8 O-ring ports means easy hookup, and the cylinder comes functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.- Welded hydraulic cylinder ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
- SAE 8 O-ring ports for easy hookup
- For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
- All seals are manufactured to US specifications
- 3-year limited warranty
- Piston: ductile iron with wear ring
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision honed steel
- Rod: hard chrome plated

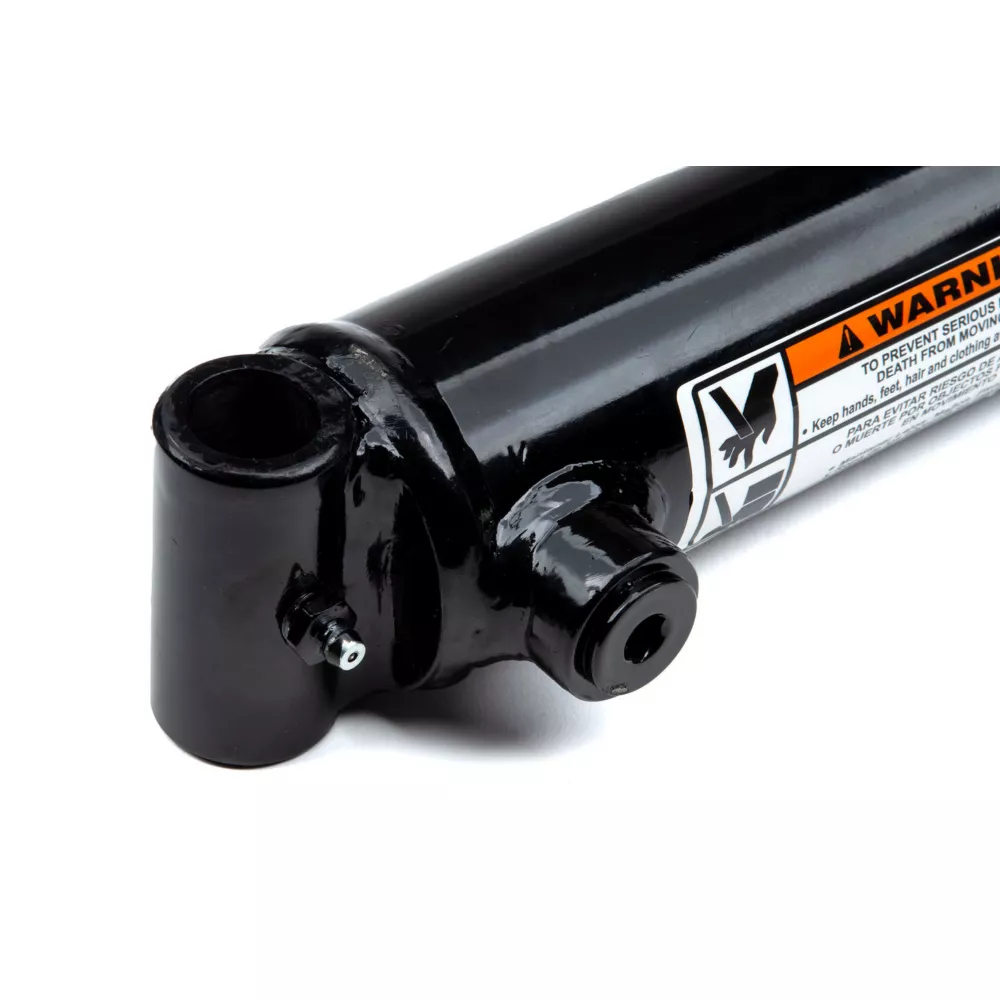

- Base end mount: Steel cross-tube with grease zerk
- Tube seal: Buna O-ring with Polytemp hytrel backup
- Rod wiper: Urethane, snap-in
- Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
- Chief hydraulic cylinders are individually poly bagged
- 3,000 PSI operating range
- Measures 56 in. retracted and 104 in. extended
- Column load: 9,550 lb.
- Pin diameter of 1 in. and rod diameter of 1.75 in.
- Rod seal: deep polypak with B lip design

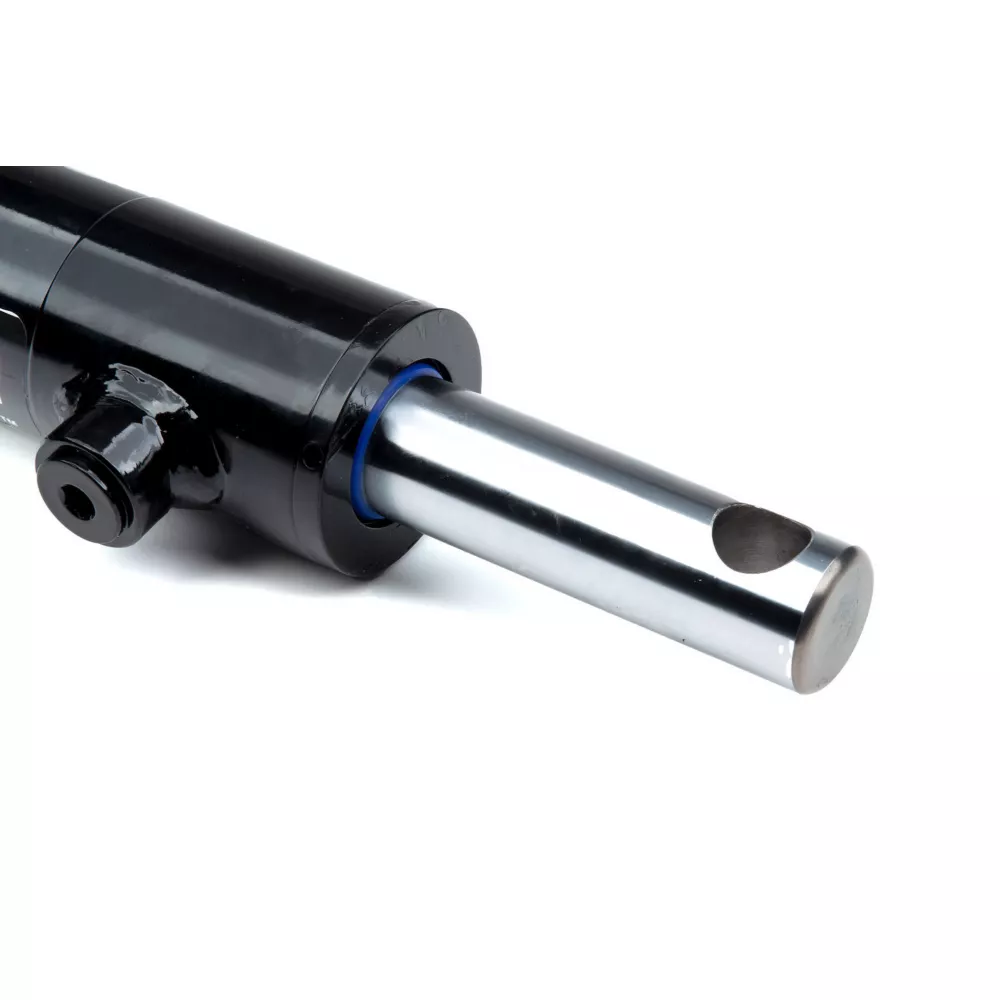

- Rod end mount: rod eye drilled
Chief WP Welded Cylinder 3.5 in Bore x 48 in Stroke with Eye Rod 1.75 in Rod Diameter 3 000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 104 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,550 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.624 in. |
| Product Length | 8 in. |
| Product Weight | 79 lb. |
| Product Width | 4 in. |
| Retracted Length | 56 in. |
| Rod Diameter | 1-3/4 in. |
| Stroke Distance | 48 in. |
| Warranty | 3 Year |
| Manufacturer PartNumber | 287286 |
