Chief WP Welded/Pineye Cylinder 3.5 in Bore x 40 in Stroke 1.75 in Rod Diameter 3000 PSI Hydraulic Cylinders Tractor Repair & Parts

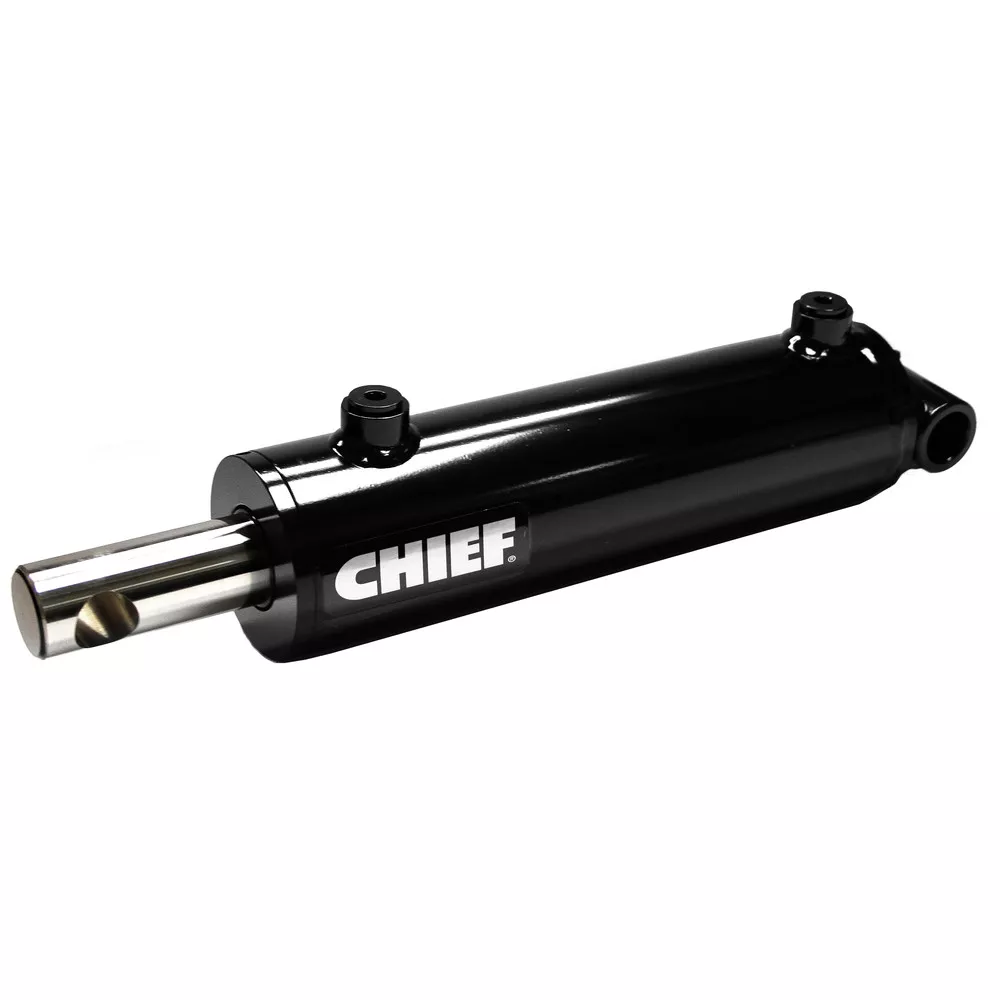

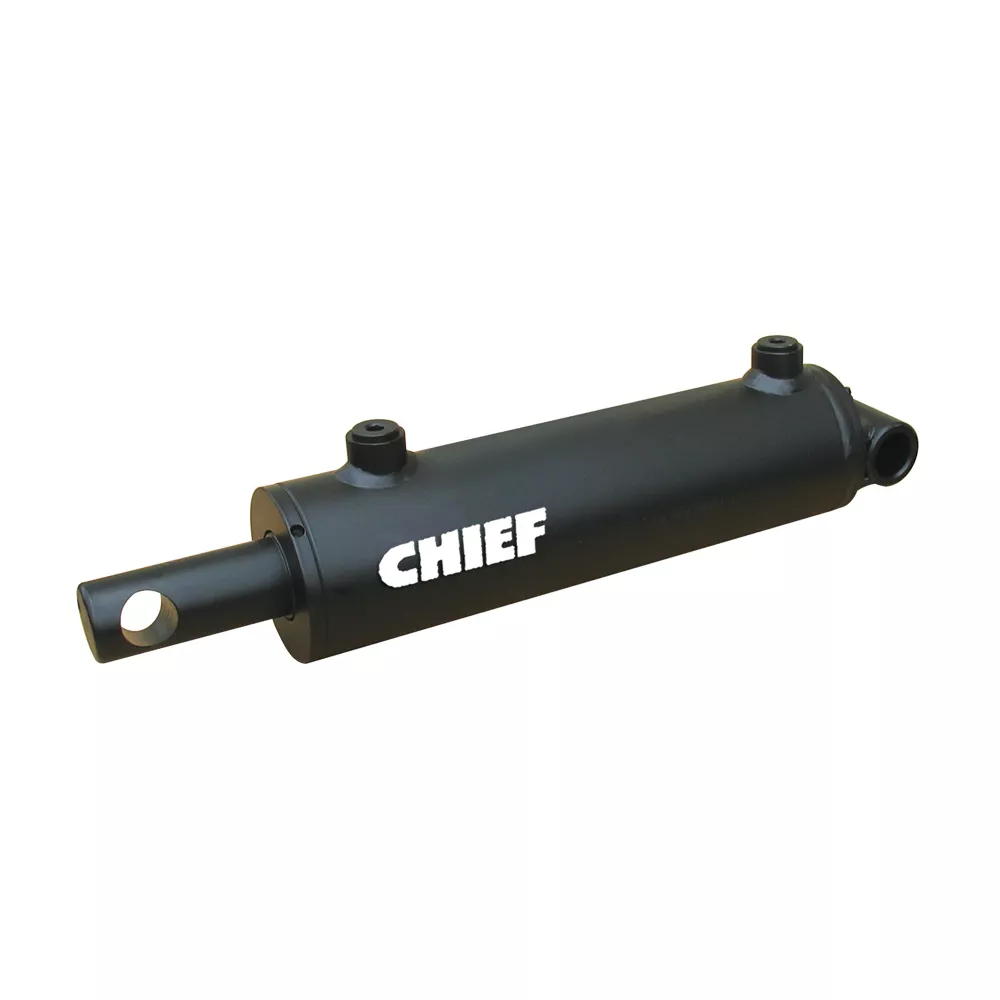

The Chief 3.5 in. Bore x 40 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.- Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
- SAE 8 O-ring ports for easy hookup
- For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
- All seals are manufactured to US specifications
- 3-year limited warranty
- Piston: ductile iron with wear ring
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision honed steel
- Rod is hard chrome plated and rod end mount is rod eye drilled for durability
- Base end mount: steel cross-tube with grease zerk
- Tube seal: Buna O-ring with Polytemp hytrel backup; rod seal: deep polypak with B lip design
- Rod wiper: Urethane, snap-in
- Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
- Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
- 3,000 PSI operating range
- Measures 48 in. retracted and 88 in. extended
- Column load: 13,330 lb.
- Pin diameter of 1 in. and rod diameter of 1.75 in.
Chief WP Welded/Pineye Cylinder 3.5 in Bore x 40 in Stroke 1.75 in Rod Diameter 3000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 88 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 13,330 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Primary Material | Steel |
| Product Height | 2.624 in. |
| Product Length | 8 in. |
| Product Weight | 69 lb. |
| Product Width | 4 in. |
| Retracted Length | 48 in. |
| Rod Diameter | 1-3/4 in. |
| Stroke Distance | 40 in. |
| Warranty | 3 Year |
| Manufacturer PartNumber | 287284 |
