Chief WP Welded/Pineye Cylinder 4 in Bore x 8 in Stroke 2 in Rod Diameter 3 000 PSI Hydraulic Cylinders Tractor Repair & Parts

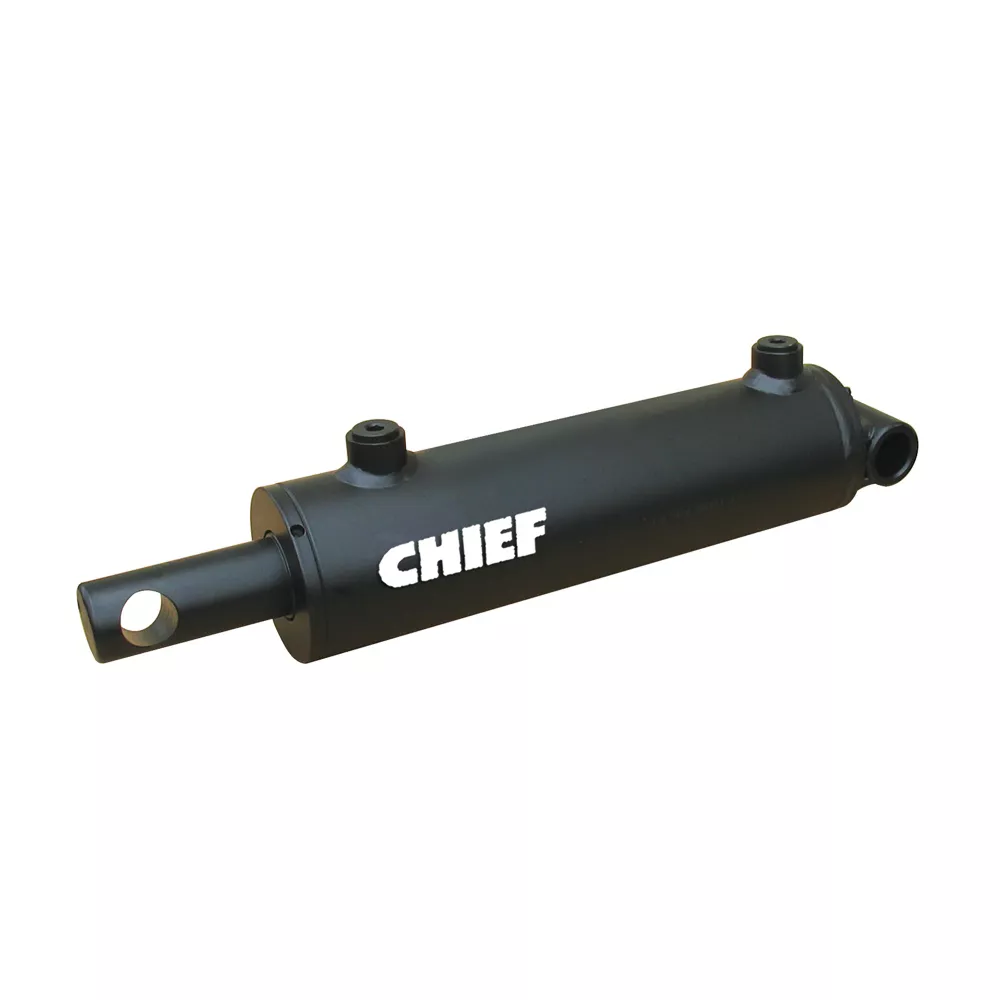

The Chief 4 in. Bore x 8 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.

Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
SAE 8 O-ring ports for easy hookup
For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
All seals are manufactured to US specifications
3-year limited warranty
Piston: ductile iron with wear ring
Gland: ductile iron, screw-in design with wear ring
Tube: precision honed steel
Rod is hard chrome plated and rod end mount is rod eye drilled for durability
Base end mount: steel cross-tube with grease zerk
Tube seal: Buna O-ring with Polytemp hytrel backup; rod seal: deep polypak with B lip design
Rod wiper: Urethane, snap-in
Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
3,000 PSI operating range
Measures 17 in. retracted and 25 in. extended
Column load: 37,690 lb.
Pin diameter of 1.25 in. and rod diameter of 2 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WP Welded/Pineye Cylinder 4 in Bore x 8 in Stroke 2 in Rod Diameter 3 000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/4 in.
Primary Material	Steel
Product Height	4.625 in.
Product Length	9 in.
Product Weight	40 lb.
Product Width	2 in.
Retracted Length	17 in.
Rod Diameter	2 in.
Stroke Distance	8 in.
Warranty	3 Year
Manufacturer PartNumber	287290
