Chief WT Welded Cylinder 4 in Bore x 10 in Stroke 2.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

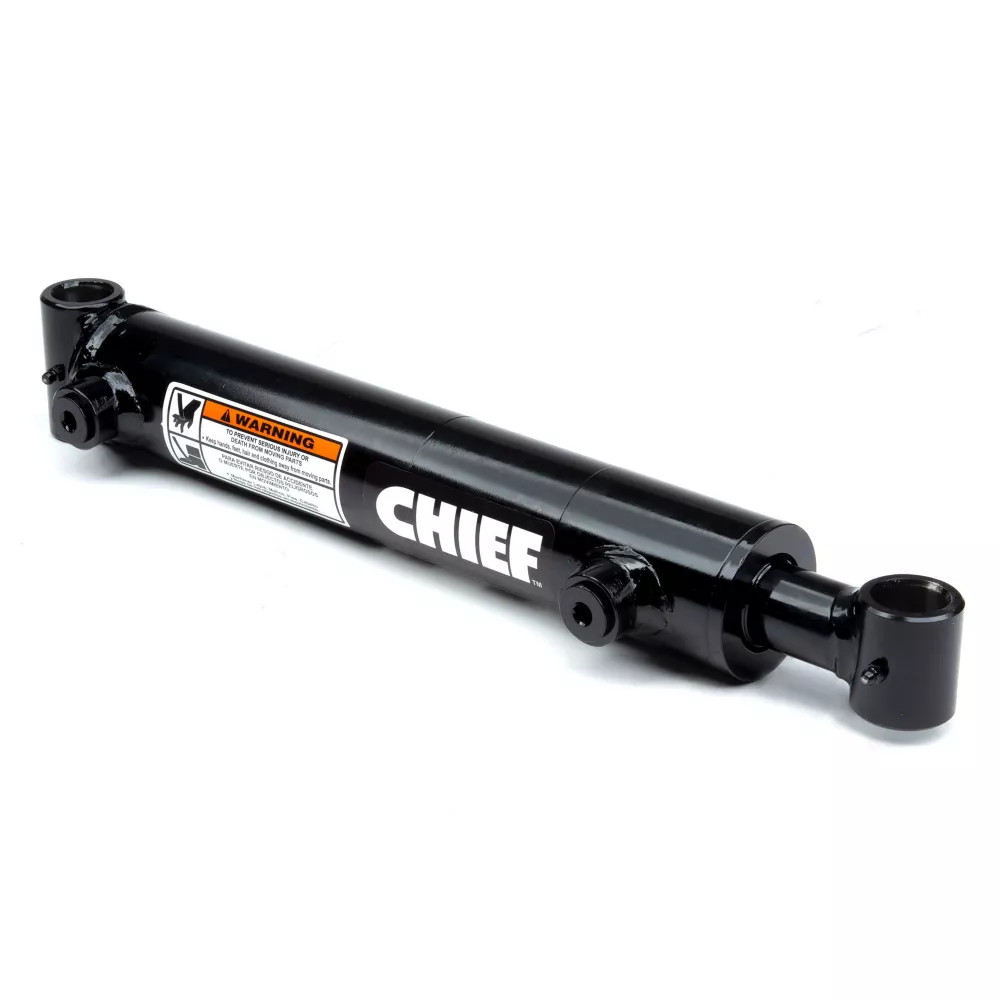

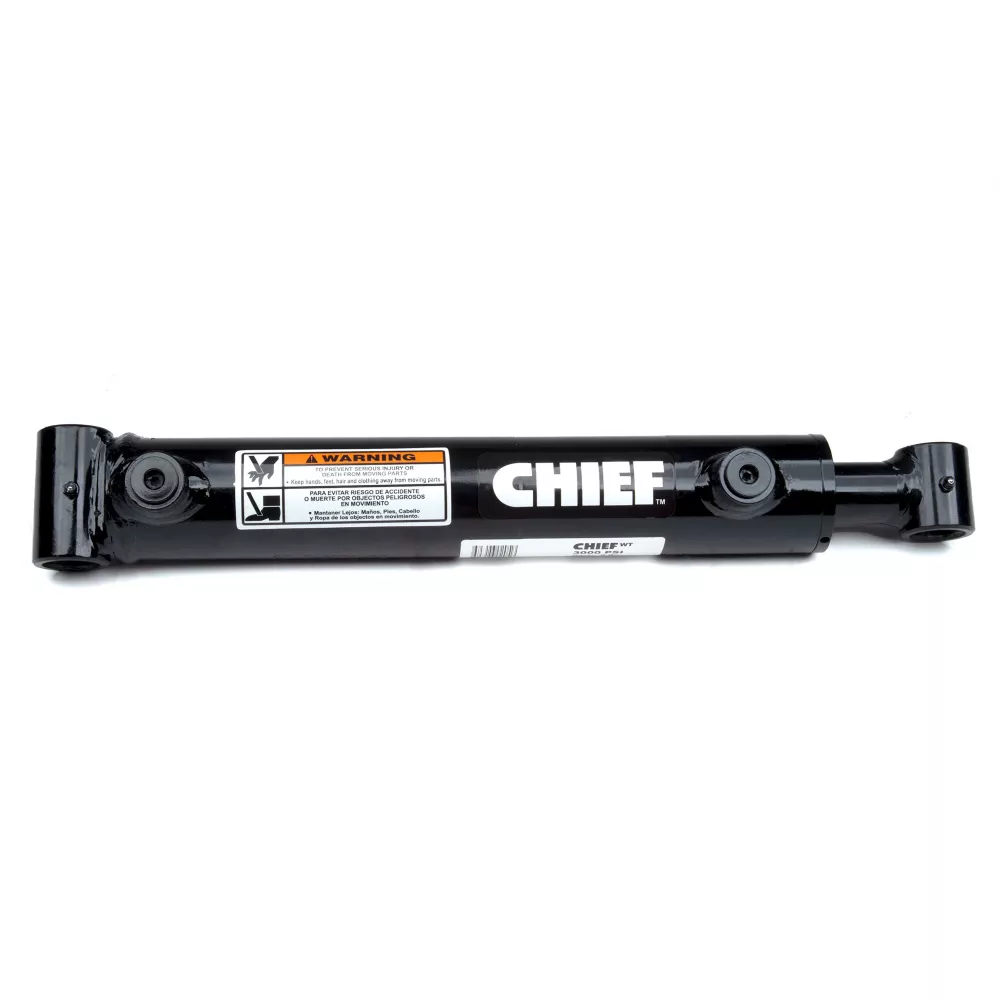

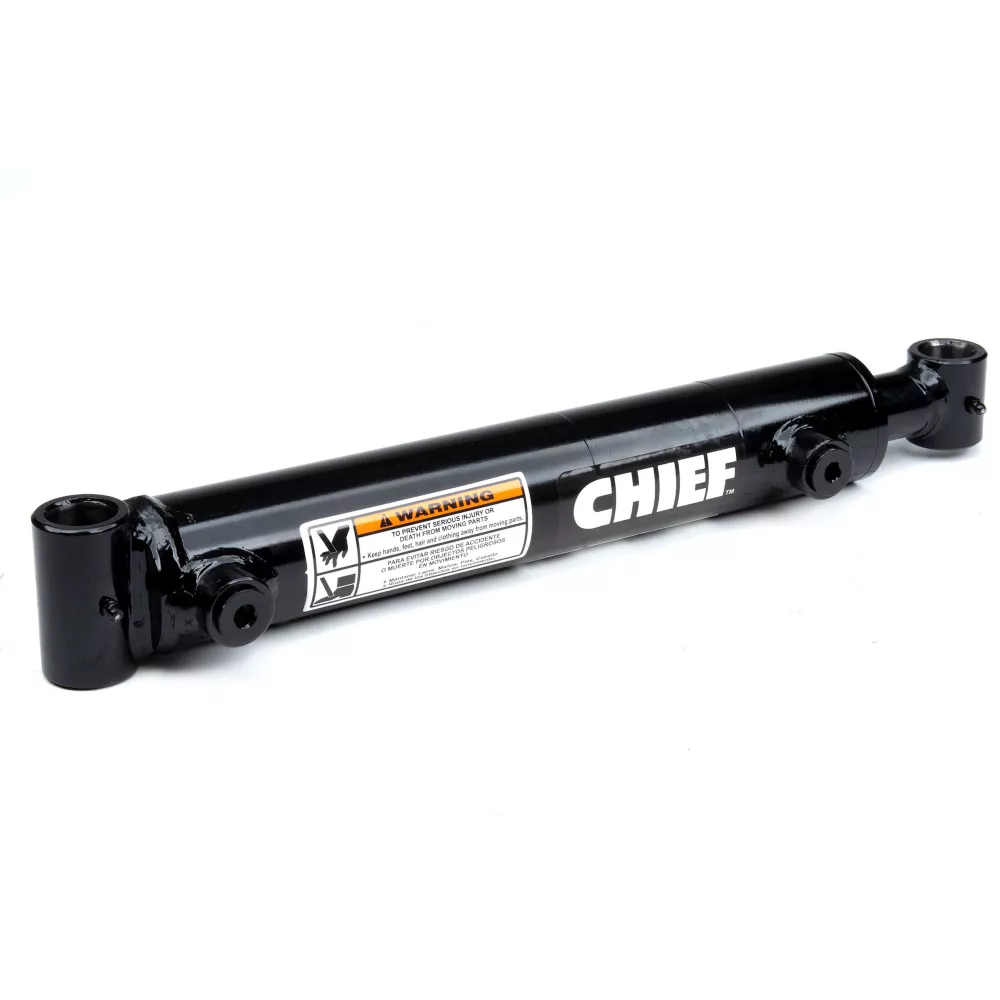

The Chief 4 in. Bore x 10 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
3 year warranty on hydraulic cylinder comes included
Measures 19 in. retracted and 29 in. extended
Column load: 37,690 lb.
Pin diameter of 1.25 in. and rod diameter of 2.25 in.

Chief WT Welded Cylinder 4 in Bore x 10 in Stroke 2.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Most application
Extended Length	10 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	N/A
Product Width	N/A
Retracted Length	N/A
Rod Diameter	2-1/4 in.
Single/Double Acting	Double acting
Stroke Distance	10 in.
Warranty	3 Year
Manufacturer PartNumber	212761

Chief 4 in. Bore x 10 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 10 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 37,690 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1-1/4 in. Port Size SAE 8 Primary Material Steel Product Height N/A Product Length N/A Product Weight N/A Product Width N/A Retracted Length N/A Shank Diameter 2-1/4 in. Single/Double effect Double acting Travel distance 10 in. 3 year warranty Manufacturer part number 212761
