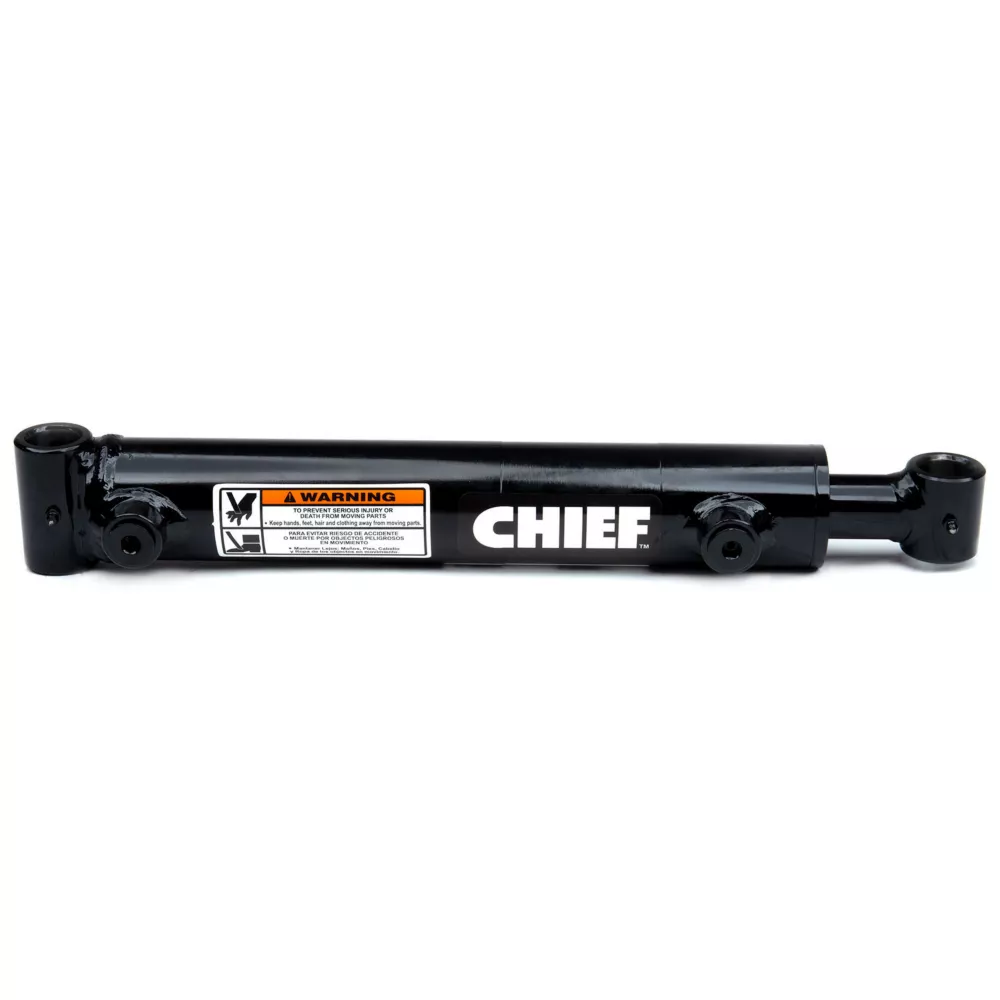

Chief WT Welded Hydraulic Cylinder 2.5 in Bore x 20 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 2.5 in. Bore x 20 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. You can rest easy knowing this cylinder is ideally suited for construction, metal fabricating, waste/recycling, OEM trailer manufacturing, and agricultural applications.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the hydraulic cylinder
Includes SAE O-ring port hookups on small bores and NPT on the welded hydraulic cylinder's large bores
Measures 28 in. retracted and 48 in. extended
Column load: 14,720 lb.
Pin diameter of 1 in. and rod diameter of 1.5 in.
Made in the USA

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Hydraulic Cylinder 2.5 in Bore x 20 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	48 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,720 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	3.12 in.
Product Length	N/A
Product Weight	28.88 lb.
Product Width	N/A
Retracted Length	28 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Double acting
Stroke Distance	20 in.
Warranty	3 Year Limited
Manufacturer PartNumber	212695
