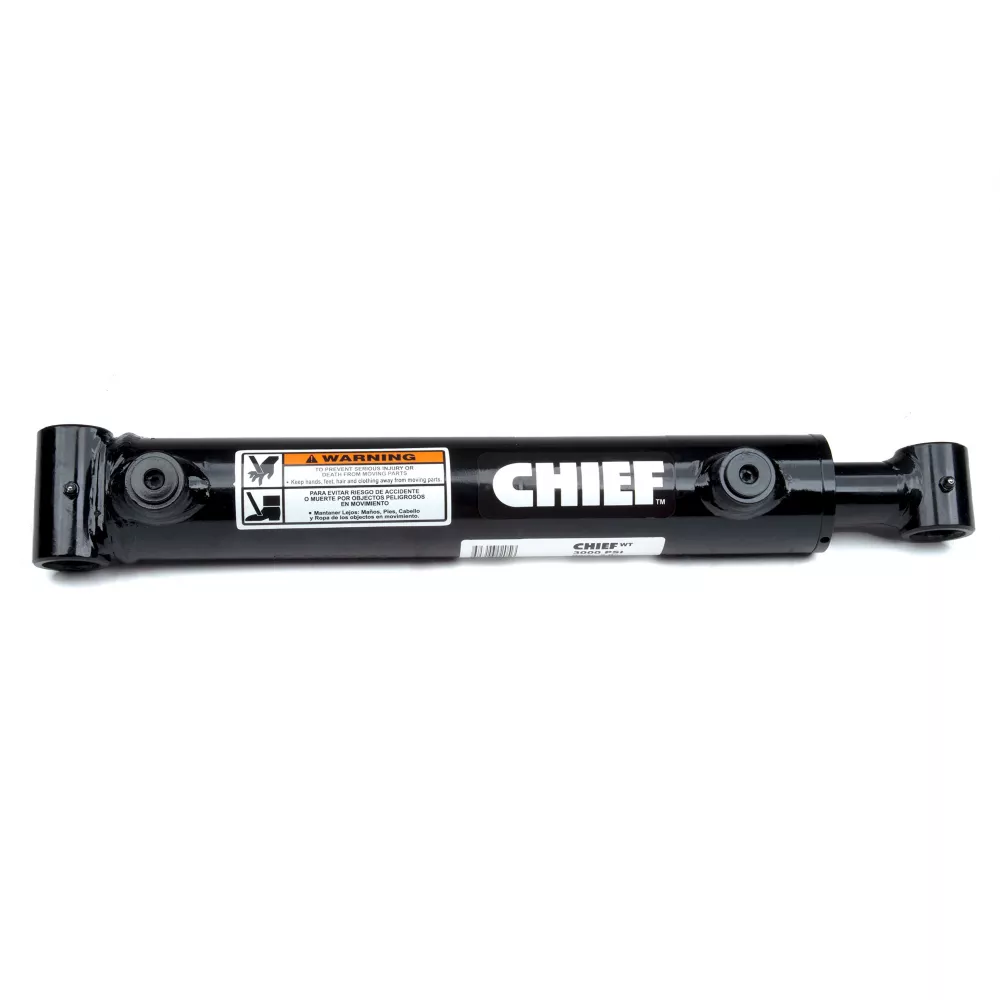

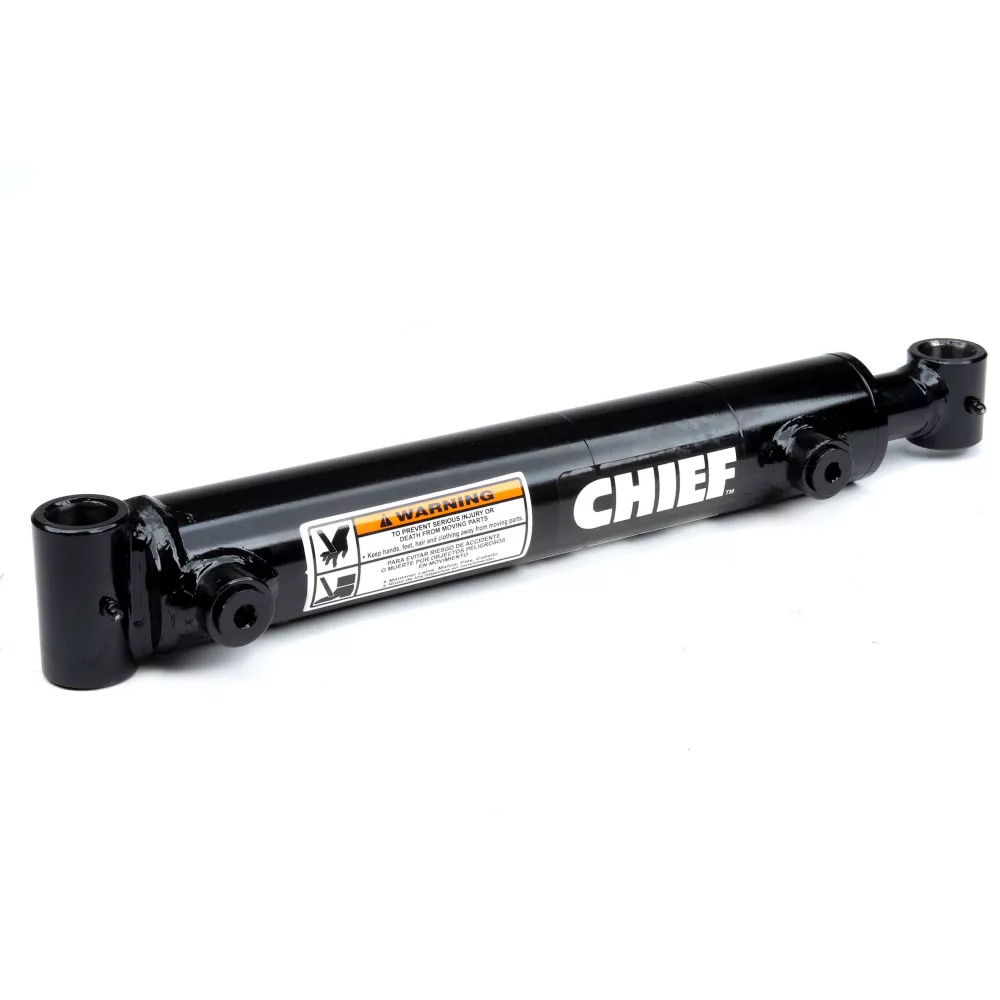

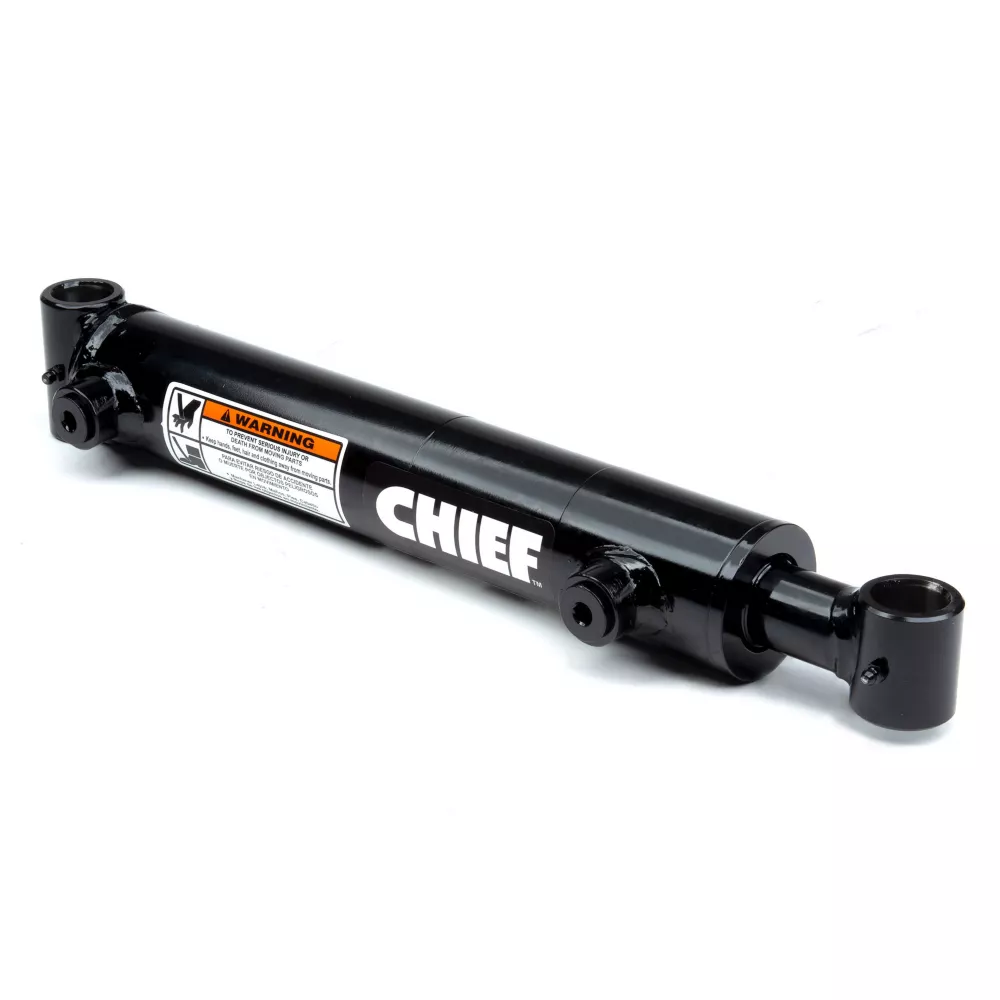

Chief WT Welded Hydraulic Cylinder 2 in Bore x 36 in Stroke 1.25 in Rod Diameter 212712 Hydraulic Cylinders Tractor Repair & Parts

The Chief 2 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks for smooth and consistent performance. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end, making this cylinder ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.

Intended for double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube made from durable, precision-honed steel
Rod is made from ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Includes SAE O-ring port hookups on small bores and NPT on large bores
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating rang
Made in the USA
SAE O-ring ports
Black paint finish
Suitable for a variety of applications and a great welded hydraulic cylinder for farming applications
Measures 43 in. retracted and 79 in. extended
Column load: 4,260 lb.
Maximum PSI: 3,000 PSI
Includes SAE O-ring port hookups on small bores and NPT on large bores
Pin diameter of 0.75 in. and rod diameter of 1.25 in.
3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Hydraulic Cylinder 2 in Bore x 36 in Stroke 1.25 in Rod Diameter 212712 Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2 in.
Compatibility	Tractors
Extended Length	79 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	4,260 lb.
Package Quantity	1
Pin Diameter	0.75 in.
Primary Material	Steel
Product Height	2.5 in.
Product Weight	33 lb.
Retracted Length	43 in.
Rod Diameter	1.25 in.
Stroke Distance	36 in.
Warranty	3 Year Limited
Manufacturer PartNumber	212712
