Chief WT Welded Hydraulic Cylinder 3.5 in Bore x 12 in Stroke 2 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

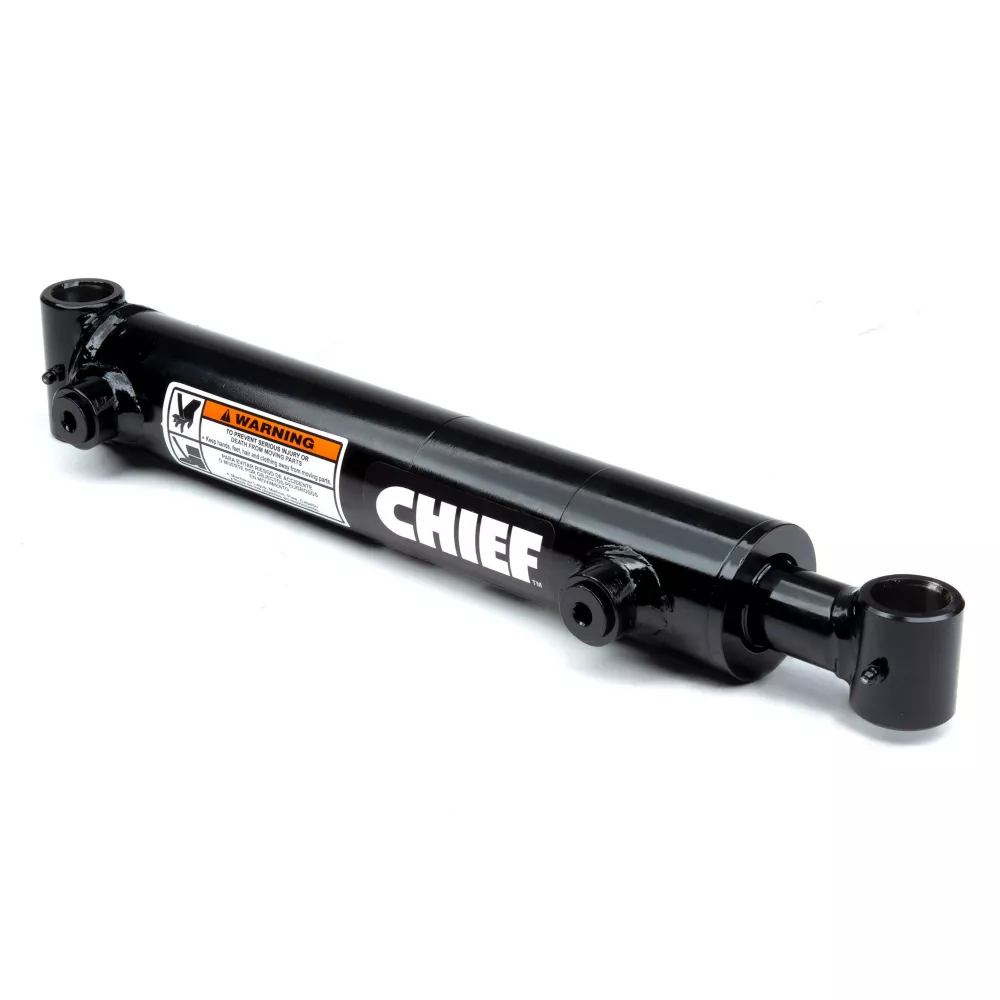

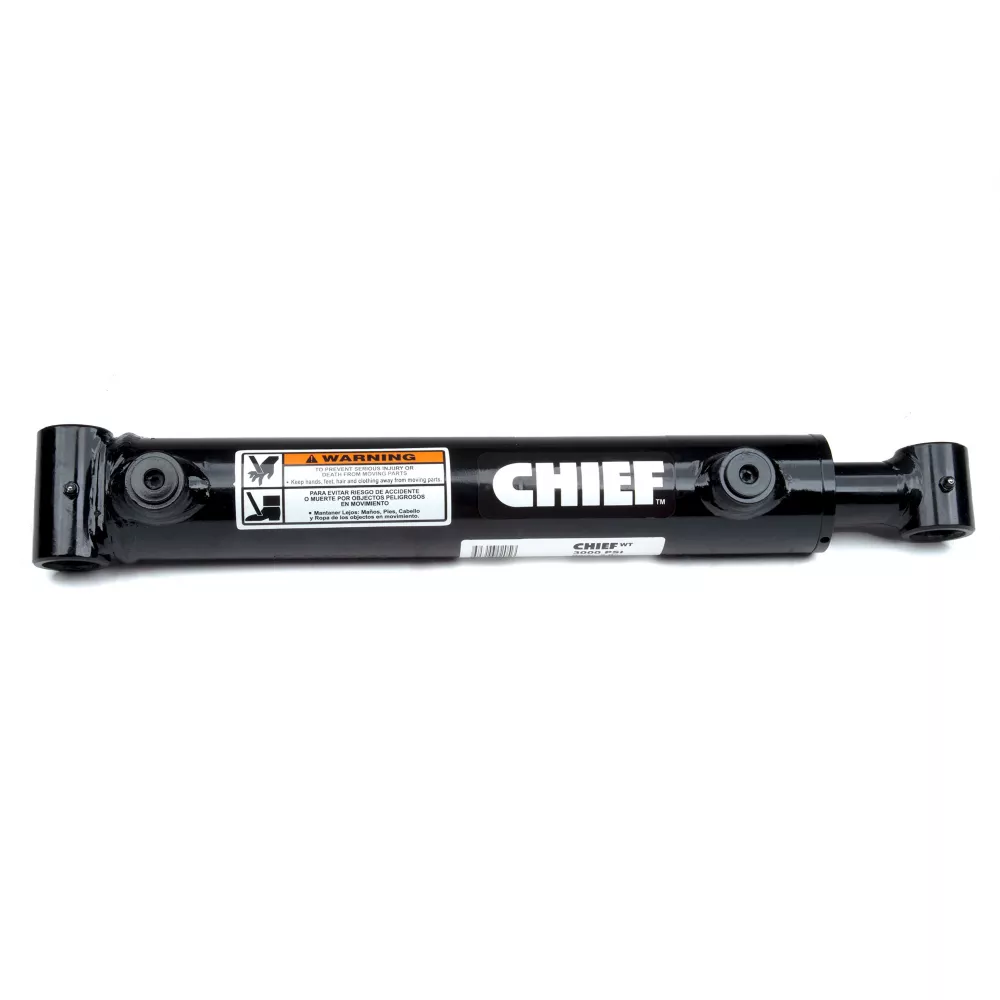

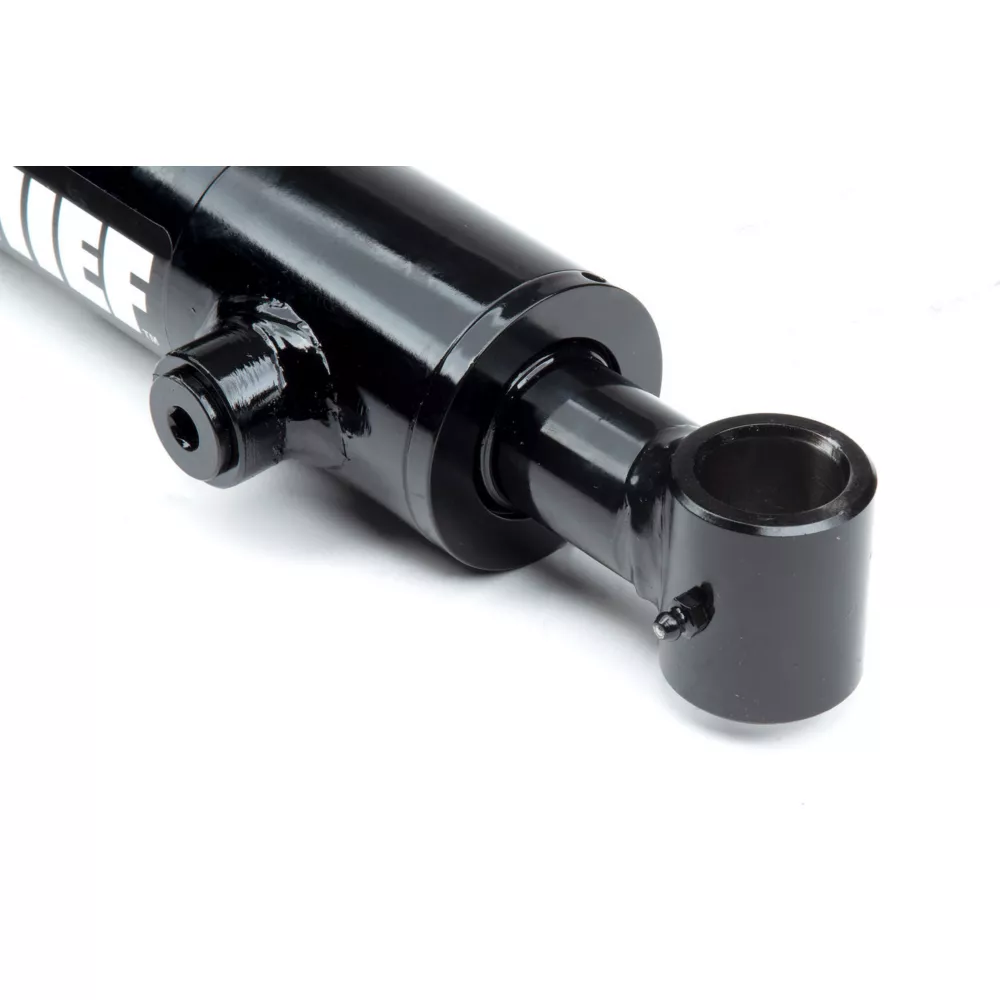

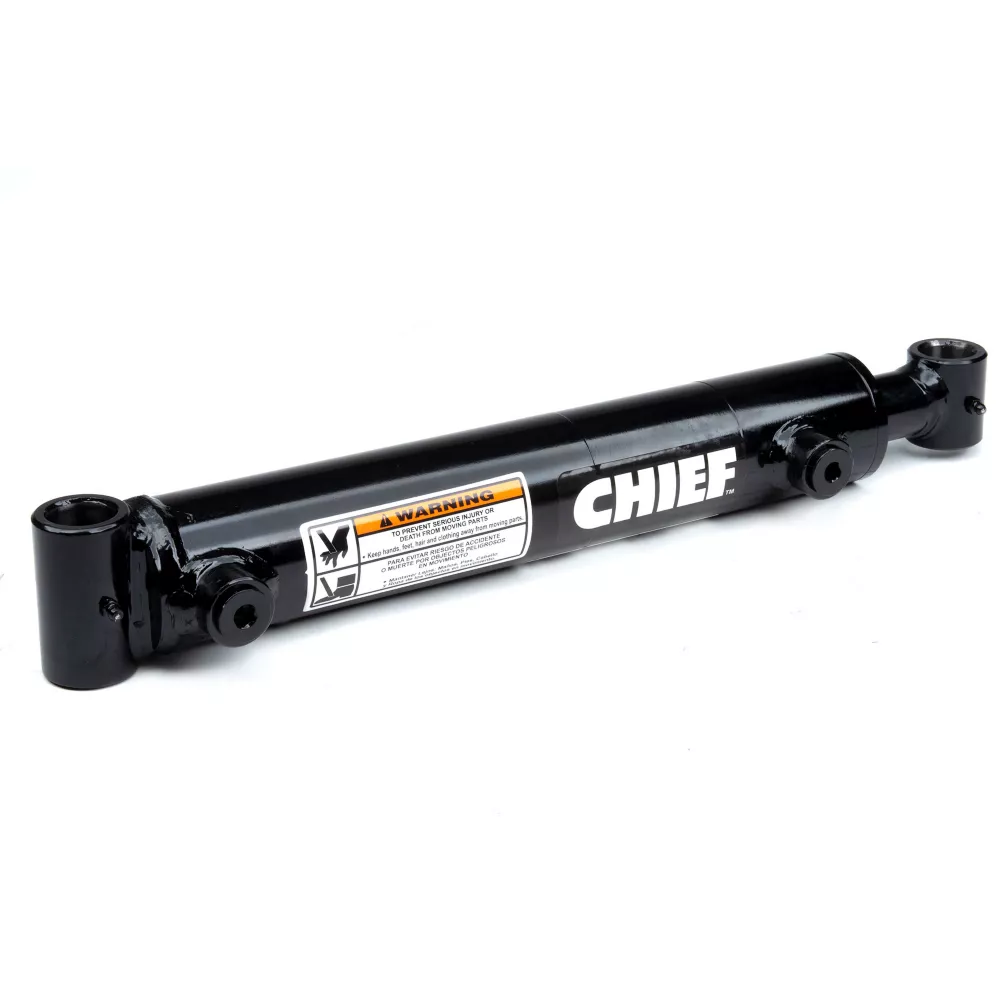

The Chief 3.5 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.- Intended use: double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt plate: steel
- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
- 3,000 PSI operating range on the welded hydraulic cylinder
- Measures 20 in. retracted and 32 in. extended
- Includes SAE O-ring port hookups on small bores and NPT on large bores
- Column load: 28,860 lb.
- Suitable for a variety of applications
- Made in the USA with a 3 year limited warranty
- Pin diameter of 1 in. and rod diameter of 2 in.
Chief WT Welded Hydraulic Cylinder 3.5 in Bore x 12 in Stroke 2 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Made in USA |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 32 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 28,860 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 38.58 lb. |
| Product Width | 2.5 in. |
| Retracted Length | 20 in. |
| Rod Diameter | 2 in. |
| Stroke Distance | 12 in. |
| Warranty | 3 Year |
| Manufacturer PartNumber | 212746 |
