Chief WT Welded Hydraulic Cylinder 3 in Bore x 8 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

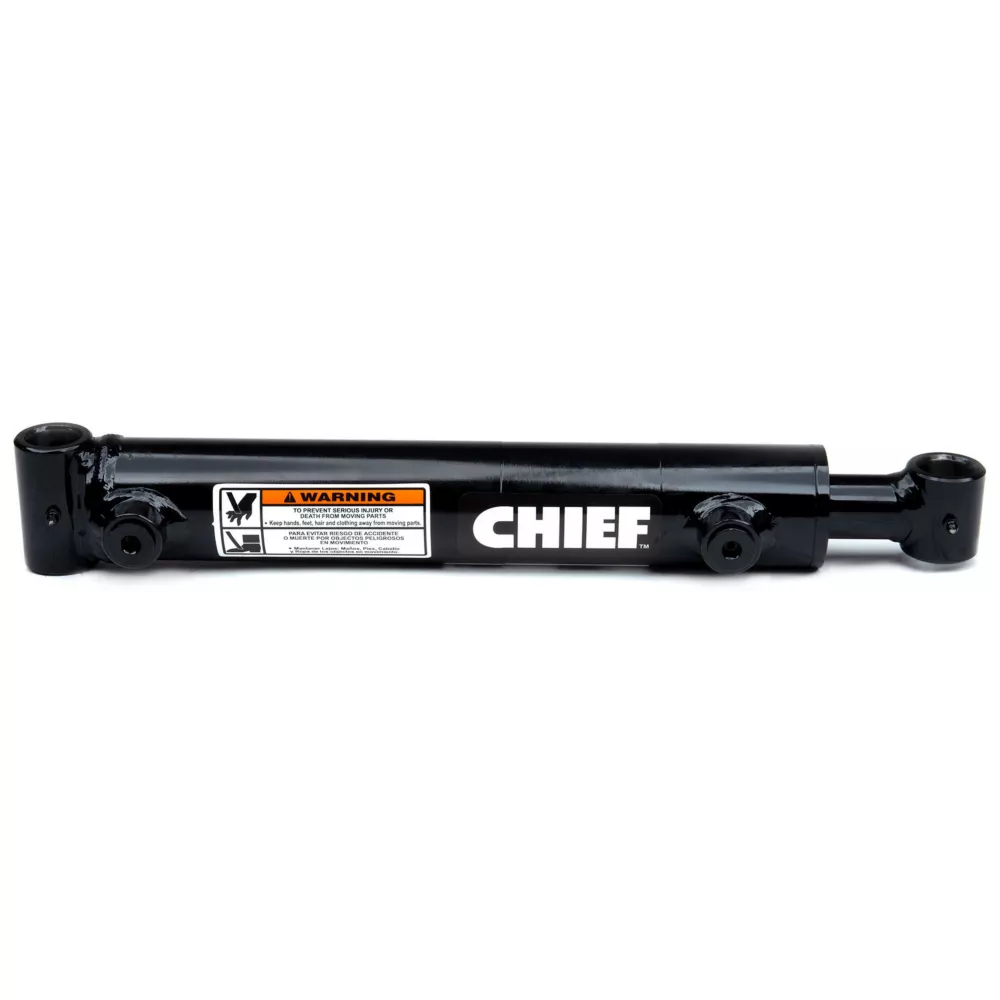

The Chief 3 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the welded hydraulic cylinder
Includes SAE O-ring port hookups on small bores and NPT on large bores
Measures 16 in. retracted and 24 in. extended
Column load: 21,200 lb.
Suitable for a variety of applications and make great farm hydraulic cylinders
Made in the USA with a 3 year limited warranty
Pin diameter of 1 in. and rod diameter of 1.75 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Hydraulic Cylinder 3 in Bore x 8 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	24 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	21,200 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	3.5 in.
Product Length	N/A
Product Weight	24.25 lb.
Product Width	N/A
Retracted Length	16 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	8 in.
Warranty	3 Year Limited
Manufacturer PartNumber	212728
