Chief WT Welded Hydraulic Cylinder 4 in Bore x 14 in Stroke 2.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

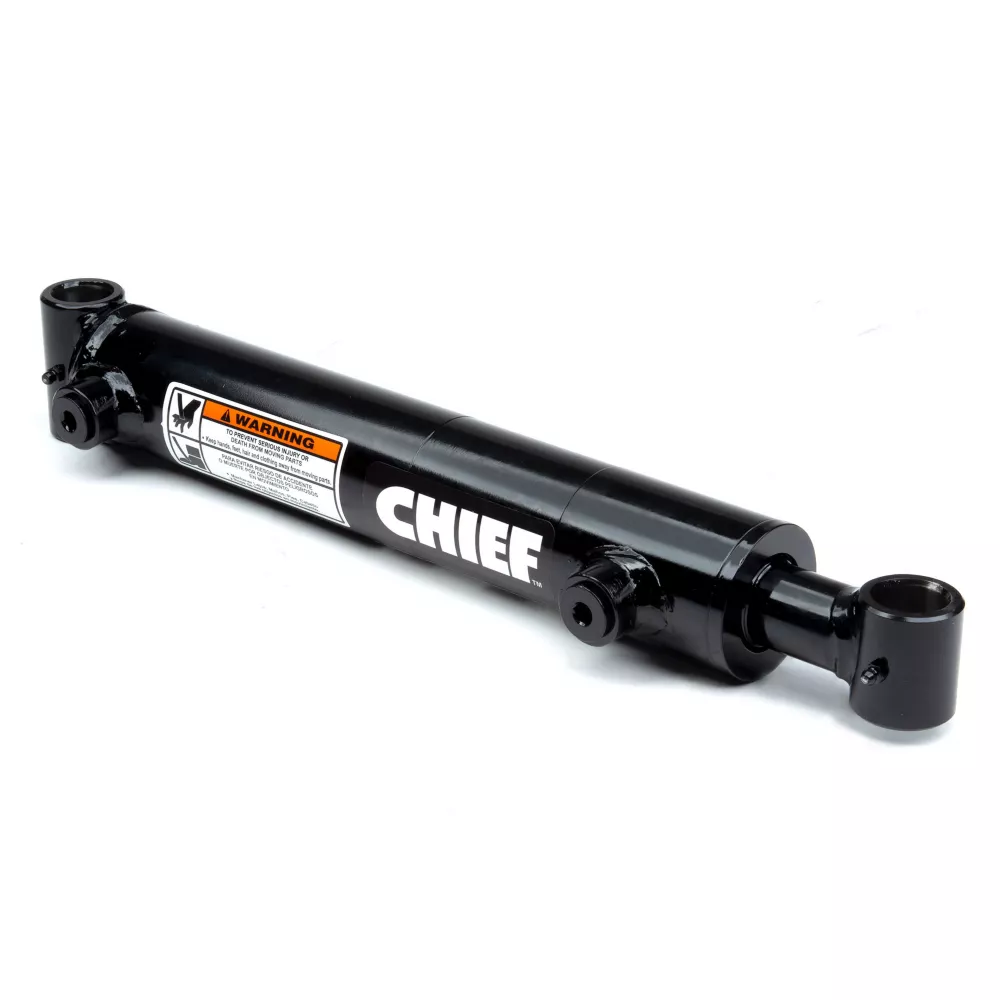

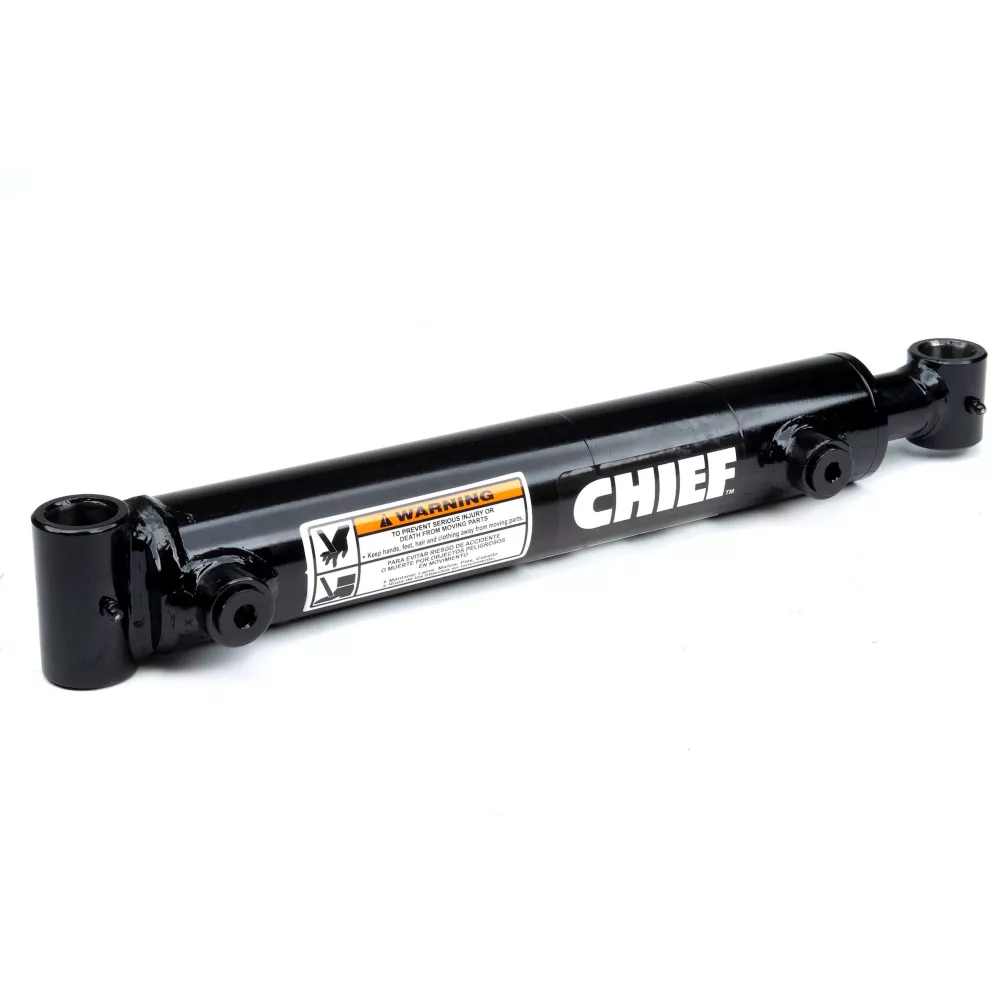

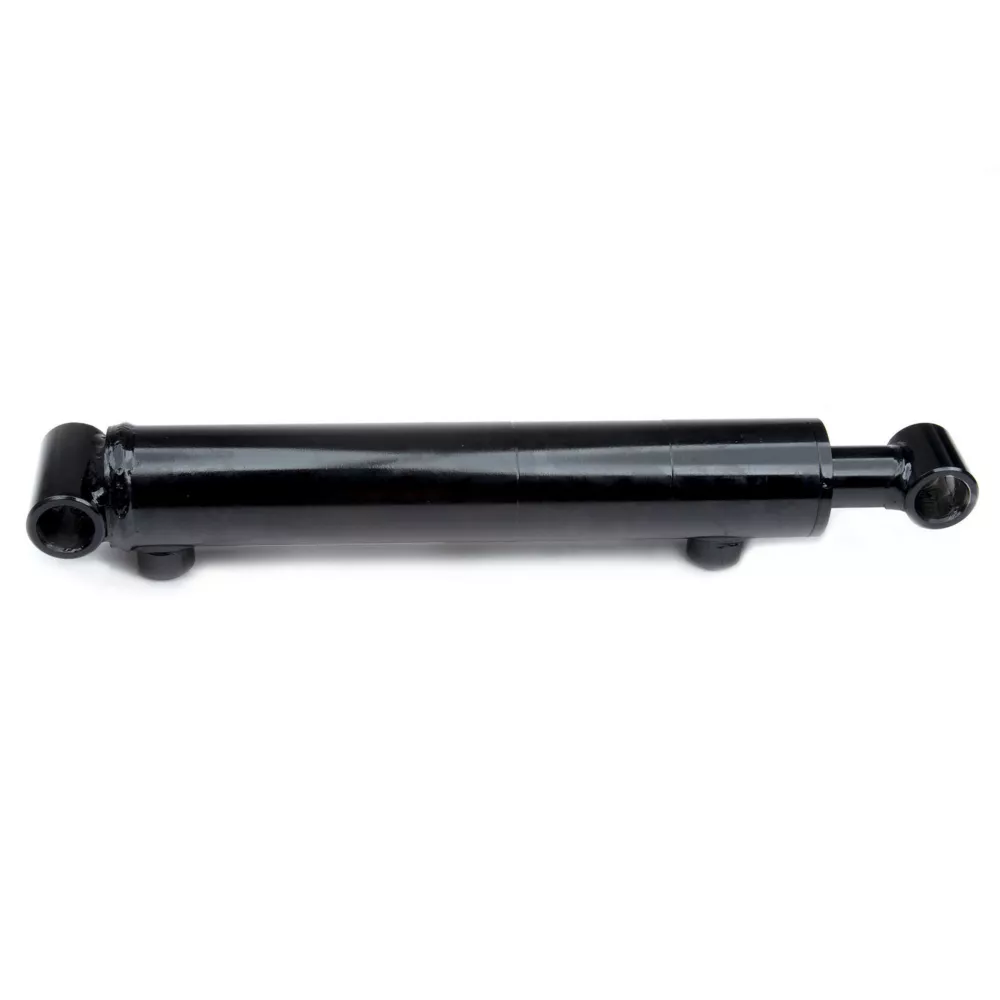

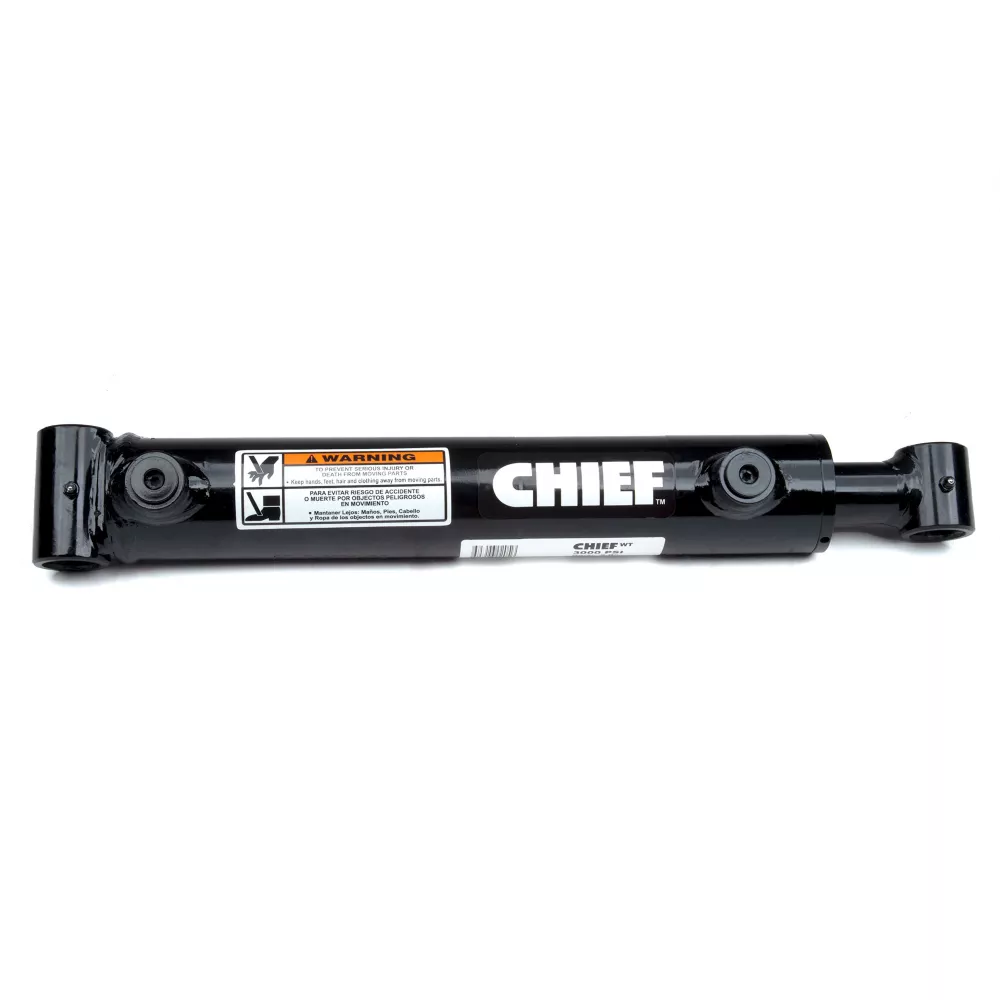

The Chief 4 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)

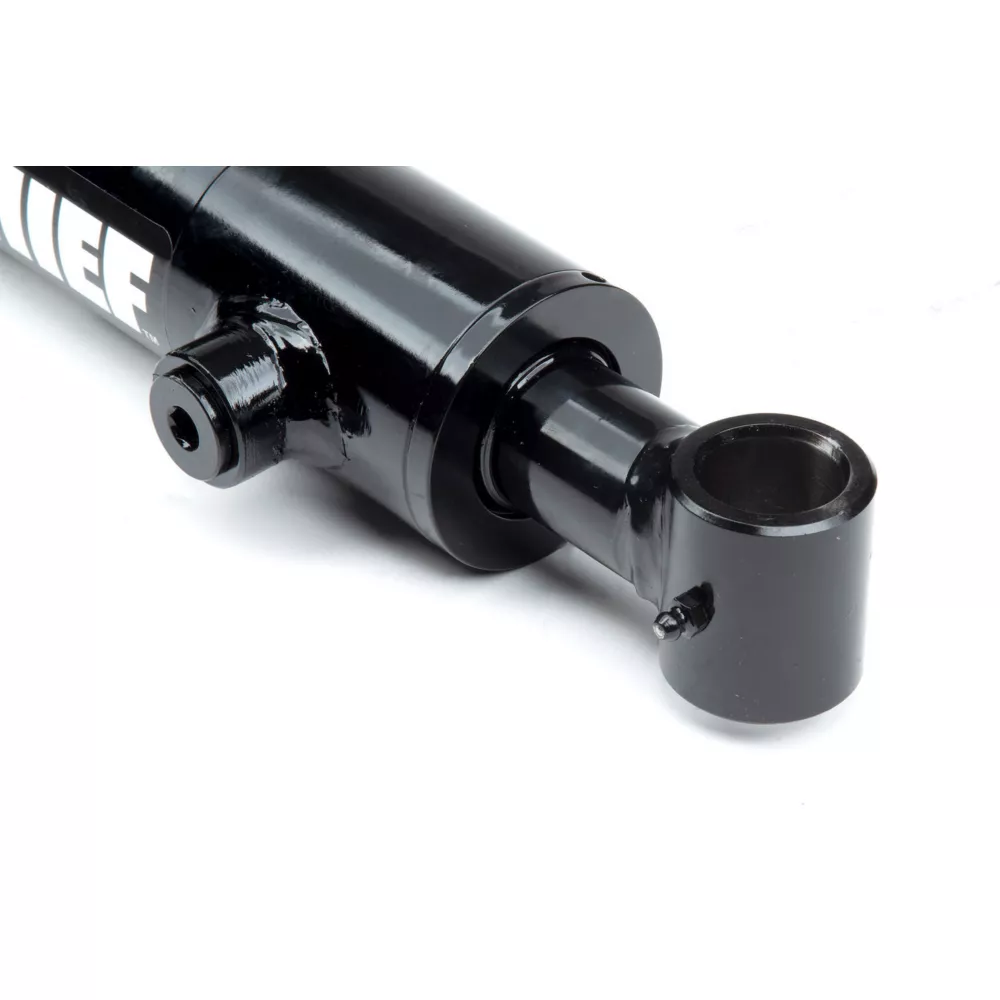

Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel

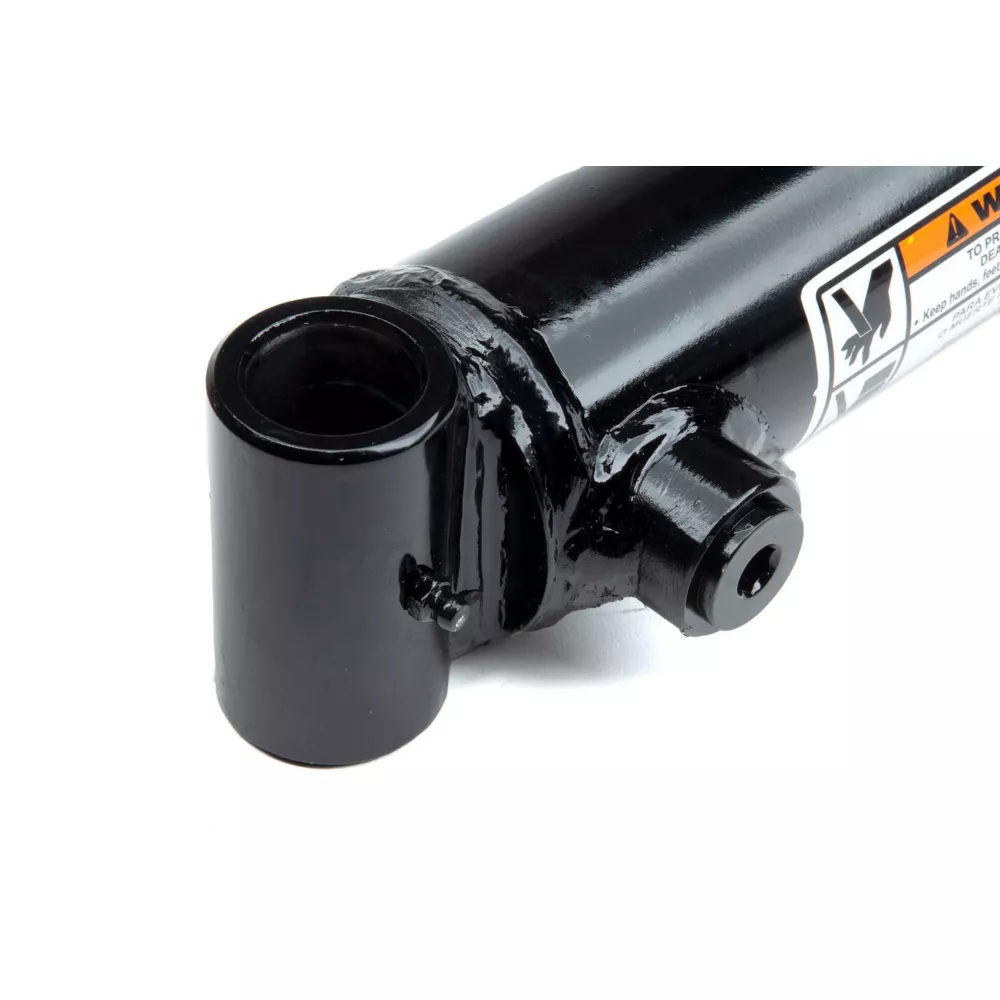

End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the welded hydraulic cylinder
Measures 23 in. retracted and 37 in. extended
Includes SAE O-ring port hookups on small bores and NPT on large bores
Pin diameter of 1.25 in. and rod diameter of 2.25 in.
Suitable for a variety of applications
Made in the USA with a 3 year limited warranty
Column load: 37,690 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Hydraulic Cylinder 4 in Bore x 14 in Stroke 2.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	37 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1-1/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	4.6 in.
Product Length	N/A
Product Weight	57.76 lb.
Product Width	4 in.
Retracted Length	23 in.
Rod Diameter	2-1/4 in.
Single/Double Acting	Double acting
Stroke Distance	14 in.
Warranty	3 Year Limited
Manufacturer PartNumber	212763
