Chief WTG Welded Rod Cylinder 2.5 in Bore x 20 in Stroke 1.375 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

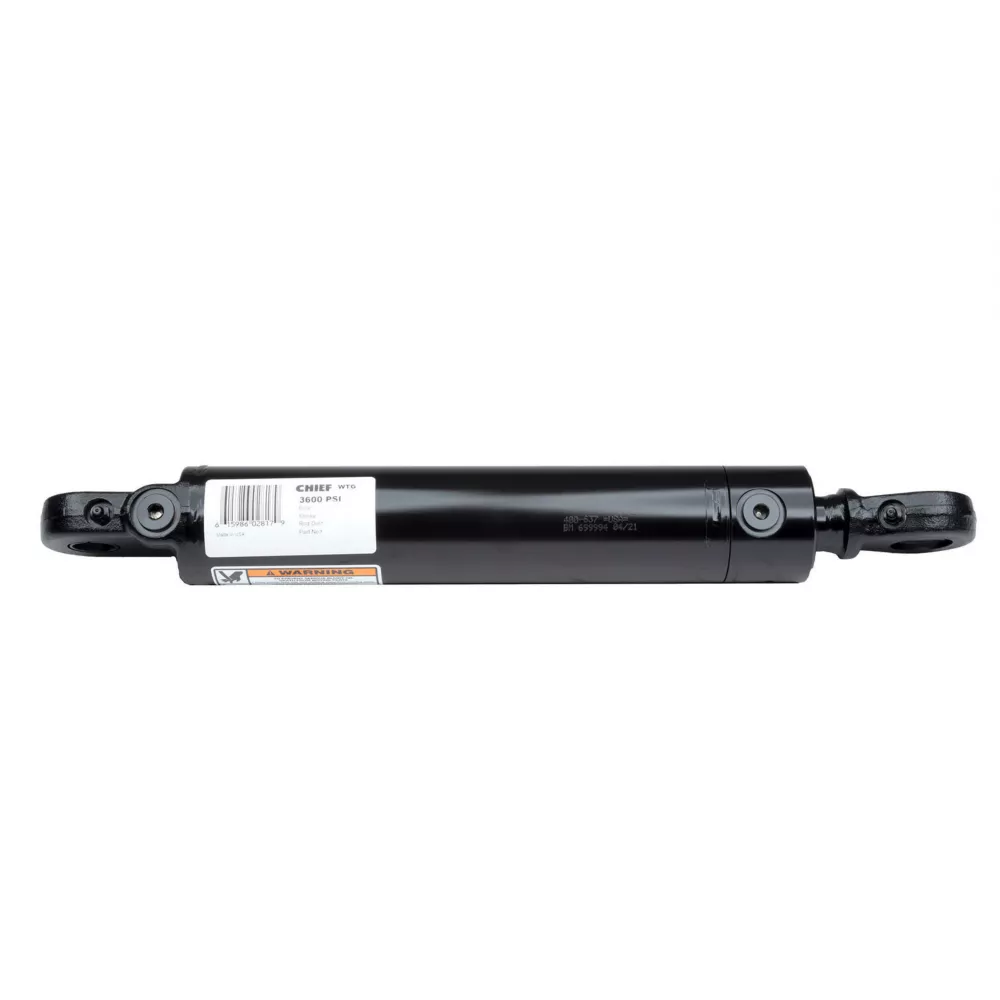

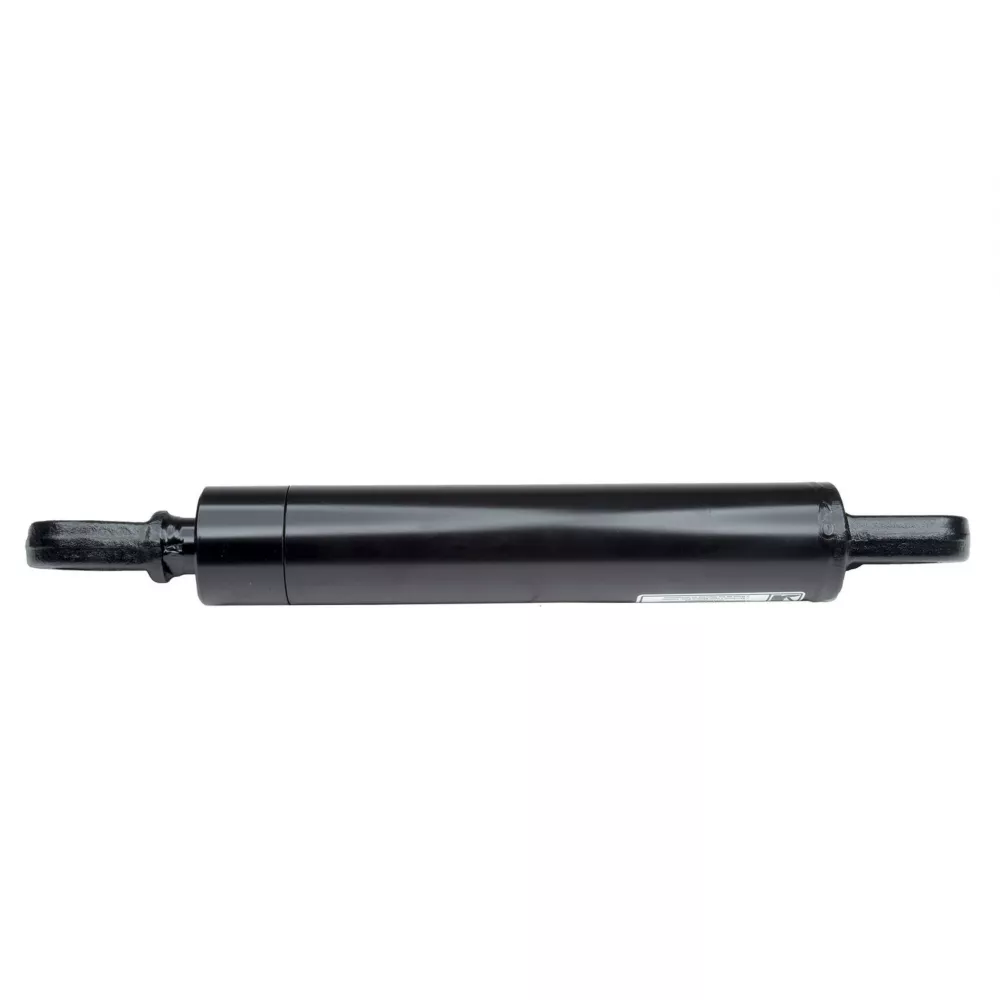

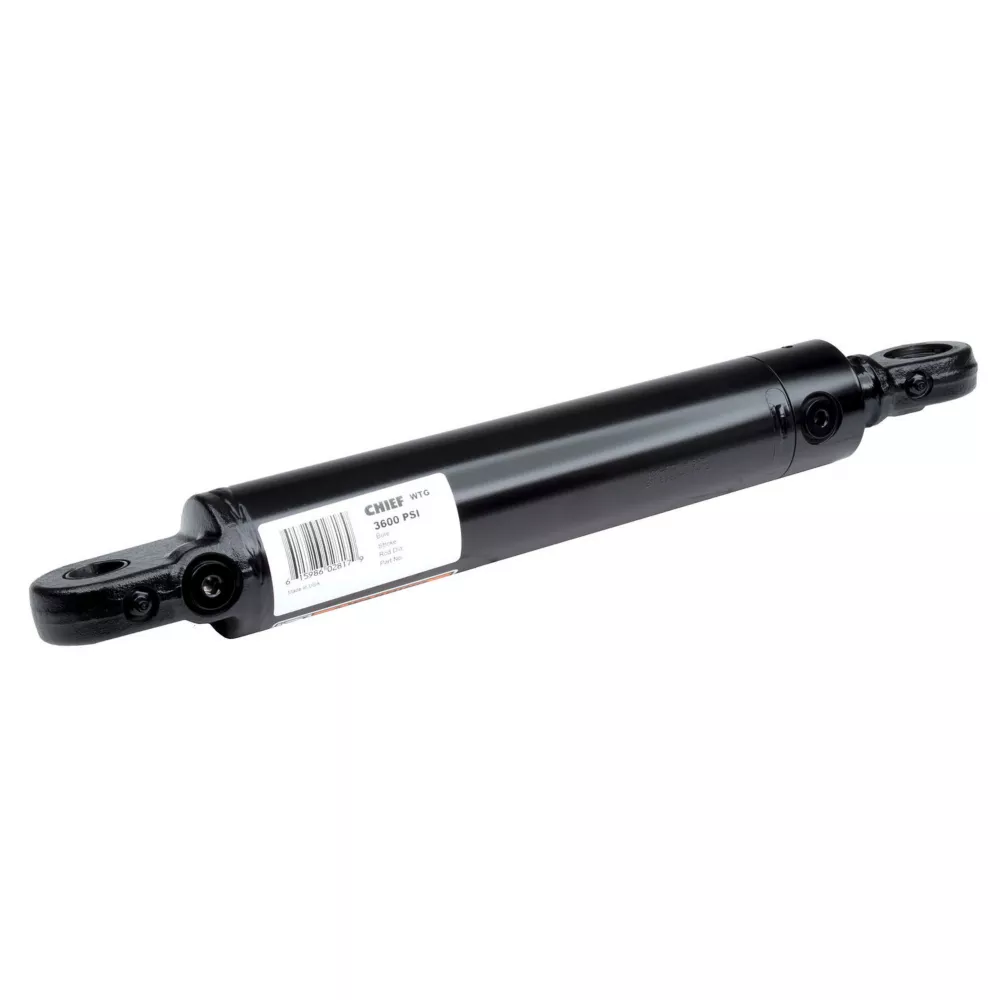

The Chief 2.5 in. Bore x 20 in. Stroke WTG Welded Tang Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.

Intended for use as a double acting hydraulic cylinder
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from precision-honed steel for durability
Rod is induction-hardened and hard chrome-plated to resist corrosion

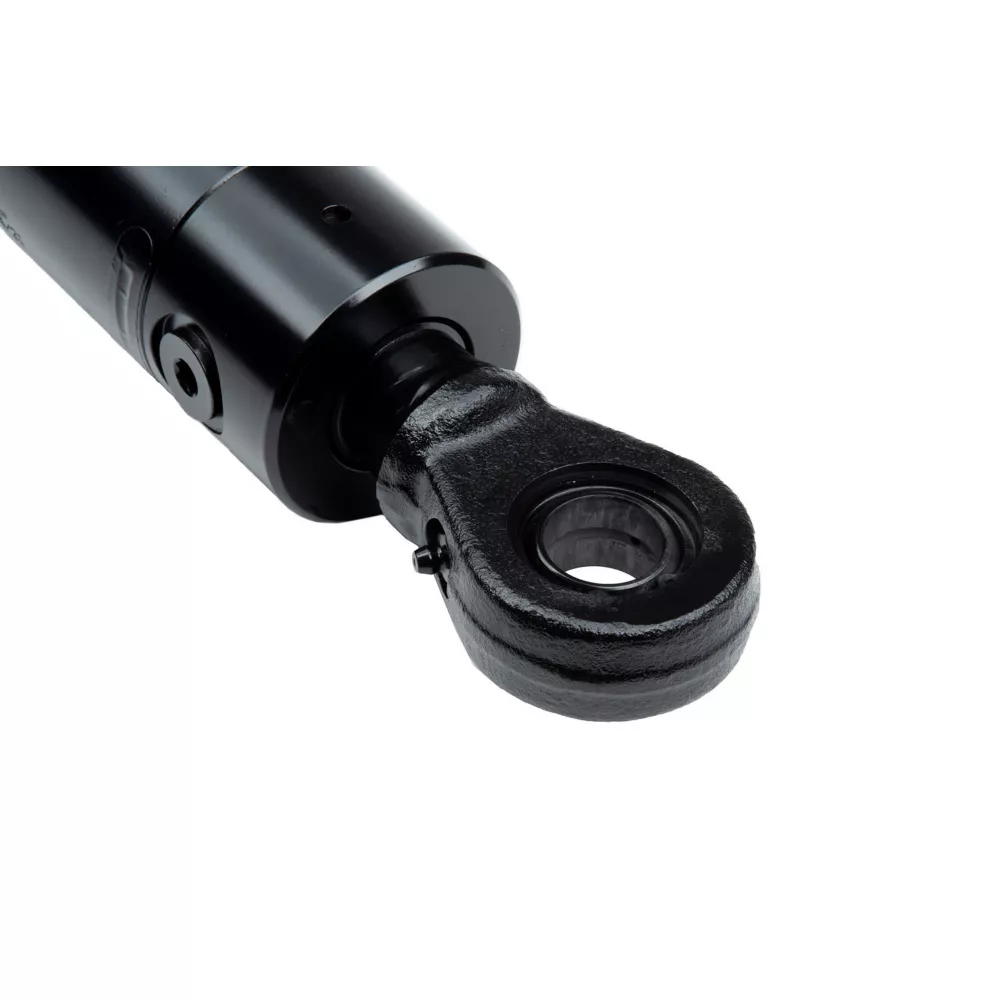

Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring
1/8 NPT grease zerk

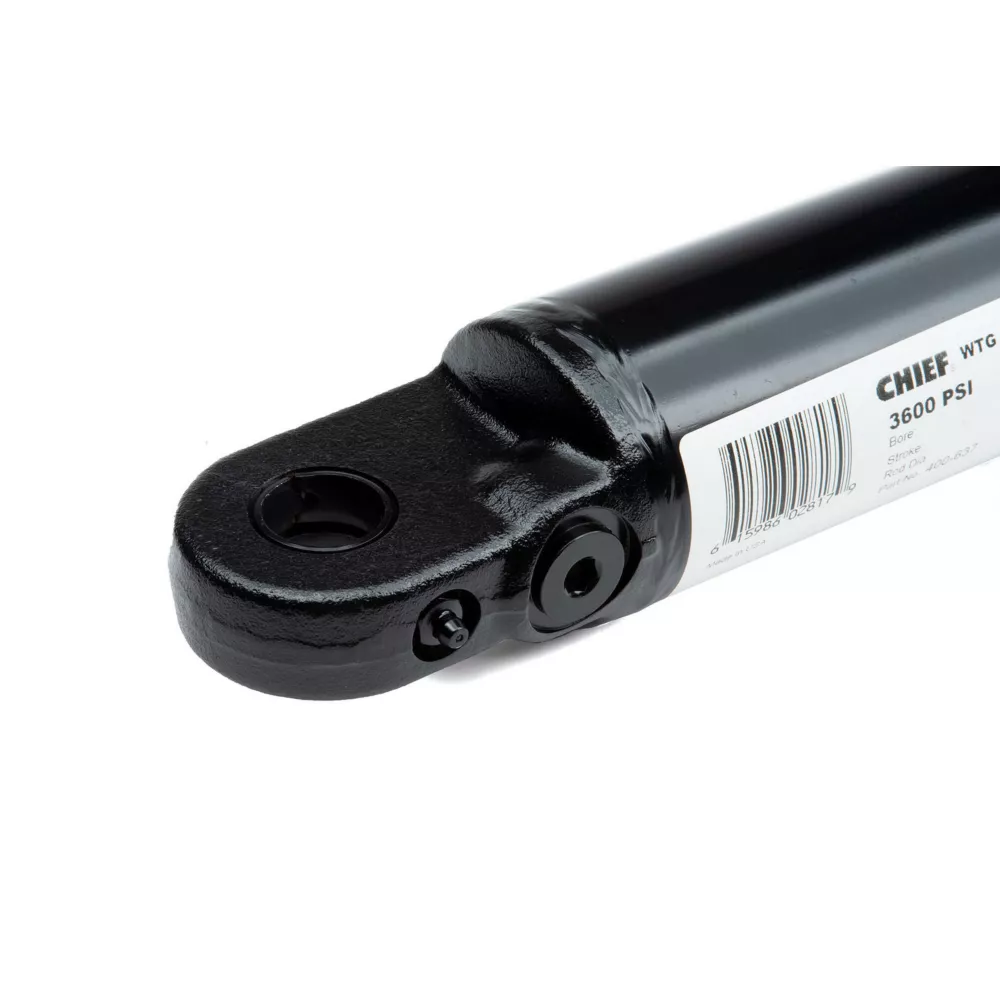

Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings for toughness
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty
Measures 30 in. retracted and 50 in. extended
Column load: 15,940 lb.
Pin diameter of 1 in. and rod diameter of 1.375 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Cylinder 2.5 in Bore x 20 in Stroke 1.375 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	50 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	15,940 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	1.2 in.
Product Length	10 in.
Product Weight	32 lb.
Product Width	1.3 in.
Retracted Length	30 in.
Rod Diameter	1-3/8 in.
Single/Double Acting	Single acting
Stroke Distance	20 in.
Warranty	3 Year
Manufacturer PartNumber	400640

Chief 2.5 in. Bore x 20 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Varies Extended Length 50 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,600 PSI Maximum Weight Capacity 15,940 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height 1.2 in. Product length 10 in. Product weight 32 lbs. Product width 1.3 in. Retracted length 30 in. Shank diameter 1-3/8 in. Single/Double Acting Single Acting Stroke Distance 20 in. 3 year warranty Manufacturer part number 400640
