Chief WTG Welded Rod Cylinder 2 in Bore x 8 in Stroke 1.125 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

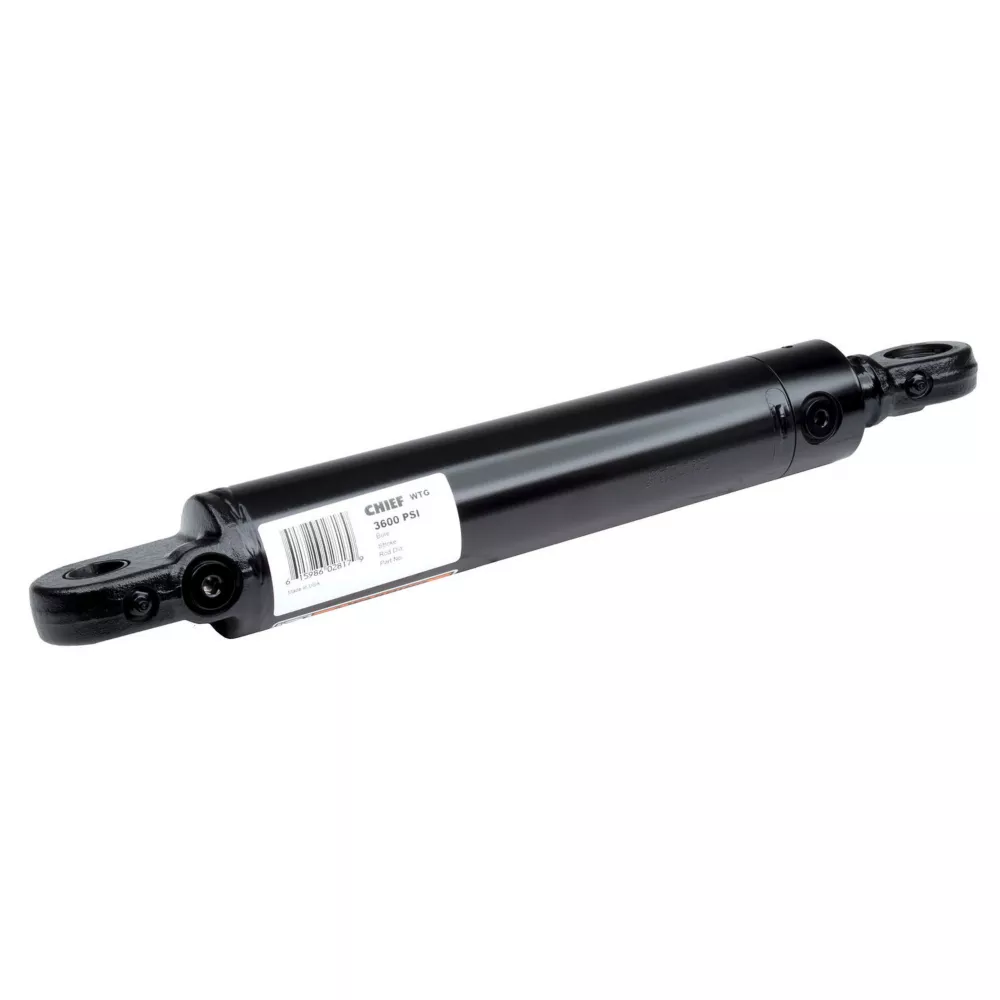

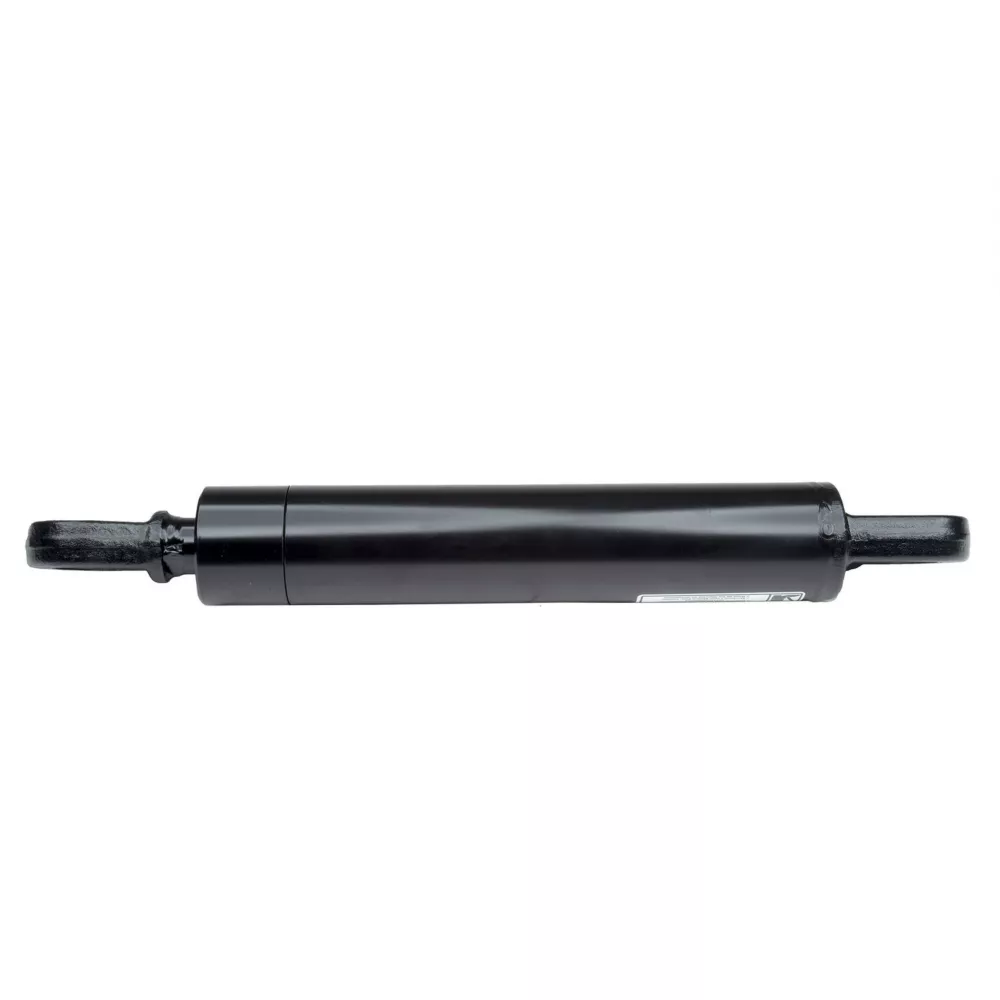

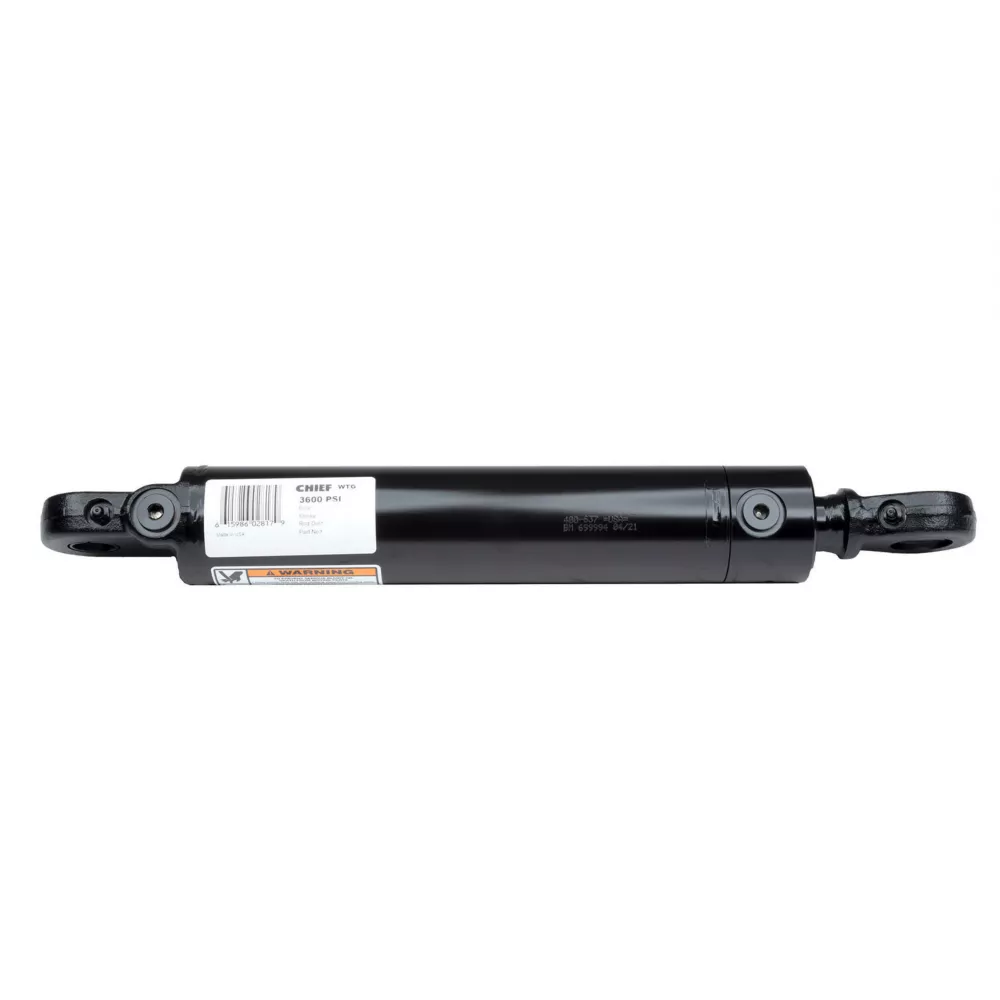

The Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.

Intended for double acting applications
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from durable precision-honed steel
Rod comes induction-hardened and hard chrome-plated for durability

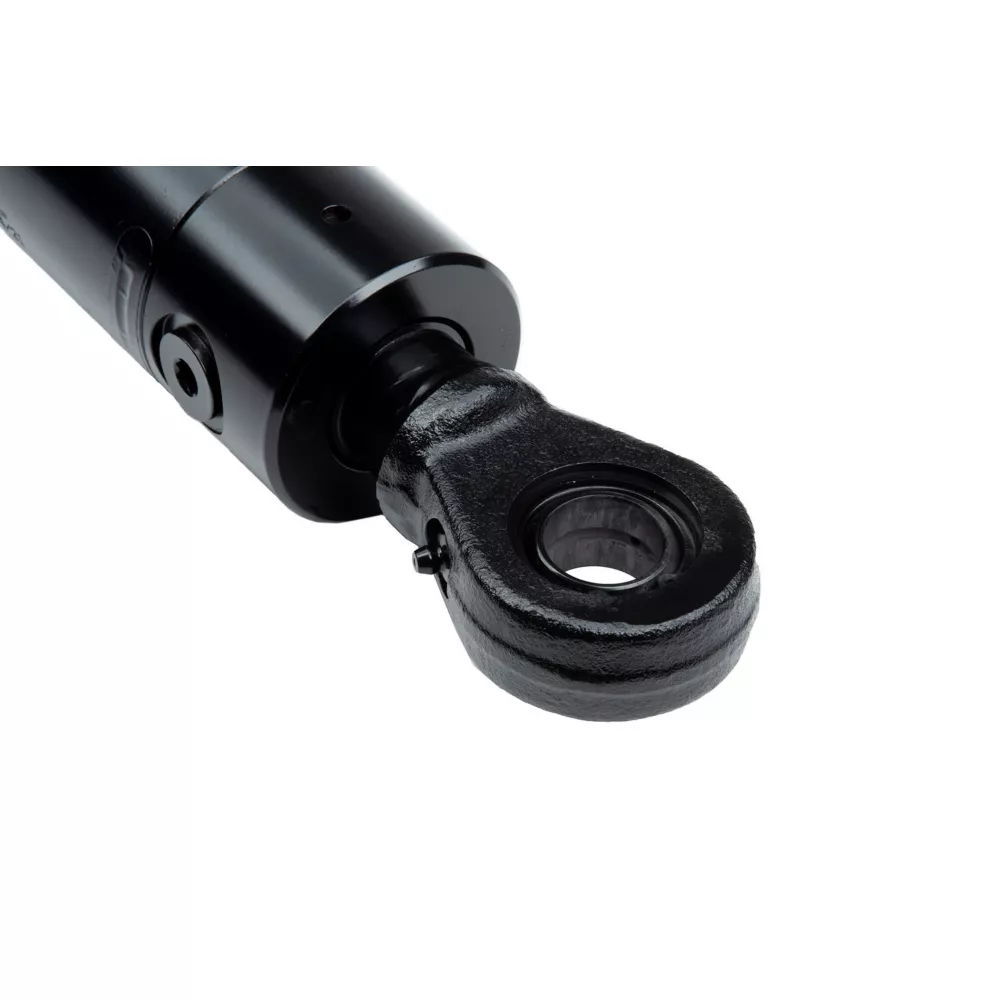

Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring
1/8 NPT grease zerk

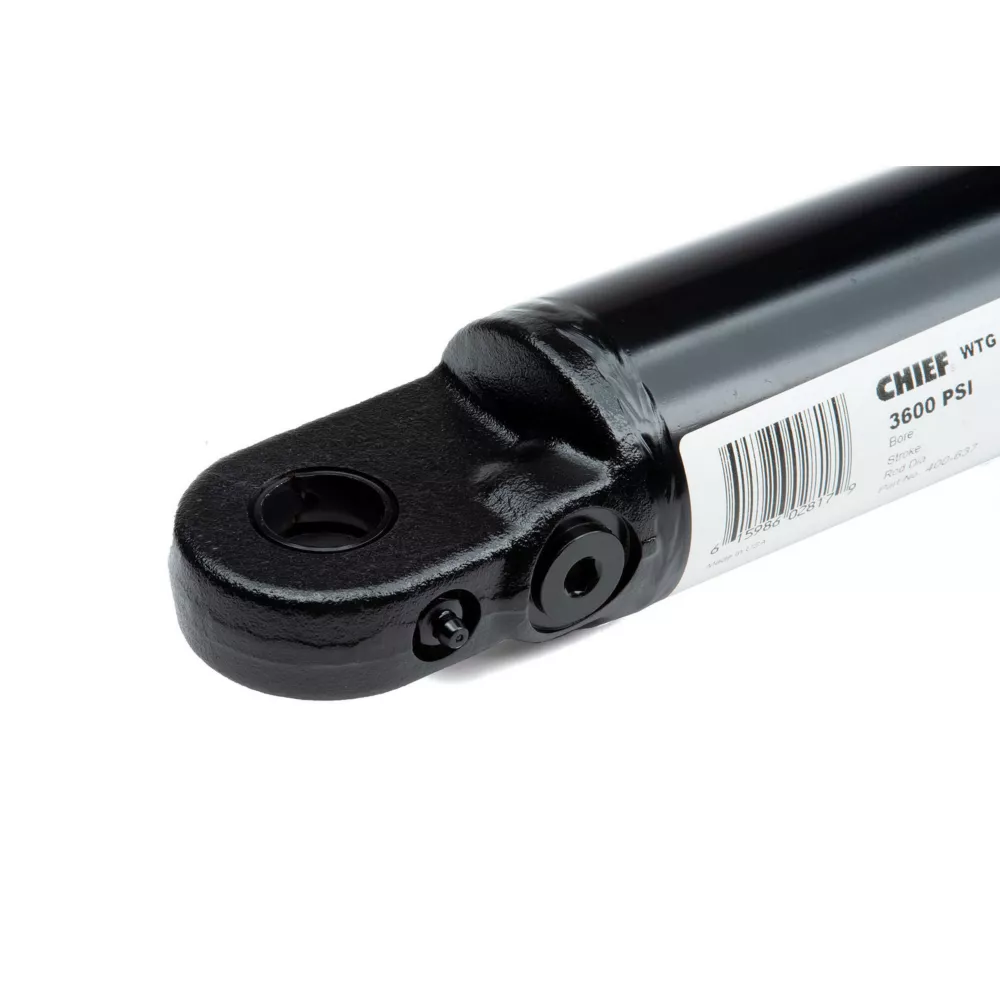

Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings are made to last
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty on hydraulic cylinder
Measures 18 in. retracted and 26 in. extended
Column load: 11,300 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
Maximum PSI: 3,600 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Cylinder 2 in Bore x 8 in Stroke 1.125 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Heavy-duty construction equipment
Extended Length	26 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	11,300 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	1.1 in.
Product Length	10 in.
Product Weight	15 lb.
Product Width	1.3 in.
Retracted Length	18 in.
Rod Diameter	1-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	8 in.
Warranty	3 Year
Manufacturer PartNumber	400613

Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder, 1.125 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 2 in. Brand Compatibility Universal Compatibility Heavy Duty Construction Equipment Extended Length 26 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,600 PSI Maximum Weight Capacity 11,300 lbs. Model Compatibility Universal Package Contents: 1 x Pin Diameter 1 in. Port Size SAE 8 Primary Material: Steel Product Height 1.1 in. Product length 10 in. Product weight 15 lbs. Single/double acting Double acting Stroke distance 8 in. 3 year warranty Manufacturer part number 400613
