Chief WTG Welded Rod Hydraulic Cylinder 3.5 in Bore x 36 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

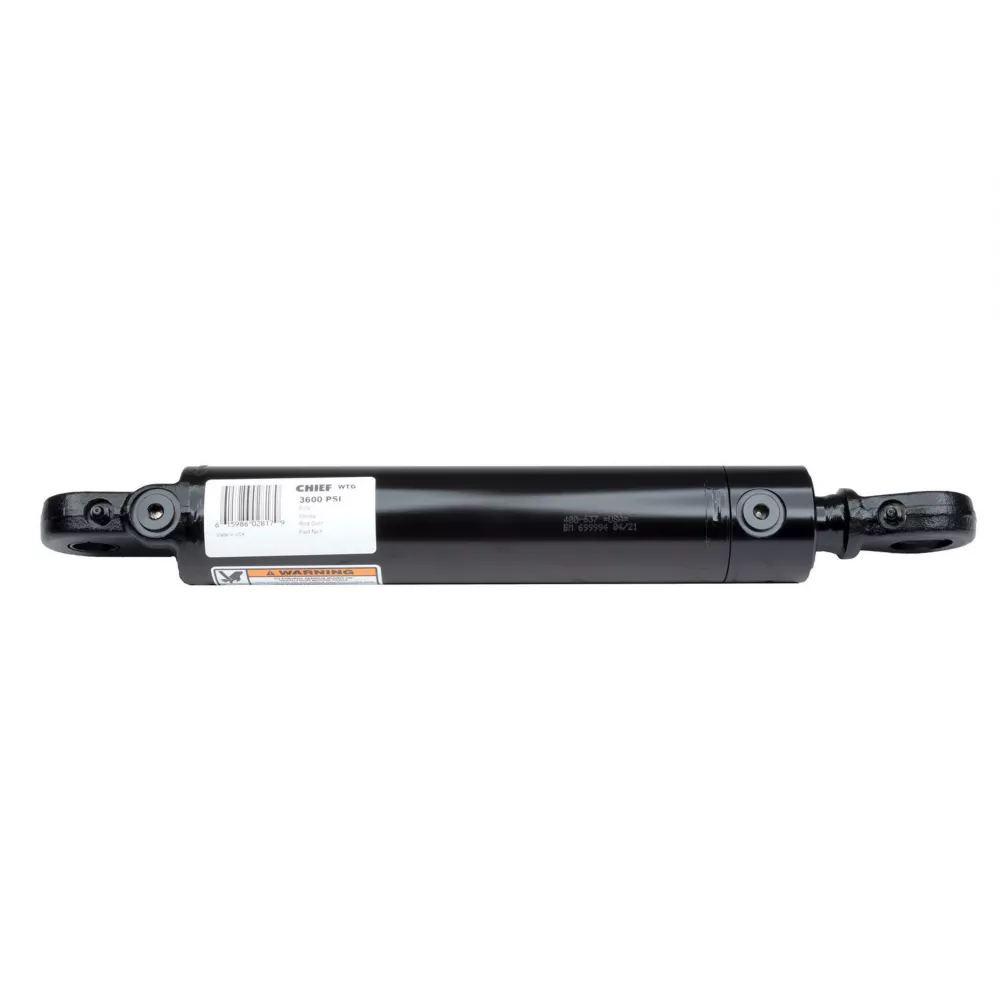

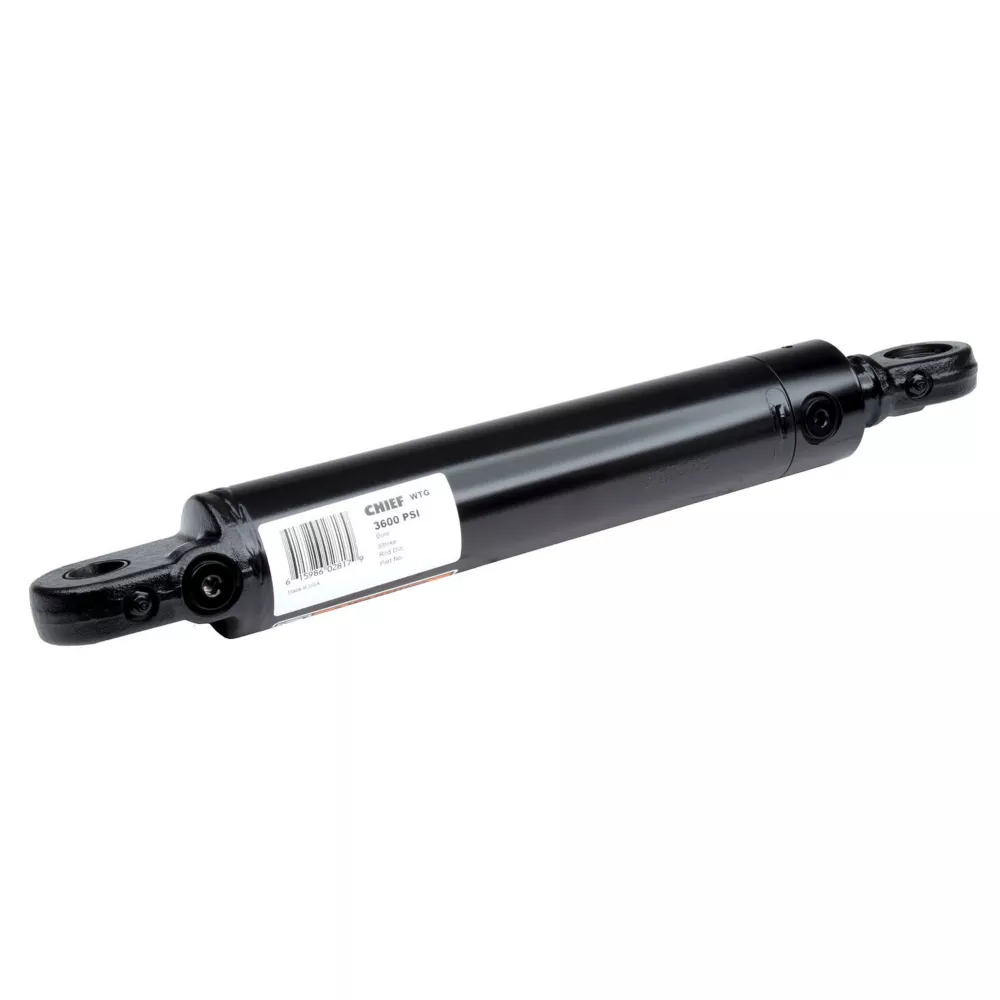

The Chief 3.5 in. Bore x 36 in. Stroke WTG Welded Tang Hydraulic Cylinder is sometimes referred to as a lug end cylinder, due to its 1 pc. lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.

Intended for use as a double acting hydraulic cylinder
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from durable precision-honed steel
Rod is induction-hardened and hard chrome-plated for corrosion resistance

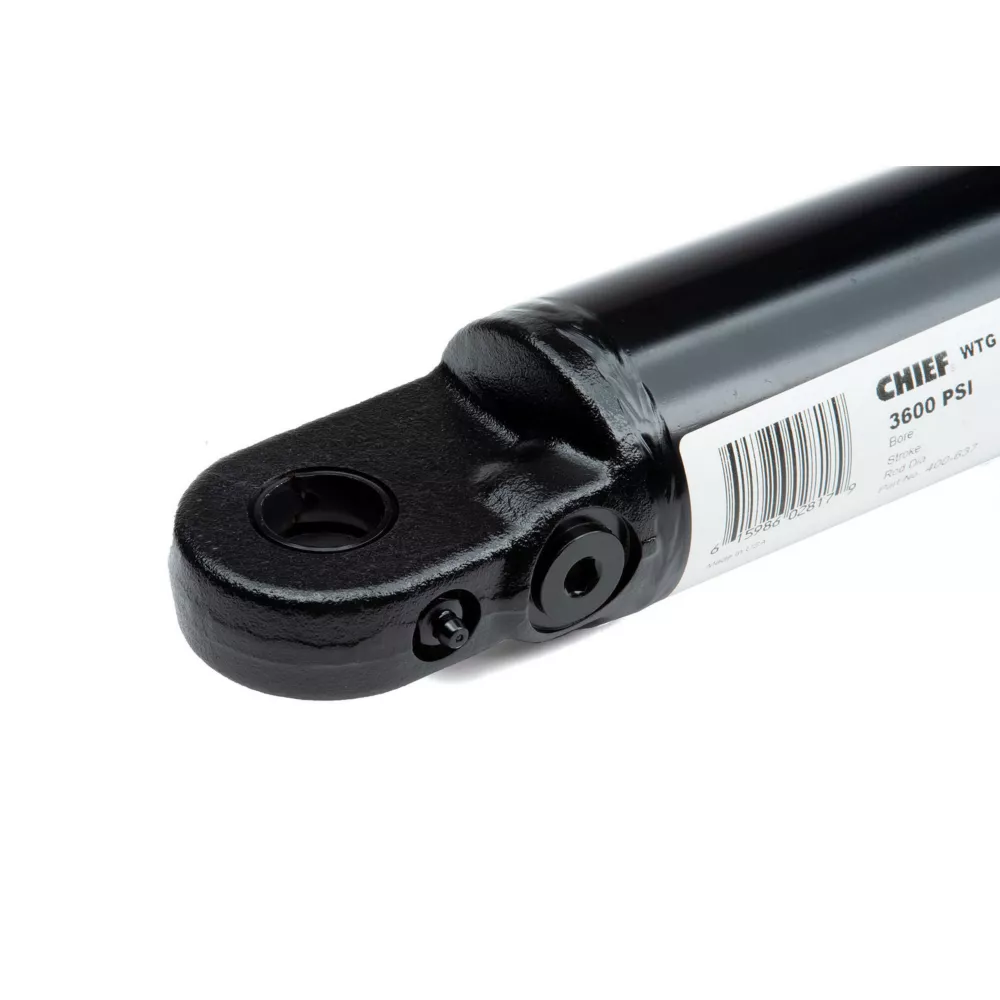

Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring
1/8 NPT grease zerk
Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty
Measures 46 in. retracted and 82 in. extended
Column load: 15,780 lb.
Pin diameter of 1 in. and rod diameter of 1.75 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Hydraulic Cylinder 3.5 in Bore x 36 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	82 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	15,780 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	1.2 in.
Product Length	10 in.
Product Weight	77 lb.
Product Width	1.3 in.
Retracted Length	46 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Single acting, Double acting
Stroke Distance	36 in.
Warranty	3 Year
Manufacturer PartNumber	400688
