Chief WX Welded Hydraulic Cylinder 2 in Bore x 10 in Stroke Hydraulic Cylinders

Chief WX Welded Hydraulic Cylinder 2 in Bore x 10 in Stroke Hydraulic Cylinders Tractor Repair & Parts

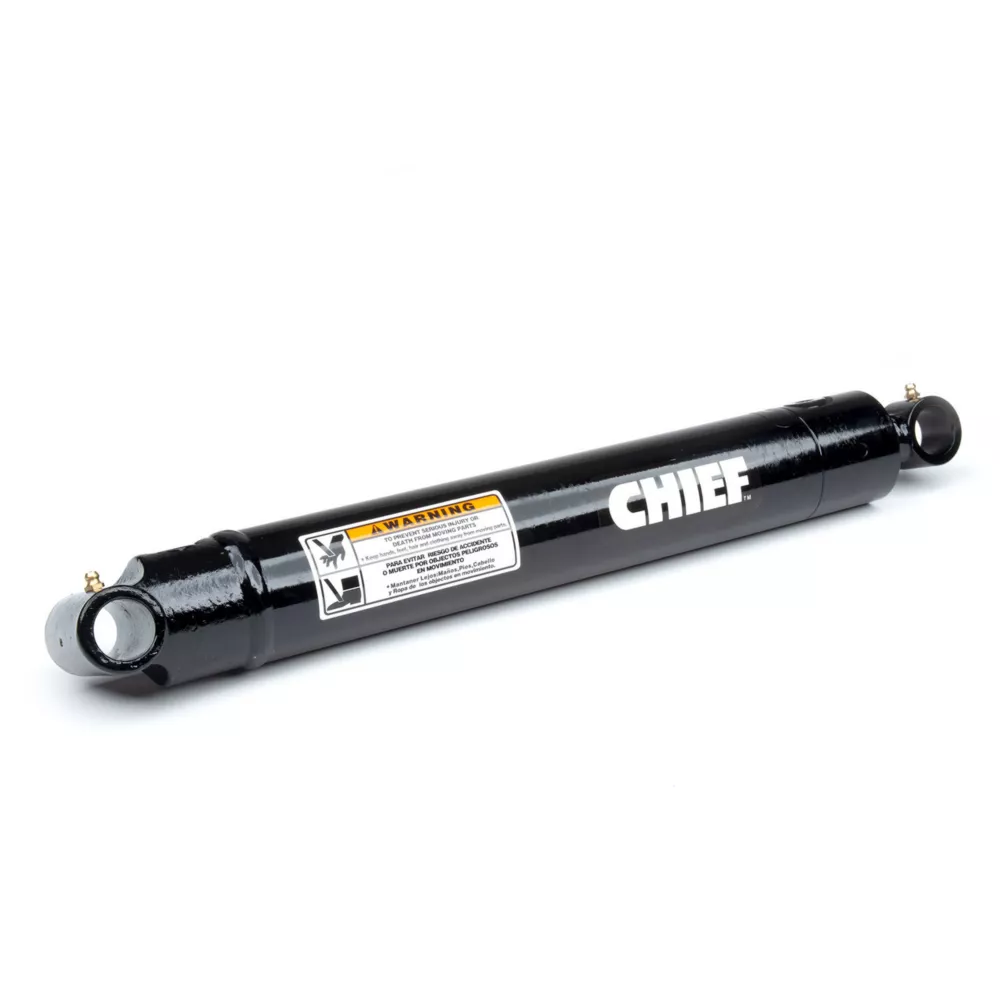

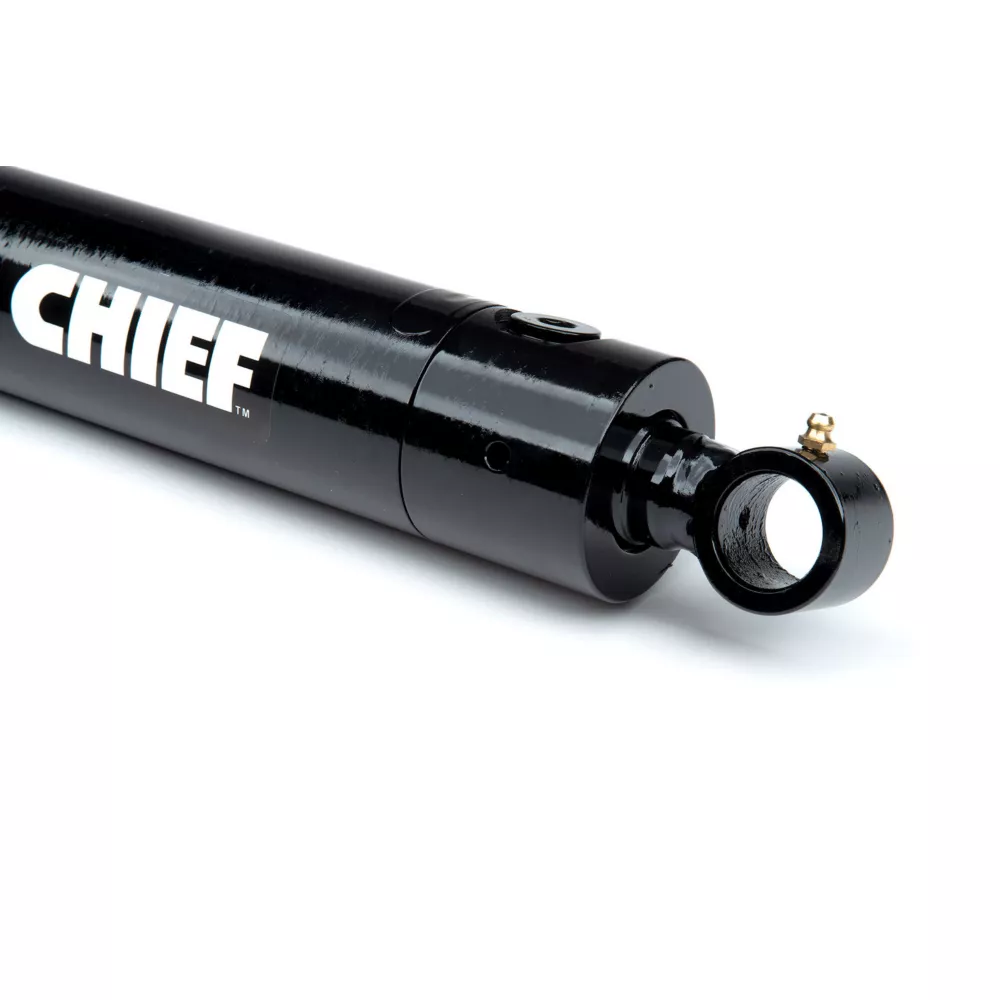

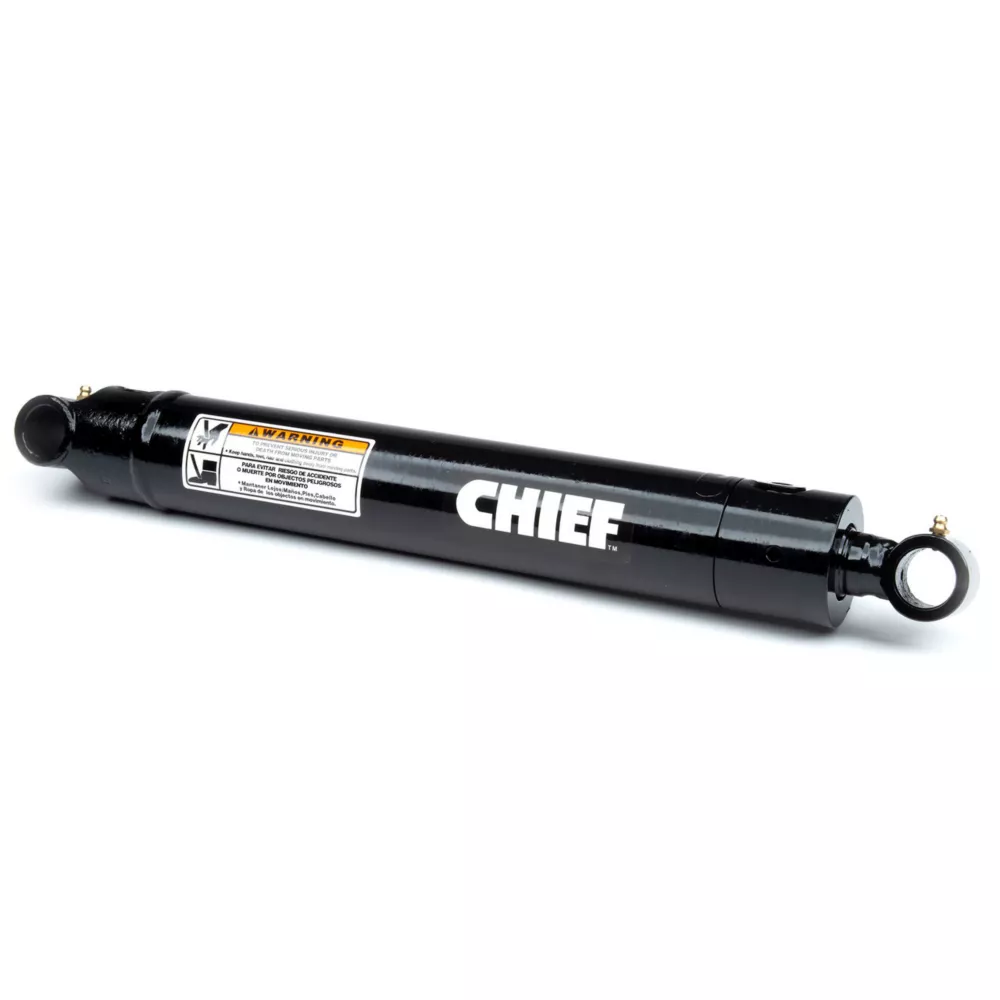

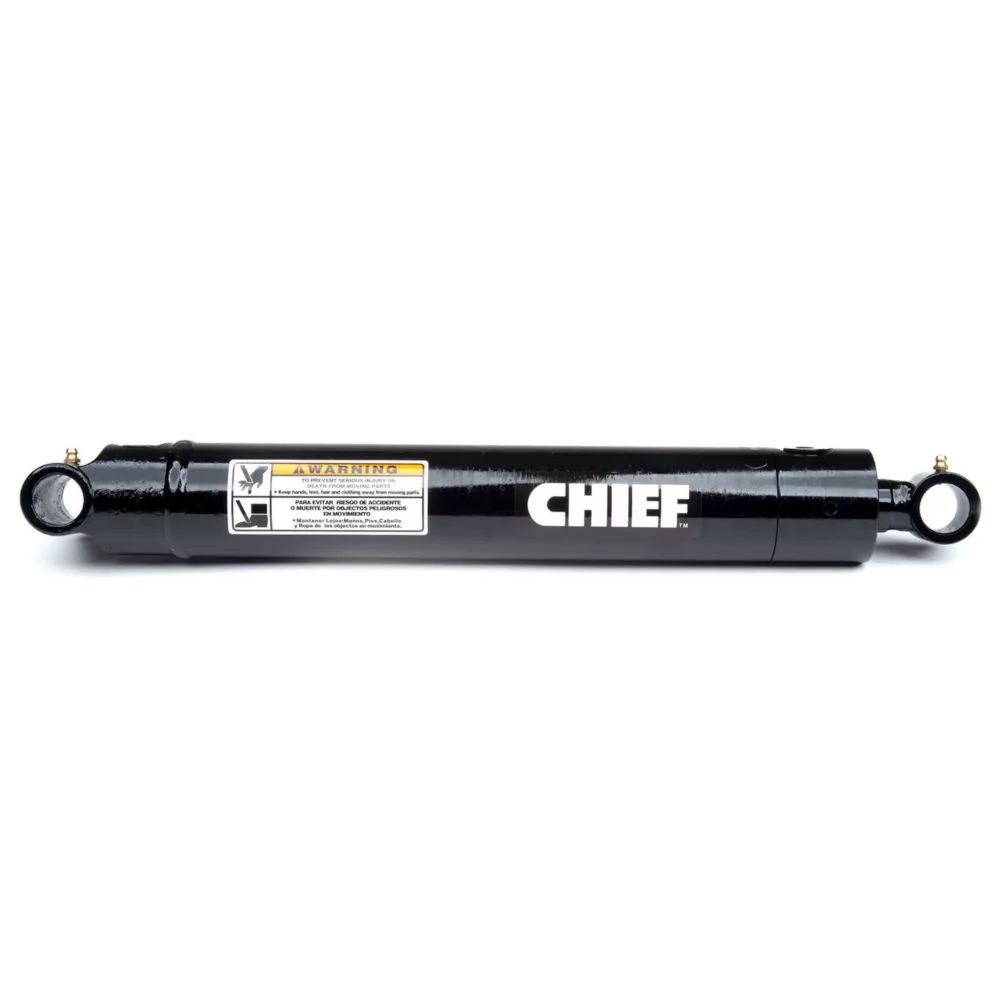

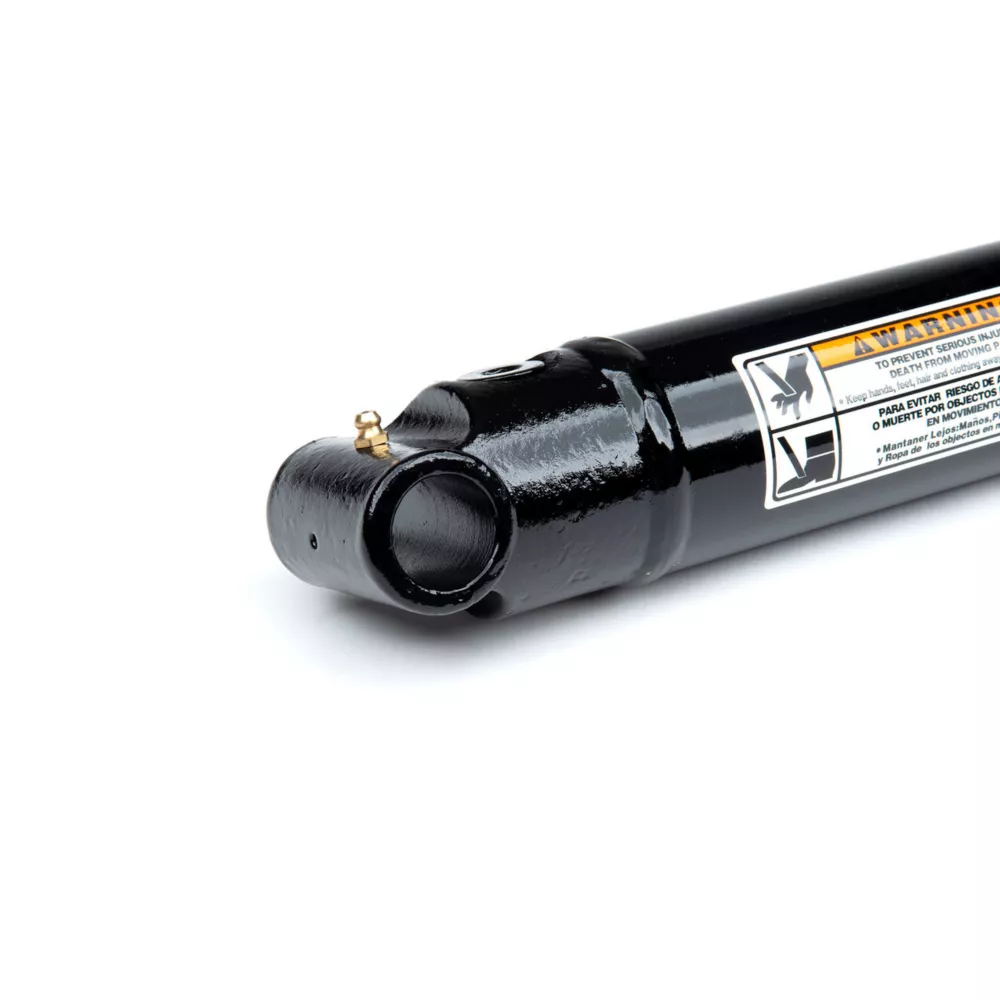

The Chief 2 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.

• Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
• Welded hydraulic cylinder with a 3,000 PSI operating range
• Ductile iron piston with nylon, glass-filled wear ring is very durable
• Adjustable 360-degree rotating gland allows you to make port alignments as needed
• Rod is a nitrided steel bar with corrosion and scratch resistance
• Double acting hydraulic cylinder design
• Satin black paint finish
• Individually poly bagged for ease of transport
• 3-year limited warranty
• Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 2 in Bore x 10 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	28 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	8 SAE
Primary Material	Iron
Product Height	2-1/2 in.
Product Length	2-1/2 in.
Product Weight	16 lb.
Product Width	4 in.
Retracted Length	18 in.
Rod Diameter	1-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	10 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207384

Chief 2 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility Tractors Extended Length 28 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 9,420 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size 8 SAE Main Material Iron Product Height 2-1/2 in. Product length 2-1/2 in. Product weight 16 lbs. Product width 4 in. Retracted length 18 in. Shank Diameter 1-1/8" Single/Double Acting Double Acting Stroke Distance 10" 3 Year Limited Warranty Manufacturer Part Number 207384
