Chief WX Welded Hydraulic Cylinder 2 in Bore x 24 in Stroke Hydraulic Cylinders Tractor Repair & Parts

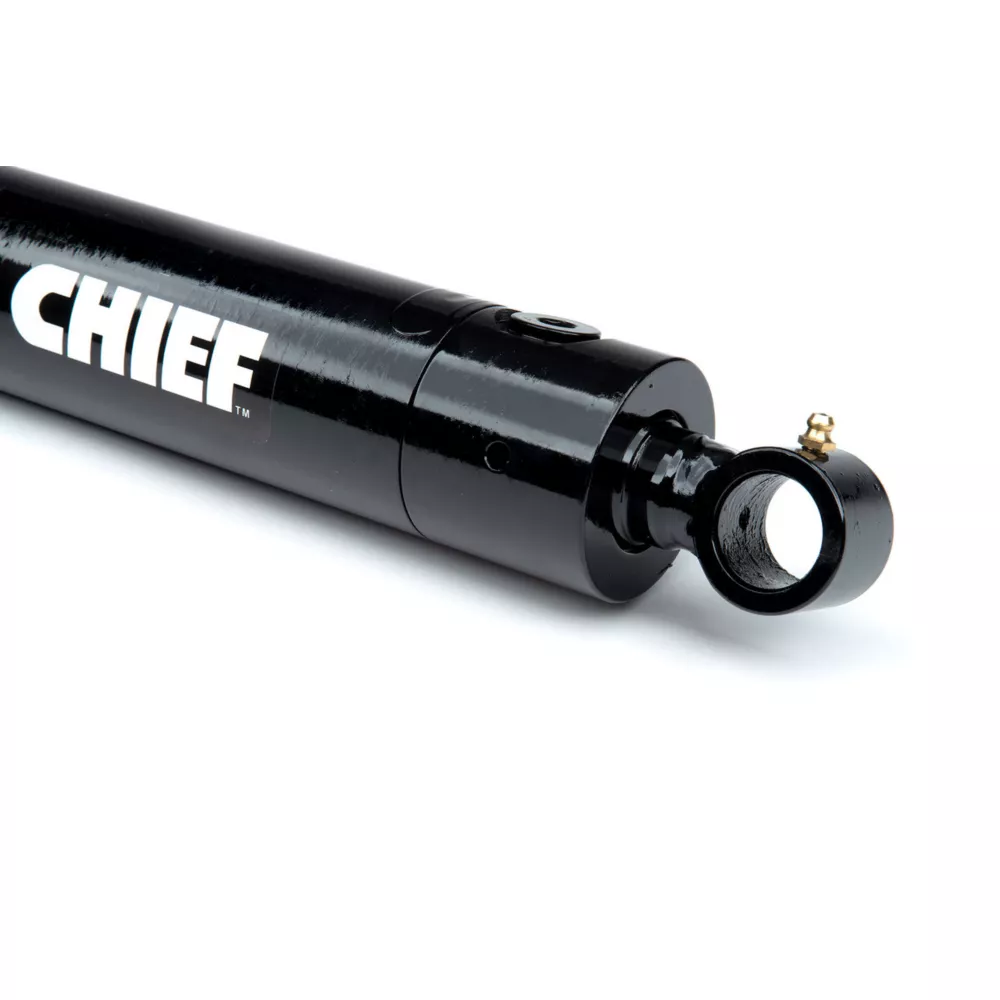

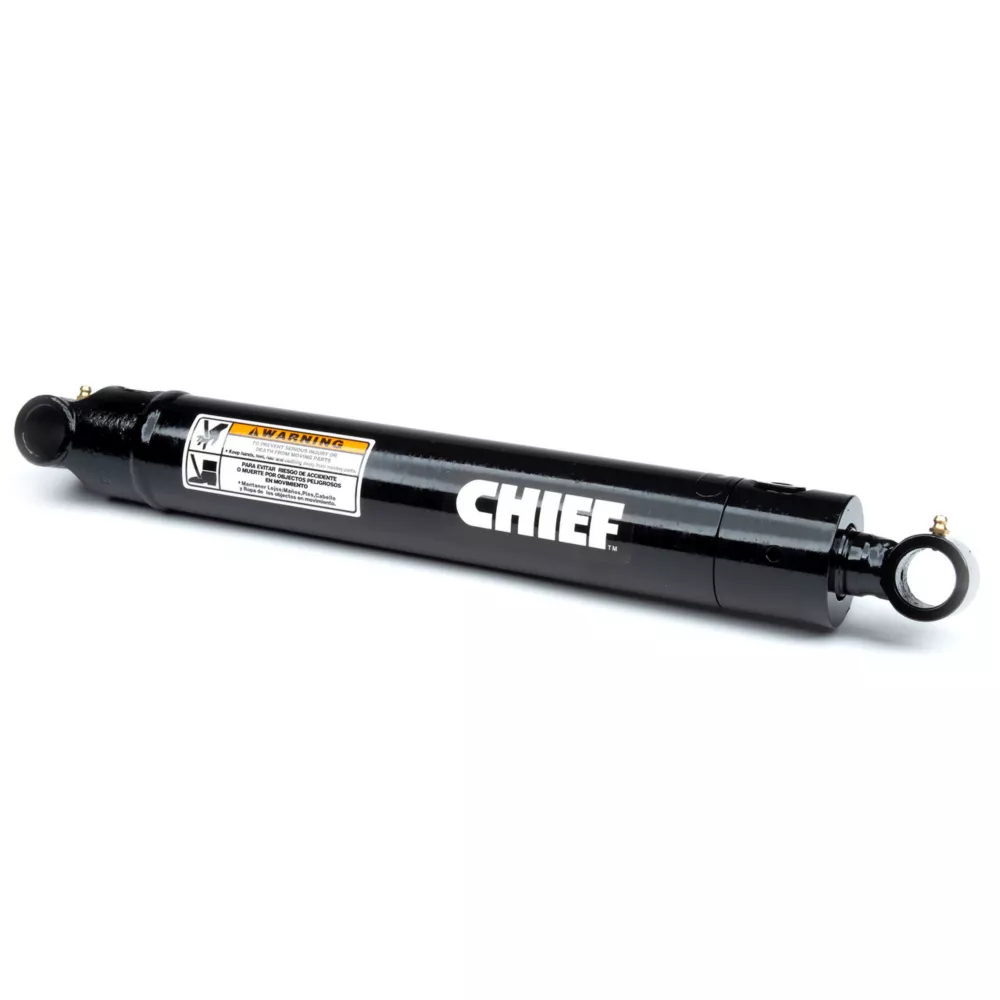

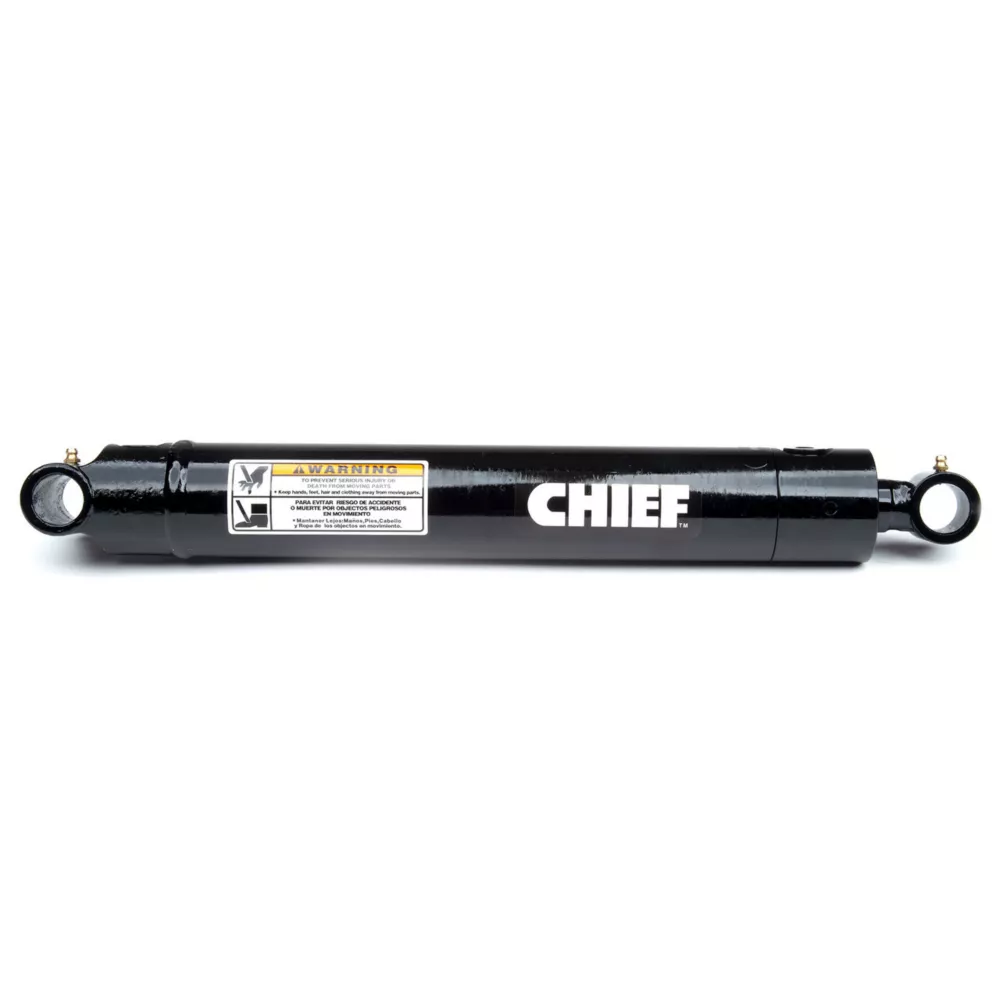

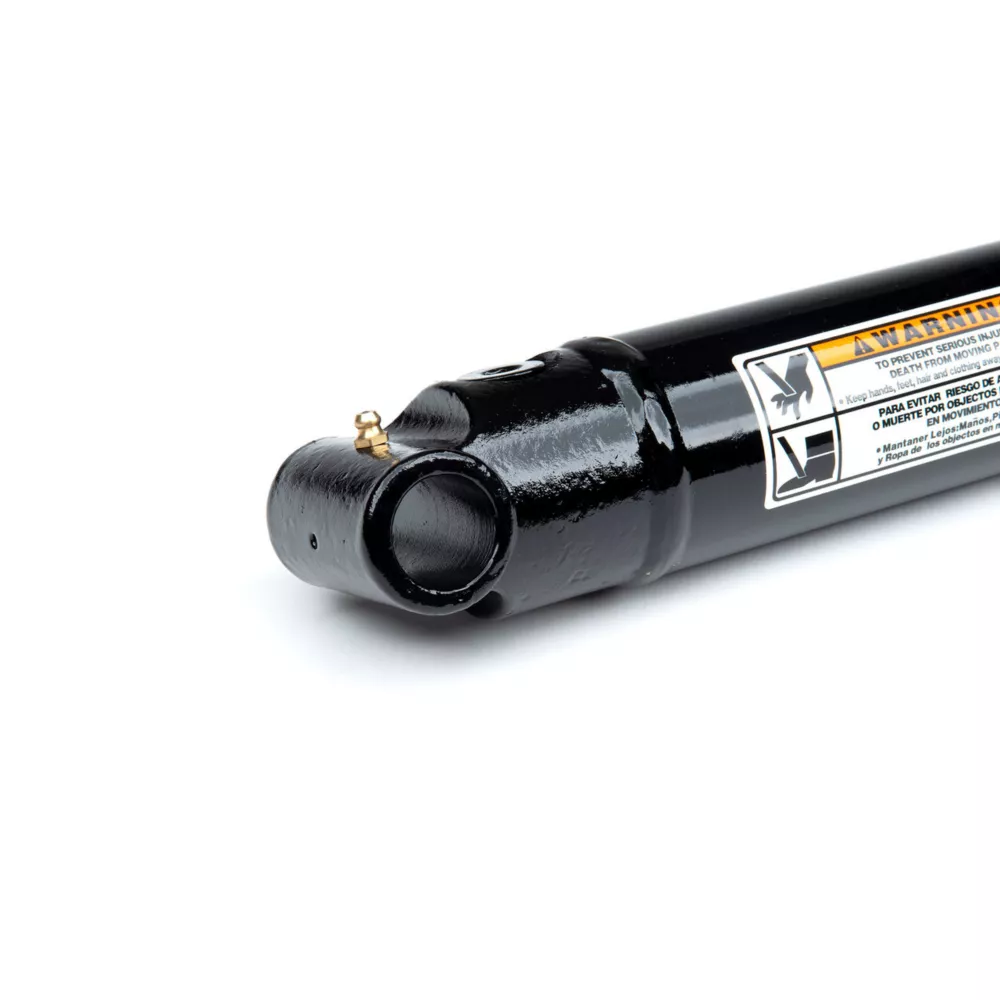

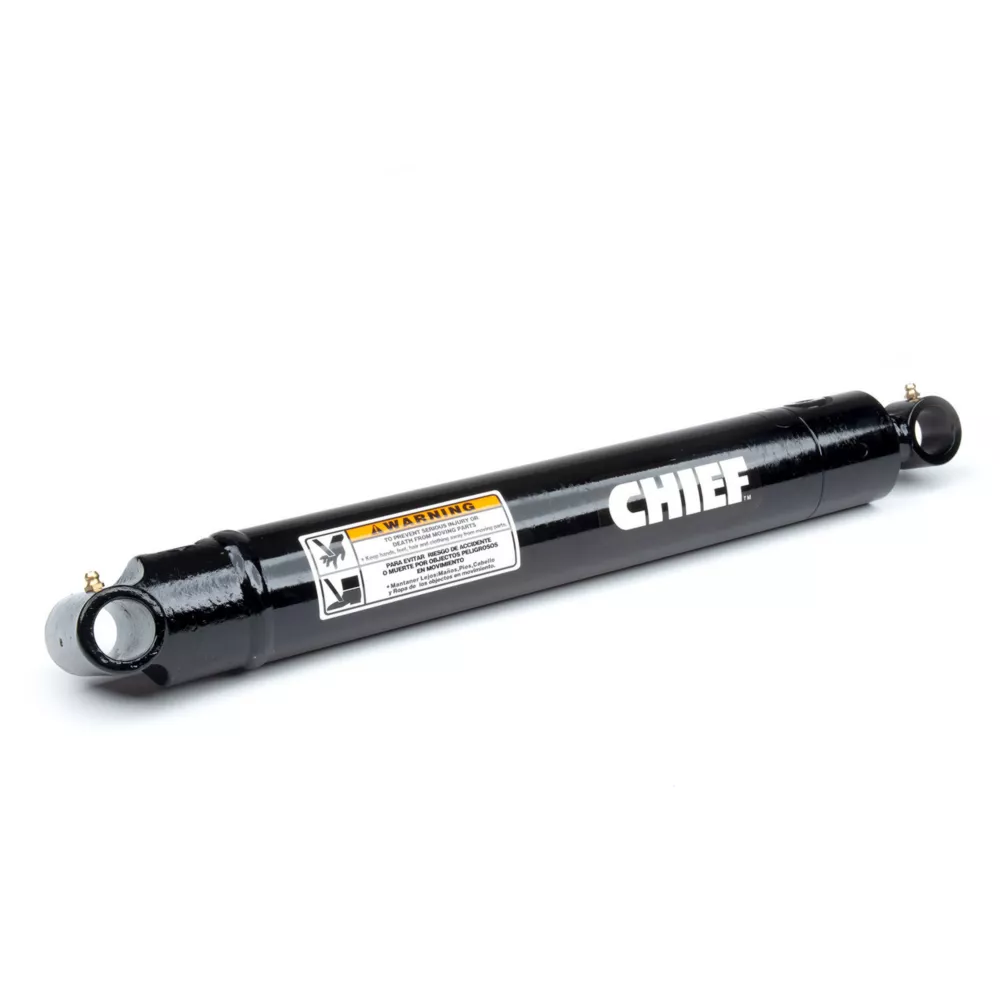

The Chief 2 in. Bore x 24 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.

Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring is very durable
Adjustable 360-degree rotating gland allows you to make port alignments as needed
Rod is a nitrided steel bar with corrosion and scratch resistance
Double acting hydraulic cylinder design
Satin black paint finish
Individually poly bagged for ease of transport
3-year limited warranty
Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 2 in Bore x 24 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	56 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	6,750 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	8 SAE
Primary Material	Iron
Product Height	2-1/2 in.
Product Length	2-1/2 in.
Product Weight	24.81 lb.
Product Width	3-1/2 in.
Retracted Length	32 in.
Rod Diameter	1-1/8 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207390
