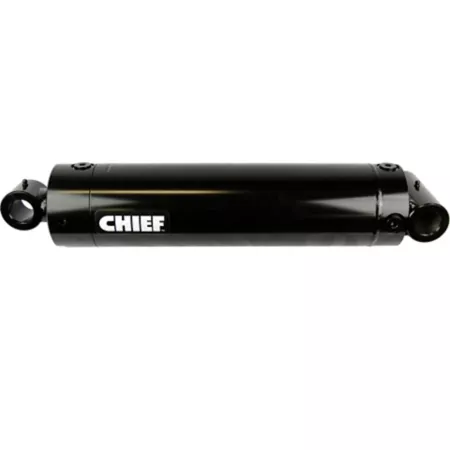

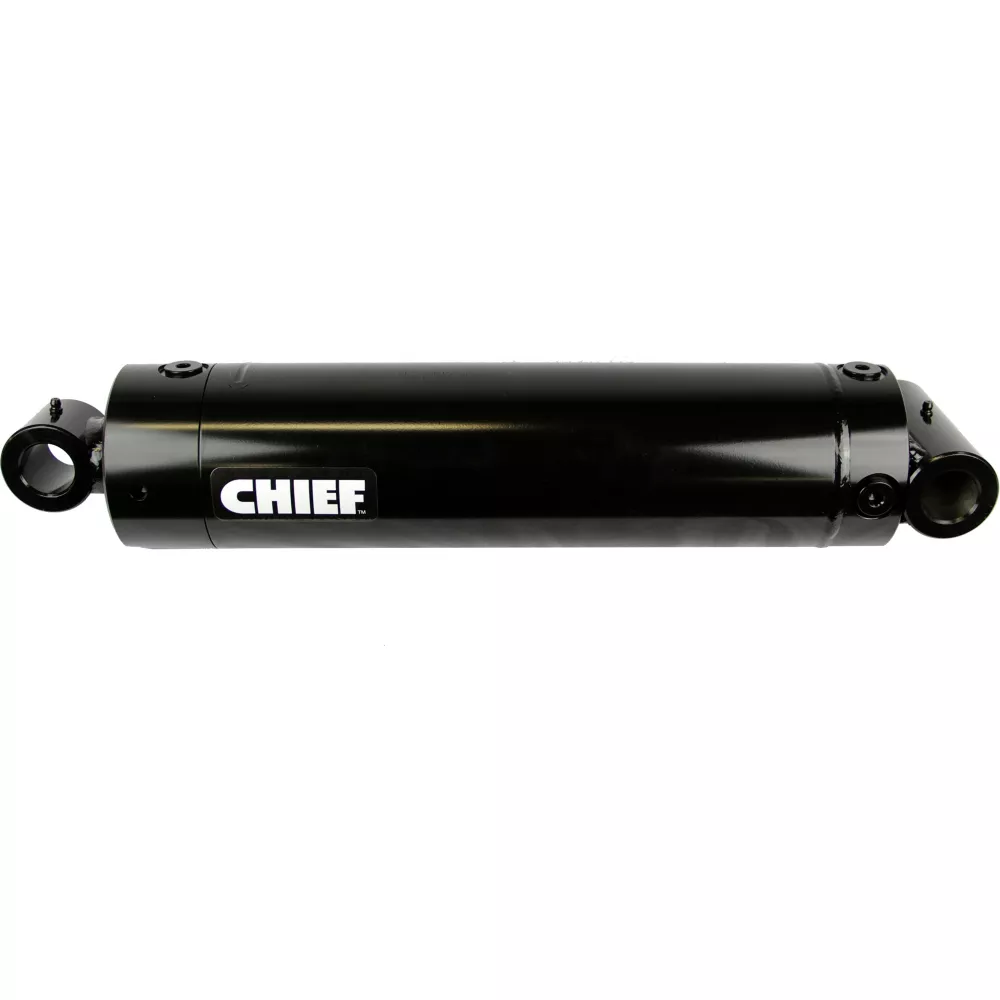

Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 10 in Stroke Hydraulic Cylinders Tractor Repair & Parts

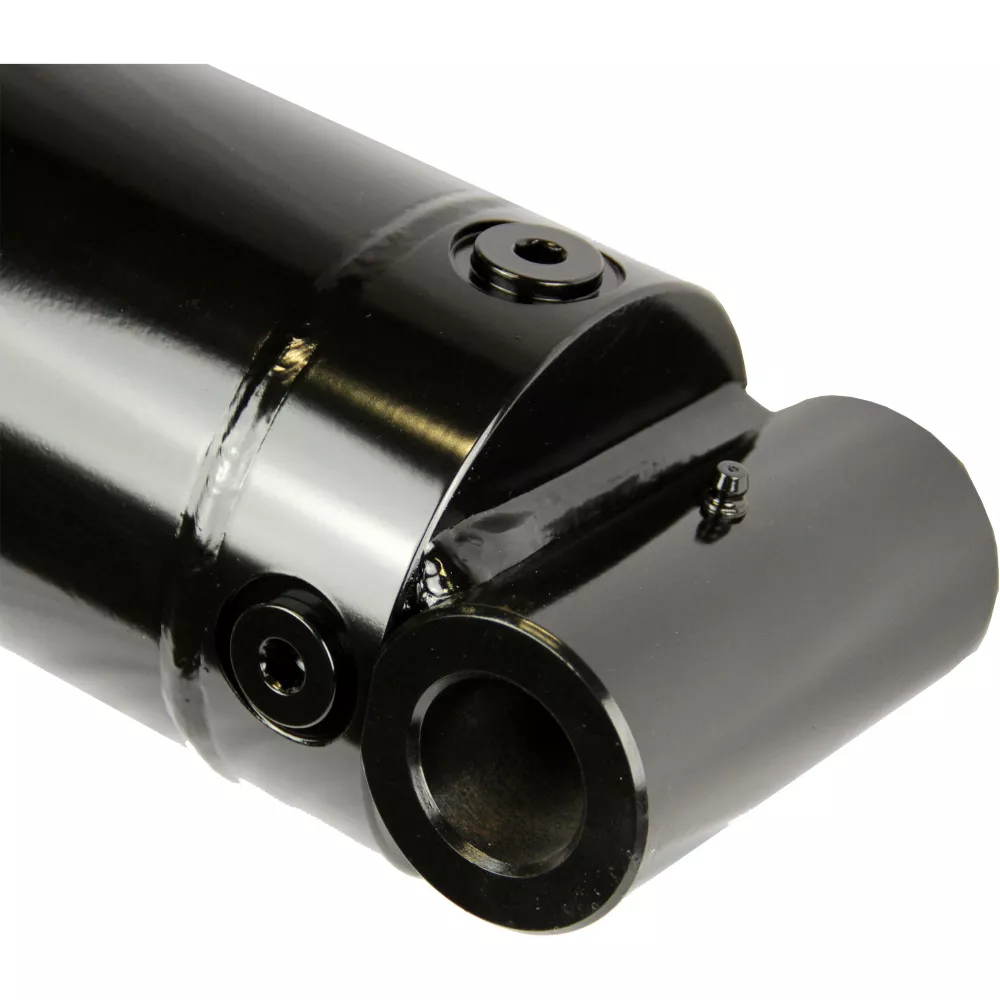

The Chief 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.

Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Has a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring for durability

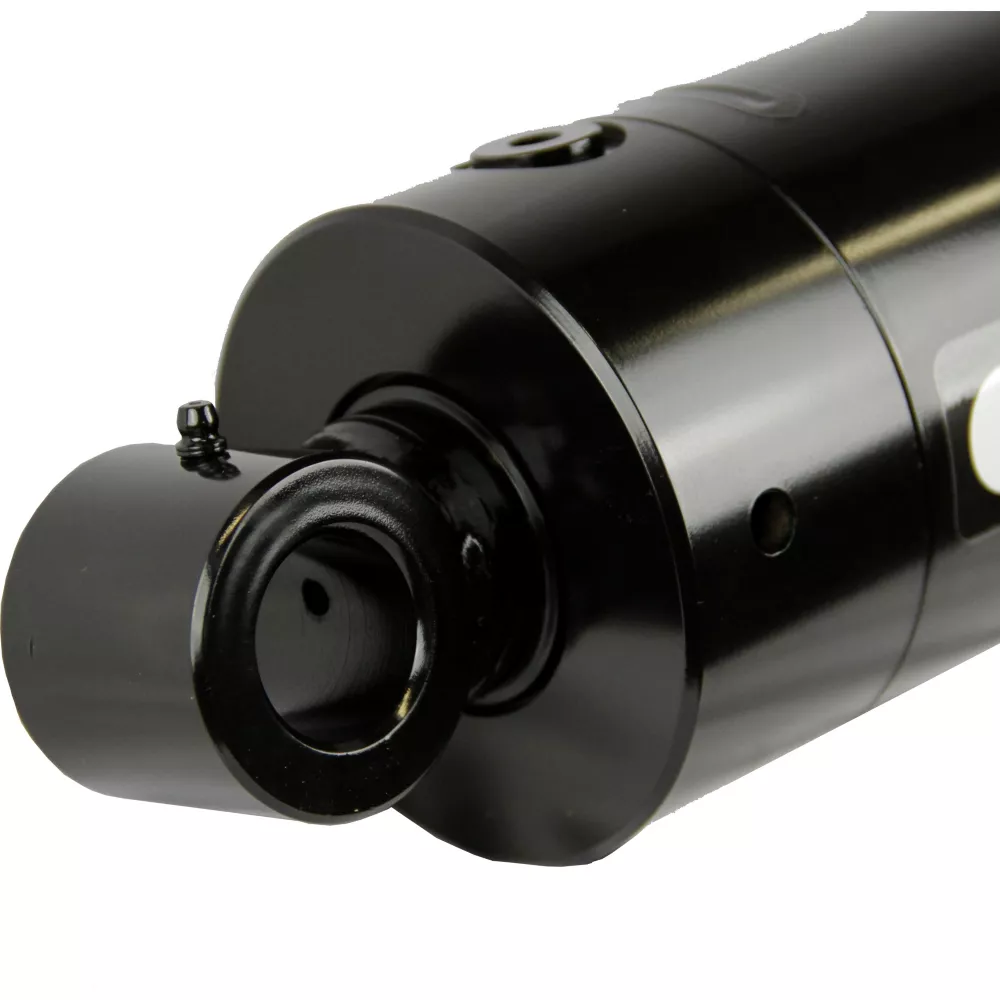

Adjustable 360-degree rotating gland allows you to make port alignments as needed
Rod is a nitrided steel bar with corrosion and scratch resistance
Double acting hydraulic cylinder design made for tough jobs
Satin black paint finish
Individually poly bagged hydraulic cylinder is perfect for farming applications
Made in the USA
3-year limited warranty
Measures 18 in. retracted and 28 in. extended
Column load: 28,860 lb.
Has a 3.5 in. bore and 10 in. stroke length
Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 10 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	28 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,860 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Iron
Product Height	4 in.
Product Length	4 in.
Product Weight	35 lb.
Product Width	4-1/2 in.
Retracted Length	18 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	10 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207462
