Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 16 in Stroke Hydraulic Cylinders Tractor Repair & Parts

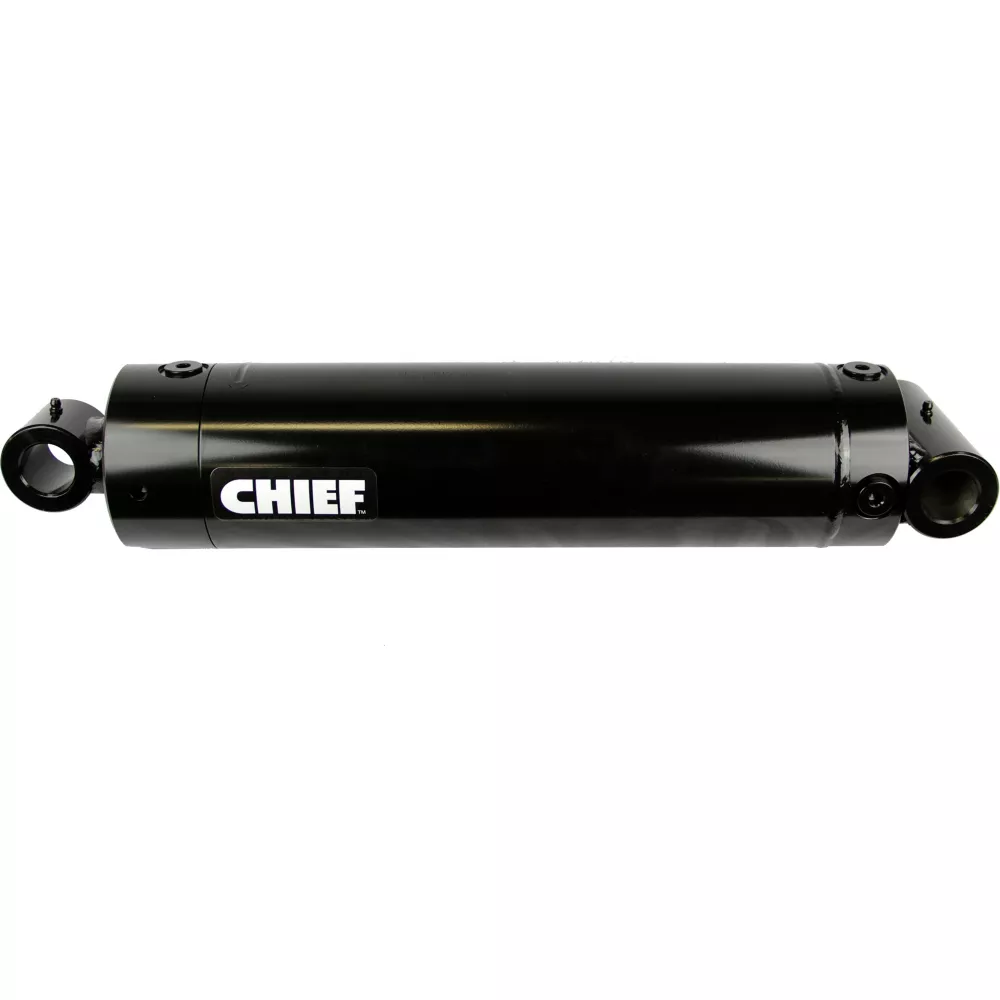

The patented Chief 3.5 in. Bore x 16 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for a hydraulic cylinder is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the welded hydraulic cylinder's already slender design. Adjustments to the hydraulic cylinder can be quickly and easily made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.

Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Has a 3,000 PSI operating range
3 year limited warranty included on the welded hydraulic cylinder

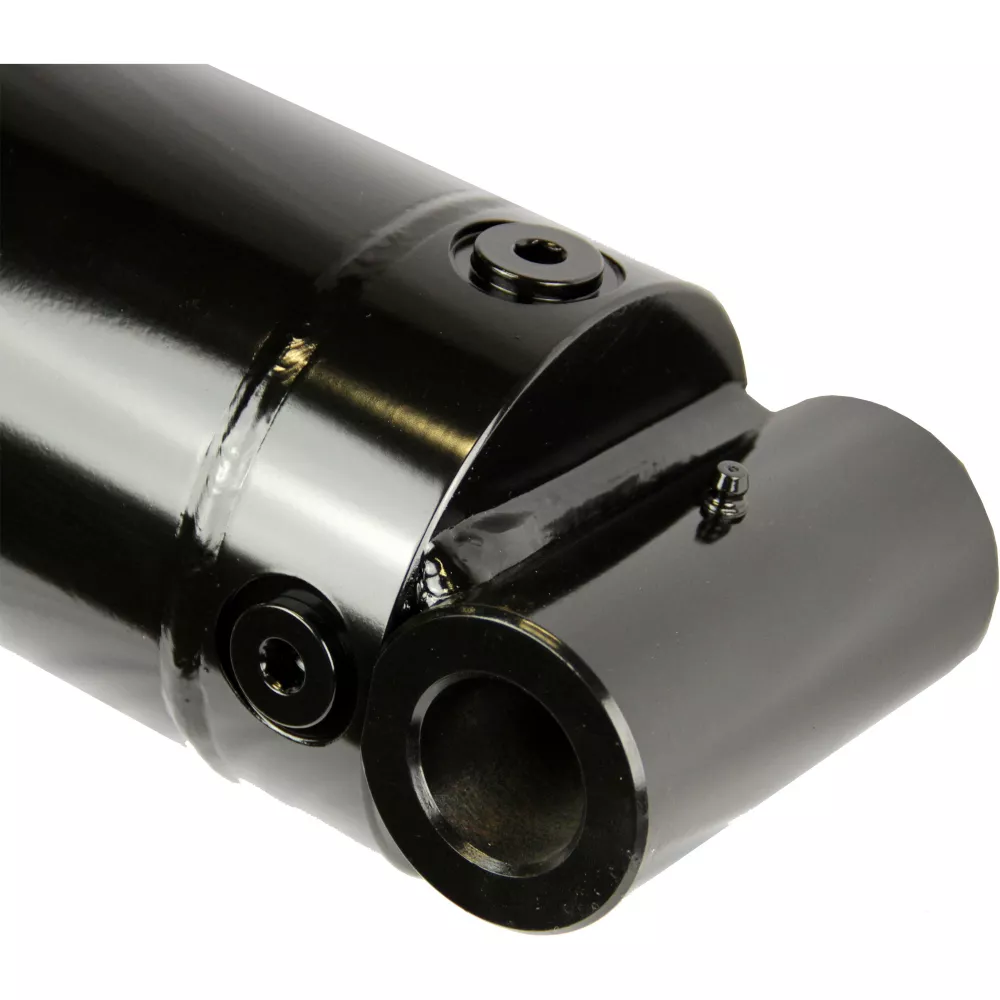

One port is located on the rotating gland and two on the fixed base
Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
Ideal for applications where port adjustability and overall hydraulic cylinder space is restricted
All ports are recessed to maximize an already slender design

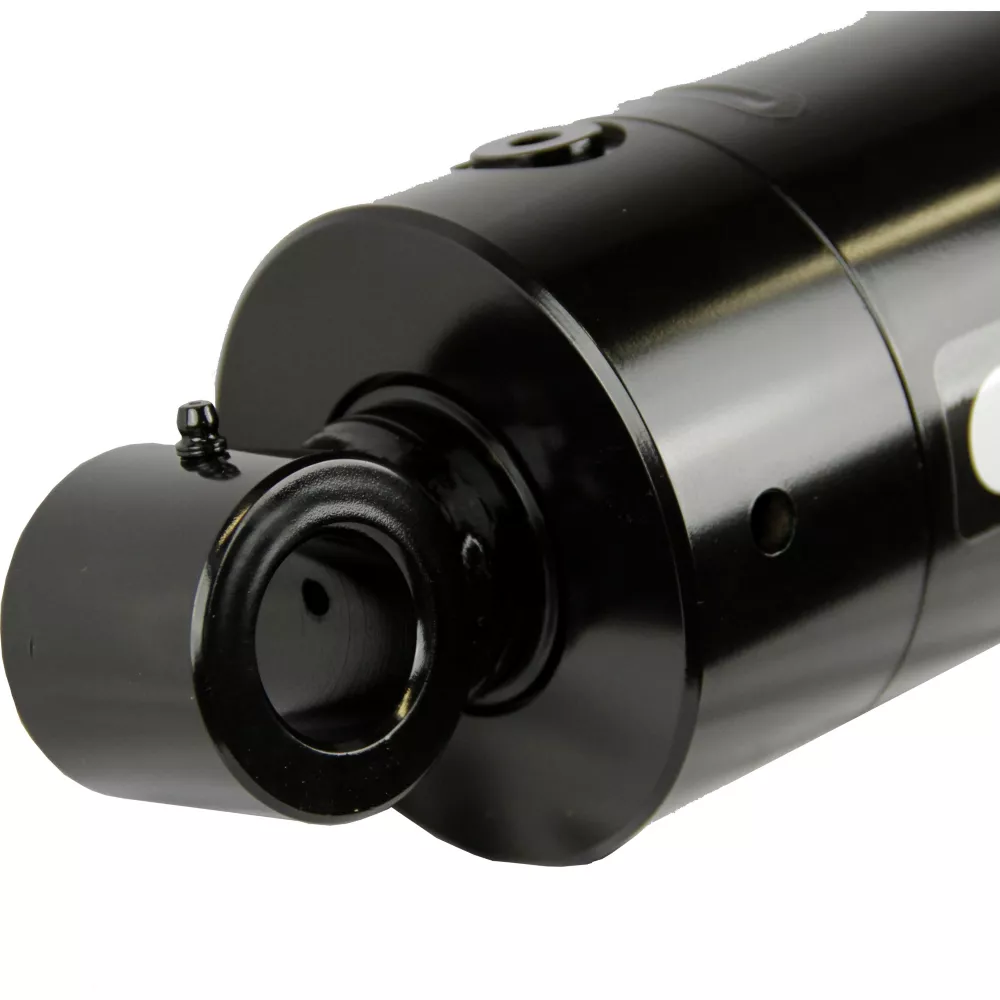

360 degree rotating gland allows you to make port alignments as needed
Measures 24 in. retracted and 40 in. extended
Column load: 28,860 lb.
Pin diameter of 1 in. and rod diameter of 1.75 in.

Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 16 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Extended Length	16 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,860 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Iron
Product Height	4 in.
Product Length	4 in.
Product Weight	43 lb.
Product Width	5-1/4 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	16 in.
Warranty	3 Year
Manufacturer PartNumber	207468
