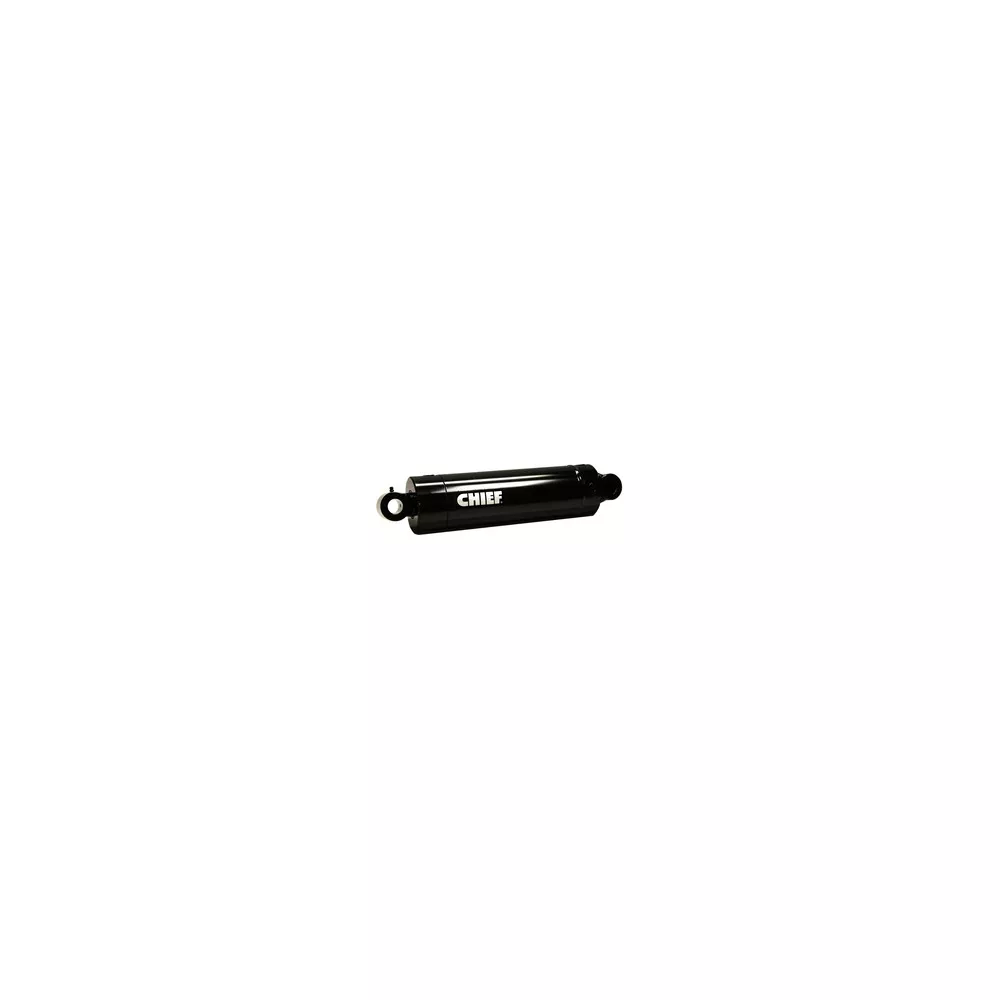

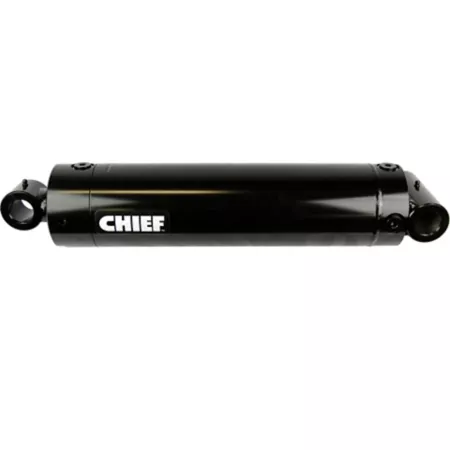

Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 36 in Stroke Hydraulic Cylinders Tractor Repair & Parts

The Chief 3.5 in. Bore x 36 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.

Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring for durability

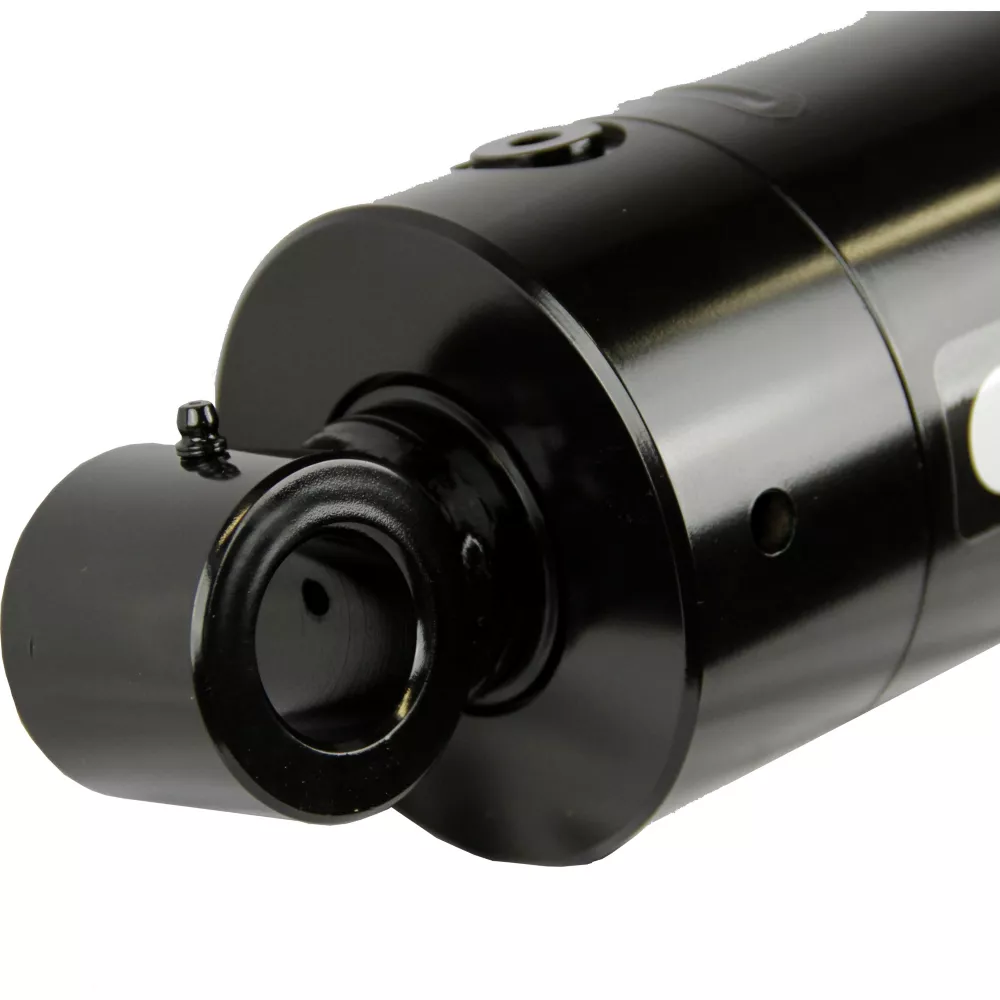

Adjustable 360-degree rotating gland allows you to make port alignments as needed
Rod is a nitrided steel bar with corrosion and scratch resistance
Double acting hydraulic cylinder design
Satin black paint finish
Individually poly bagged for easy transport
Made in the USA
3-year limited warranty

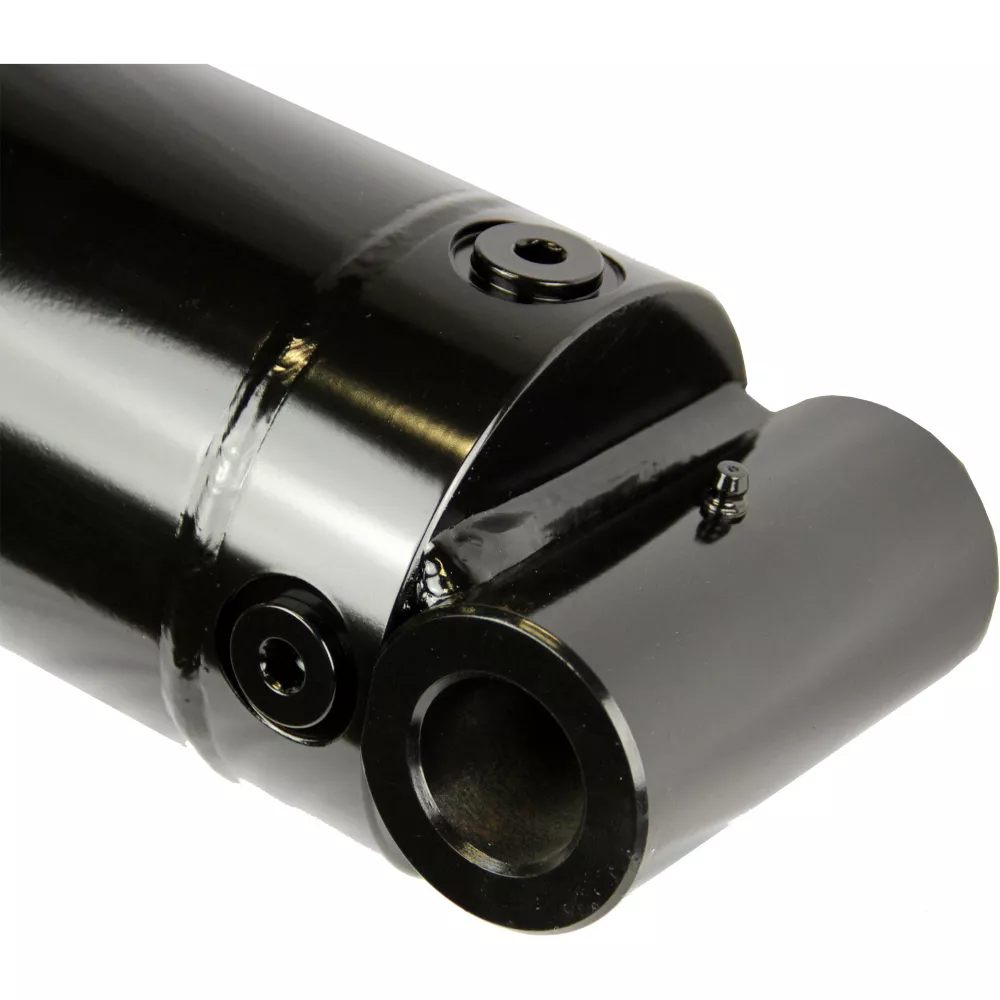

All ports are recessed for a slender design
Measures 44 in. retracted and 80 in. extended
Column load: 16,460 lb.
Pin diameter of 1 in. and rod diameter of 1.75 in.
Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 3.5 in Bore x 36 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	80 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	16,460 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Iron
Product Height	4 in.
Product Length	4 in.
Product Weight	72 lb.
Product Width	5-1/2 in.
Retracted Length	44 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	36 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207480
