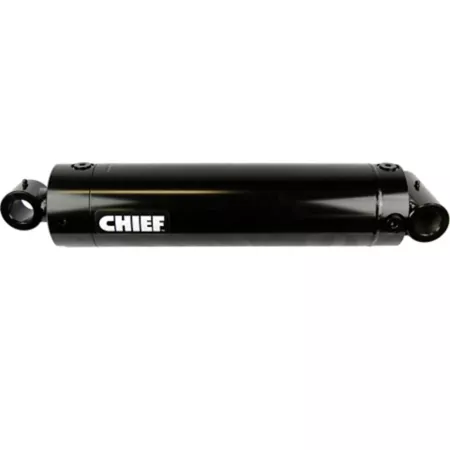

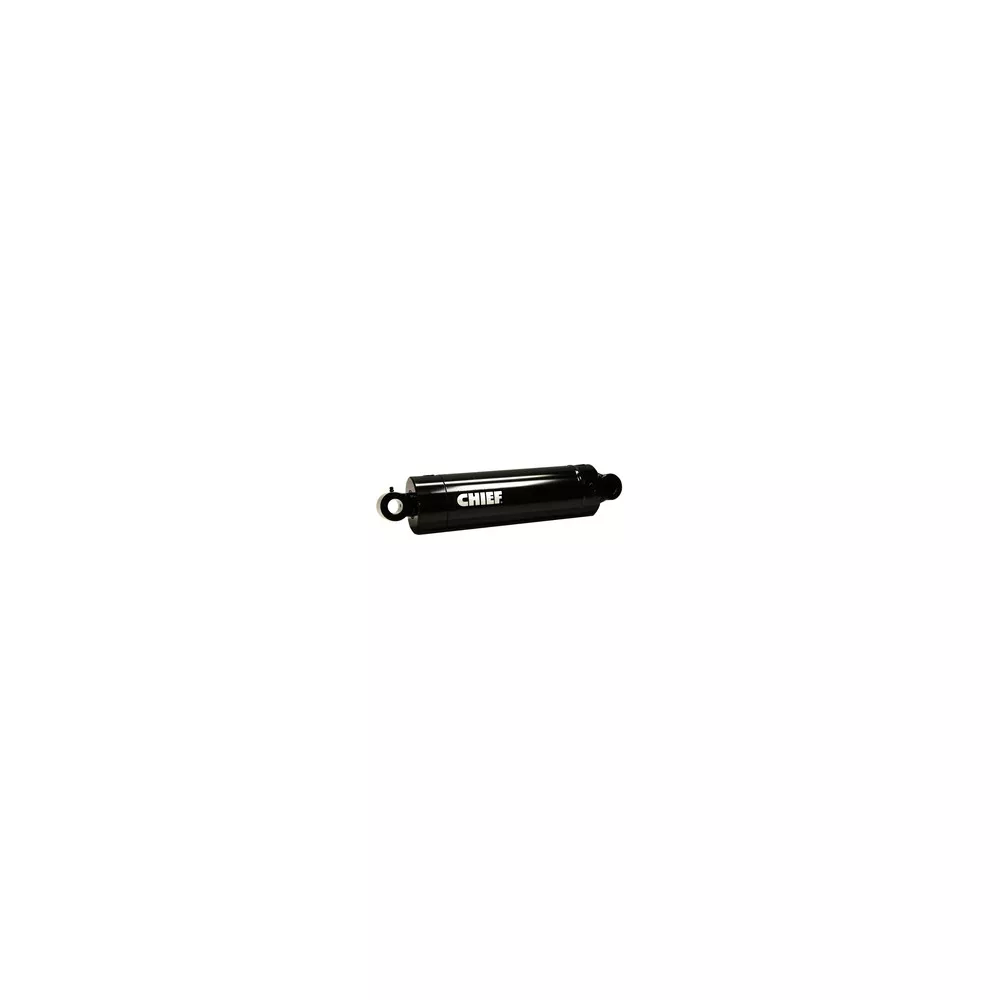

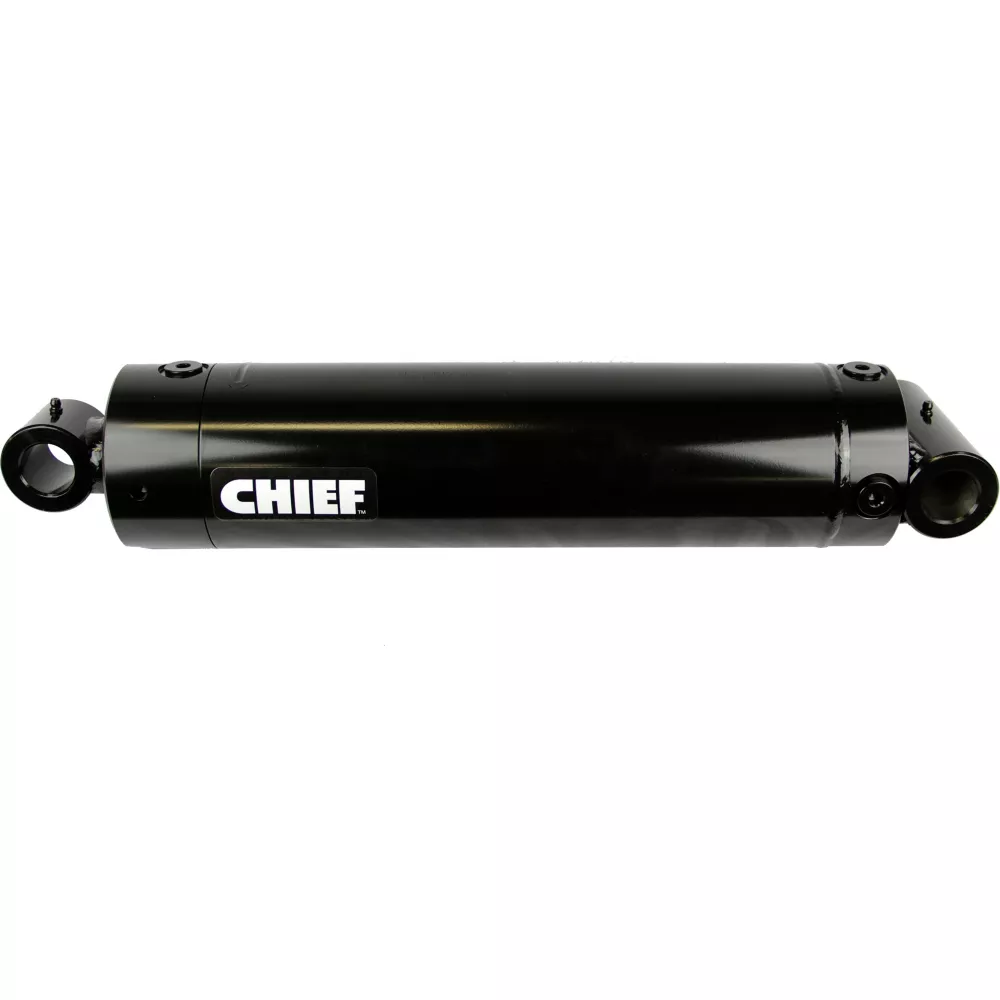

Chief WX Welded Hydraulic Cylinder 4 in Bore x 24 in Stroke Hydraulic Cylinders Tractor Repair & Parts
The Chief 4 in. Bore x 24 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Welded hydraulic cylinder with a 3,000 PSI operating range
- Ductile iron piston with nylon, glass-filled wear ring for durability

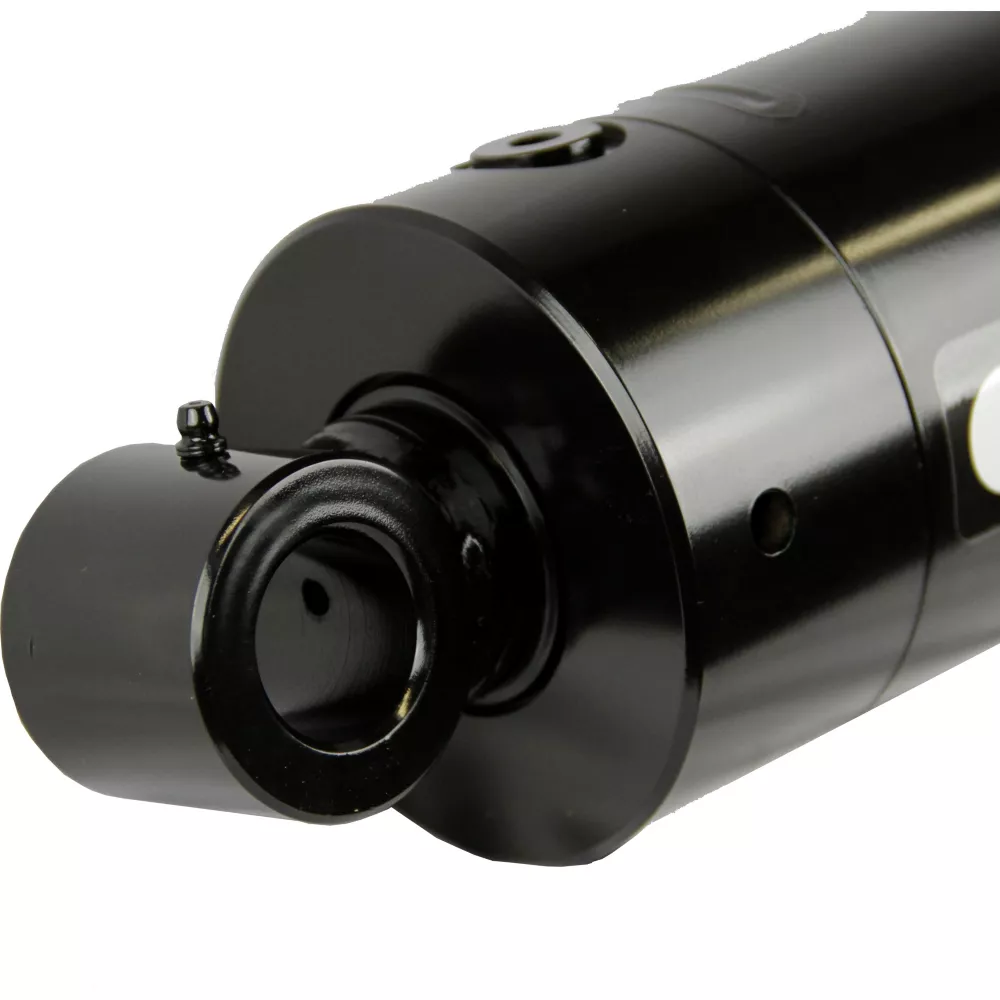

- Adjustable 360-degree rotating gland allows you to make port alignments as needed
- Rod is a nitrided steel bar with corrosion and scratch resistance
- Double acting hydraulic cylinder design
- Satin black paint finish
- Individually poly bagged for ease of transport
- Made in the USA
- 3-year limited warranty

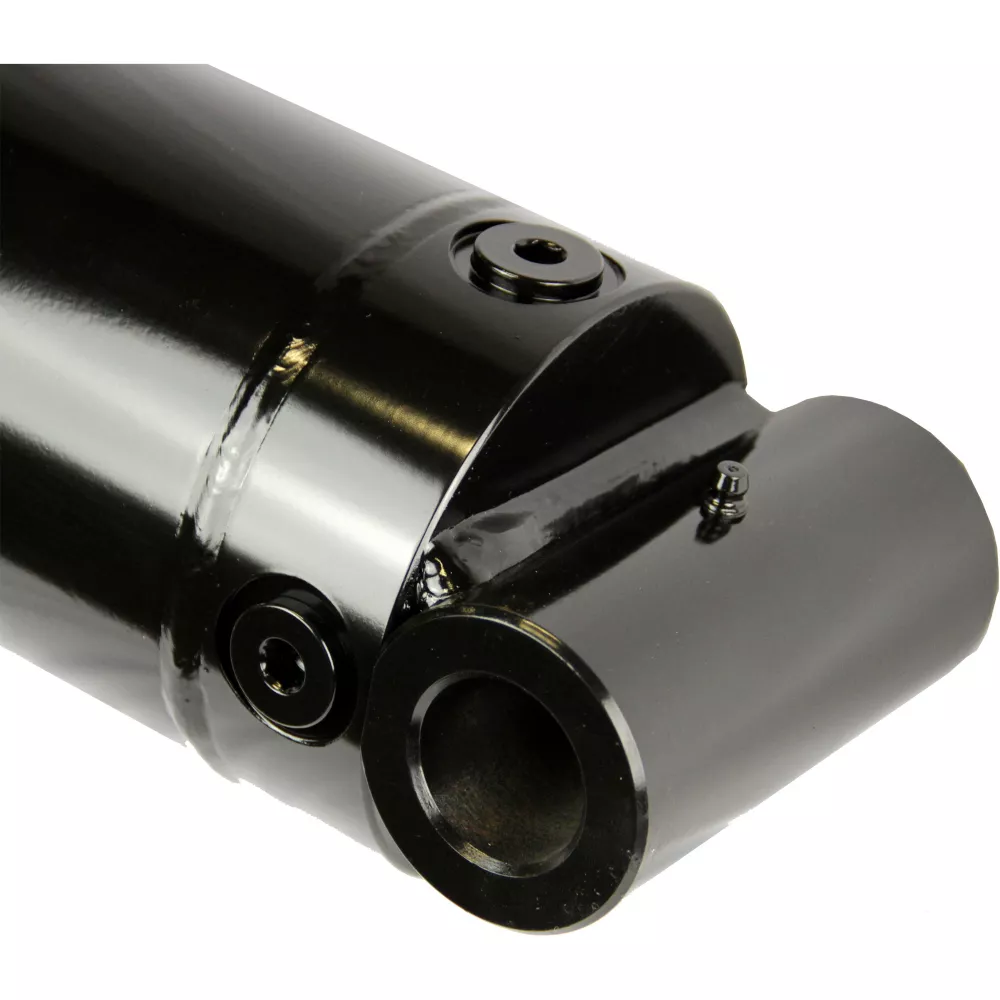

- All ports are recessed for a slender design
- Column load: 37,690 lb.
- Measures 33 in. retracted and 57 in. extended
- Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
- Pin diameter of 1.25 in. and rod diameter of 2 in.
Chief WX Welded Hydraulic Cylinder 4 in Bore x 24 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Made in USA |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 57 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 37,690 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1-1/4 in. |
| Primary Material | Iron |
| Product Height | 4-5/8 in. |
| Product Length | 4-5/8 in. |
| Product Weight | 76 lb. |
| Product Width | 5-1/4 in. |
| Retracted Length | 33 in. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 24 in. |
| Warranty | 3 Year Limited |
| Manufacturer PartNumber | 207504 |
