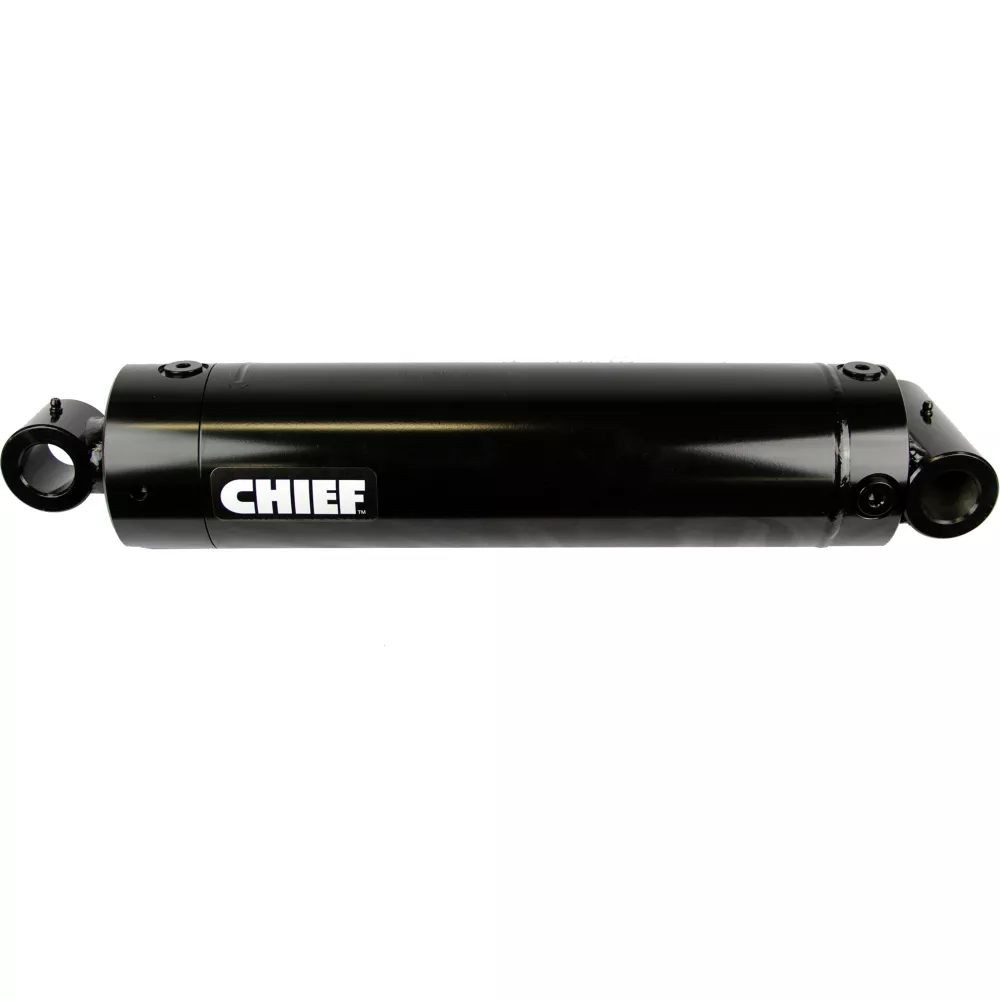

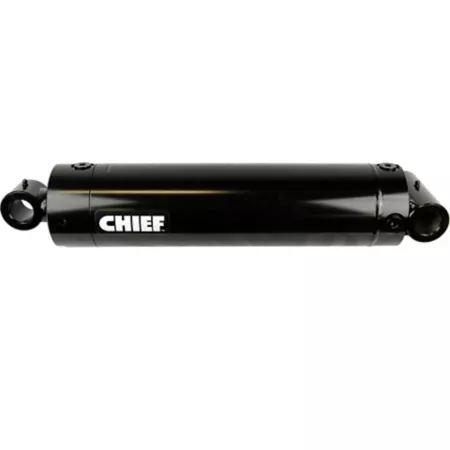

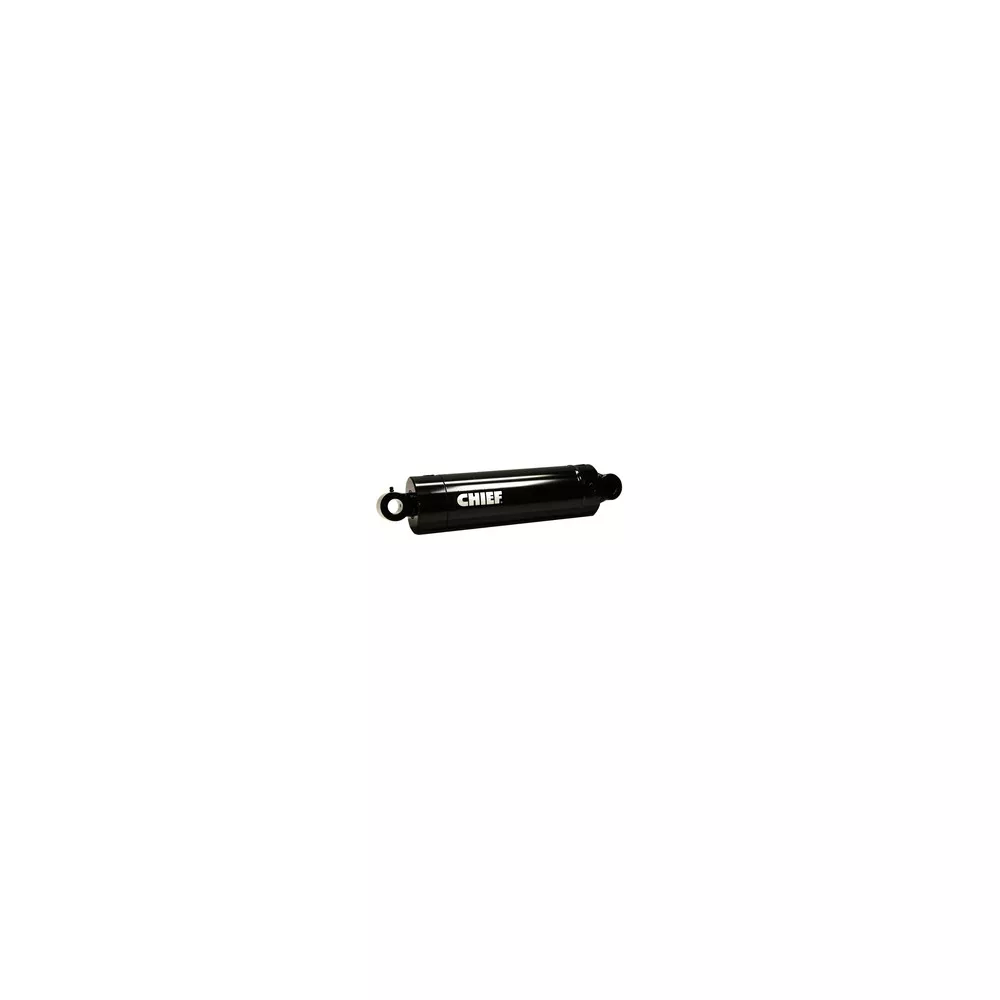

Chief WX Welded Hydraulic Cylinder 5 in Bore x 36 in Stroke Hydraulic Cylinders Tractor Repair & Parts

The Chief 5 in. Bore x 36 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.

Every CHIEF hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
WX welded hydraulic cylinders have a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring

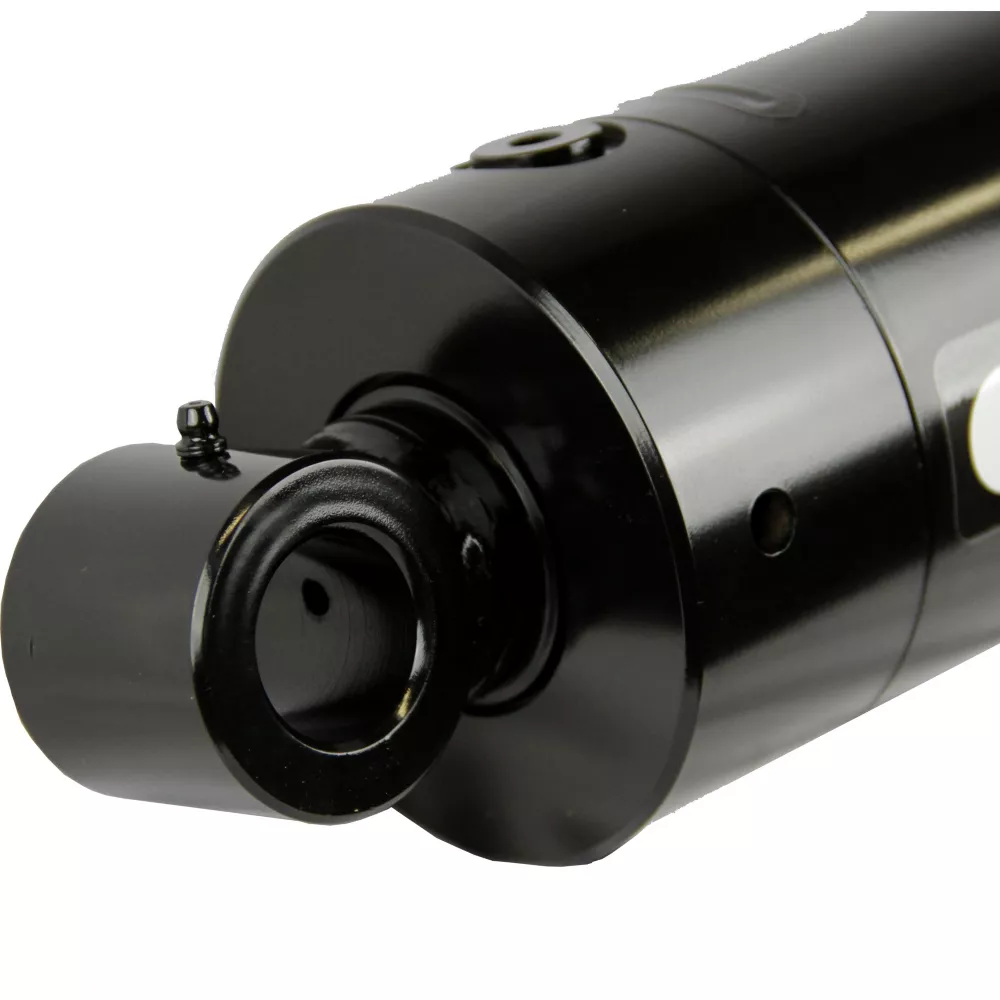

Adjustable 360-degree rotating gland
Rod is a nitrided steel bar with corrosion and scratch resistance
Double acting hydraulic cylinder design
Satin black paint finish
Individually poly bagged farm hydraulic cylinders
Made in USA
3-year limited warranty

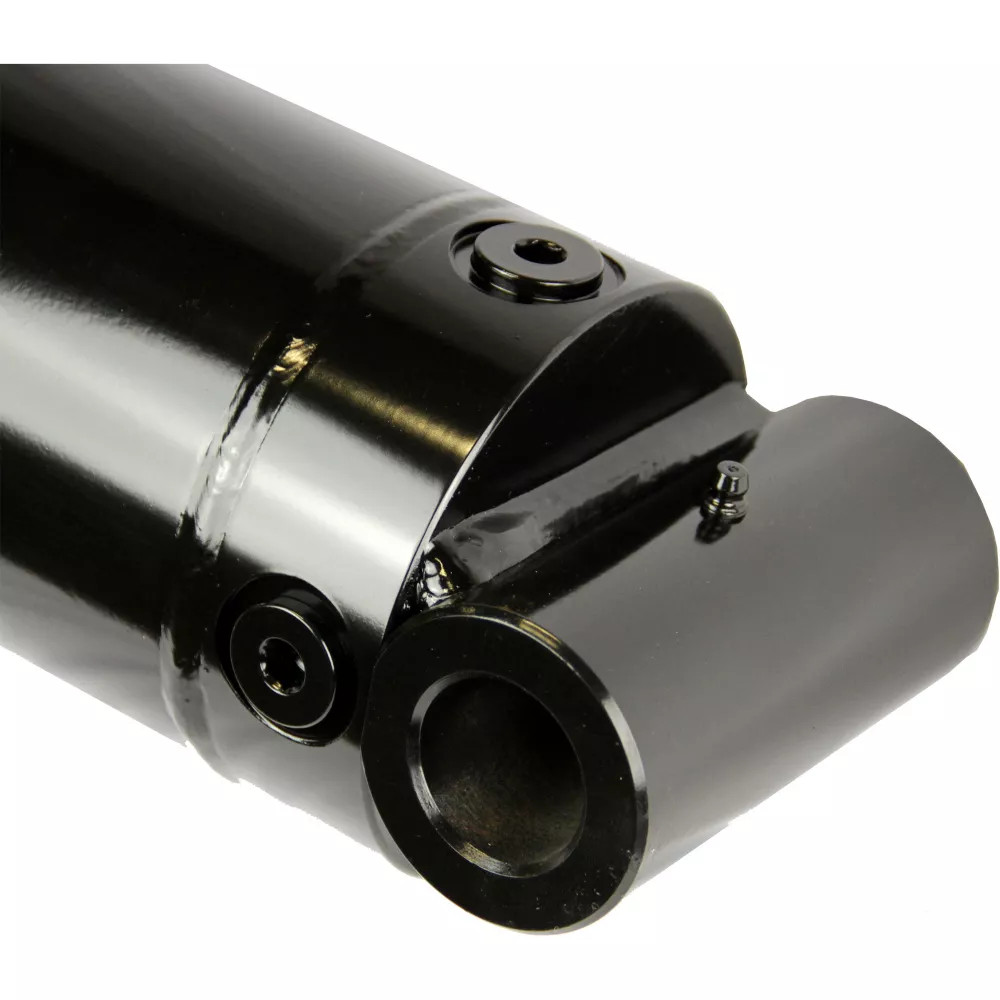

All ports are recessed for a slender design

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 5 in Bore x 36 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	84 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	58,900 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/2 in.
Primary Material	Iron
Product Height	5 in.
Product Length	5 in.
Product Weight	150 lb.
Product Width	5-1/2 in.
Retracted Length	48 in.
Rod Diameter	2-1/2 in.
Single/Double Acting	Double acting
Stroke Distance	36 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207534
