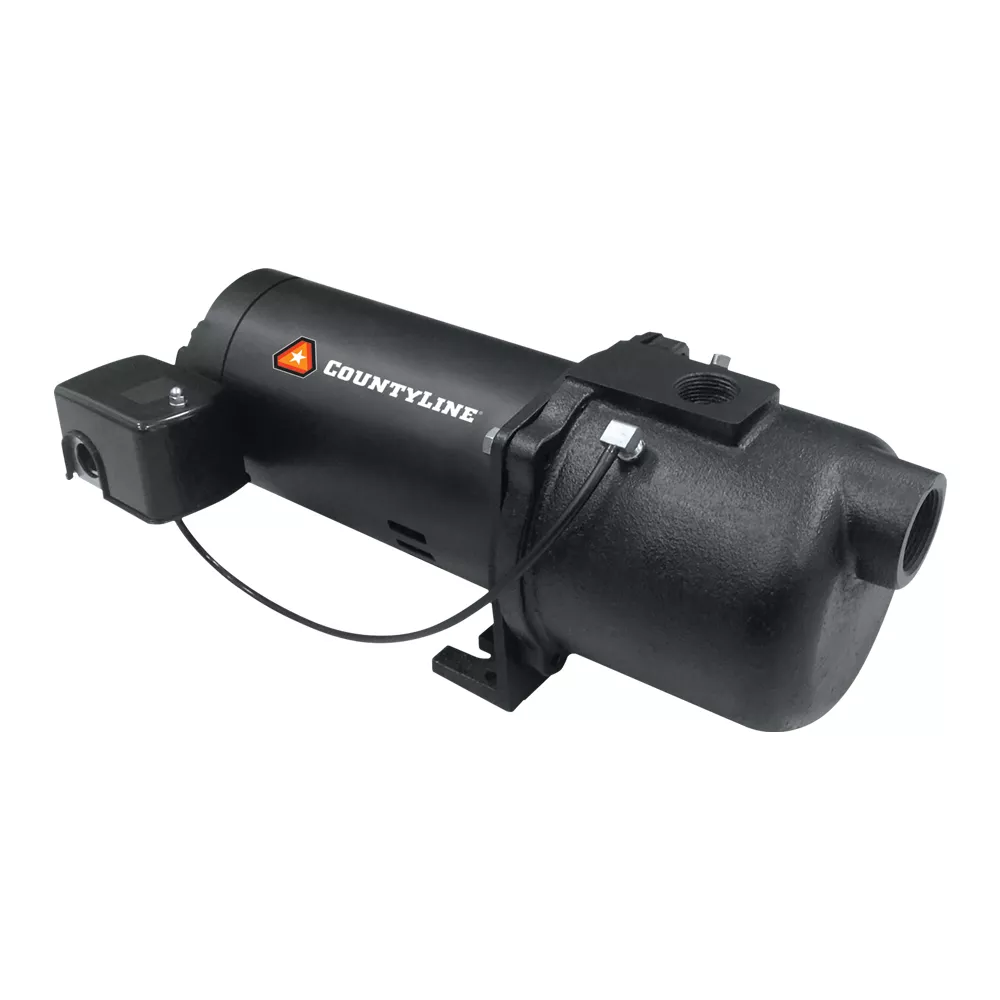

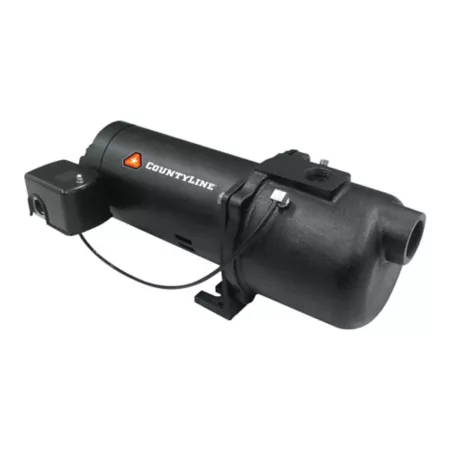

CountyLine 1/2 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 8.1 GPM Well Pumps Home Improvement

The CountyLine 1/2 HP 115/230V Cast-Iron Shallow Well Jet Pump delivers superior performance at depths to water of 25 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use.

Pumps 8 GPM at 0 degrees lift; 6 GPM at 10 ft. lift
Powered by a heavy-duty, 1/2 HP dual-voltage motor
Shallow well jet pump delivers superior performance at depths to water of 25 ft. or less
Rugged cast-iron construction ensures lasting use
Moderate level installation (plumbing skills required)
For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
Backed by a 2-year warranty

To install the jet pump, plumbing skills are required.

CountyLine 1/2 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 8.1 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Amperage	12.2-6.1 Amp
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	7 GPM
Discharge Rate at 25 ft.	4.5 GPM
Discharge Rate at 50 ft.	0 N/A
Features	1/2 HP - pumps up to 7 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor has Corrosion-resistant Nozzle and Venturi 11/4 in. Suction, 1 in. Discharge
Head Pressure	40 PSI
Horsepower	0.5 HP
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	8.1 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	13.15 in.
Product Length	21.65 in.
Product Weight	38.3 lb.
Product Width	11.57 lb.
Motor Type	PCS
Voltage	115V230V
Warranty	1 year
Manufacturer PartNumber	CL5SWJ

CountyLine 1/2 HP 115/230V Electric Cast Iron Shallow Well Jet Pump, 8.1 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Amperage 12.2-6.1 Amp Body Material Cast Iron Compatible Pipe Material PVC Compatible Well Diameter 3 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge rate at 0 ft. 7 GPM Discharge rate at 25 feet 4.5 GPM Discharge rate at 50 feet 0 N/A Features 1/2 HP - pumps up to 7 GPM Dual voltage - 115/230 V (factory set to 230 V) The Built-in overload motor features a corrosion-resistant nozzle and 11/4 in. Venturi. Suction, 1 in. Discharge Head Pressure 40 PSI Power 0.5 HP Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum flow 8.1 GPM Maximum head lift 25 ft. Maximum operating depth 25 ft. Maximum operating temperature 104 degrees. F Minimum operating temperature 33 degrees. F Power Supply Type Product Height 13.15 in. Product length 21.65 in. Product weight 38.3 lbs. Product width 11.57 lbs. Motor Type PCS Voltage 115V 230V Warranty 1 Year Manufacturer Part Number CL5SWJ
