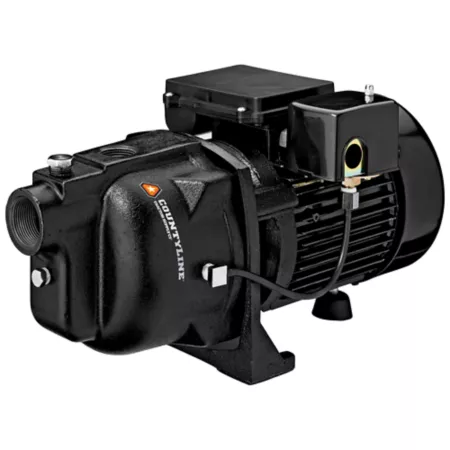

CountyLine Electric Cast Iron Shallow Well Jet Pump 1/2 HP 115/230V 8.5 GPM Well Pumps Home Improvement

The CountyLine Shallow Well Cast Iron Jet Pump delivers water from 25 ft. or less. Featuring a rugged cast iron construction this pump is built for a long life.

1/2 HP
Maximum Depth to Water: 25 ft.
115V/230V
Maximum GPM: 8.5 GPM
Suction Port Size: 1-1/4 in. NPT
Outlet Port Size: 1 in. NPT
19 in. x 10-5/6 in. x 10-1/2 in.
38 lb.
Cast Iron Body
CSA Approved

CountyLine Electric Cast Iron Shallow Well Jet Pump 1/2 HP 115/230V 8.5 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Amperage	8.5 115V 4.2 230V
Body Material	Cast iron
Compatible Pipe Material	Other
Compatible Well Diameter	1-1/4 in. NPT
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	8.5 GPM
Discharge Rate at 25 ft.	3.5 GPM
Discharge Rate at 50 ft.	in. 0n/a"
Features	CSA Approved
Head Pressure	65 PSI
Horsepower	1/2 HP
Impeller Material	Glass-filled polycarbonate
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	8.5 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	77 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	38 lb.
Product Width	11 in.
Motor Type	TEFC
Voltage	115V230V
Warranty	1 Year Limited
Manufacturer PartNumber	CLTS5

CountyLine 1/2 HP 115/230V Electric Shallow Well Cast Iron Jet Pump, 8.5 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Amperage 8.5 115V 4.2 230V Body Material Cast Iron Compatible Pipe Material Other Compatible Well Diameter 1-1/4 in. NPT Discharge Fitting Female Threaded Discharge Diameter 1 in. Discharge Rate at 0 ft 0n/a" Features CSA Approved Head Pressure 65 PSI Power 1/2 HP Impeller Material Glass Filled Polycarbonate Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum Flow 8.5 GPM Maximum Head Lift 25 feet Maximum Operating Depth 25 feet Maximum Operating Temperature 77 degrees F Minimum Operating Temperature 32 degrees F Power Type Electric Product Height 11 in. Product Length 19 in. Product Weight 38 lb Product Width 11 in. Motor Type TEFC Voltage 115V 230V 1 Year Limited Warranty Manufacturer Part Number CLTS5
