CountyLine TC Welded Tie Rod Hydraulic Cylinder 2.5 in Bore x 24 in Stroke 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

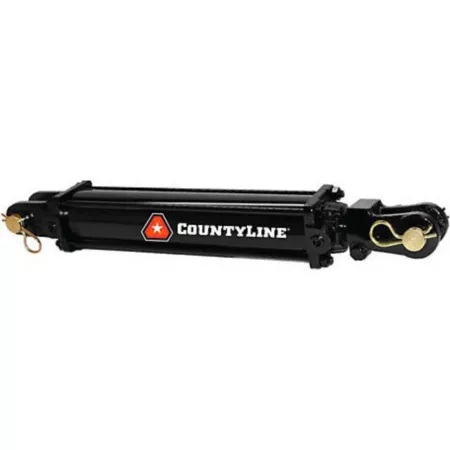

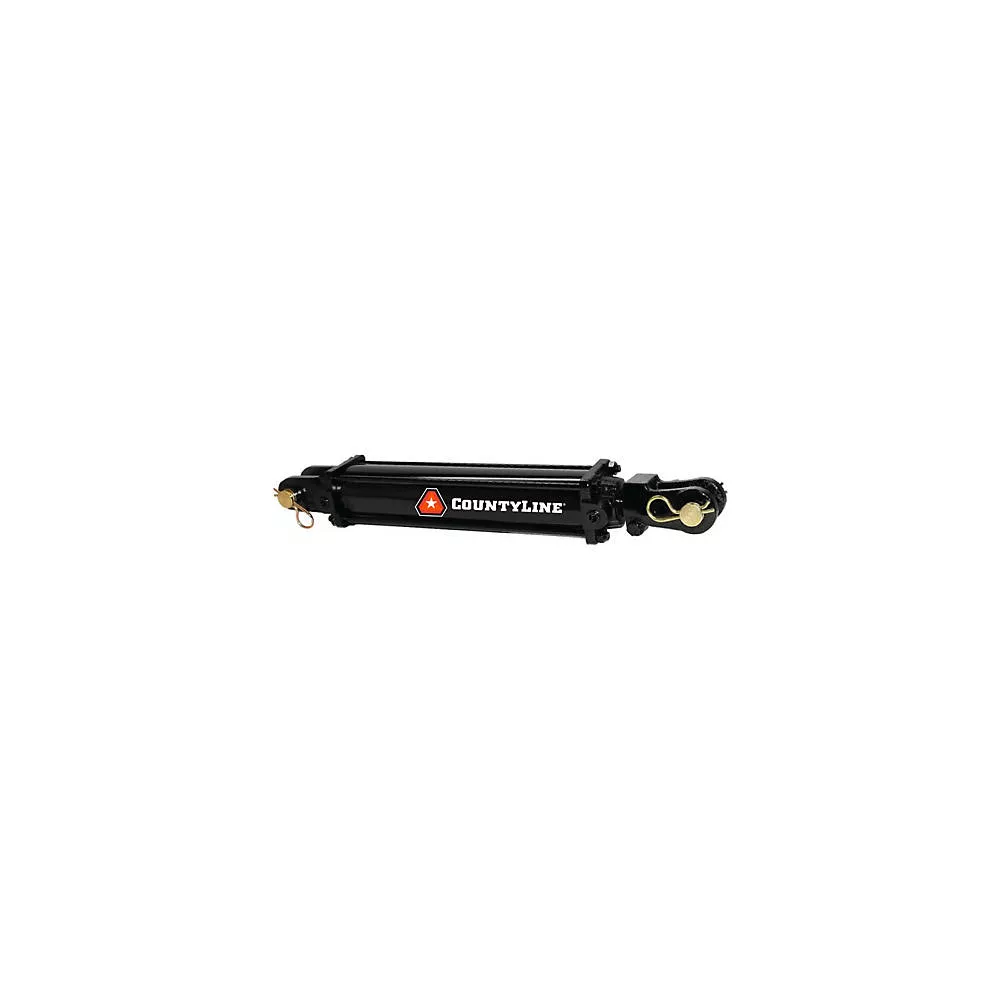

The CountyLine 2.5 in. Bore x 24 in. Stroke TC Welded Tie Rod Hydraulic Cylinder was originally designed for rugged agricultural applications, making it well suited to perform in demanding applications in any industry. This hydraulic cylinder provides value pricing without sacrificing quality. Each tie rod hydraulic cylinder undergoes rigorous testing that exceeds industry standards and ensures maximum reliability and performance.

Dimensions: 2.5 in. x 24 in.
Hydraulic cylinder measures 1.125 in. in diameter
Tie rod hydraulic cylinder offers a 2,500 PSI maximum operating pressure

CountyLine TC Welded Tie Rod Hydraulic Cylinder 2.5 in Bore x 24 in Stroke 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	58.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	5,300 lb.
Model Compatibility	Most applications
OEM Replacement	N/A
Package Quantity	1
Pin Diameter	1 in.
Port Size	38 NPT
Primary Material	Steel
Product Height	5 in.
Product Length	38 in.
Product Weight	35 lb.
Product Width	5 in.
Retracted Length	34.25 in.
Rod Diameter	1.125 in.
Stroke Distance	24 in.
Manufacturer PartNumber	318325

CountyLine 2.5 in. Bore x 24 in. Stroke TC Welded Tie Rod Hydraulic Cylinder, 2,500 PSI Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Unknown Extended Length 58.25 in. Maximum operating pressure 2,500 PSI Maximum weight capacity 5,300 lbs. Model Compatibility Most Applications OEM Replacement N/A Package Quantity 1 Pin Diameter 1 in. Port Size 38 NPT Primary Material Steel Product Height 5 in. Product Length 38 in. Product Weight 35 lb. Product Width 5 in. Retracted Length 34.25 in. Stem Diameter 1.125 in. Stroke Distance 24 in. Manufacturer Part Number 318325
