CountyLine Tie Rod Hydraulic Cylinder 2.5 in Bore x 16 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders

CountyLine Tie Rod Hydraulic Cylinder 2.5 in Bore x 16 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

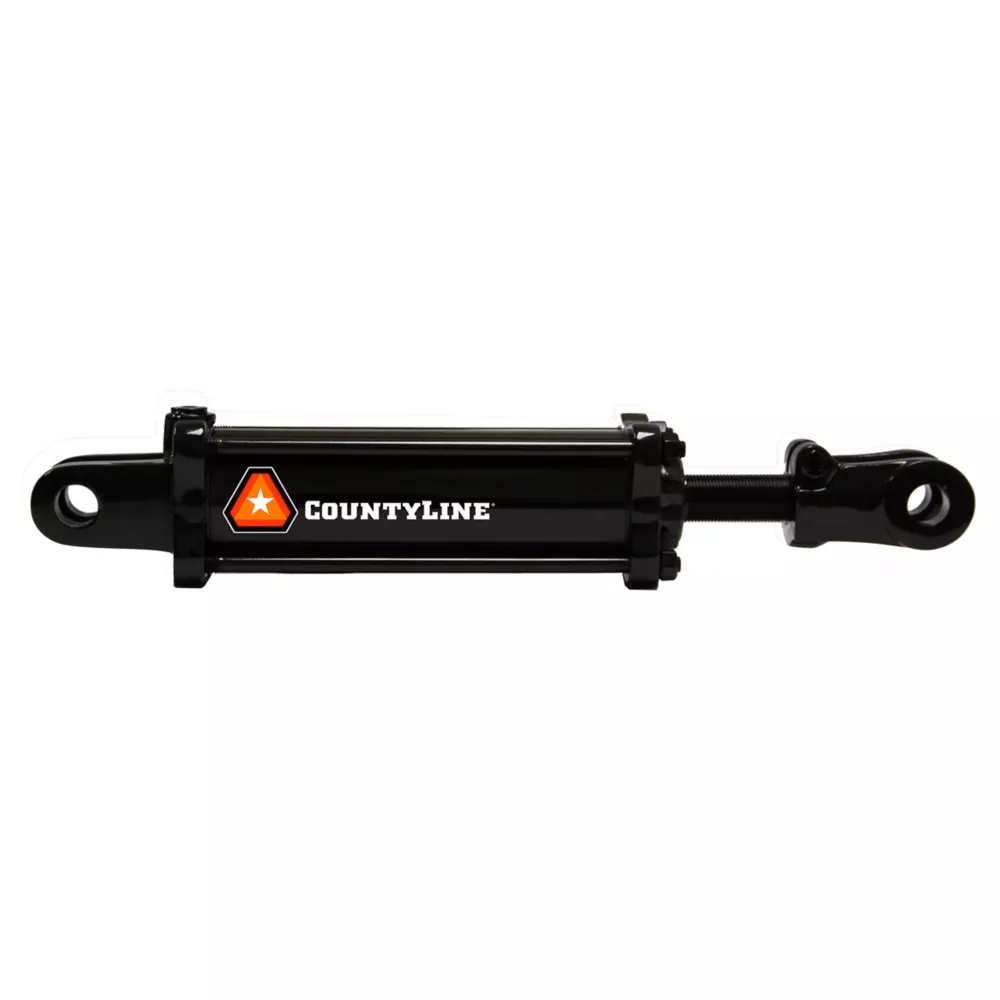

The CountyLine 2.5 in. Bore x 16 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications, making the hydraulic cylinder well suited to perform in demanding applications. This agricultural hydraulic cylinder provides value pricing without sacrificing quality.

• 2.5 in. bore x 16 in. stroke
• Tie rod hydraulic cylinder has a 2,500 PSI operating range
• Used for agricultural applications
• Hydraulic cylinder exceeds industry standards
• 1.125 in. tie rod diameter

CountyLine Tie Rod Hydraulic Cylinder 2.5 in Bore x 16 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	42.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	10,000 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	38 NPT
Primary Material	Steel
Product Height	0 N/A
Product Length	26.25 in.
Product Weight	27 lb.
Product Width	0 N/A
Retracted Length	26.25 in.
Rod Diameter	1.125 in.
Stroke Distance	16 in.
Manufacturer PartNumber	318322

CountyLine 2.5 in. Bore x 16 in. Stroke Tie Rod Hydraulic Cylinder, 1.125 in. Rod Diameter, 2,500 PSI Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Unknown Extended Length 42.25 in. Maximum operating pressure 2,500 PSI Maximum weight capacity 10,000 lbs. Model Compatibility Universal Packing Quantity 1 pin diameter 1 in. Port Size 38 NPT Primary Material Steel Product Height 0 N/A Product Length 26.25 in. Product weight 27 lbs. Product Width 0 N/A Retracted Length 26.25 in. Shank diameter 1.125 in. Travel distance 16 in. Manufacturer part number 318322
