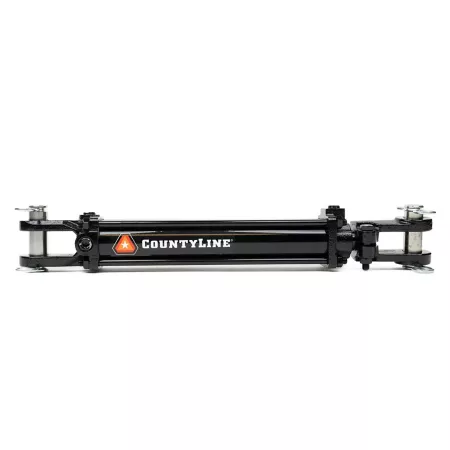

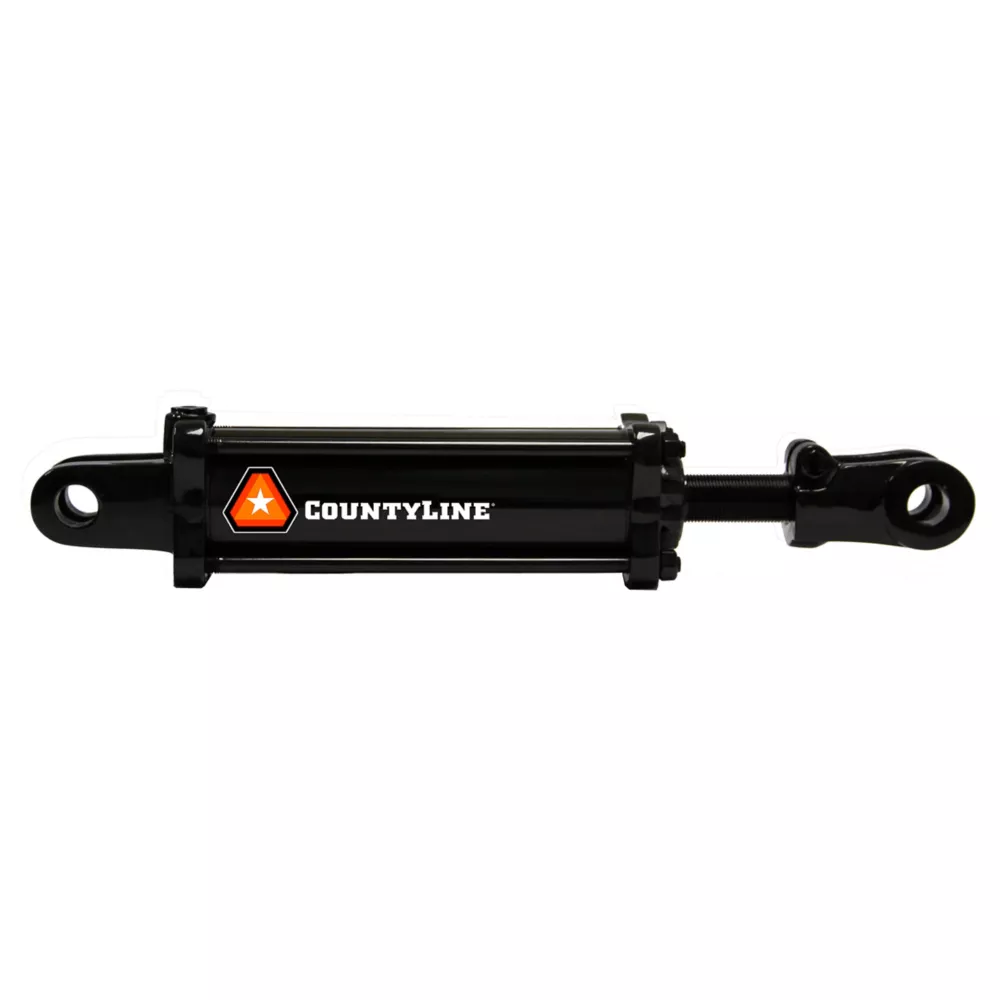

CountyLine Tie Rod Hydraulic Cylinder 2.5 in Bore x 8 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

The CountyLine 2.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications, making it well suited to perform in demanding applications. This hydraulic cylinder provides value pricing without sacrificing quality. The tie rod hydraulic cylinder offers a 2,500 PSI operating range.

2.5 in. bore x 8 in. stroke
1.125 in. rod diameter
Hydraulic cylinder has a 2,500 PSI operating range
Used for agricultural applications
Tie rod hydraulic cylinder exceeds industry standards

CountyLine Tie Rod Hydraulic Cylinder 2.5 in Bore x 8 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	28.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	12,270 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	38 NPT
Primary Material	Steel
Product Height	0 N/A
Product Length	20.25 in.
Product Weight	20 lb.
Product Width	0 N/A
Retracted Length	20.25 in.
Rod Diameter	1.125 in.
Stroke Distance	8 in.
Manufacturer PartNumber	318301

CountyLine 2.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.125 in. Rod Diameter, 2,500 PSI Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Unknown Extended Length 28.25 in. Maximum operating pressure 2,500 PSI Maximum weight capacity 12,270 lbs. Model Compatibility Universal Packing Quantity 1 pin diameter 1 in. Port Size 38 NPT Primary Material Steel Product Height 0 N/A Product Length 20.25 in. Product weight 20 lbs. Product Width 0 N/A Retracted Length 20.25 in. Shank diameter 1.125 in. Travel distance 8 in. Manufacturer part number 318301
