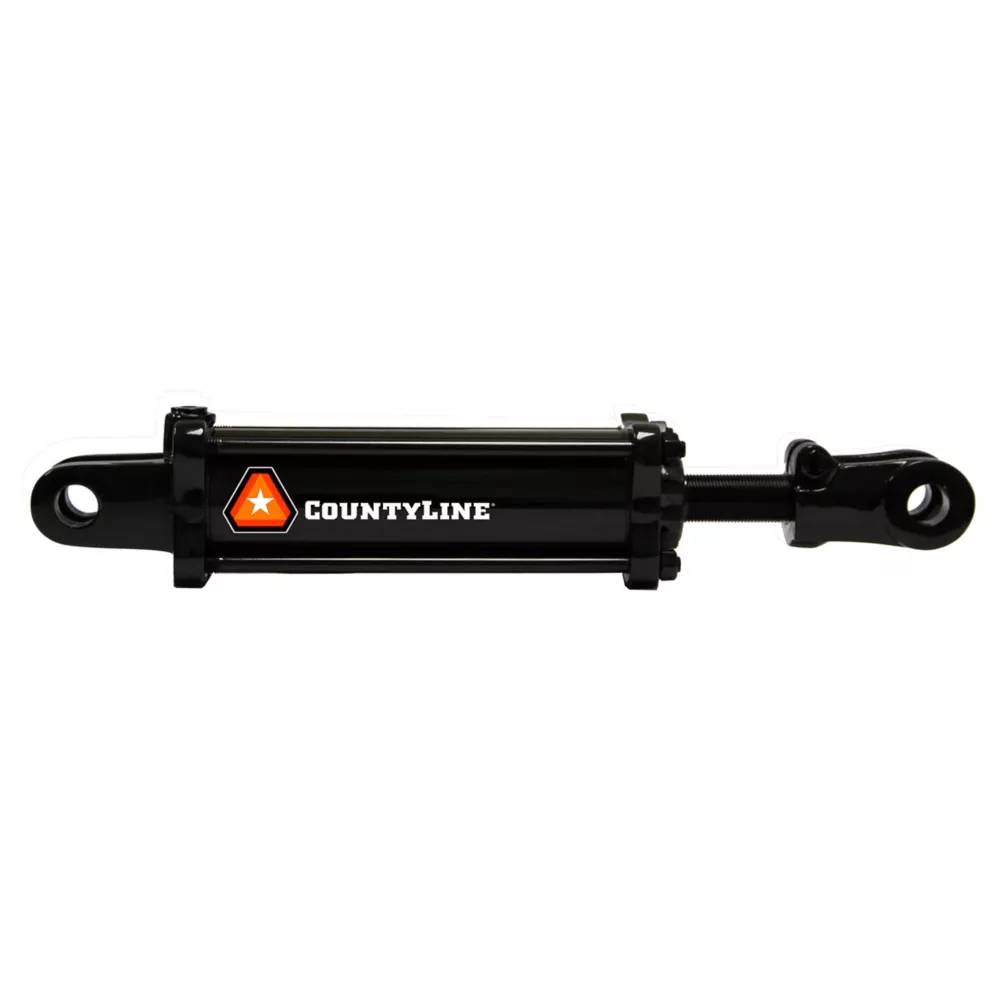

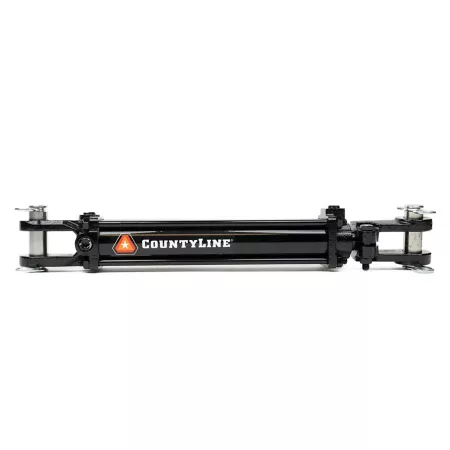

CountyLine Tie Rod Hydraulic Cylinder 2 in Bore x 16 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

The CountyLine 2 in. Bore x 16 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. This hydraulic cylinder is well suited to perform in demanding applications in any industry. The hydraulic cylinder tie rod offers a maximum operating range of 2,500 PSI.

2 in. bore x 16 in. stroke
Tie rod hydraulic cylinder has a 2,500 PSI operating range
Used for agricultural applications
Hydraulic cylinder exceeds industry standards
1.125 in. rod diameter

CountyLine Tie Rod Hydraulic Cylinder 2 in Bore x 16 in Stroke 1.125 in Rod Diameter 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	42.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	7,850 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	38 NPT
Primary Material	Steel
Product Height	0 N/A
Product Length	26.25 in.
Product Weight	24 lb.
Product Width	0 N/A
Retracted Length	26.25 in.
Rod Diameter	1.125 in.
Stroke Distance	16 in.
Manufacturer PartNumber	318309
