CountyLine Tie Rod Hydraulic Cylinder 3 in Bore x 10 in Stroke 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

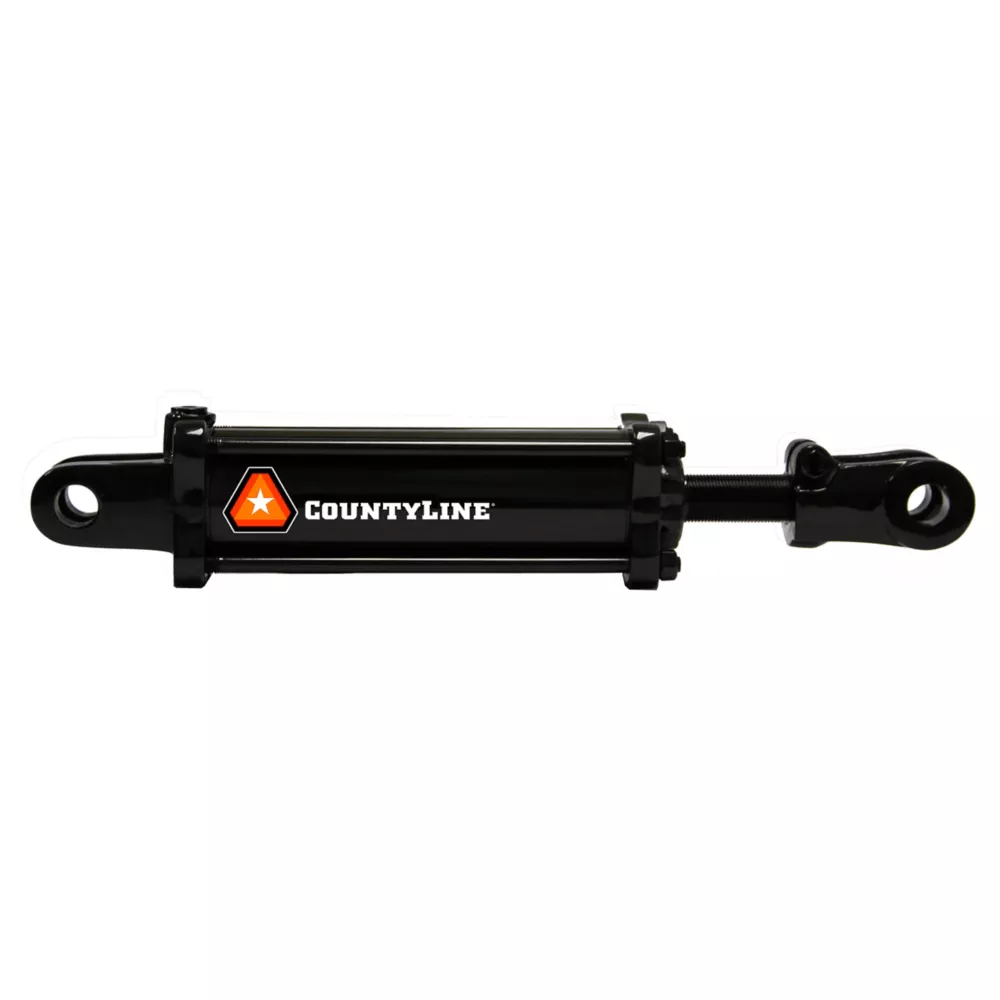

The CountyLine 3 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications, making it well suited to perform in demanding applications. This hydraulic cylinder provides value pricing without sacrificing quality. The tie rod hydraulic cylinder offers a 2,500 PSI operating range.

3 in. bore x 10 in. stroke
Hydraulic cylinder has a 2,500 PSI operating range
Used for agricultural applications
Tie rod hydraulic cylinder exceeds industry standards

CountyLine Tie Rod Hydraulic Cylinder 3 in Bore x 10 in Stroke 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	30.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	17,670 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	12 NPT
Primary Material	Steel
Product Height	10 in.
Product Length	20.25 in.
Product Weight	30 lb.
Product Width	3 in.
Retracted Length	20.25 in.
Rod Diameter	1.25 in.
Stroke Distance	10 in.
Manufacturer PartNumber	318336
