CountyLine Tie Rod Hydraulic Cylinder 4 in Bore x 8 in Stroke 1.5 in Rod Diameter 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts

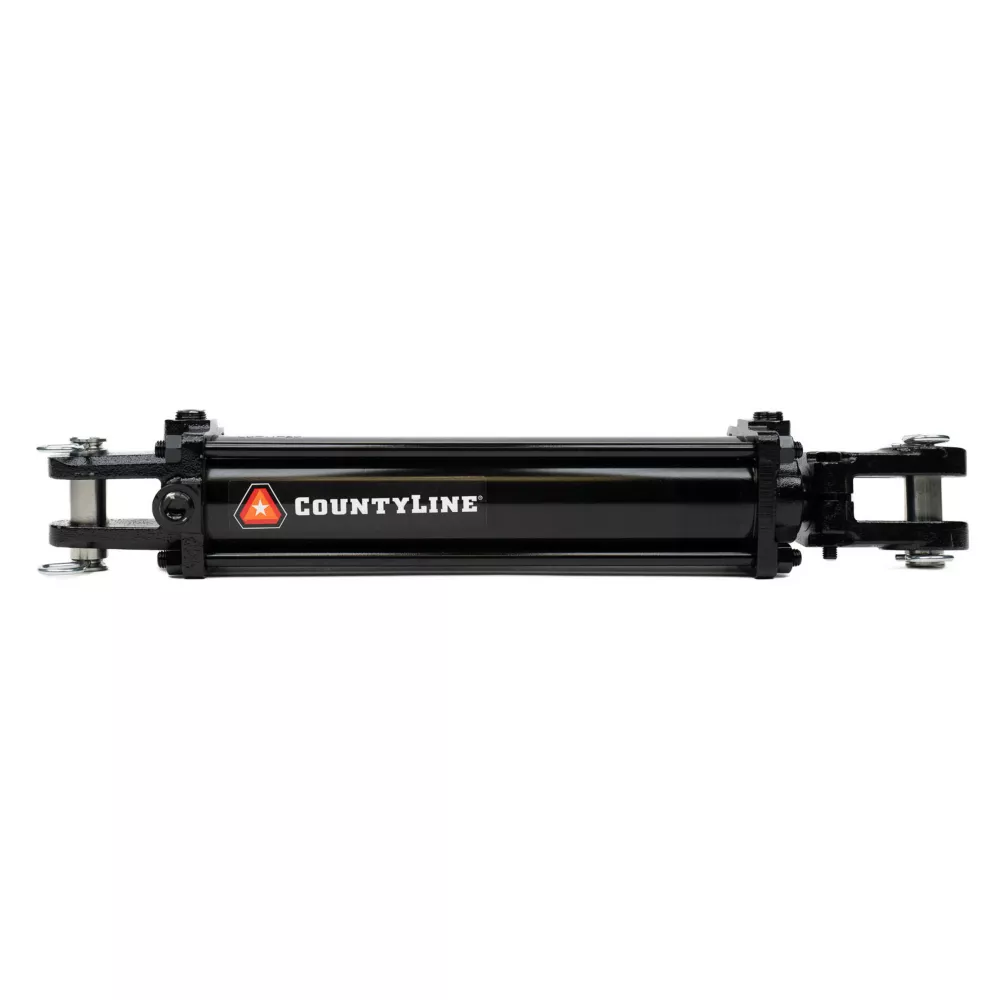

The CountyLine 4 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. The hydraulic cylinder is well suited to perform in demanding applications. The tie rod hydraulic cylinder has a 2,500 PSI operating range.

4 in. bore x 8 in. stroke
Hydraulic cylinder has a 2,500 PSI operating range
Used for agricultural applications
Tie rod hydraulic cylinder exceeds industry standards
1.5 in. rod diameter

CountyLine Tie Rod Hydraulic Cylinder 4 in Bore x 8 in Stroke 1.5 in Rod Diameter 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Unknown
Extended Length	28.25 in.
Maximum Operating Pressure	2,500 PSI
Maximum Weight Capacity	31,410 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	12 NPT
Primary Material	Steel
Product Height	0 N/A
Product Length	20.25 in.
Product Weight	39 lb.
Product Width	0 N/A
Retracted Length	20.25 in.
Rod Diameter	1.5 in.
Stroke Distance	8 in.
Manufacturer PartNumber	318304

CountyLine 4 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder, 1.5 in. Rod Diameter, 2,500 PSI Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Bore Diameter 4 in. Brand Compatibility Universal Compatibility Unknown Extended Length 28.25 in. Maximum Operating Pressure 2,500 PSI Maximum Weight Capacity 31,410 lbs. Model Compatibility Universal Packing Quantity 1 pin diameter 1 in. Port Size 12 NPT Primary Material Steel Product Height 0 N/A Product Length 20.25 in. Product weight 39 lbs. Product Width 0 N/A Retracted Length 20.25 in. Shank diameter 1.5 in. Travel distance 8 in. Manufacturer part number 318304
