DeWALT 10 RHP 120 gal 2 Stage Horizontal Stationary Air Compressor Stationary Air Compressors Air Compressors

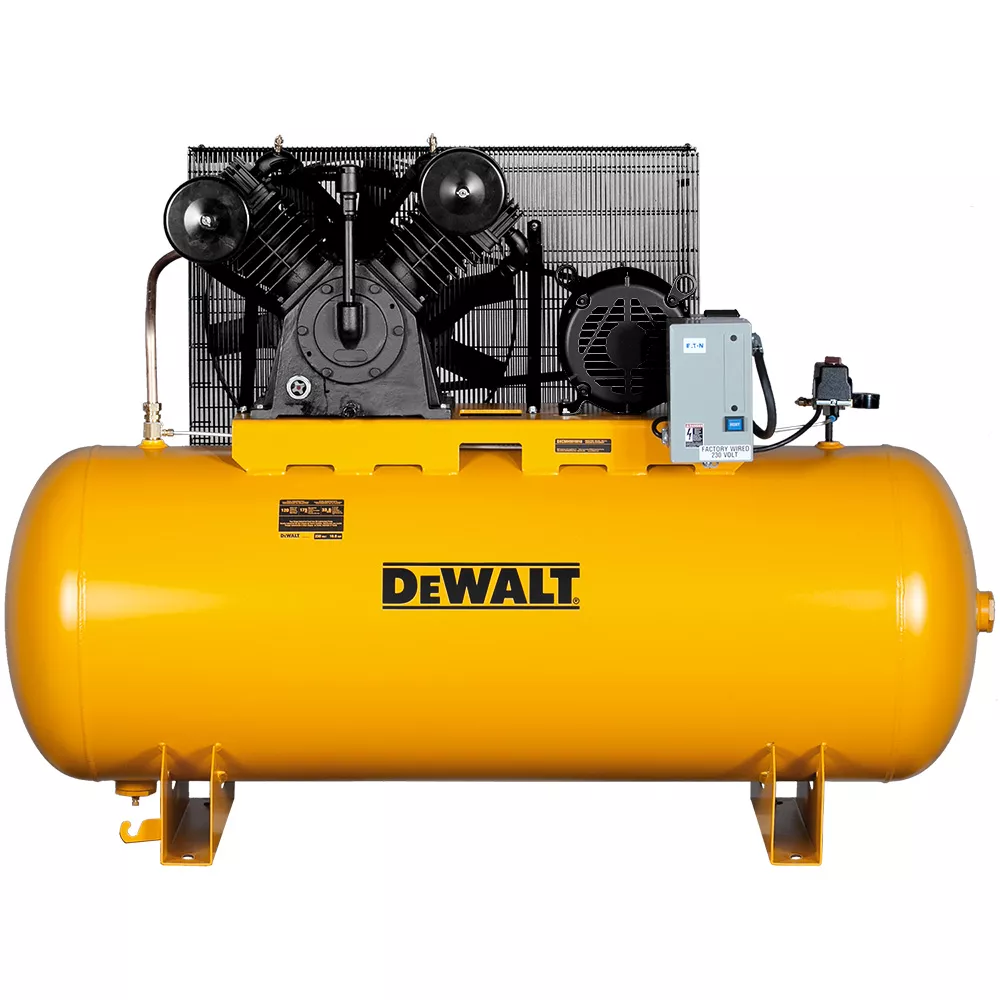

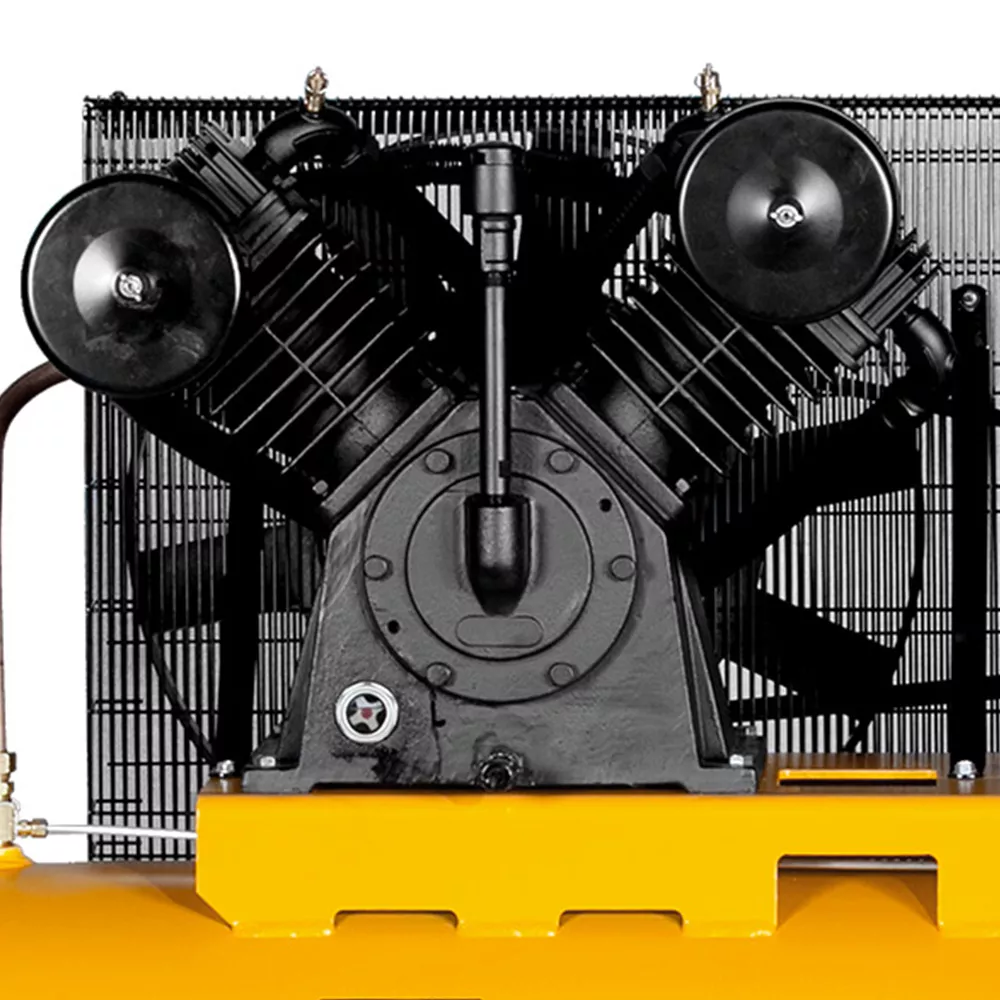

With a patented pump and piston design that improves compression efficiency, the DeWALT 10.0 RHP 120 Gallon 2 Stage Horizontal Stationary Air Compressor is the perfect addition to your workspace. Featuring a 10.0 RHP heavy-duty, 230/460V BALDOR three-phase industrial class motor, the stationary air compressor is designed to provide industrial performance while operating more than one tool at a time. This air compressor also comes with cast iron construction that adds unmatched durability.

Industrial performance delivers maximum CFM @ 175 PSI
Baldor three phase industrial class motor for easy use

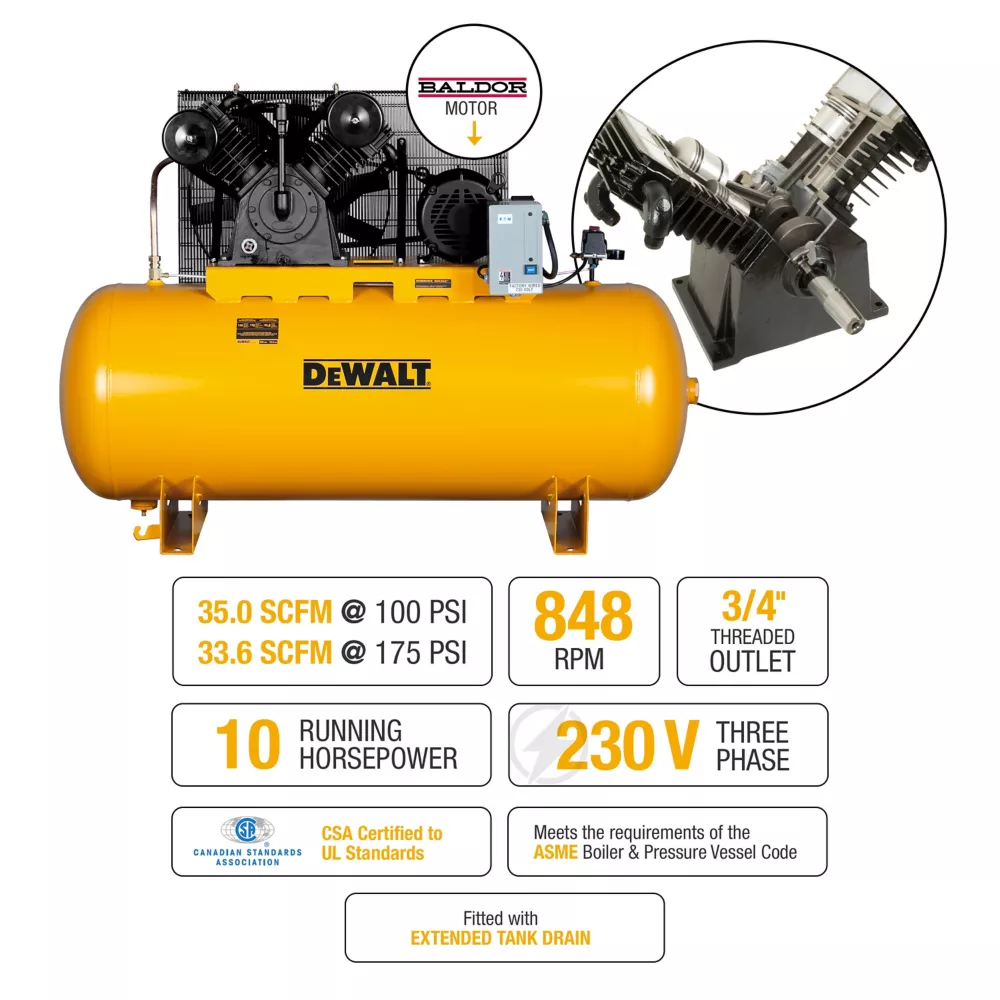

Air compressor with 35.0 CFM @ 100 PSI and 33.6 CFM @ 175 PSI
Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
Equipped with pre-wired and mounted magnetic starter
2 year pump; 1 year all other parts
Provides enough power to operate more than one air tool or device at one time
Cast iron construction adds unmatched durability

DeWALT 10 RHP 120 gal 2 Stage Horizontal Stationary Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	35 SCFM
Airflow Volume	35 SCFM @ 100 PSI, 33.6 SCFM @ 175 PSI
Air Outlet Size	3/4 in. NPT
Amperage	28A
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	120 gal
Compressor Type	Horizontal
Compressor Voltage	230V/460V
Decibel Rating	84 dBA
Drain System	1/4 in. NPT Quarter Turn
Drive Type	Belt
Engine Brand	Baldor
Features	None
Fuel Tank Capacity	N/A
Maximum RPM	1,770 RPM
Phase	Double
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Cast Iron
Product Height	60 in.
Product Length	29 in.
Product Weight	920 lb.
Product Width	75 in.
Pump Life	4,000 hours
Pump Material	Cast iron
Pump Oil Capacity	104 oz.
Stage Type	Two-Stage
Tank Fill Time	5.683 minutes
Tank Orientation	Horizontal
Warranty	2 Year Pump and 1 Year All Other Parts
Manufacturer PartNumber	DXCMH9919910
