DeWALT 3/4 in x 100 ft Compressed Air Piping System Kit Air Hoses Air Compressor Accessories & Parts

With the DEWALT 3/4 in. ID Air Piping Kit, plumb your shop air lines easily and anyway you want it. With only a wrench needed to tighten, this air piping system is easy to install and is adaptable. The tubing can be installed in the wall or directly on the wall. The continuous pipe length and compression style fittings ensure a tight, leak-free fit while the corrosion-free construction will not degrade and prevents rust contamination in the air stream. Get the convenience of air wherever you need it, look to the DEWALT Compressed Air Piping System.

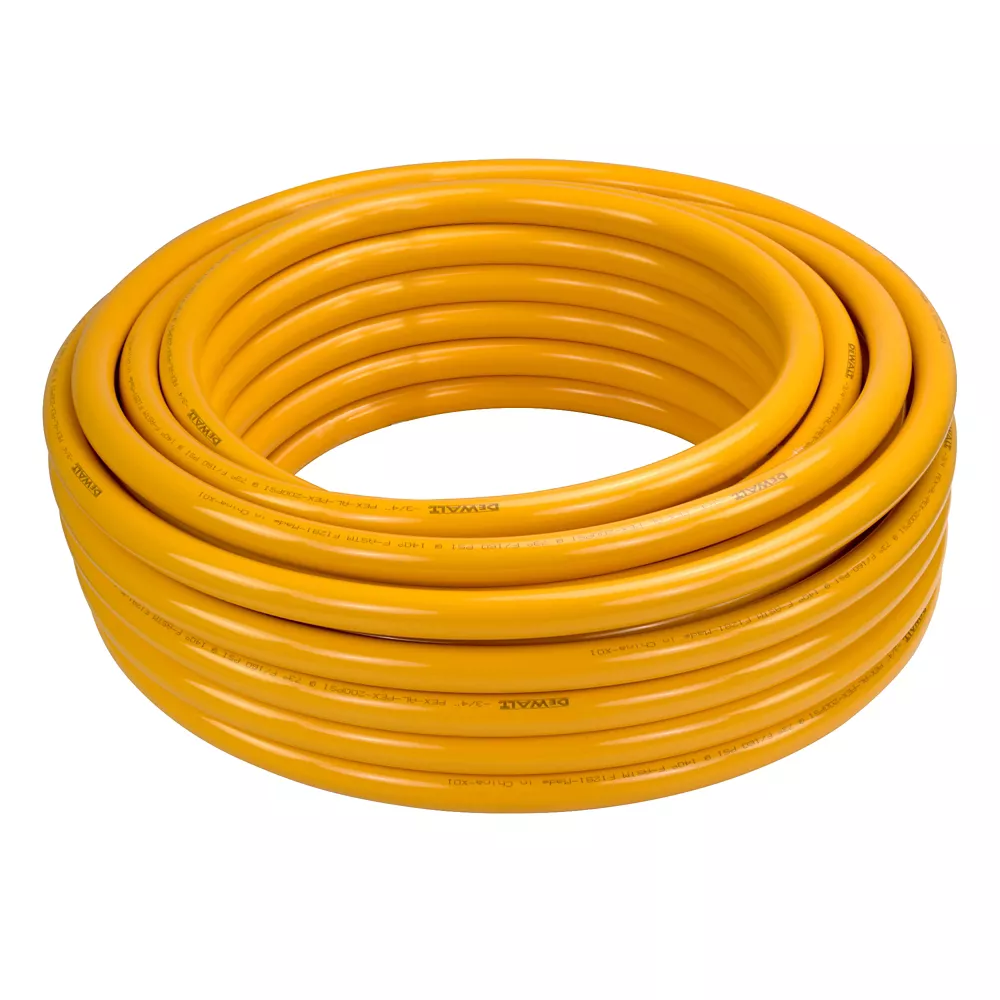

3/4 in. I.D. 1 in. O.D. HDPE/aluminum tubing - holds its shape and can bend around corners to minimum 6 in. radius
100 ft. complete kit
HDPE/aluminum tubing - 200 PSI at 73 F, 160 PSI at 140 F
Corrosion-free - will not degrade or rust
Compression style fittings make a tight leak-free fit
Accessories are made from brass, aluminum or steel to prevent pressure and flow as well as eliminate leaks

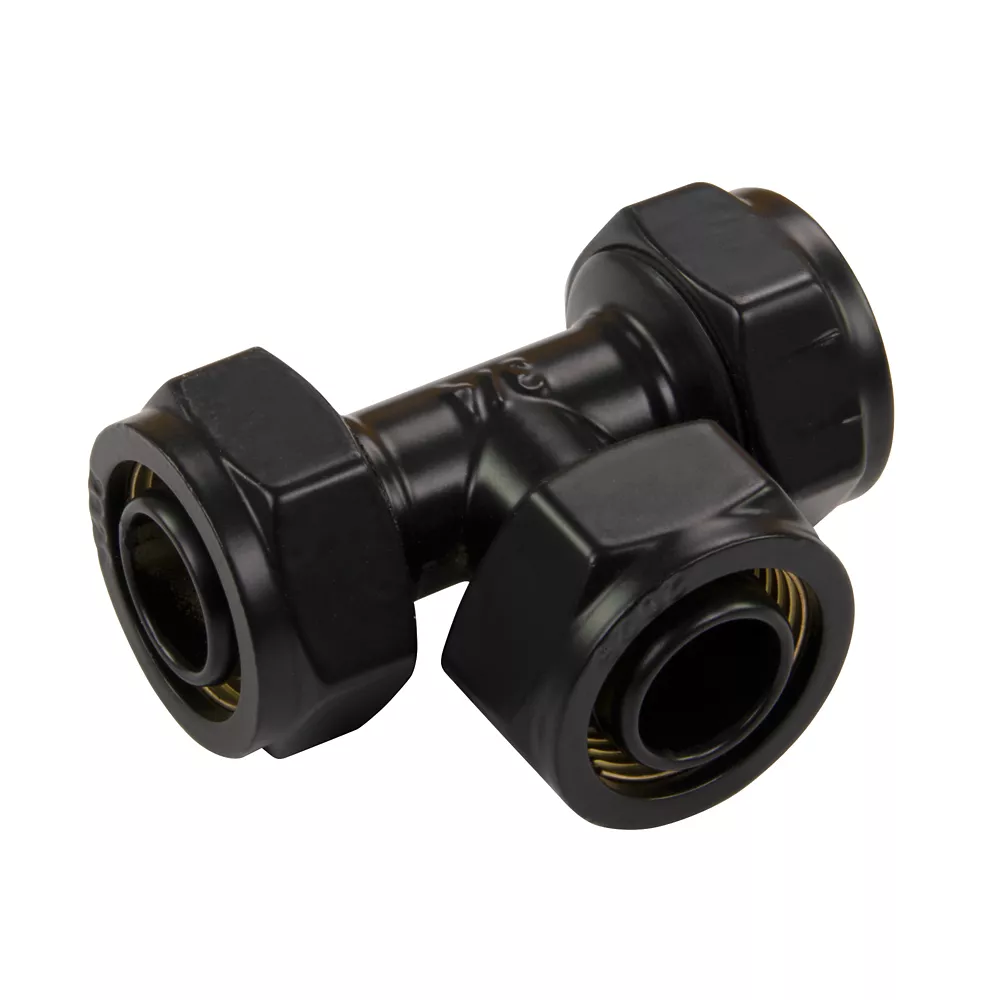

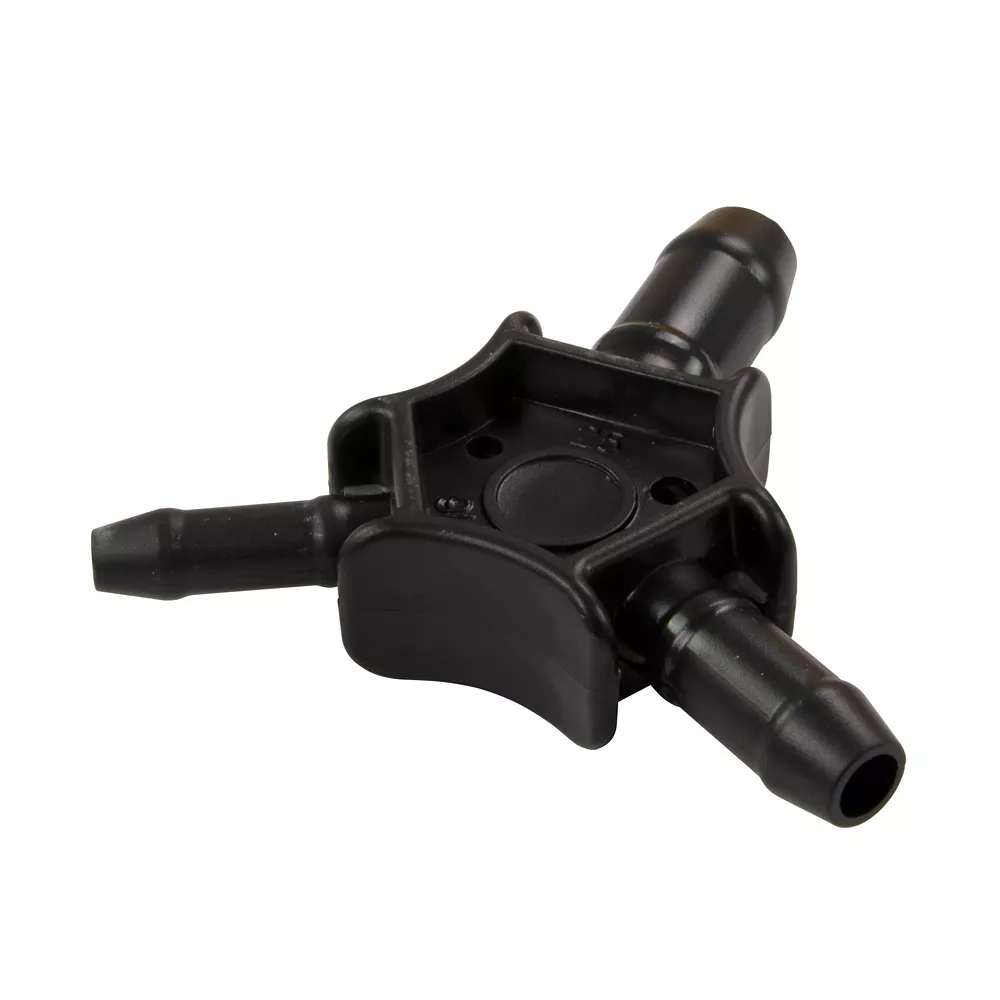

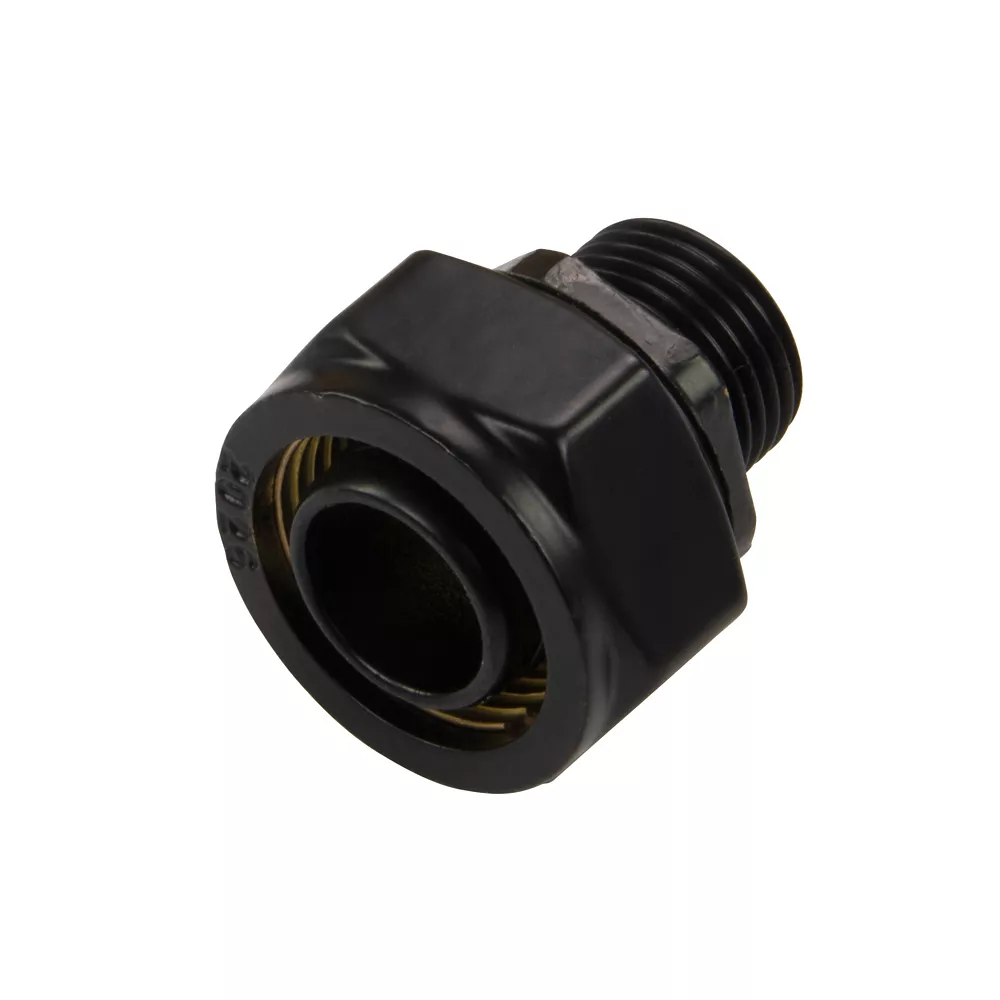

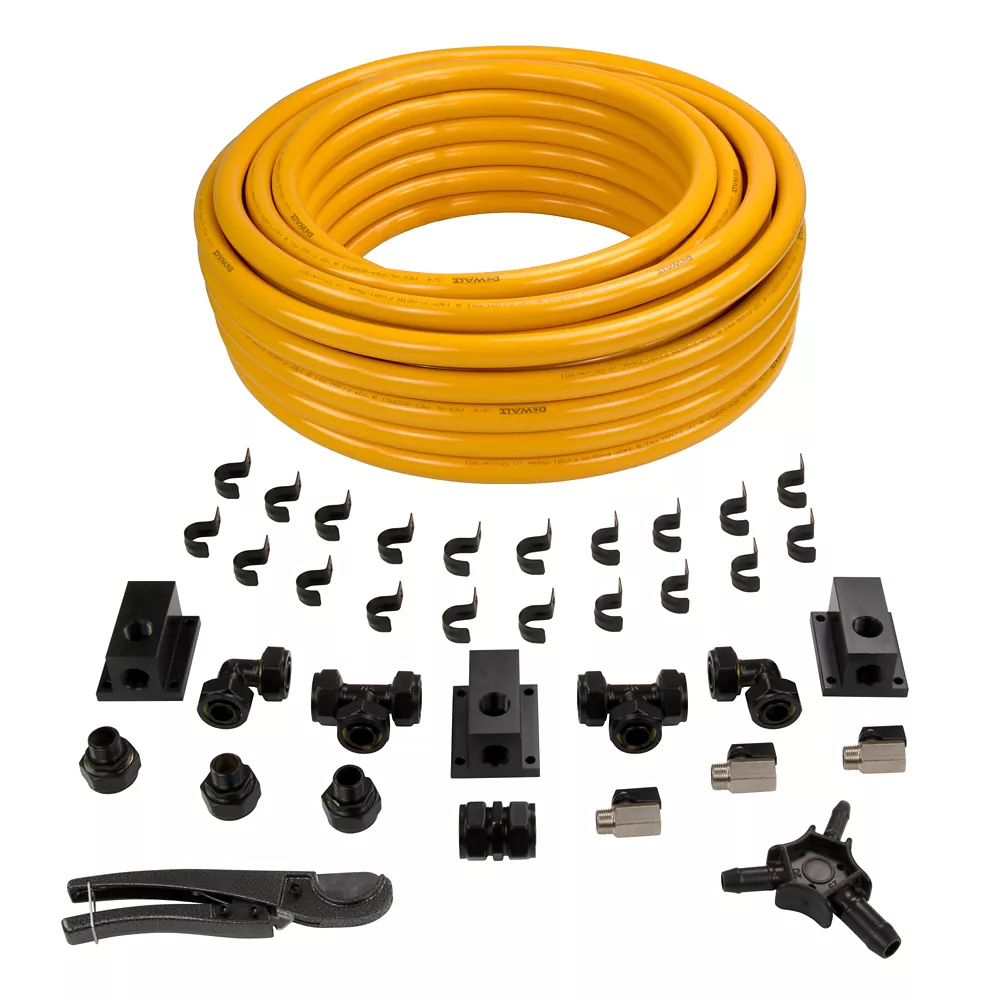

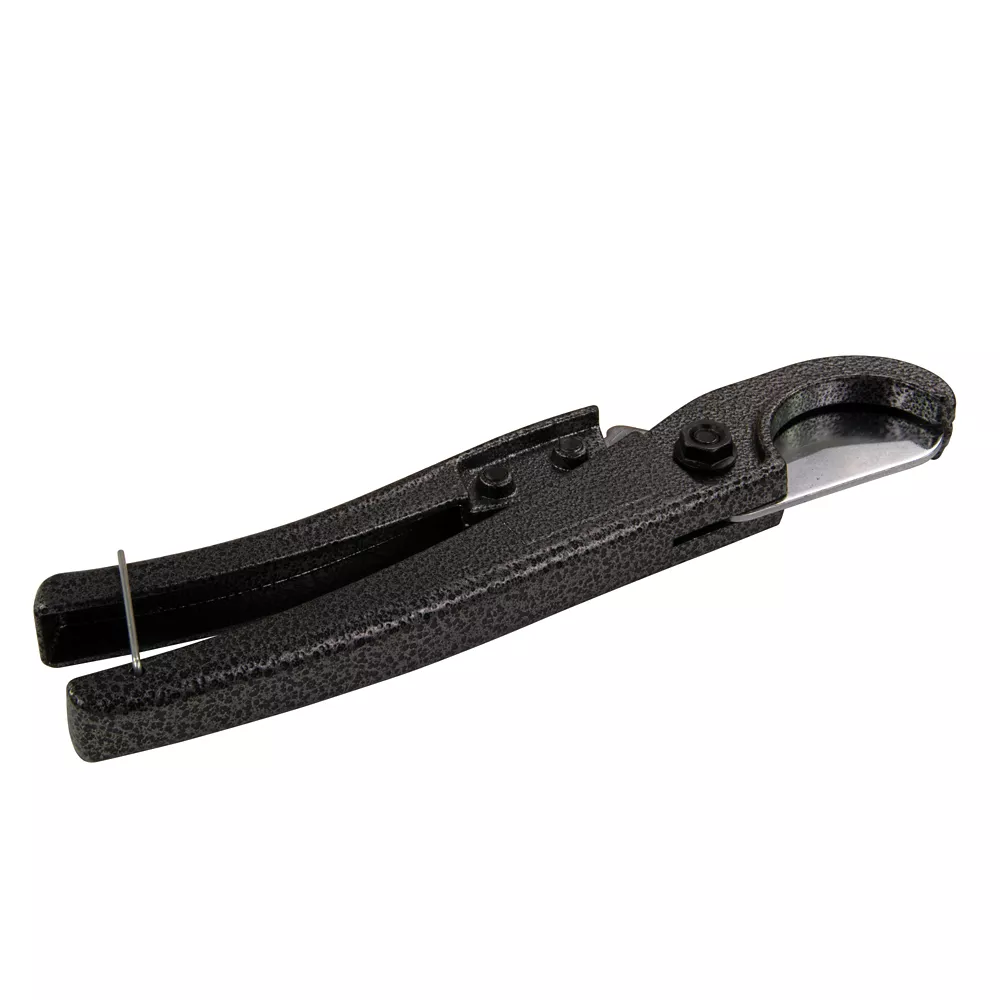

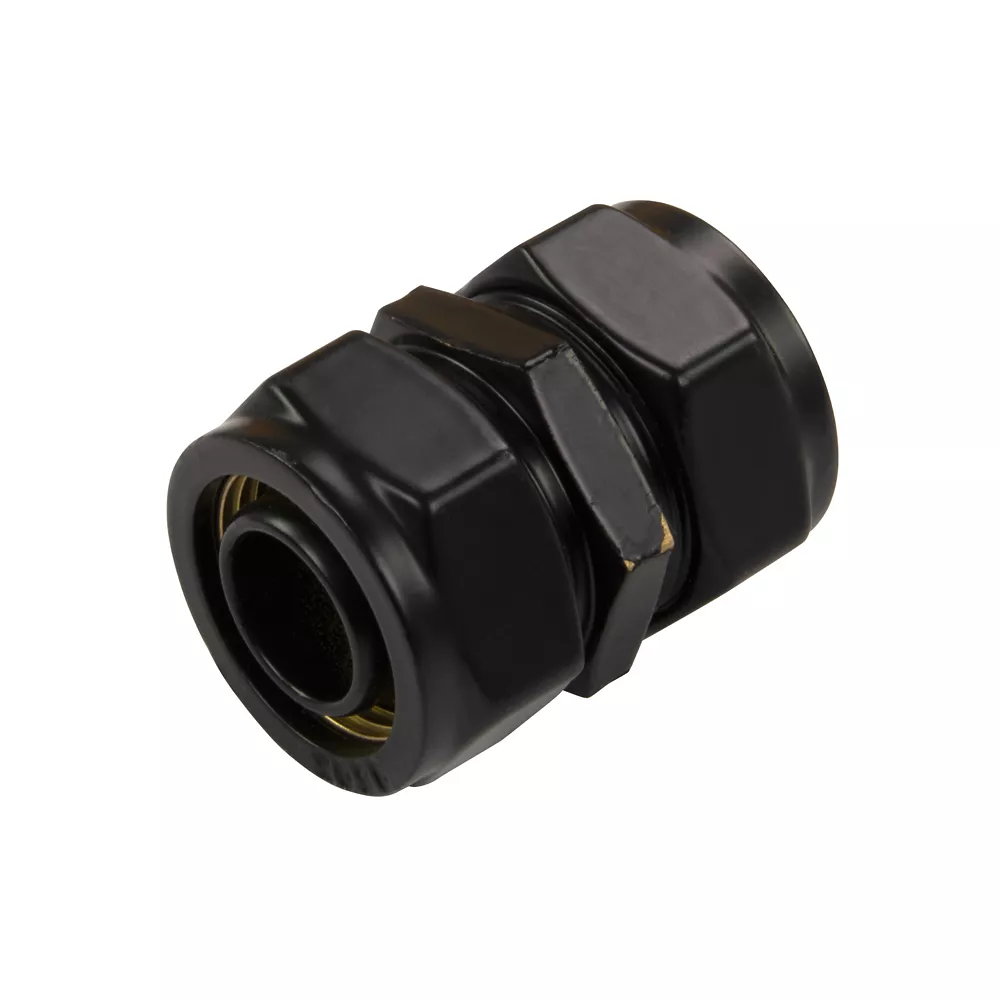

Kit contents: 100 ft. 1 in. O.D. (3/4 in. I.D.) HDPE/aluminum tubing, 3 - aluminum outlet manifolds with powder coating, 2-3/4 in. tee fittings, 2-3/4 in. 90° elbow fittings, 1 - 3/4 in. NPT straight fitting, 3-1/2 in. NPT straight fitting, 20 - steel mounting brackets, 3-3/8 in NPT drain valves, 1- 3/8 in. deburring tool and 1 - tube cutter

DeWALT 3/4 in x 100 ft Compressed Air Piping System Kit Air Hoses Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Hoses

Specification	Description
Brand	DeWALT
Country of Origin	Imported
Connector Type	NPT
Features	Corrosion-free - will not degrade or rust
Fitting Size	0.75 in.
Hose Inner Diameter	1 in.
Hose Length	100 ft.
Hose Outer Diameter	1 in.
Maximum Air Operating Pressure	200 PSI
Maximum Operating Temperature	140 deg. F
Minimum Operating Temperature	73 deg. F
Primary Material	Brass
Product Weight	24 lb.
Warranty	2 year limited
Manufacturer PartNumber	DXCM024-0400

DeWALT 3/4 in. x 100 ft. Compressed Air Piping System Kit Specifications expand/collapse Specification Description Brand DeWALT Country of Origin Imported Connector Type NPT Features Corrosion Free - will not degrade or rust Fitting Size 0.75 in. Pipe inside diameter 1 in. Hose length 100 ft. Pipe outer diameter 1 in. Maximum Pneumatic Operation Pressure 200 PSI Maximum Operating Temperature 140 degrees. F Minimum operating temperature 73 degrees. F Main Material Brass Product Weight 24 lbs. 2-year limited warranty Manufacturer part number DXCM024-0400
