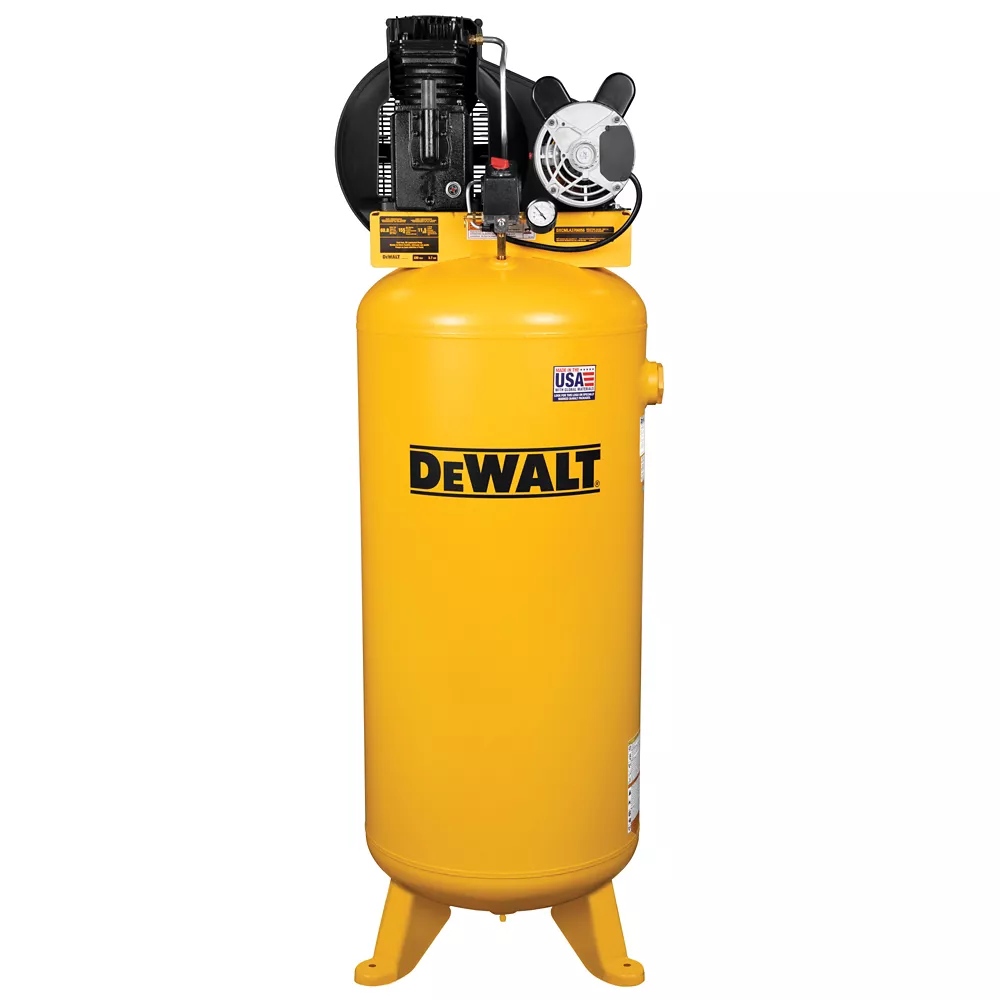

DeWALT 3.7 RHP 60 gal 1-Stage Vertical Stationary Air Compressor 155 PSI Stationary Air Compressors Air Compressors

The DeWALT 3.7 RHP 60 Gallon Vertical Stationary Air Compressor features a cast iron, twin-cylinder and oil-lubricated pump. The stationary air compressor includes a 1-piece cast iron crankcase, thermally stable cast iron cylinder body, aluminum head and valve plate, automotive style ball bearings, durable Swedish stainless steel reed valves, oil level sight glass, easily accessible oil fill and a 12 in. cast iron balanced flywheel. This air compressor also operates with a heavy-duty and 230-Volt induction motor for maximum performance and efficiency, with 155 PSI max pressure for optimum tool performance.

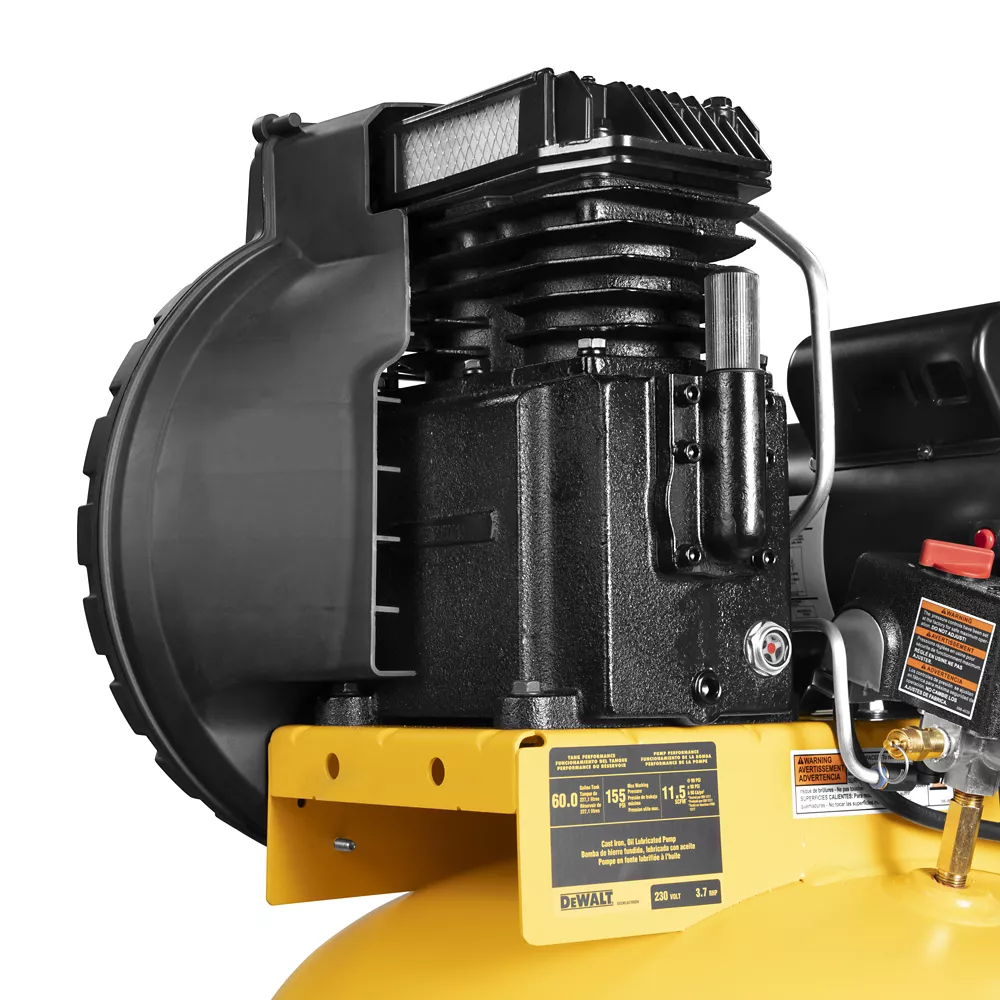

Durable, cast iron, twin cylinder and oil lubricated pump

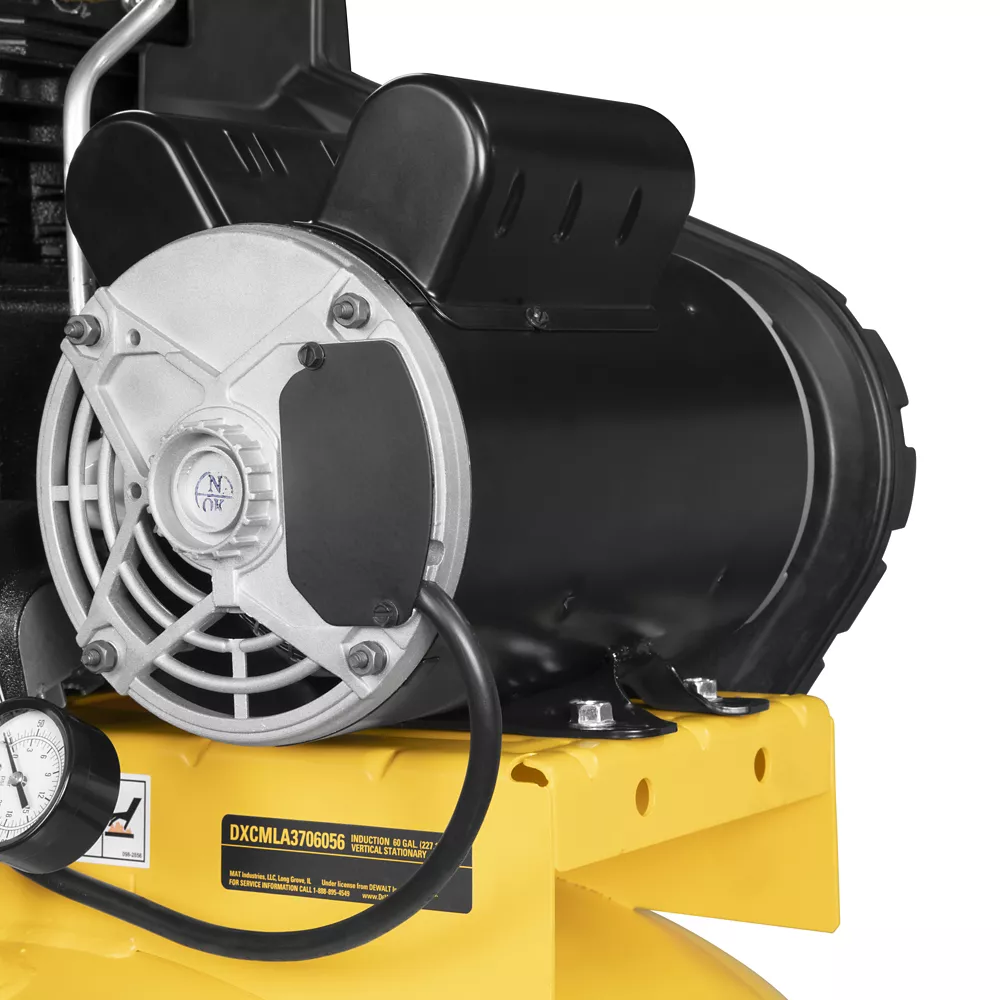

Heavy duty 230 V induction motor for maximum performance and efficiency

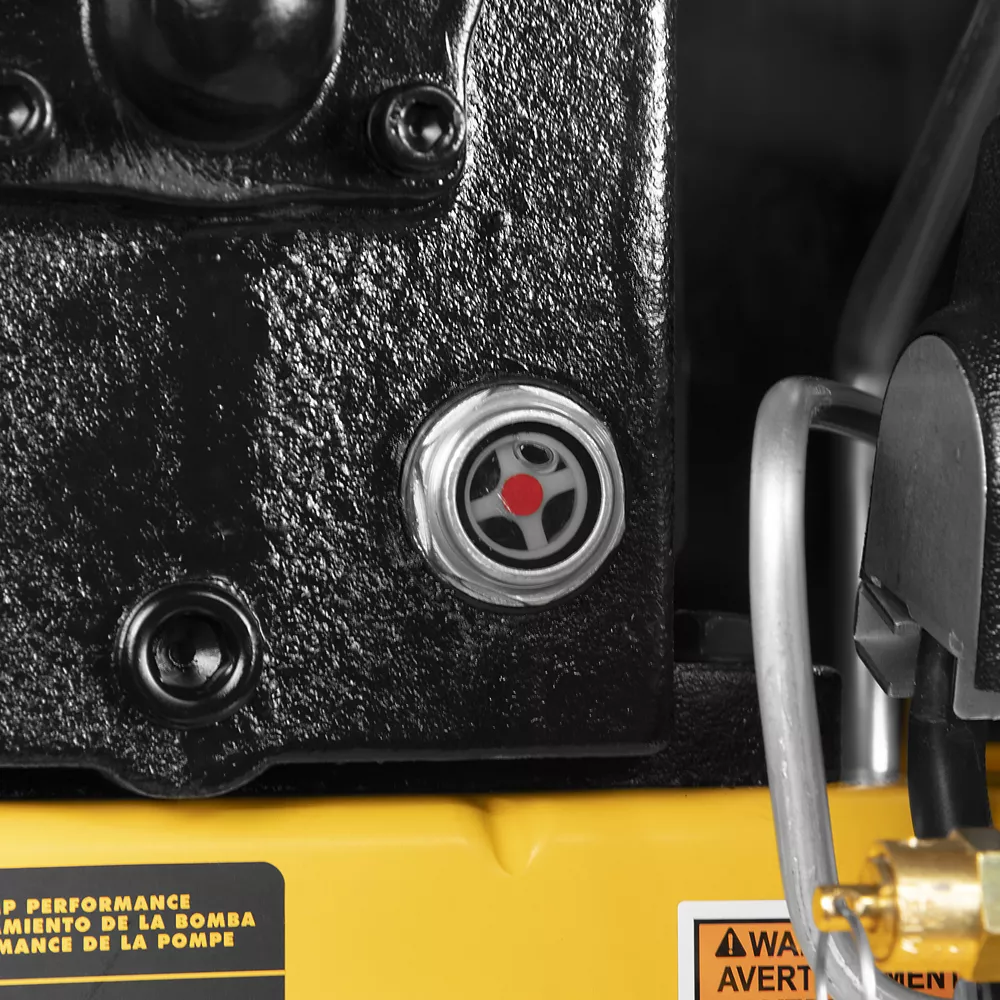

Oil level sight glass and easy access oil fill
Quiet belt drive operation for convenience

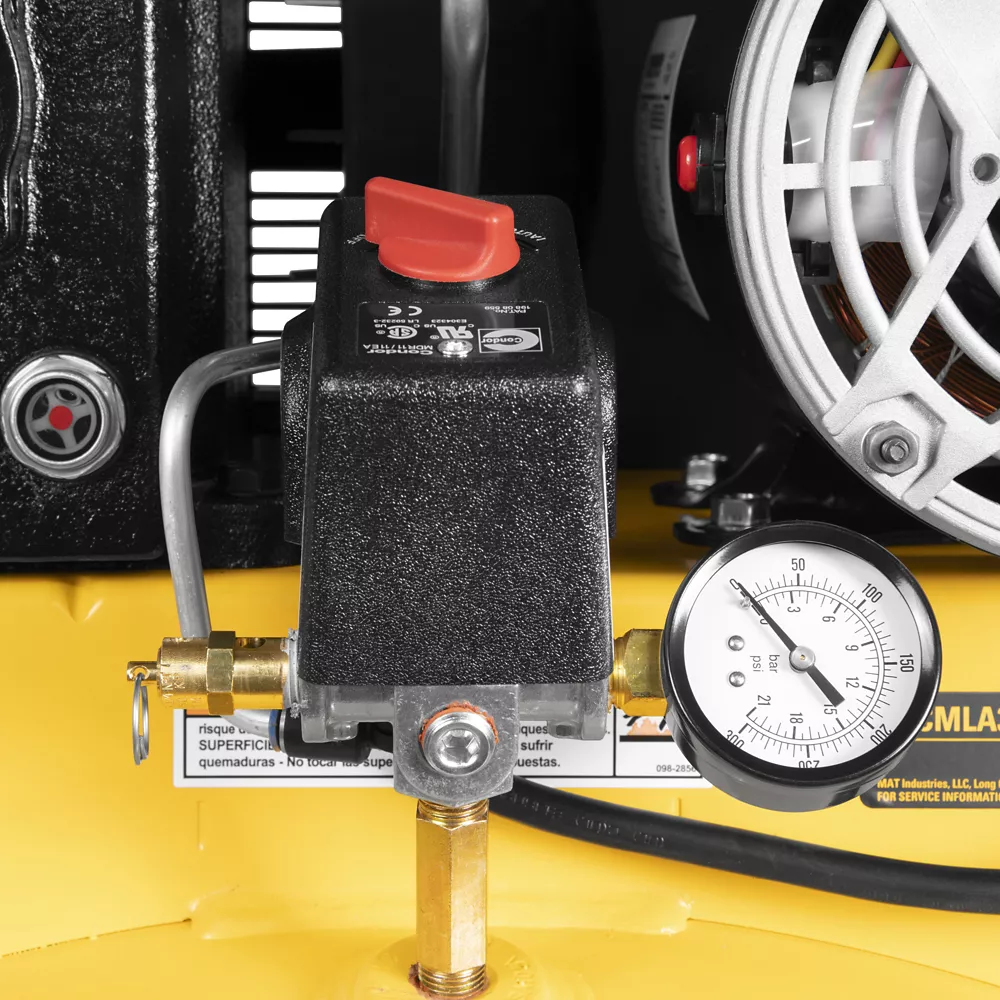

Equipped with high flow port and bung, tank pressure gauge and on/off switch
Shipped with synthetic oil for optimum performance and long life
2 year limited pump; 1 year all other components
Air compressor with 12 in. cast iron balanced flywheel
155 PSI maximum pressure for optimum tool performance

DeWALT 3.7 RHP 60 gal 1-Stage Vertical Stationary Air Compressor 155 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	13.4 CFM
Air Delivery SCFM At 90 PSI	11.5 CFM
Airflow Volume	13.4 SCFM @ 40 PSI, 11.5 SCFM @ 90 PSI
Air Outlet Size	0.75 in. NPT
Compressor Horsepower	3.7 HP
Compressor Maximum PSI	155 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Decibel Rating	83 dBA

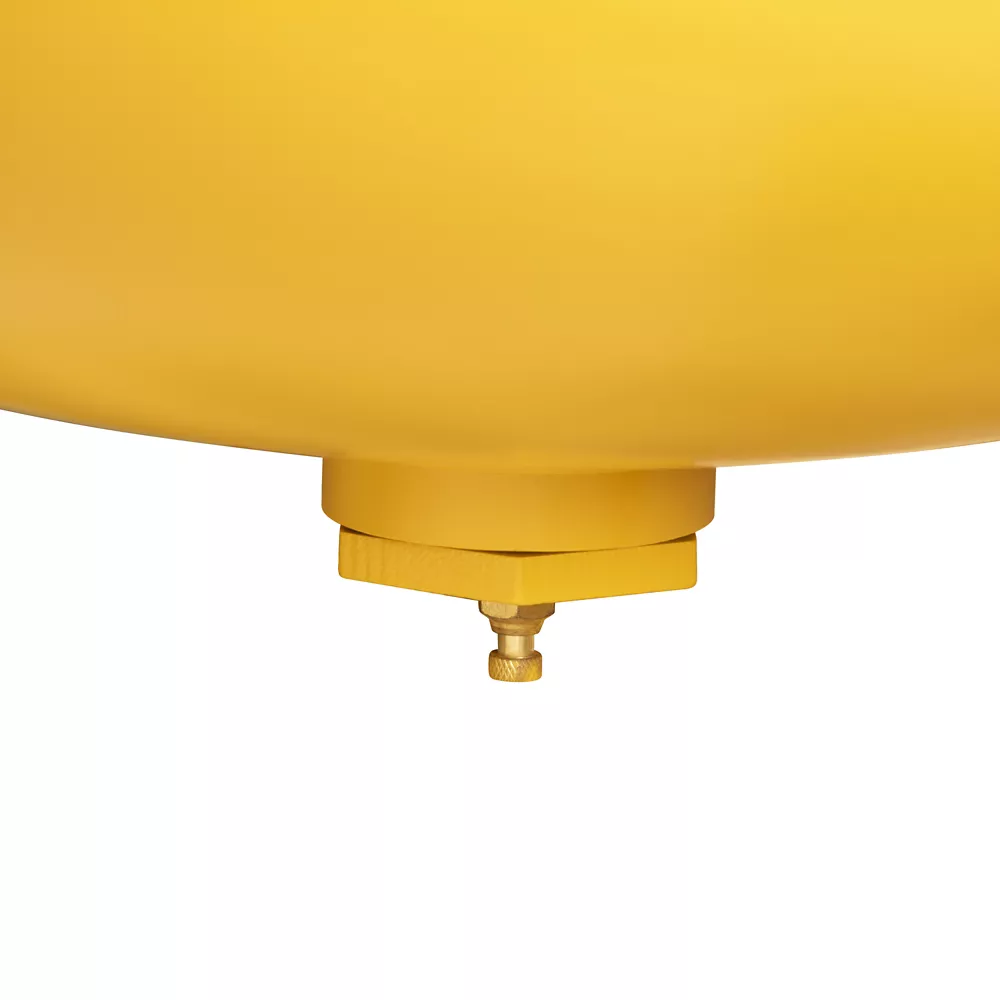

Drain System	Manual
Drive Type	Belt
Features	Cast Iron Twin Cylinder Oil Lubricated Pump, 240 Volt Induction Motor, 155 PSI Mas Pressure, 60 gal. ASME* Air Receiver
Fuel Tank Capacity	60 gal.
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	70.5 in.
Product Length	31 in.
Product Weight	244 lb.
Product Width	32.25 in.
Pump Material	Cast iron
Pump Oil Capacity	16 oz.
Stage Type	Single-Stage
Tank Fill Time	6.47 min.
Tank Orientation	Vertical
Warranty	2 Year Limited
Manufacturer PartNumber	DXCMLA3706056

DeWALT 3.7 RHP 60 gal. 1-Stage Vertical Stationary Air Compressor, 155 PSI Specifications Expand/Collapse Specification Description Brand DeWALT Country of Origin Made in USA Air Flow SCFM at 40 PSI 13.4 CFM Air Flow SCFM at 90 PSI 11.5 CFM Air Flow Volume 13.4 SCFM at 40 PSI, 11.5 SCFM at 90 PSI Air Outlet Size 0.75 in. NPT Compressor Horsepower 3.7 HP Maximum Compressor PSI 155 PSI Compressor Tank Capacity 60 gal Compressor Type Oil Lubricated Compressor Voltage 230 V Decibel Rating 83 dBA Drain System Manual Drive Type Belt Features Cast Iron Double Cylinder Oil Lubricated Pump, 240 Volt Induction Motor, 155 PSI Mas Pressure, 60 Gallon. ASME* Air Receiver Fuel Tank Capacity 60 gal. Phase Single number of power gears Single number of wheels 0 Power type Electric Primary color Yellow Primary material Steel Product height 70.5 in. Product length 31 in. Product weight 244 lbs. Product width 32.25 in. Pump Material Cast Iron Pump Oil Capacity 16 oz. Stage type Single stage tank filling time 6.47 min. Tank orientation Vertical warranty 2-year limited manufacturer's warranty Part Number DXCMLA3706056
