DeWALT 4.7 RHP 80 gal Vertical stationary air compressor Stationary Air Compressors Air Compressors

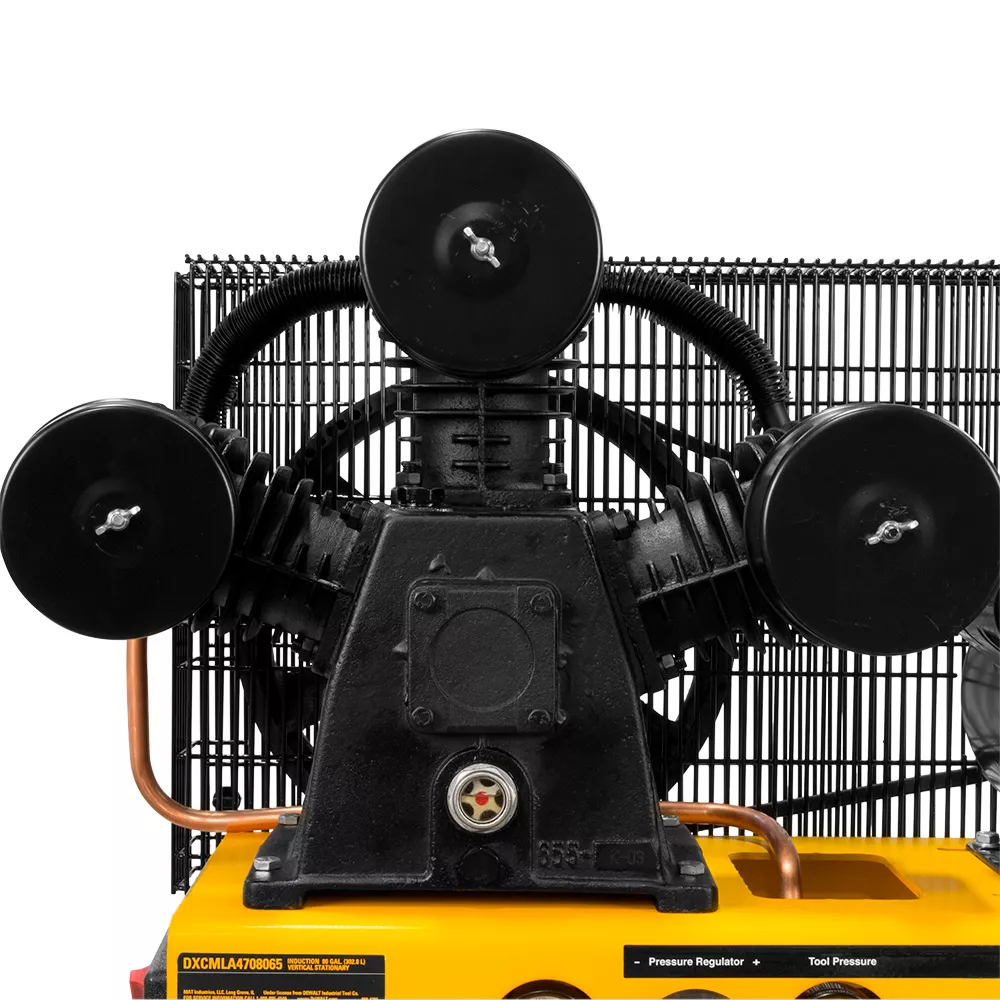

The DeWALT Vertical Stationary Air Compressor features a cast iron, 3-cylinder, oil lubricated pump with a 1-piece cast iron crankcase, full cast iron cylinder body, durable Swedish stainless steel flex leaf valves, oil level sight glass, easily accessible oil fill, 12 in. cast iron balanced flywheel and large intake filter/silencers. A large capacity, 80 gallon ASME air receiver in the air compressor provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc. The 155 max PSI of the air compressor provides optimum tool performance. Synthetic oil is shipped with the vertical air compressor to extend its life.- High air flow, single stage 14 CFM @ 90 PSI
- Cast iron, three cylinder, oil lubricated pump

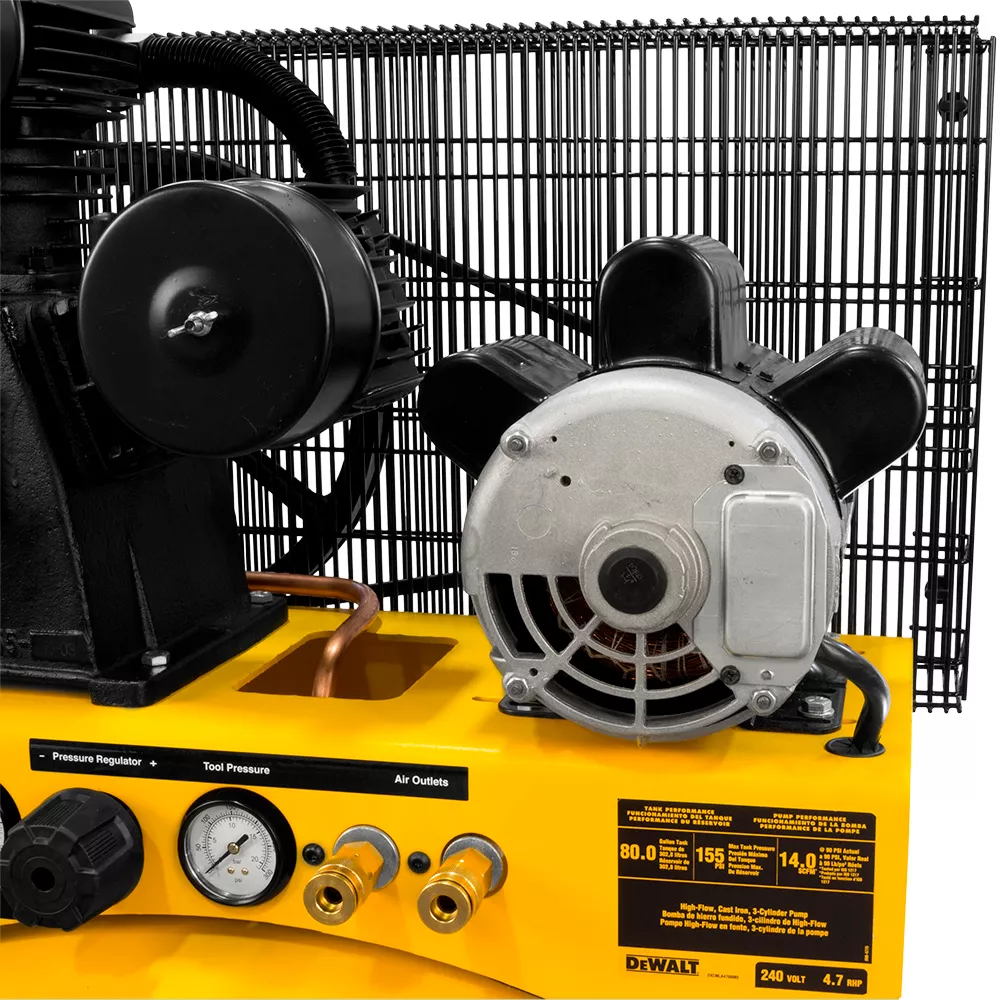

- Integrated control panel includes air flow regulator, two quick connect air outlets, tank and tool pressure gauges, pressure relief valve, plus a high flow port/bung
- Full metal belt guard
- Shipped with synthetic oil for optimum performance and extended lifespan of the air compressor
- 2 year warranty on pump, 1 year for all other parts
- Durable Swedish stainless steel flex leaf valves
- Oil level sight glass and easy accessible oil fill make maintenance of the air compressor easy
- 12 in. cast iron balanced flywheel
- Large intake filter/silencers
- 80 gal. ASME air receiver in the stationary air compressor provides long-term air for a variety of tools
- Maximum PSI of vertical air compressor: 155 PSI
DeWALT 4.7 RHP 80 gal Vertical stationary air compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | DeWALT |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 16.1 CFM |
| Air Delivery SCFM At 90 PSI | 14 CFM |
| Airflow Volume | 16.1 CFM @ 40 PSI, 14 CFM @ 90 PSI |
| Air Outlet Size | 3/4 in. NPT |
| Amperage | 22A |
| Compressor Horsepower | 4.7 HP |
| Compressor Maximum PSI | 155 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Vertical |
| Compressor Voltage | 230V |
| Decibel Rating | 83 dBA |
| Drain System | 1/4 in. NPT Quarter Turn |
| Drive Type | Belt Drive |
| Engine Brand | N/A |
| Features | Regulator Included |
| Fuel Tank Capacity | N/A |
| Maximum RPM | 1,250 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Product Height | 77 in. |
| Product Length | 31.9 in. |
| Product Weight | 354 lb. |
| Product Width | 34.7 in. |
| Pump Life | 4,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 33 oz. |
| Stage Type | Single-Stage |
| Tank Fill Time | 6.45 minutes |
| Tank Orientation | Vertical |
| Warranty | 2 Year Pump and 1 Year All Other Parts |
| Manufacturer PartNumber | DXCMLA4708065 |
