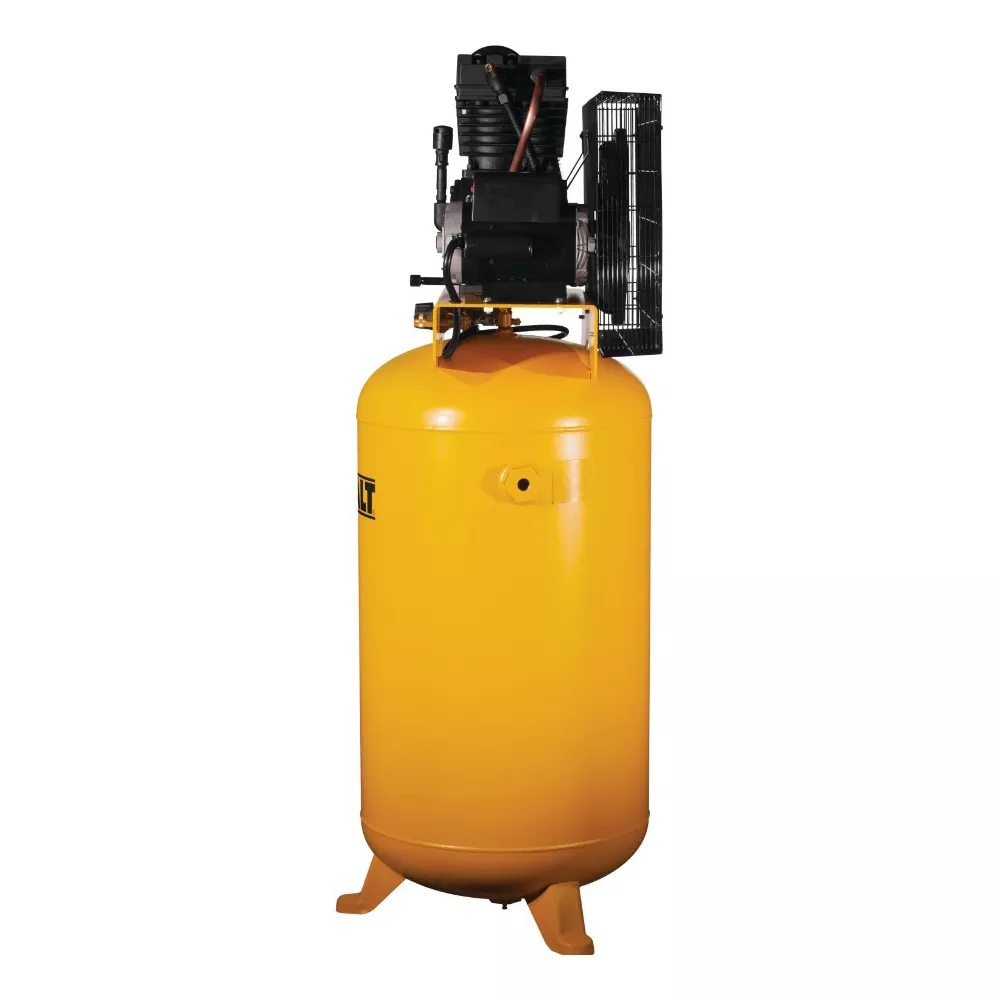

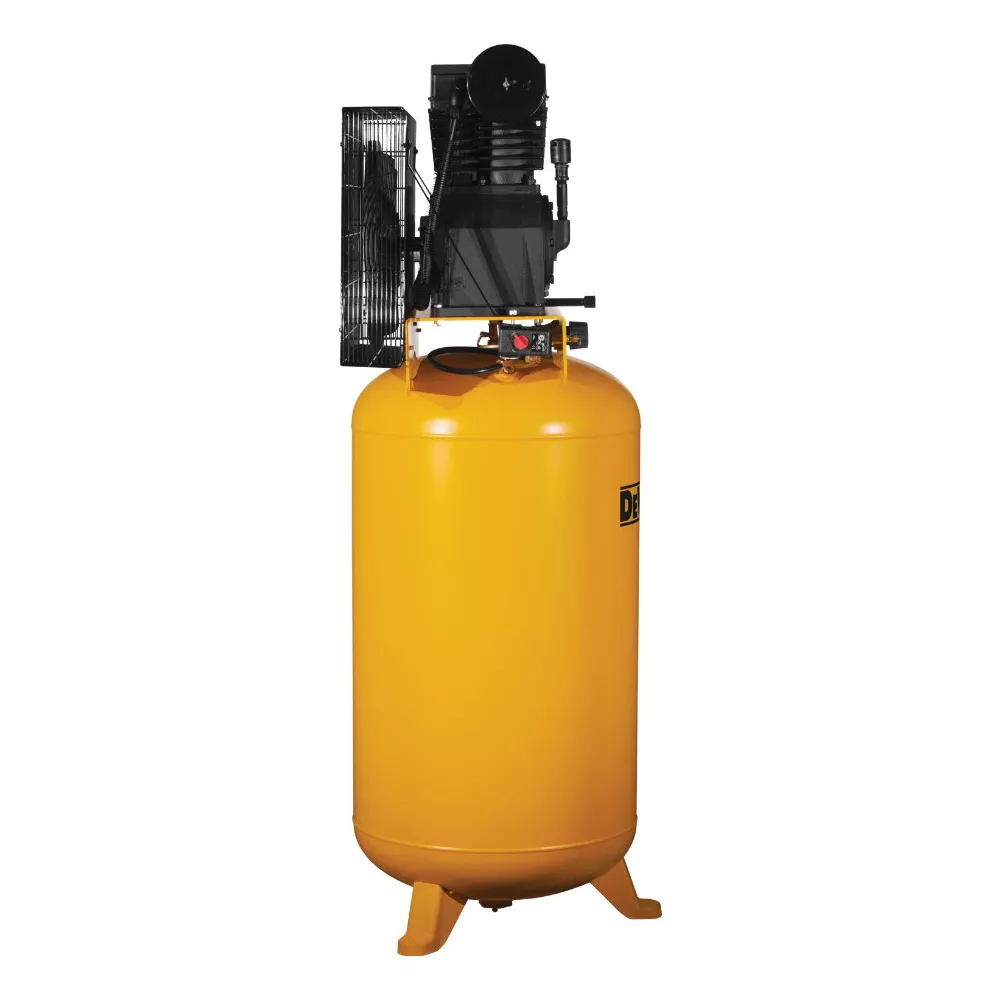

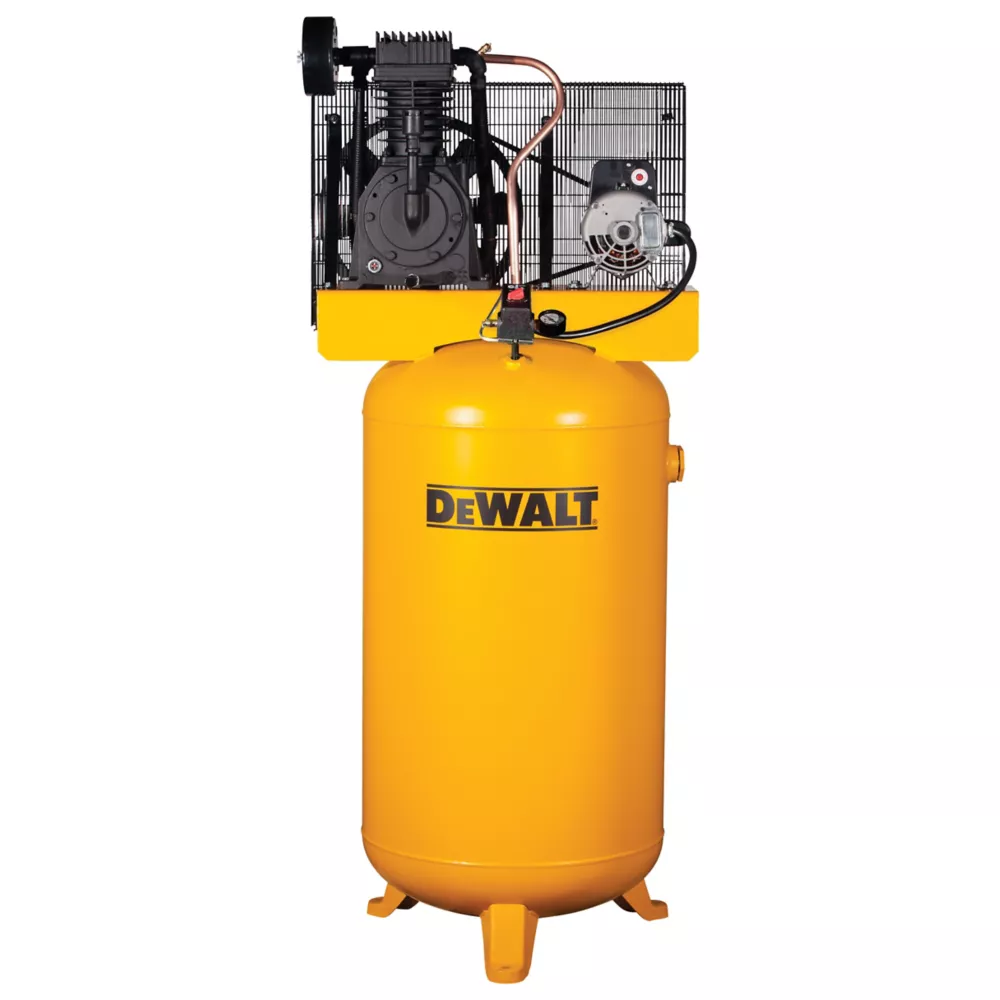

DeWALT 5 HP 80 gal 2-Stage Air Compressor 175 PSI Stationary Air Compressors Air Compressors

Designed for tough jobsite duties, the DeWALT 5.0-HP 2 Stage 80 gal. Air Compressor is built with great quality construction and performance for the professional. This DeWALT air compressor uses a powerful 5.0-HP induction motor to deliver a steady 17.0 SCFM at 175 psi. The unit features a cast iron, industrial-duty, 2-stage reciprocating splash lube compressor pump with a patented piston design, cooling fins, and a flywheel design for improved cooling. The electric air compressor also features a thermal overload protection system to ensure reliable operation. The DEWALT 80 gal. vertical stationary electric compressor is a durable and long-lasting compressed air solution that is made for the long haul in order to get the job done.

Use this DeWALT air compressor for air brushing, brad nailing/stapling, HVLP painting, sanding and more
Industrial air compressor delivers maximum CFM at 175 psi
Patented pump design provides for a cooler running pump
Equipped with tank pressure gauge and on/off switch
Electric motor with Thermal Overload Protection - Magnetic starter not required
Wire form belt guard improves compressor cooling
Extended tank drain valve, ball valve, and vibration isolators are included for ease of use

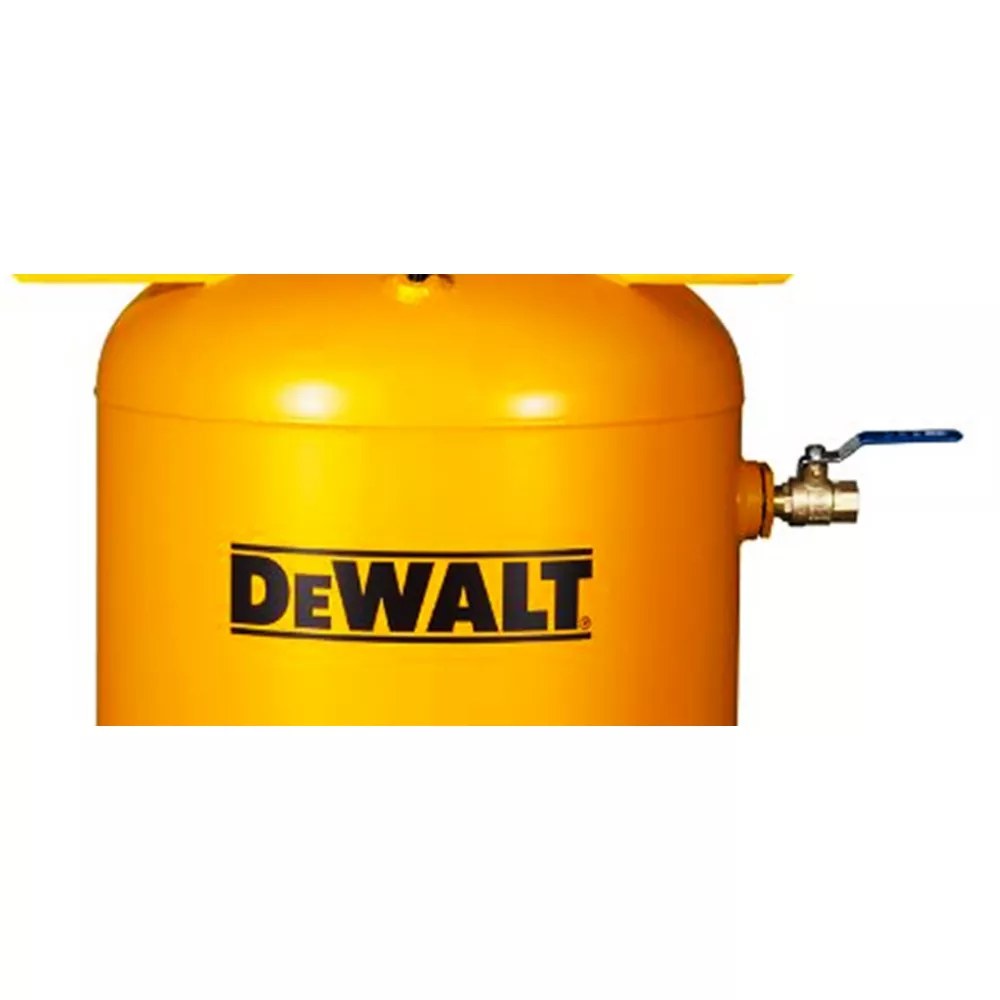

Large-capacity, 80 Gal. ASME air receiver
Shipped with 100% full synthetic air compressor oil for optimum performance and long life
2 Year Pump, 1 Year all other parts

DeWALT 5 HP 80 gal 2-Stage Air Compressor 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	17 SCFM
Airflow Volume	17.9 CFM @ 100 PSI, 17 CFM @ 175 PSI
Air Outlet Size	3/4 in. NPT
Amperage	22A
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Decibel Rating	83 dBA
Drain System	1/4 in. NPT Extended Tank Drain
Drive Type	Belt Drive
Engine Brand	N/A
Features	Includes Air Compressor Monitoring System, Maximum CFM @ 175 PSI, TOPS Motor, 80 gal. ASME Air Receiver
Fuel Tank Capacity	0 N/A
Maximum RPM	3,450 RPM
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Cast Iron
Product Height	71 in.
Product Length	28 in.
Product Weight	399 lb.
Product Width	31.1 in.
Pump Life	4,000 hours
Pump Material	Cast iron
Pump Oil Capacity	49 oz.
Stage Type	Two-Stage
Tank Fill Time	6.28 minutes
Tank Orientation	Vertical
Warranty	2 Year Pump and 1 Year All Other Parts
Manufacturer PartNumber	DXCMV5048055.1

DeWALT 5 HP 80 gal. 2-Stage Air Compressor, 175 PSI Specifications expand/collapse Specification Description Brand DeWALT Country of Origin Made in USA Air Flow SCFM at 90 PSI 17 SCFM Air Flow Volume 17.9 CFM at 100 PSI, 17 CFM at 175 PSI Outlet Size d Air 3/4 in. NPT Amperage 22 Amp Compressor Power 5 HP Compressor Maximum PSI 175 PSI Compressor Tank Capacity 80 gal Compressor Type Oil Lubricated Compressor Voltage 230 V Decibel Rating 83 dBA Drain System 1/ 4 in. NPT Extended Tank Drain Drive Type Belt Drive Motor Brand N/A Features Includes Air Compressor Monitoring System, Maximum CFM @ 175 PSI, TOPS Engine, 80 gal. ASME Air Receiver Fuel Tank Capacity 0 N/A Maximum RPM 3,450 RPM Phase Single Number of Power Speeds Single Number of Wheels 0 Power Type Electric Primary Color Yellow Primary Material Cast Iron Product Height 71 in. Product length 28 in. Product weight 399 lbs. Product width 31.1 in. Pump life 4,000 hours Pump material Cast iron Pump oil capacity 49 oz. Stage Type Two-Stage Tank Fill Time 6.28 minutes Tank Orientation Version 2 year technical warranty on pump and 1 year on all other parts Manufacturer part number DXCMV5048055.1
