DIG Button Drip Emitters 2 GPH Green 5 pcs. Drip Irrigation Lawn & Garden

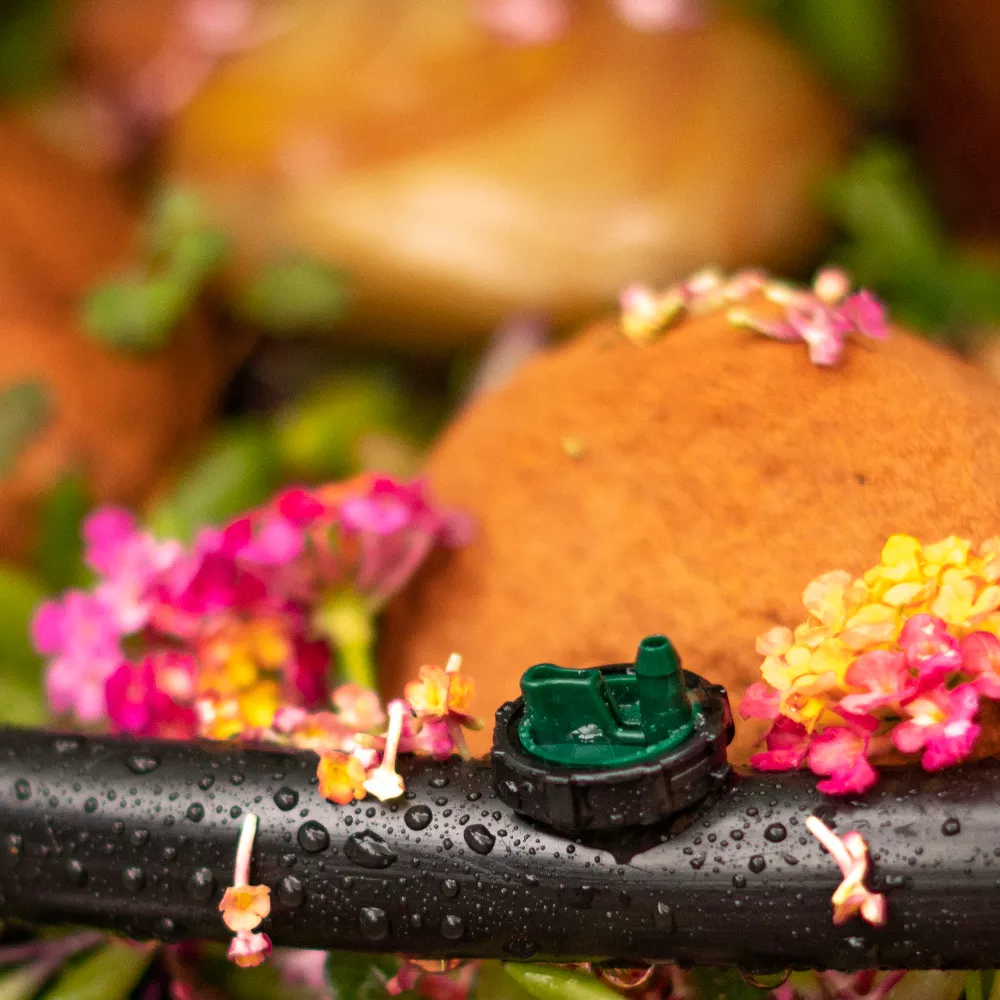

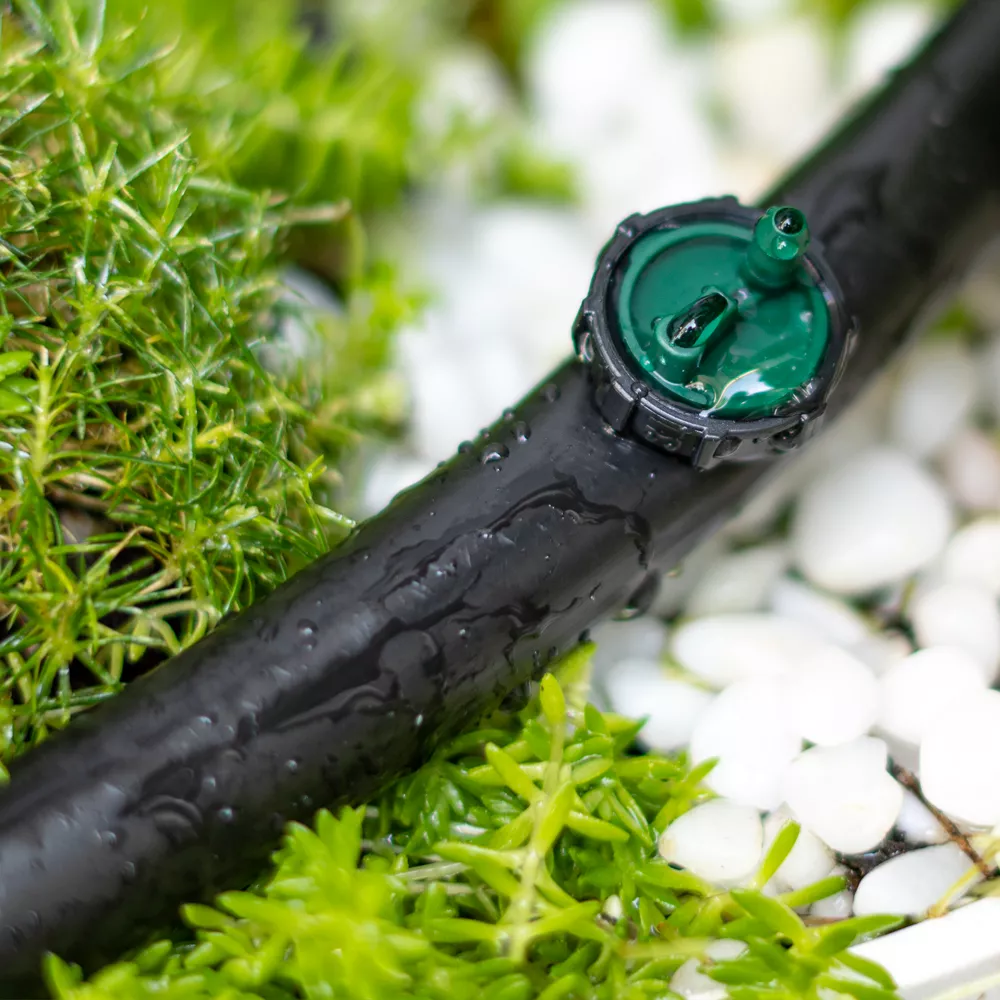

The DIG Button Drip Emitters utilize a labyrinth water flow path to provide a consistent flow rate from each dripper when subjected to an incoming pressure between 15 and 25 PSI, with higher discharge rates at higher pressures and lower discharge rates at lower pressures. These drippers are designed to be chemical and clog resistant, making them an economical option for systems with short lengths of drip tubing. To install a button drip emitter, simply punch a hole in the 1/2 in. drip tubing and snap the barbed side of the dripper into place, or use 1/4 in. micro tubing or distribution tubing to extend the drippers to the plants. However, it is not recommended to extend 1/4 in. micro tubing from the button drip emitter nipple to the plant area. To ensure optimal performance, it is highly recommended to use a 3/4 in. screen filter to prevent clogging and a 25 PSI pressure regulator to reduce the incoming pressure to the suggested operating pressure for a drip system. Drippers can be disassembled for cleaning if clogged.

2 GPH flow rate
Drippers operate at pressures up to 25 PSI
Constructed of UV-resistant, durable polypropylene material to withstand the most adverse conditions
Pack of 5 button drip emitters
Color-coded to easily identify flow rate
Turbulent flow through a unique labyrinth-water-passage design reduces likelihood of clogging
Uniform flow rate

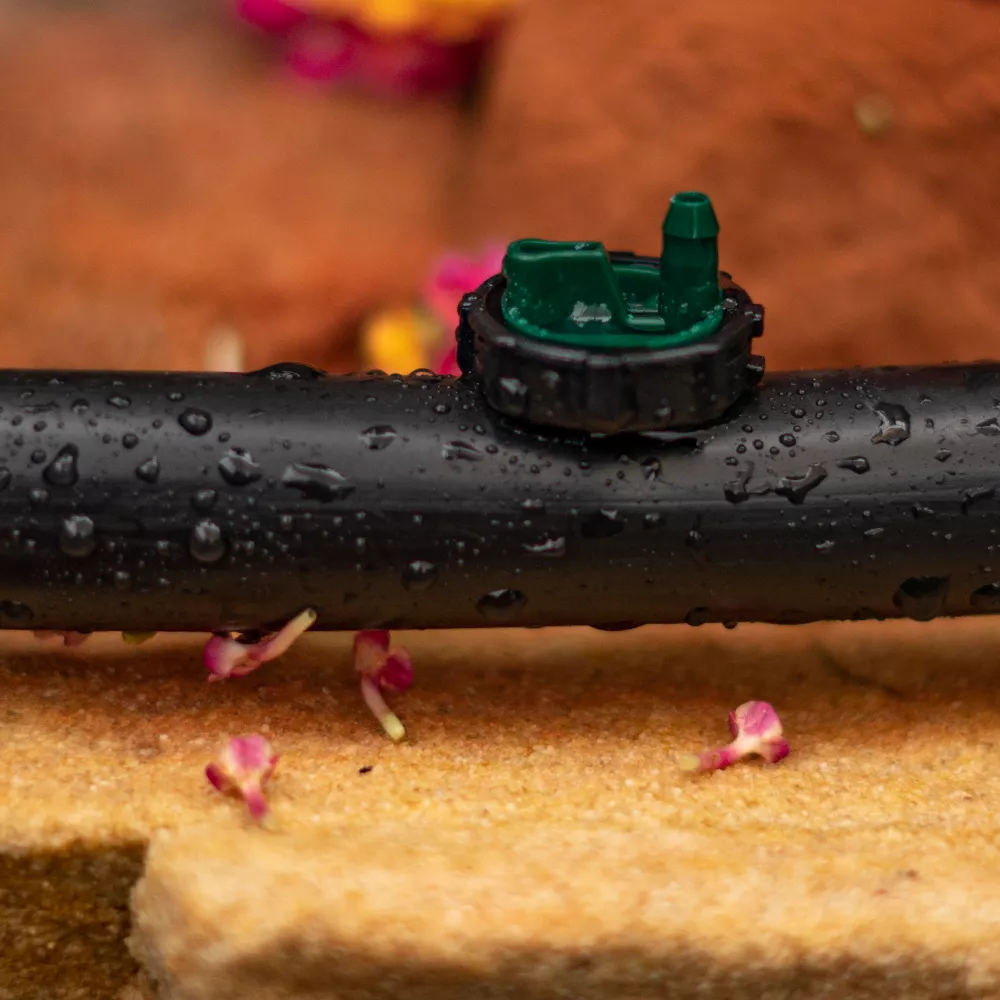

Raised barbed outlet prevents water runoff along the drip lateral
Inlet side: 1/4 in. barb
Outlet side: raised nipple
Filter requirement: minimum of 150 mesh
Button drip emitters ensure years of consistent watering with less chance of clogging
Recommended for residential and commercial applications, these drip emitters are a low-cost solution for an individual plant, planter boxes, small to large pots, groundcovers, shrubs and trees on short runs, level terrain or low-pressure gravity feed drip irrigation installations, and areas where conventional sprinkler systems are not practical

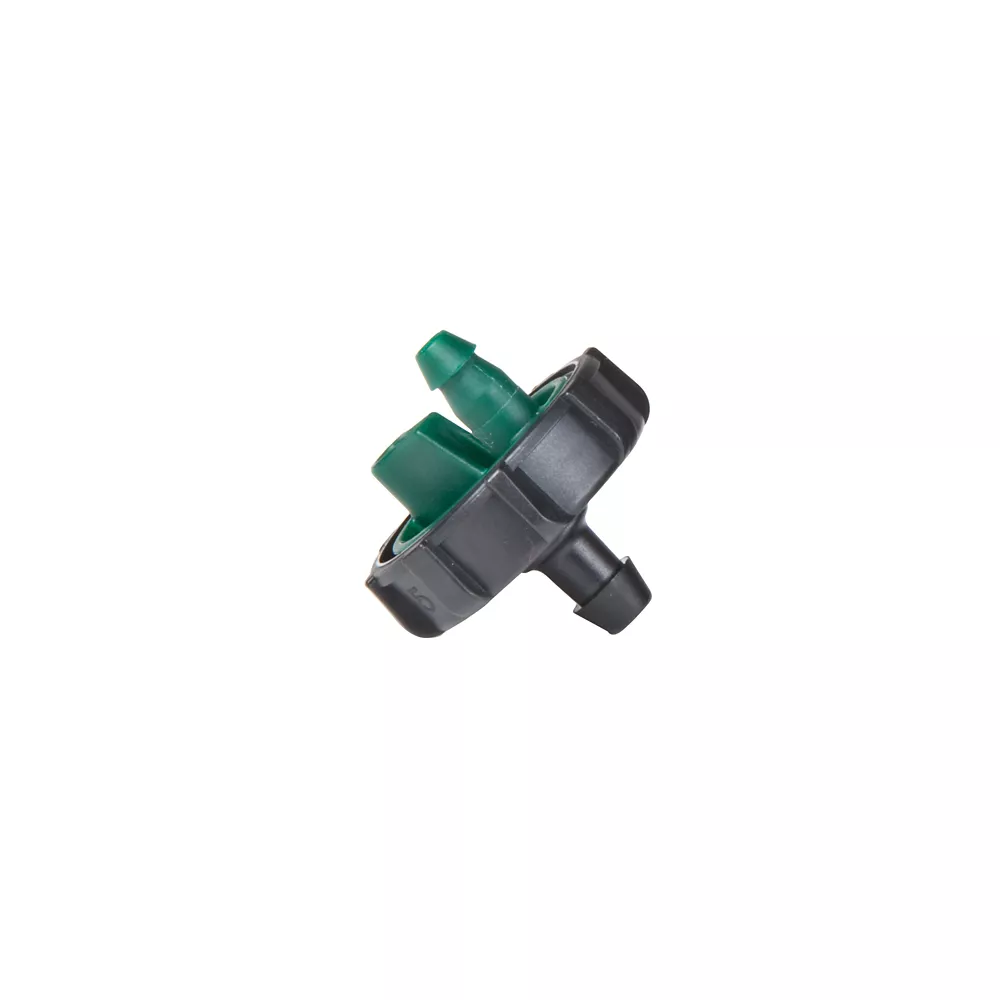

Made of 2-piece construction
Can be taken apart for cleaning, by twisting the top part of the drip emitter counter clockwise and pulling it apart

DIG Button Drip Emitters 2 GPH Green 5 pcs. Drip Irrigation Lawn & Garden> Watering & Irrigation> Drip Irrigation

Specification	Description
Brand	DIG
Country of Origin	Made in USA
Drip Irrigation Product Type	Drip Irrigation Fittings
Maximum Operating Pressure	25 PSI
Package Quantity	5
Primary Color	Green
Primary Material	Plastic
Product Height	5.5 in.
Product Length	0.75 in.
Product Weight	0.028 lb.
Product Width/Diameter	4 in.
Warranty	3 Year Limited Warranty
Manufacturer PartNumber	W222A

DIG Button Drip Emitters, 2 GPH, Green, 5 pc. Specifications Expand/Collapse Specification Description Brand DIG Country of Origin Made in USA Drip Irrigation Product Type Drip Irrigation Fittings Maximum Working Pressure 25 PSI Package Quantity 5 Primary Color Green Primary Material Plastic Product Height 5.5 in. Product length 0.75 in. Product weight 0.028 lbs. Product width/diameter 4 in. Warranty 3-year limited warranty Manufacturer part number W222A
