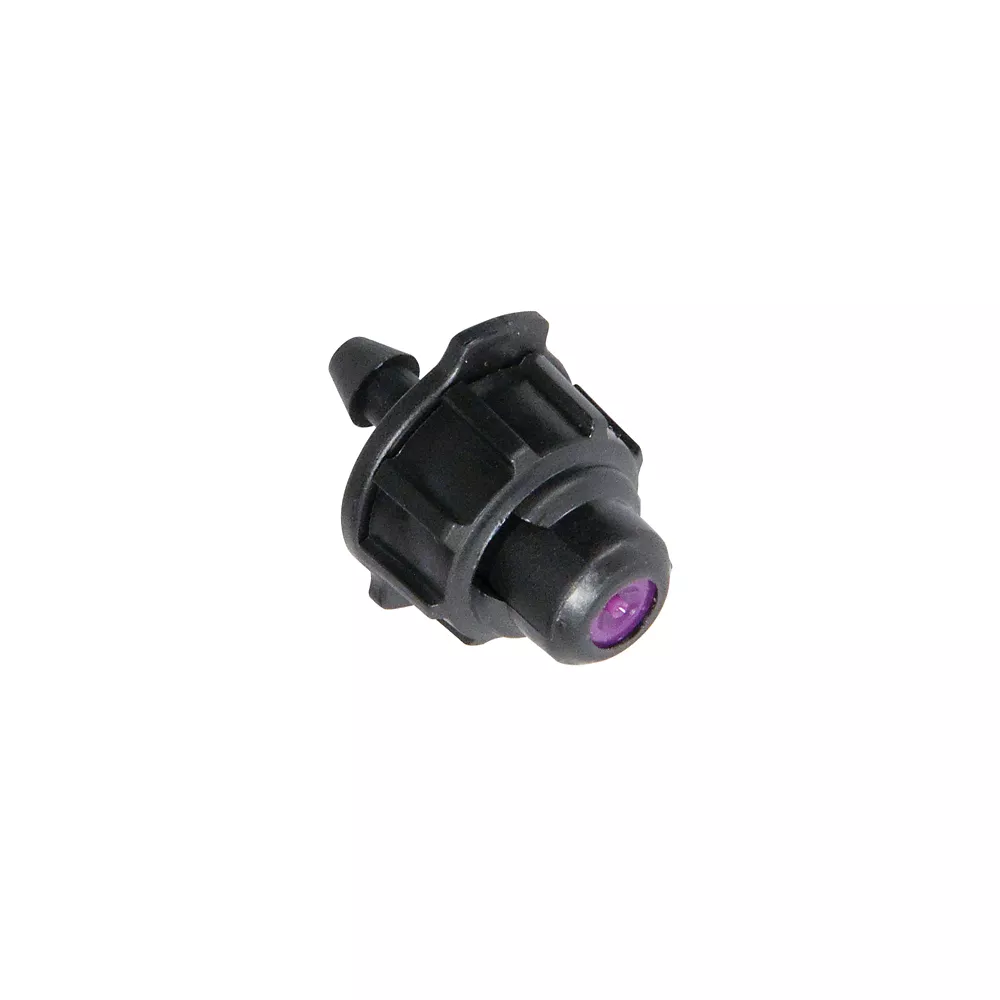

DIG Low Flow Misting/Mister on 1/4 in Barb Fitting 5-Piece Drip Irrigation Lawn & Garden

The DIG Low Flow Fogger/Mister on 1/4 in. Barb requires a minimum pressure of 30 PSI to generate small droplets in a limited area above the plants. The droplet size reduces as the incoming pressure increases. These foggers use a vortex design to create a fine mist, which is beneficial for overhead misting or cooling, as well as for plants that need constant moisture. They are excellent for use in pots, hanging baskets, and planters and can be suspended above plants to provide a cooling effect. The fogger/mister's 1/4 in. barbed inlet enables easy and fast connection to any 1/4 in. micro tubing. For complete coverage of an area, the recommended spacing is 3 ft. to 4 ft. between each fogger/mister head to a maximum distance of 262 ft. to 475 ft. in length using 1/2 in. drip tubing as the main lateral. Like micro sprinklers, the fogger/misters operate at low pressure and require a filter to protect the water passages. For densely planted areas or for maximum cooling effect, place the fogger/misters close together for good overlapping coverage. Do not use them in windy areas, as the small size droplets can be easily dispersed in the air, even under low-to-moderate wind conditions, adversely affecting uniformity.

Requires operating pressure of 35 to 80 PSI to work properly
360-degree spray pattern
Flow rate: 0.85 GPH at 50 PSI
70-degree trajectory
Made from durable, high-quality, UV-resistant plastic
Incorporates a vortex mechanism, spinning the incoming water into fine mist with micro-sized droplets
Fogger/mister can be used for overhead cooling and humidifying, indoors or outdoors
Can be extended with 1/4 in. micro tubing in upright or upside-down position
Low flow fogger/mister is an efficient method to apply water with a very fine mist application
Trouble-free operation with no moving parts
Color-coded nozzles are easy to open, clean and replace
3-part construction with O-ring for a tight seal
Average droplet size: 50 micron
Filter requirement: minimum of 200 mesh
Recommended spacing: 2 ft. to 3 ft. apart

DIG Low Flow Misting/Mister on 1/4 in Barb Fitting 5-Piece Drip Irrigation Lawn & Garden> Watering & Irrigation> Drip Irrigation

Specification	Description
Brand	DIG
Country of Origin	Made in USA
Drip Irrigation Product Type	Drip Irrigation Fittings
Maximum Operating Pressure	30 PSI
Package Quantity	5
Primary Color	Black
Primary Material	Plastic
Product Height	5.5 in.
Product Length	1 in.
Product Weight	0.04 lb.
Product Width/Diameter	4 in.
Warranty	3 Year Limited Warranty
Manufacturer PartNumber	8825BB
