Diode Dynamics Dual Output 4 Pin Heavy Duty Wiring Harness Automotive Light Mounts & Accessories Truck & Automotive

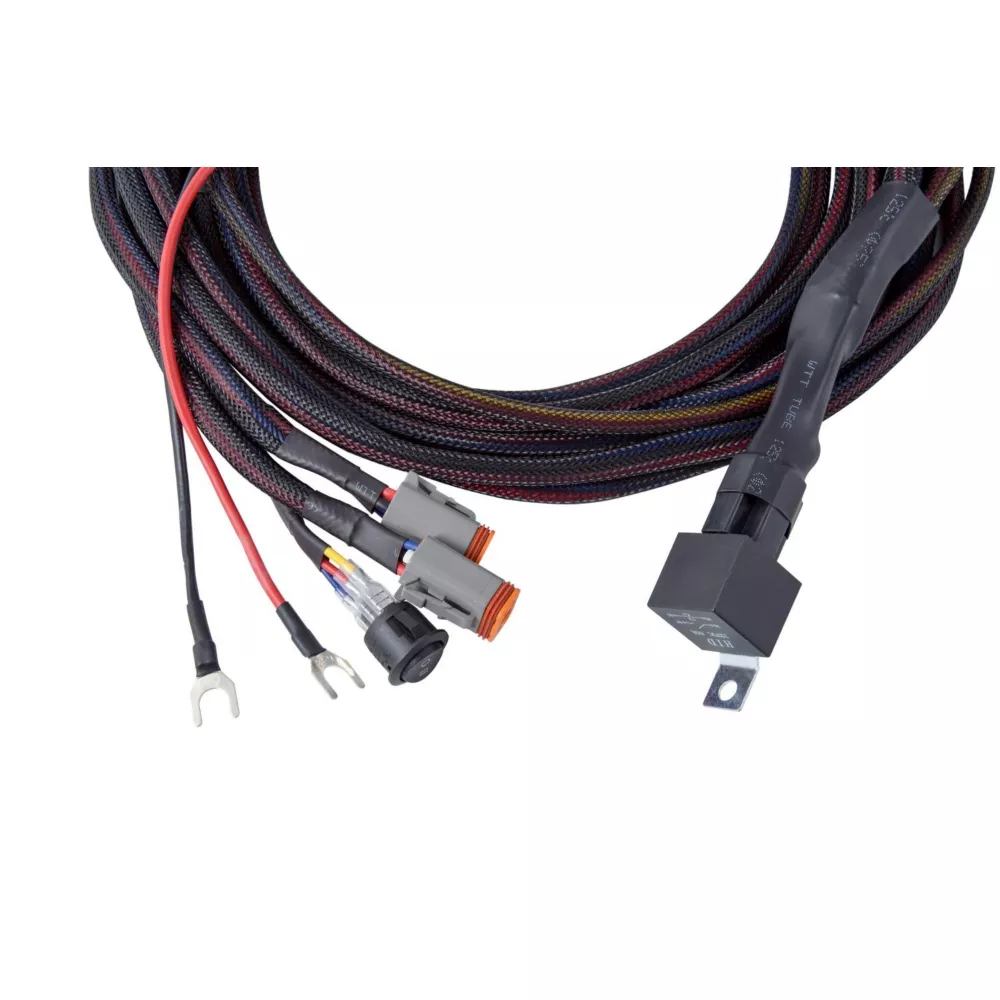

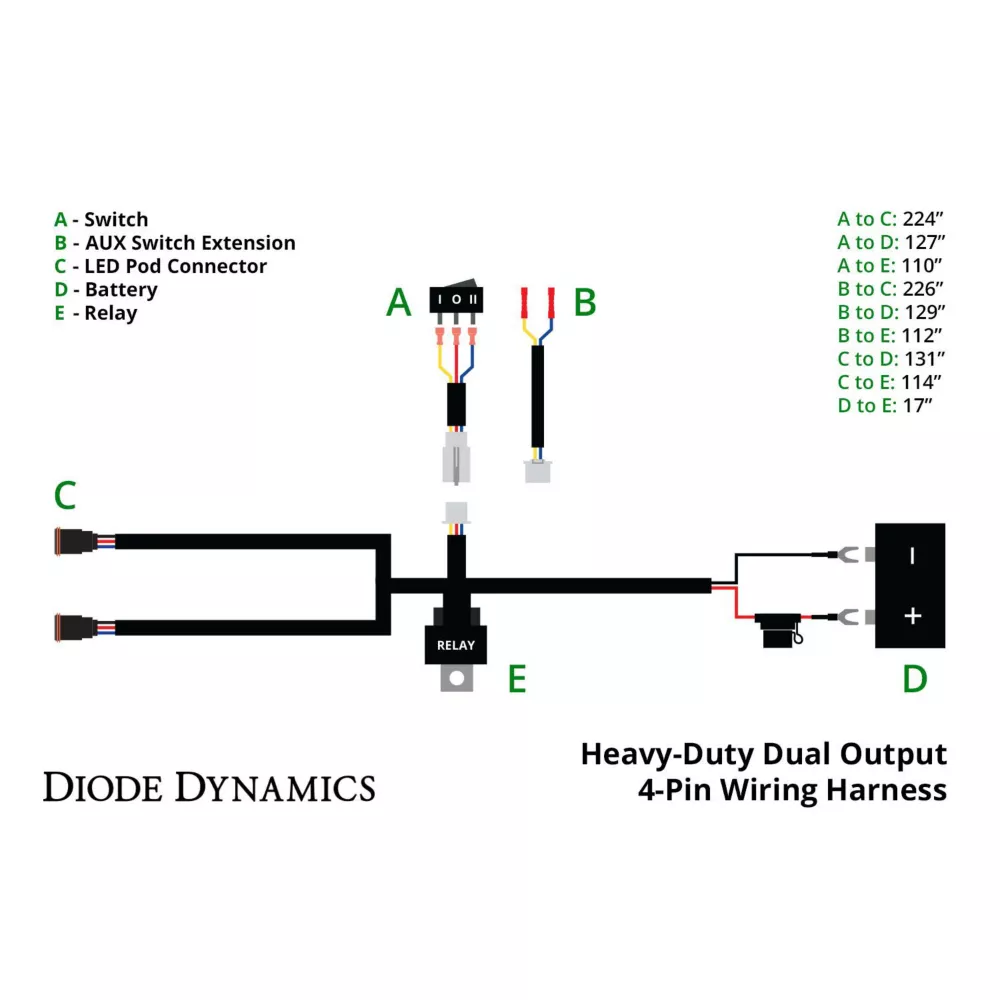

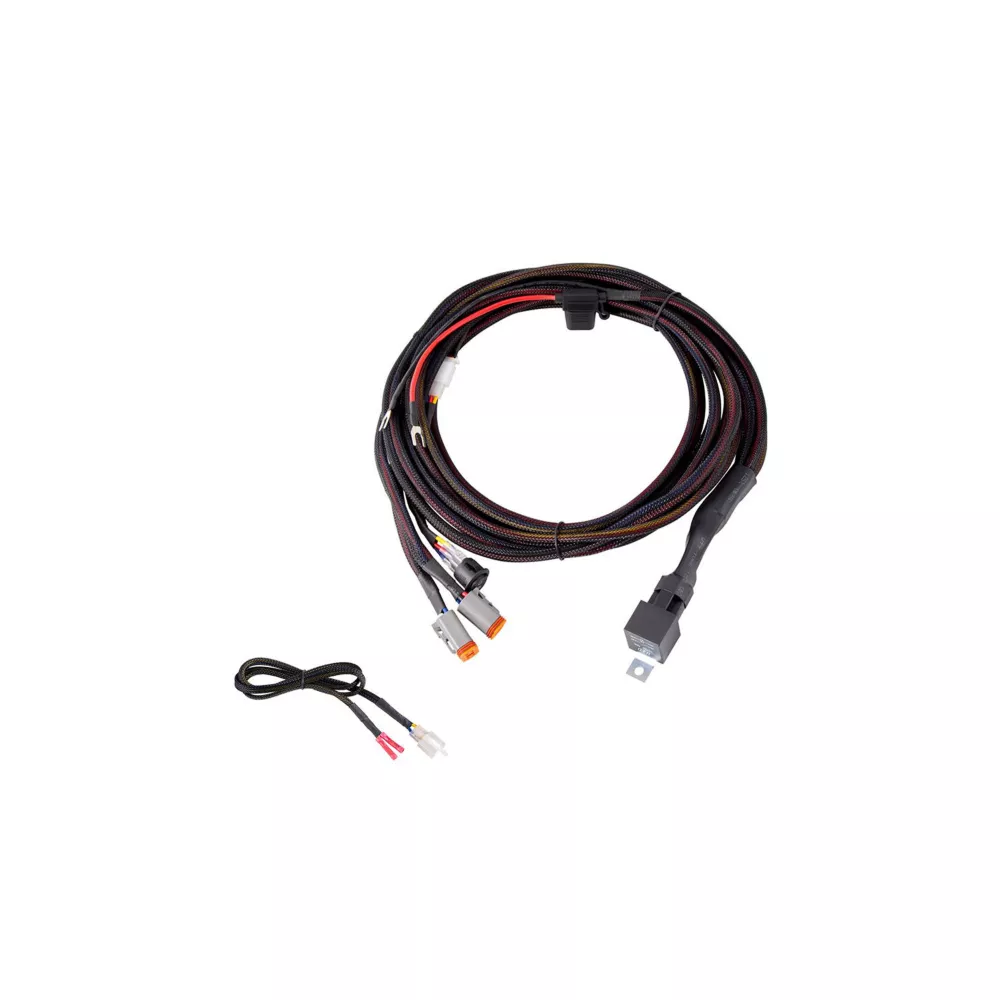

This harness can be used with Diode Dynamics Stage Series light bars and pods WITH backlight functionality. As well as other products using a 4-pin DT power input. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch and uses high-capacity 14AWG wiring and Deutsch 4-pin DT connectors for simple plug-and-play installation.- Includes 3/4" universal toggle switch
- Includes wiring adapter if using an aftermarket or OEM switch panel to control accessories

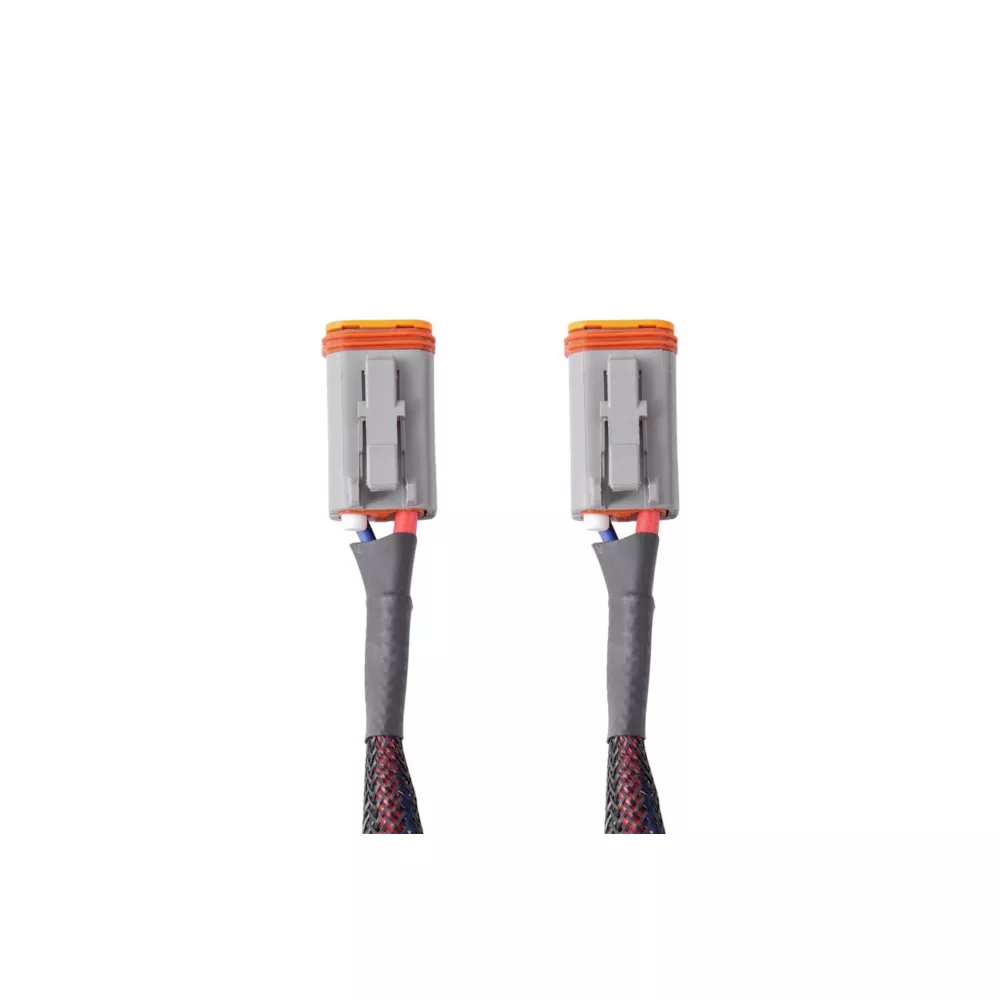

- Dual Deutsch 4-pin DT output connectors.
- 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.
- Connects directly to the battery to power your LED pods.
- Can be used with Diode Dynamics LED pods with backlight functionality.
Diode Dynamics Dual Output 4 Pin Heavy Duty Wiring Harness Automotive Light Mounts & Accessories Truck & Automotive> Automotive Lighting> Automotive Light Mounts & Accessories
| Specification | Description |
|---|---|
| Brand | Diode Dynamics |
| Country of Origin | Imported |
| Battery Size | N/A |
| Bulb Count | N/A |
| Bulb Type | N/A |
| Compatibility | 4-pin Deutsch DT |
| Coverage Area | 224 in. |
| Features | Universal harness |
| Finish | Not Applicable |
| Housing Color | Black |
| Indoor/Outdoor | Outdoor |
| Light Type | N/A |
| Lumen Rating | 0lm |
| Package Quantity | 1 |
| Power Type | 12V |
| Primary Material | ABS Plastic |
| Product Height | 9 in. |
| Product Length | 6 in. |
| Product Weight | 1.1 lb. |
| Product Width | 4 in. |
| Voltage | 12v |
| Wattage | 25A |
| Manufacturer PartNumber | DD4093 |
